M139 M543 Kit Power Amplifier Class D TPA3116D2 2x50W+100W 2x120W Stereo Subwoofer XH-M139 XH-M543
Deskripsi singkat
Elektronik > Perangkat Audio & Speaker > Amplifier & Mixer > M139 M543 Kit Power Amplifier Class D TPA3116D2 2x50W+100W 2x120W Stereo Subwoofer XH-M139 XH-M543
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail M139 M543 Kit Power Amplifier Class D TPA3116D2 2x50W+100W 2x120W Stereo Subwoofer XH-M139 XH-M543
Video perkenalan produk M139 M543 Kit Power Amplifier Class D TPA3116D2 2x50W+100W 2x120W Stereo Subwoofer XH-M139 XH-M543. Sumber: Shopee.

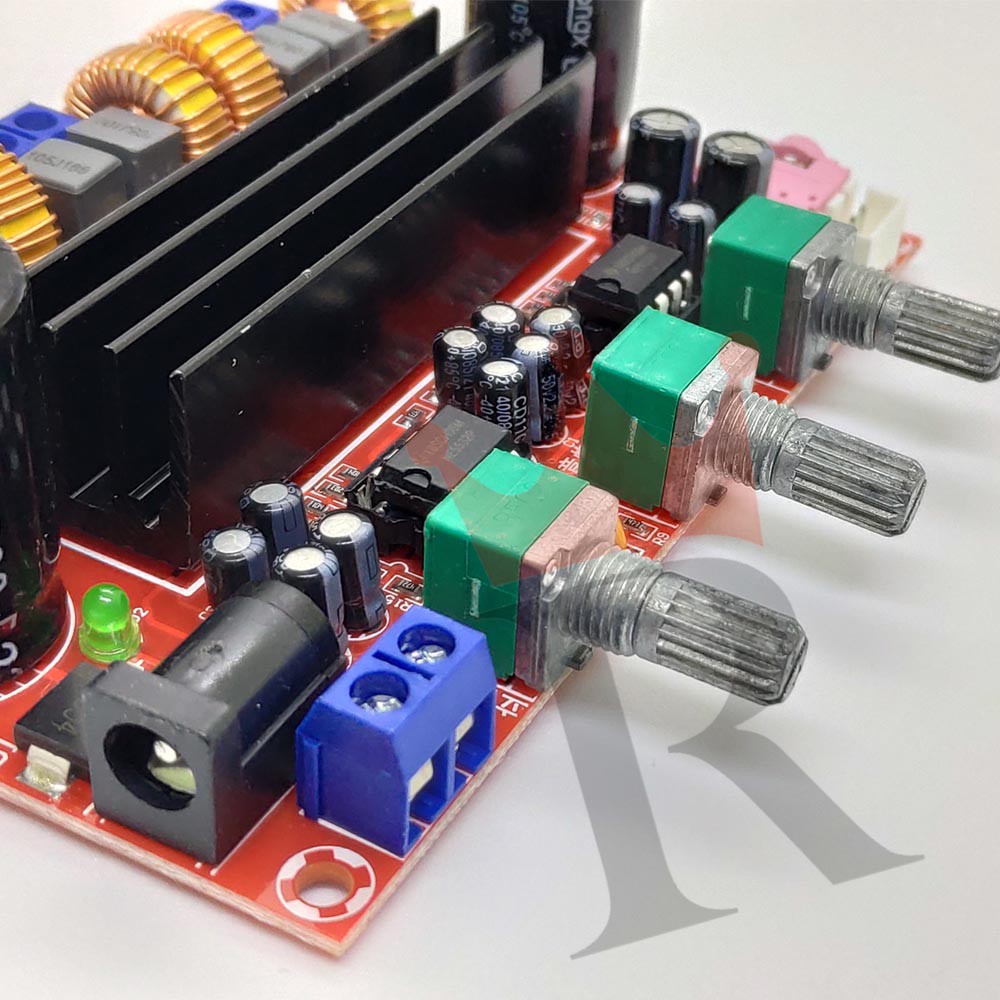

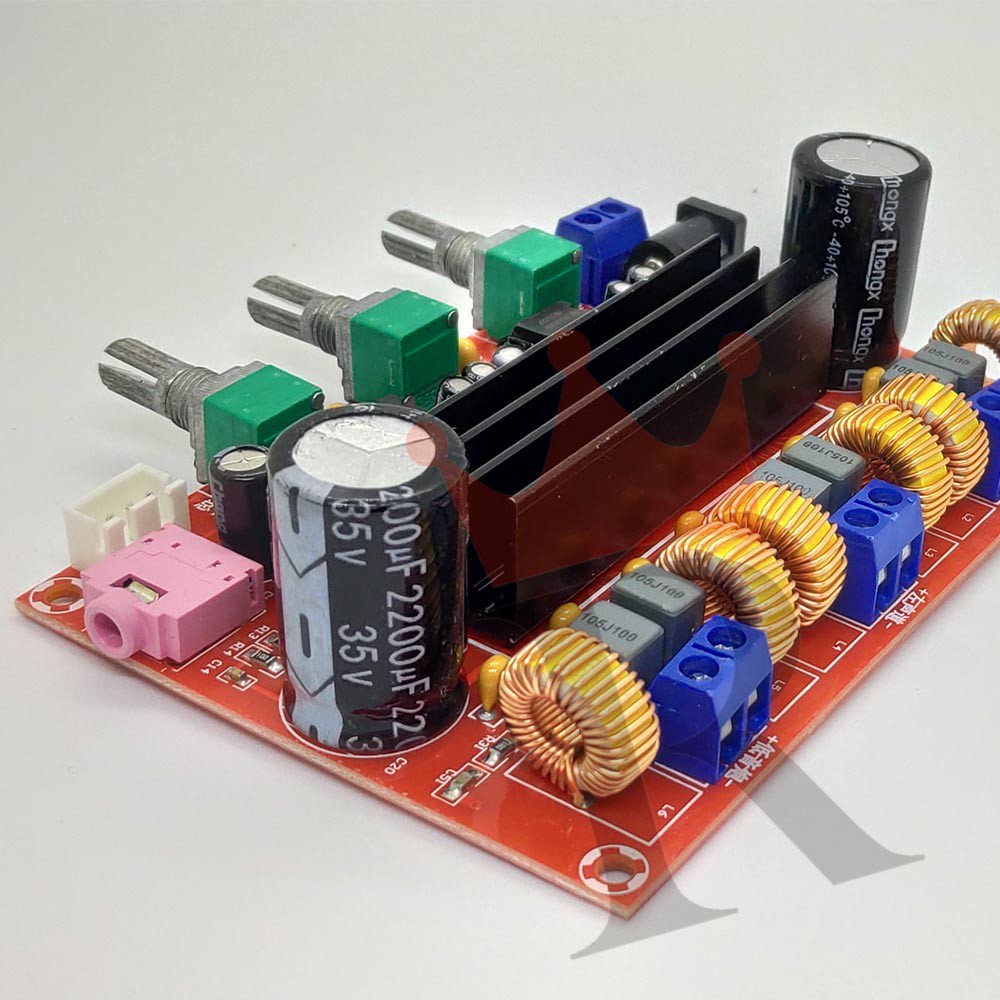

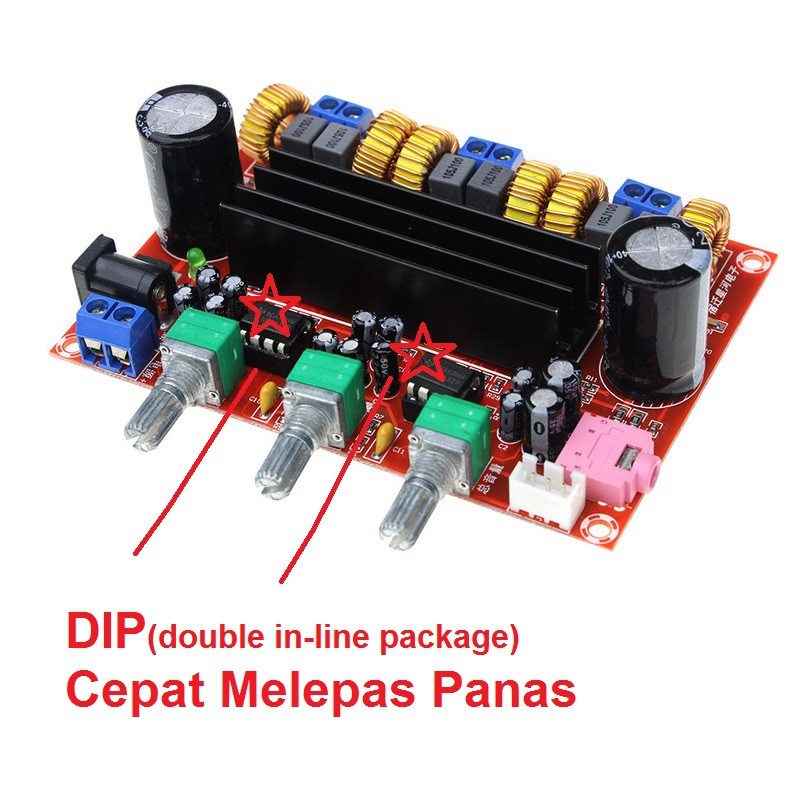

********************************** M139 ( XH-M139) *************************
Kit Power Amplifier Class D TPA3116D2 2.1 2x50W+100W TPA3116 D2
Spesifikasi :
Channel Sound : Setereo.
Chip : TPA3116D2.
Potensio : Balance, Bass, Volume.
Size : 100x70x30mm.
Power Output Maximal : 2x50Watt Stereo + 1x100Watt Subwoofer
Working Voltage : 12-24 Volt DC.
Supply Power : 24 Volt Recomended Output.
Current : 5 Ampere.
Signal Noise Ratio : 100dB.
Impedance : 4/6/8 Ohm(8 Ohm is the best).
Pcb Color : Red.
efficiency : 90%.

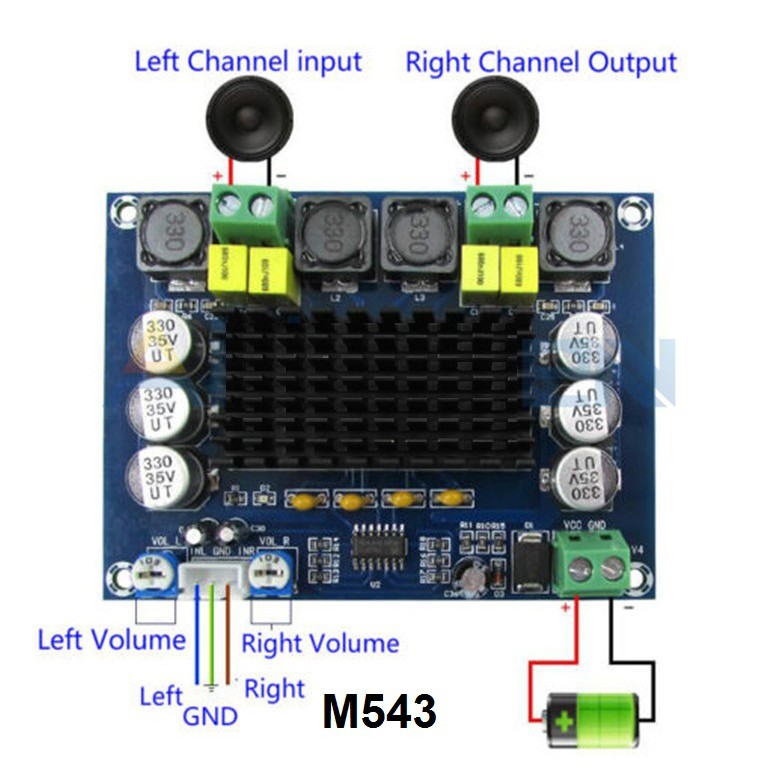

********************************** M543 ( XH-M543) *************************
Deskripsi XH-M543 High Power TPA3116D2 2x120W Stereo Class-D Audio Amplifier Kit
Features:
Onboard front-facing IC to improve the input sensitivity, high-definition sound quality.
Name: TPA3116D2 Digital Amplifier Board
Model: XH-M543
Chip type: TPA3116D2
Working voltage: DC12-26V
Output power: 120*2W MAX, DC12V, 2*50W,DC24V, 2*120W
Signal to noise ratio: 100db
Channel: Dual channel stereo
Size: 92 x 68 x 16mm
100W 24V, maximum rated current is 4.2A
The maximum is 100W, please try not to adjust to 100W
100W is the maximum amount, the current will follow the actual transfer to change, there is no fixed current
Included:
1 Board power TPA3116D2 2x120w stereo XH-M543.
3 in 1 kabel audio input.
************************************************************
Kebanyakan komplain suara kurang mantab karena tidak tau cara pemasangannya dibawah 12v dc dan dengan ampere kecil,kami sarankan lagi untuk suara yg lebih mantab rekomondasi 24v dc minimal 5 ampere . Harap ditanyakan dulu kalau kurang jelas,jangan asal beli tidak tau caranya,kemudian hari memberi feedback / ulasan yang kurang memuaskan bagi kami.
Produk sudah Pasti kami Cek Secara fungsi sebelum dikirim.
#kitpower #powerampli #powerclassd #kitamplifier #tpa3116d2 #kitpoweramplifier #ampli #poweramplifier #amplifier #terlaris #Bagus #murah
Gambar produk
