Detail M12 Beam Laser 0-20M Visible Light Beam Photoelectric human Sensor detector object door pintu

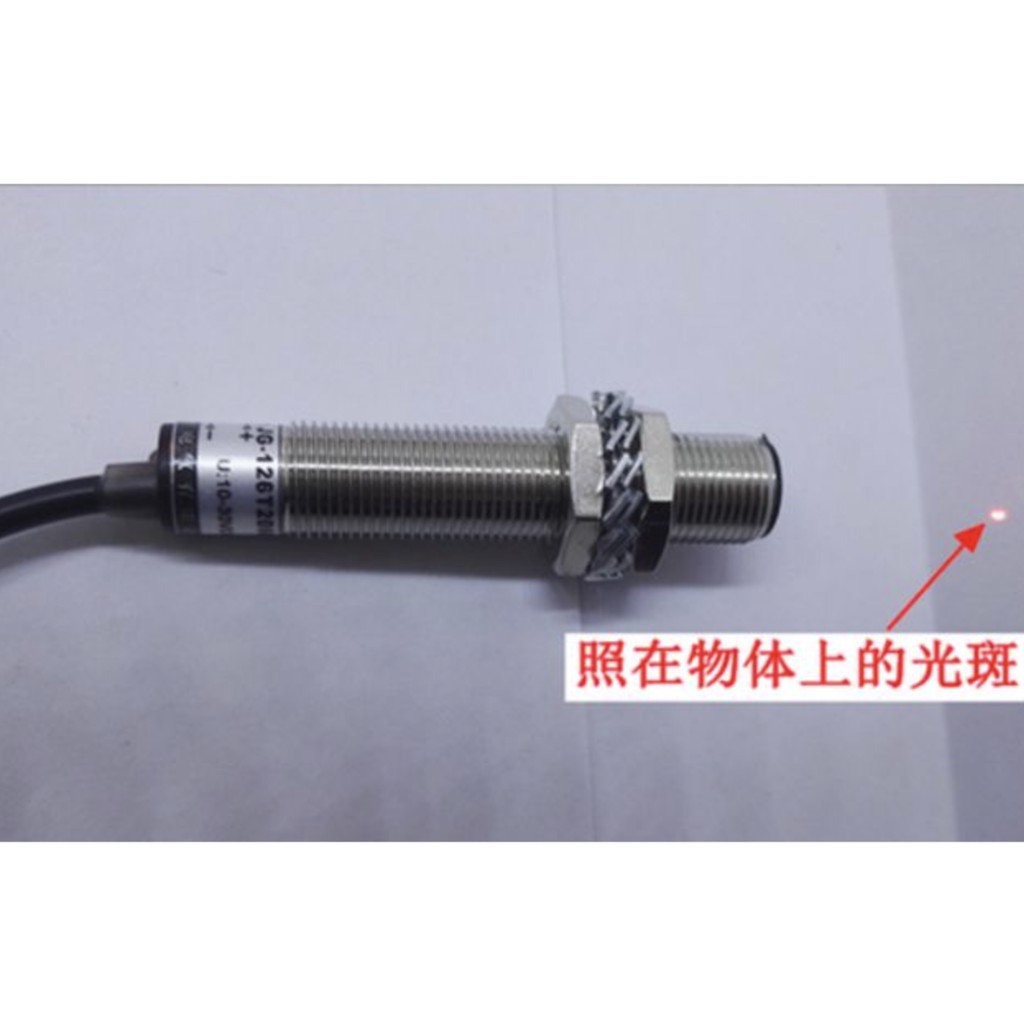

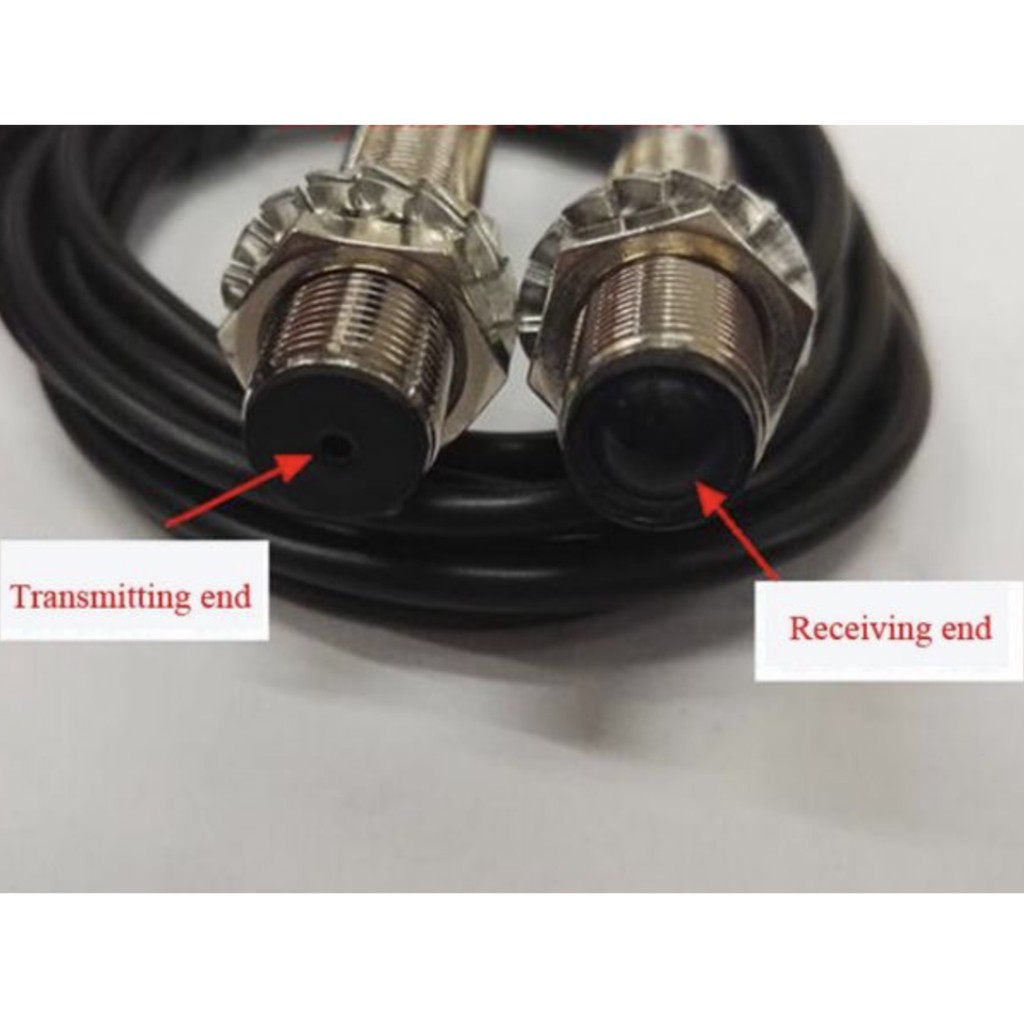

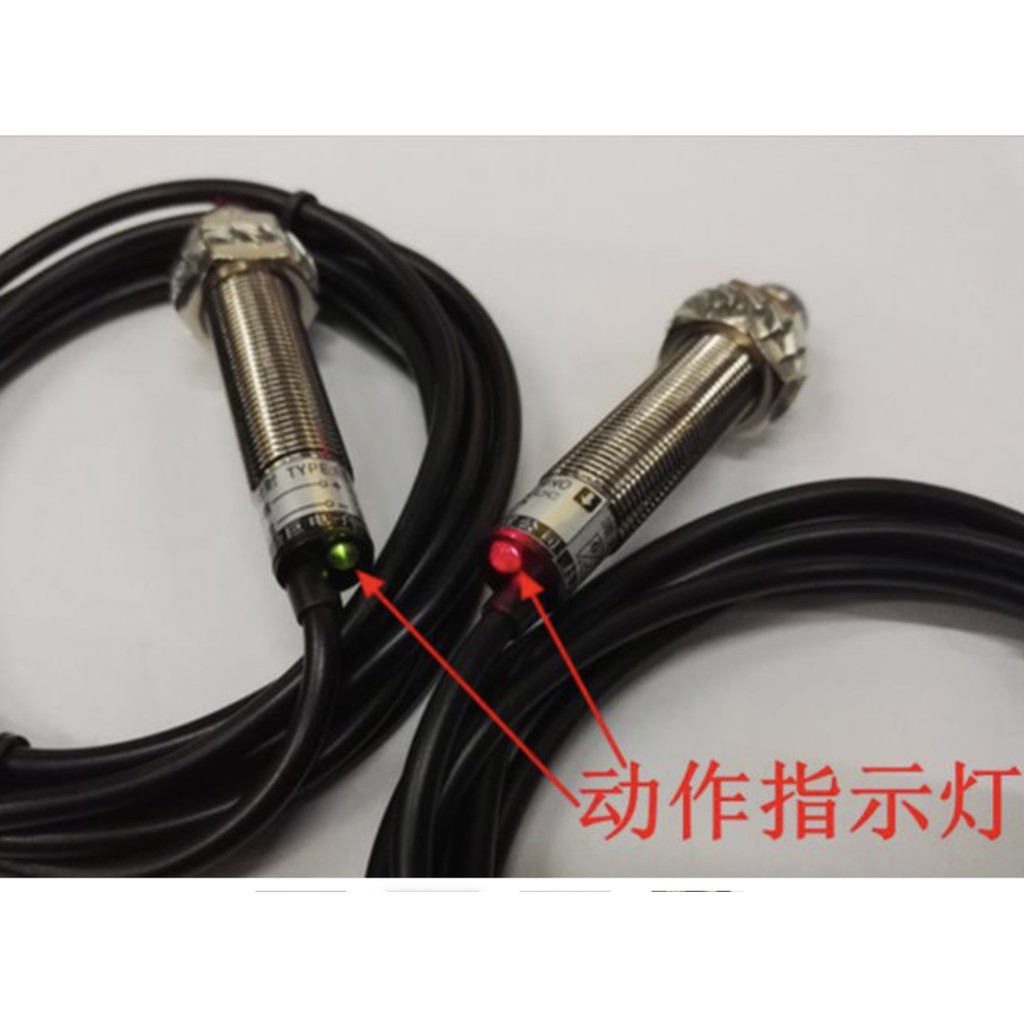

Product name : Laser beam photoelectric switch
Dimensions : Diameter 12MM 58MM line length 1.8 meters long
Operating voltage : DC10-30V receiving end of three-wire two-wire transmitter terminal
Load Current: 200mA
Detection distance : 0-20 meters
Working temperature : -25-60 C
Response time : 2ms
Spot diameter : 1.5MM within
Short circuit protect : Yes
Reverse polarity protect : Yes
Output form: NPN normally open

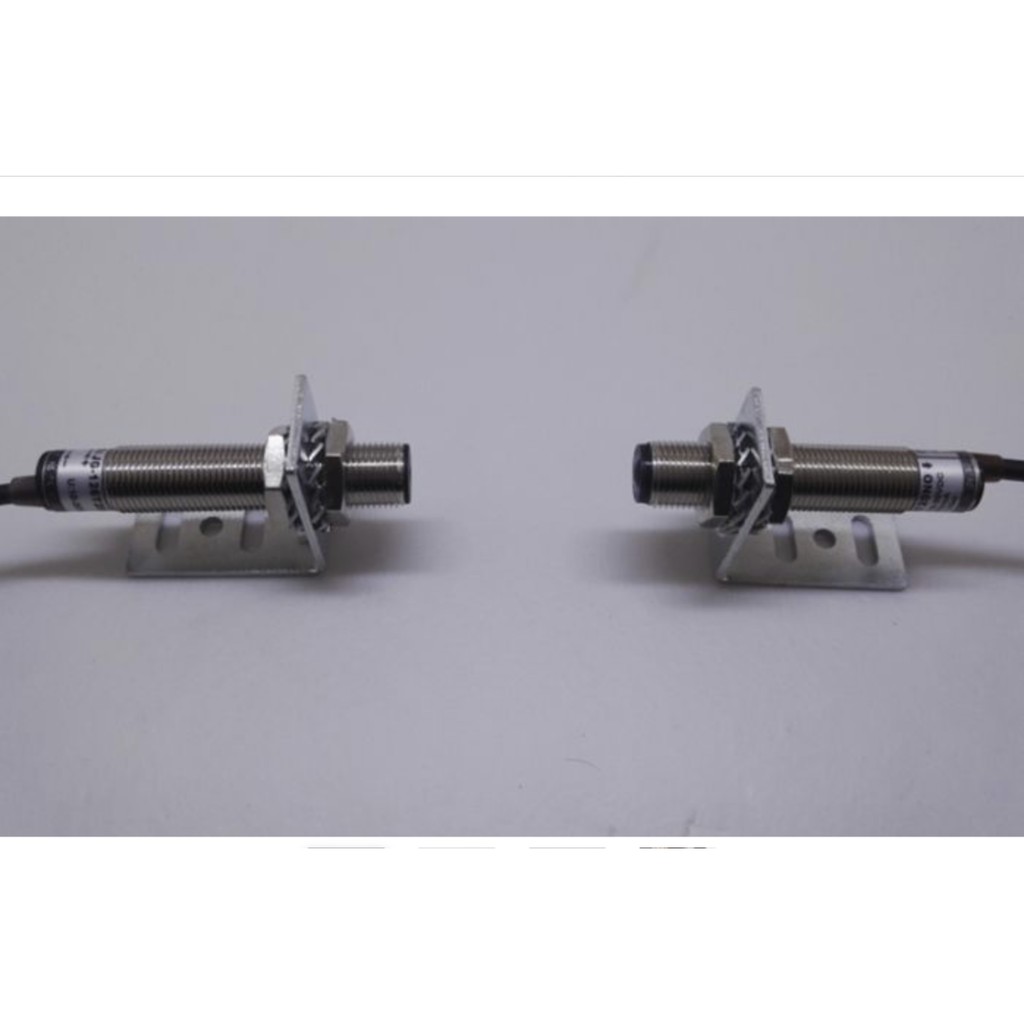

Note: include bracket
