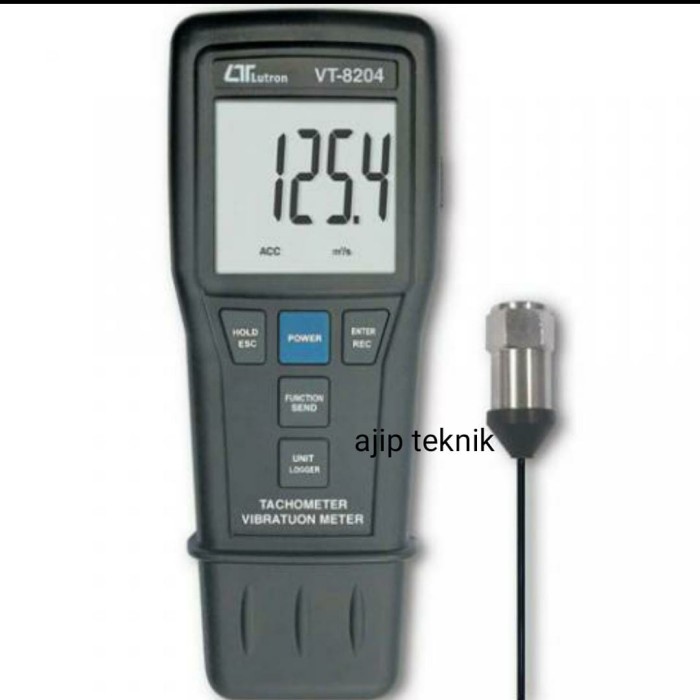

Lutron VT8204 digital vibration + tachometer ukur getaran rpm VT-8204

Detail Lutron VT8204 digital vibration + tachometer ukur getaran rpm VT-8204

OVERVIEW:
Applications for industrial vibration monitoring: All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed

FEATURES:
VIBRATION FUNCTION
* Acceleration range: 200 m/s^2
* Velocity range : 200 mm/s
* Displacement ( p-p ) range : 2 mm
* Metric and imperial display unit
* RMS measurement for Acceleration and Velocity
* Peak to peak measurement for Displacement
* Peak function for Acceleration and Velocity
* Max. hold function for Acceleration (peak)
* Velocity ( peak ) and Displacement (peak to peak)
* Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954
* Zero function, executed by front buttons
* Data logger function with flexible sampling time selection, can save max. 1000-point data into the memory circuit
* Data hold button to freeze the desired reading
* Memory function to record maximum and minimum reading of RMS value ( Acc., Vel. ) or Displacement ( p-p )
* Auto shut off saves battery life
* Professional vibration meter supply with separate vibration sensor & magnetic base, full set

TACHOMETER FUNCTION
* Laser light detecting source, long measuring range up to 1.5 meters, it is useful in the RPM measurement application where the machine would be a risk to the operator or close access is difficult or not possible
* The best Tachometer in the world. 2 in 1, one instrument combine Photo Tachometer & Contact Tachometer
* Wide measuring range from 0.5 to 100,000 RPM, 0.1 RPM resolution for the measured value < 1000 RPM
* Microprocessor based circuit, crystal time base, high precision with 0.05% accuracy
* Memory with recall function, the last value, max., value, min

WHAT'S IN THE BOX:
* VT-8204
* Instruction manual
* Vibration sensor: VB-82
* Magnetic base
* Reflecting tape marks (600 mm)
* RPM cone rubber
* RPM funnel rubber
* Carrying Case ...
