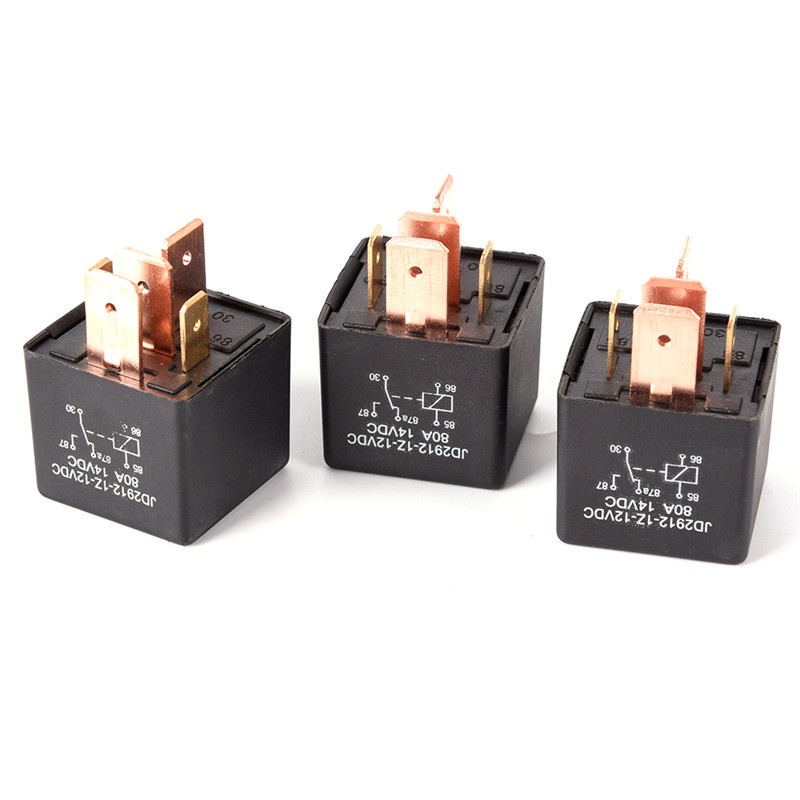

Detail {LUCKID}Waterproof 12V Relay DC SPDT 80A 5 Pin Car Changeover Automotive ON/OFF Relay
Features:100% brand new and high quality
With Fuse,more safe,more convenient
Specifications:
Size(L*W*H): 28mmx28mmx25mm/1.1inx1.1inx1in
Ambient temperature: -40°C~+125°C
Contact Form: 1a,1b,1c
Contact Capacity :
1a:80A 14VDC
1b:60A 14VDC
1c:80A/60A 14VDC
Coil Voltage: 12VDC
Coil Power: 1.8W
Contact Resistance: ≤50mΩ
Initial insulation resistance: ≥1,00MΩ
Life: Electrical Life 100,000ops
Mechanical Life 1,000,000ops
Dielectric strength Between off-contact: 500VAC
Between Coil contact : 500VAC
Installing form: Tri-clamp connection, socket mount
Environment Temperature: -40°C~+125°C
Package Including:
1 x Relay
Note:
1.Please allow 0.1-0.3cm differences due to manual measurement, thanks.
2.Please understand because of the light irradiation or computer display difference, so I can't guarantee photos and real color is 100% the same.
