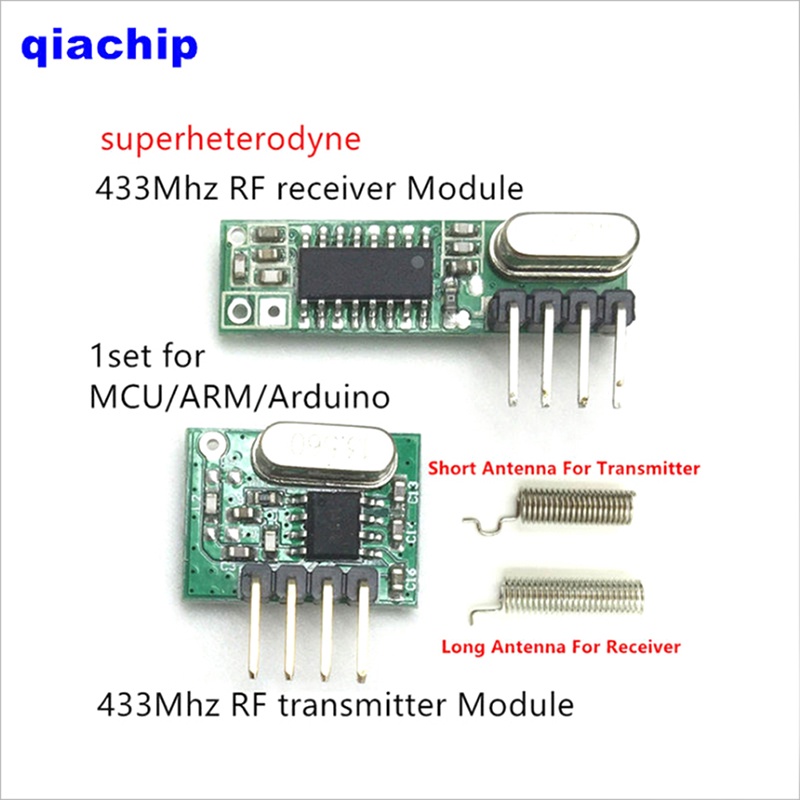

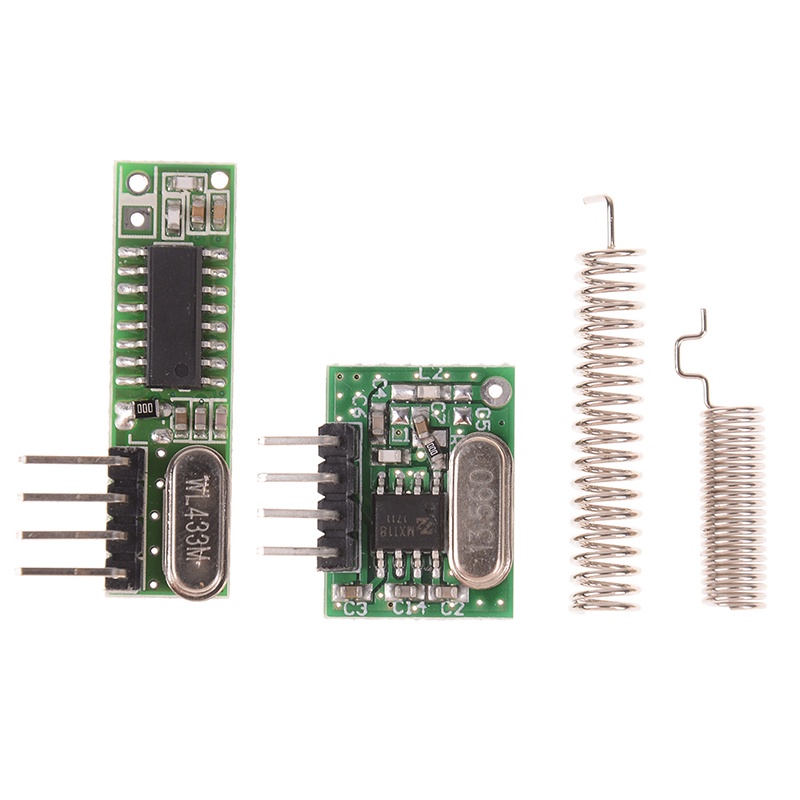

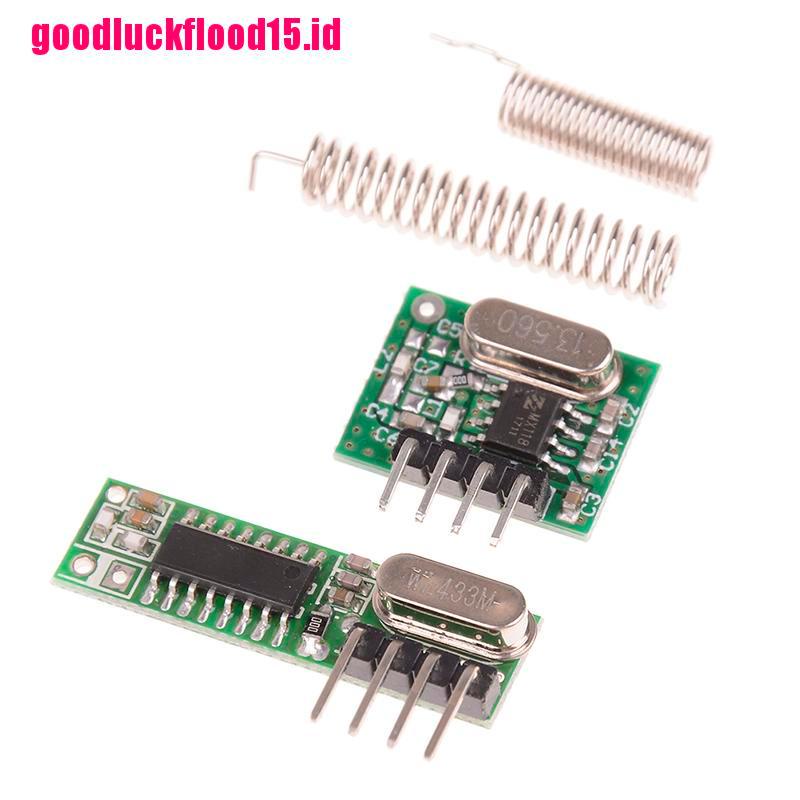

Detail {LUCKID}RF module 433mhz superheterodyne receiver and transmitter kit for arduino

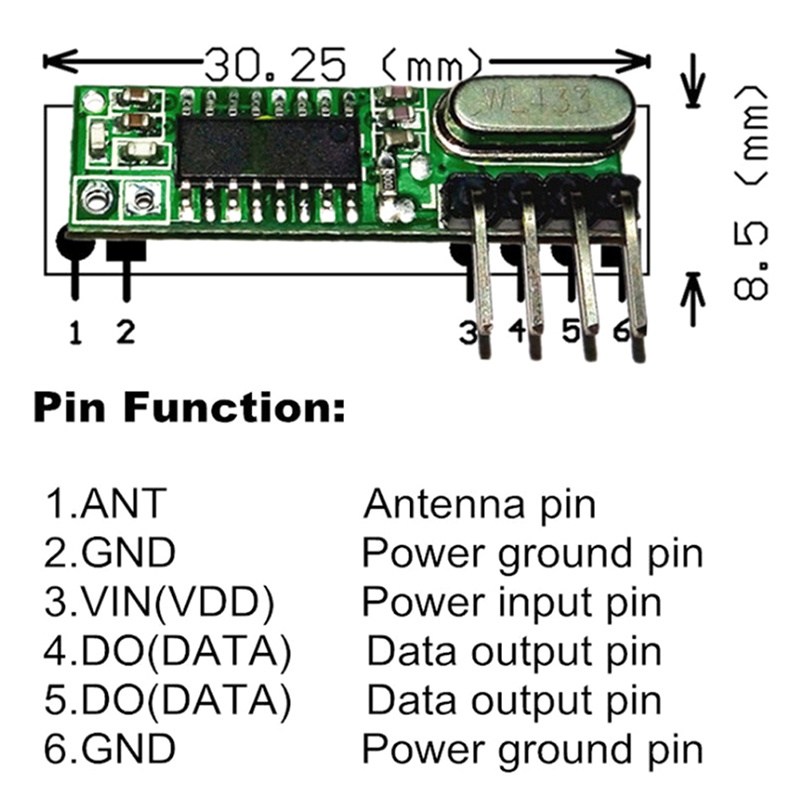

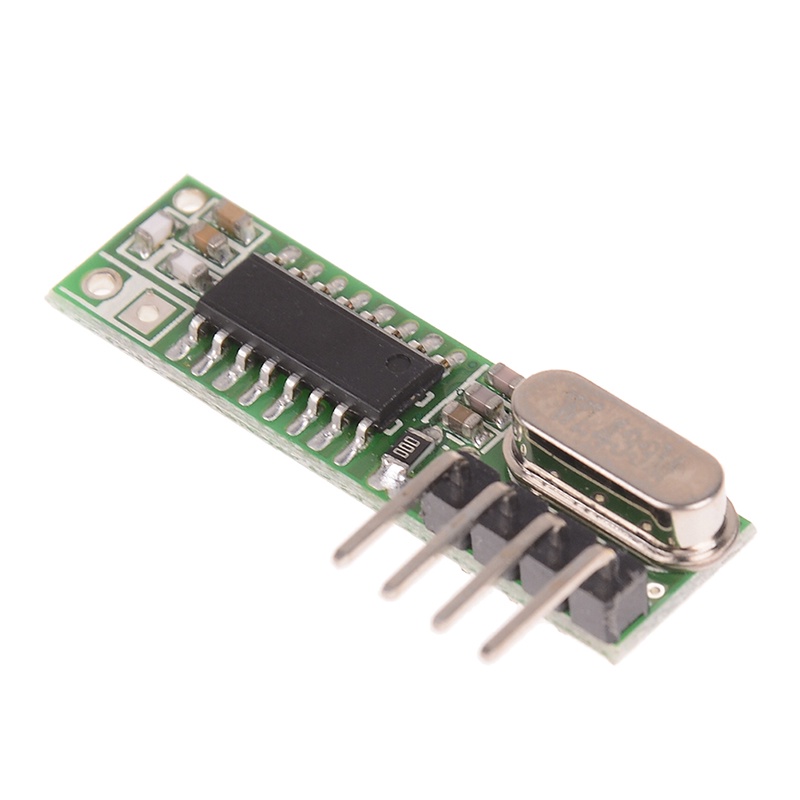

Description [Receiver module ] Product Model: WL101-341 WL101-341 superheterodyne wireless receiver module is receiving UHF ASK demodulators support ASK and OOK modulation. The receiver module has high sensitivity (-110dBm), Low-power performance, along with high dynamic range (greater than 60dB). Module uses highly integrated chip, built front-end low-noise amplifier,Mixers, filters, frequency synthesizer circuit, etc., can maximize the signal optimization. Features 1.Support ASK / OOK modulation, the receiver sensitivity of -110dBm; 2.Operating frequency: 433.92 MHz, bandwidth of about ± 150KHz; 3.mains input voltage range: 3.0V-5V; Working current: Type :5.0mA (Requirement:VDD=5V) ; Type :6.0mA (Requirement:VDD=3V) 4. Quiescent Current: 1uA 5. Low power consumption; 6. good selectivity and spurious radiation suppression, and easy to pass CE / Fcc international certification; 7. Good local oscillator radiation suppression, multiple receiver module to work with (ie, more than single income) and will not interfere with each other, used together without affecting the receiving distance; 8. multiple transmission rates, the general module for 2KHz, up to 10KHz; 9. Temperature range: -40-85 °C 10. ultra-small size of 30.25 × 8.5 × 1 (mm) 11.External antenna: 32CM single core wire, wound into a spiral Package Included: Receiver module * 1pcs Transmitter module * 1pcs Antenna * 2pcs (Short antenna for Transmitter; long antenna for Receiver.)
