Description:

* If you live in the city telephone line has not support dial-up telephone ,Install this module, you dial the phone (no matter which domestic old phone) you can on the telephone line normal use! But also increased the redial and allocated * # # function.

* DIALOR2.0 can make the old dial telephone to use circuit module;She would not be modern switches to identify the pulse signal can be converted to modern switches recognition of dual tone multiple frequency signal;This allows those who could only do decoration is the collection of telephone also can be used in daily life normal again.

* DIALOR2.0 enhanced version has a "redial" and "set aside" # "and" * ", such as function, makes the old telephone also can compare with modern telephone!

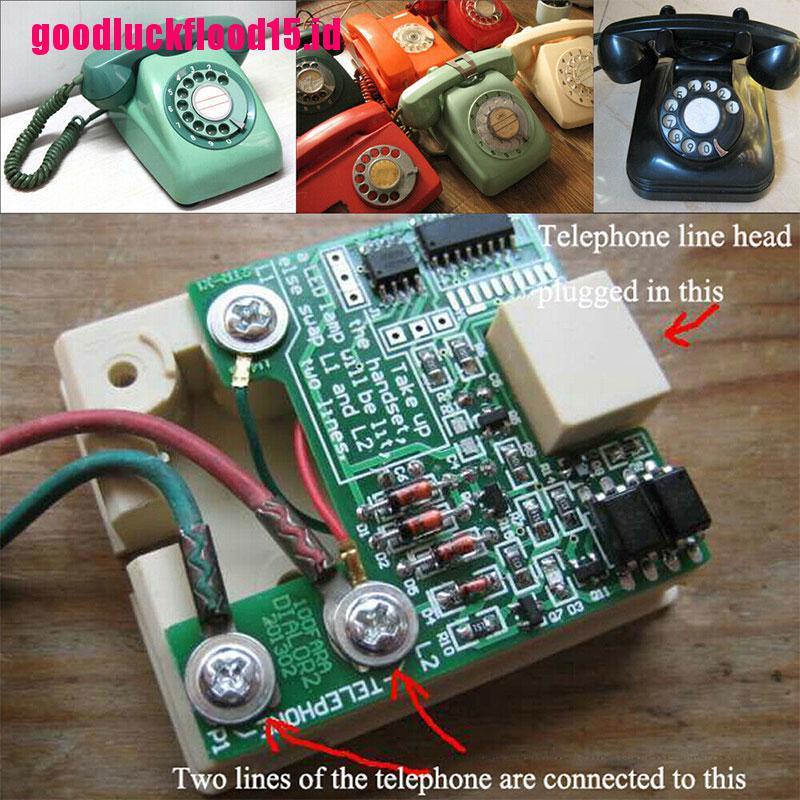

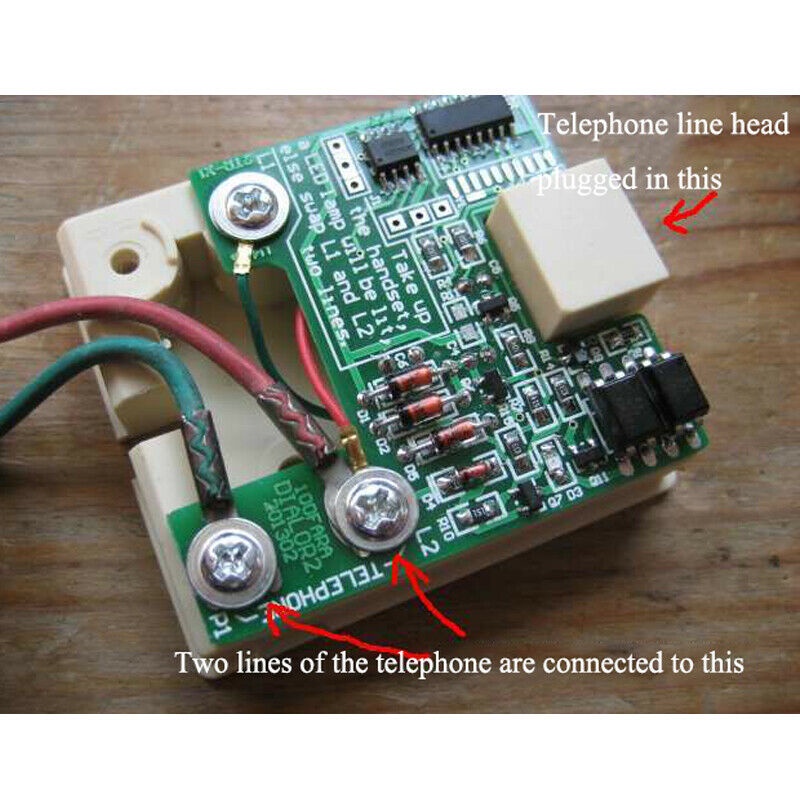

* Easy to install and use, just connect the 2 wires of the telephone to the designated terminal block and plug in the crystal head of the telephone line to use.


* Note: Dial the dial to the end, do not let go, then the indicator light is not lit; otherwise there is a problem with the phone!

The dialing method is the same as the old telephone dialing habit;

Redial method: dial 1 for about one second, release the dial pad; that is, "redial";

Dial * # method: dial 2 to wait for about one second, release the dial pad, that is, dial the * number; the same method, dial 3 is to dial #.


Specification:

- Condition: 100% brand new and high quality

- Color: Creen+White

- Dc voltage: 32 v, 48 v.Current: 20-40 ma

- Quantity: 1pc



Package included:

1 x Telephone module Pulse transfer dual tone multiple frequency DTMF converter



Attention:

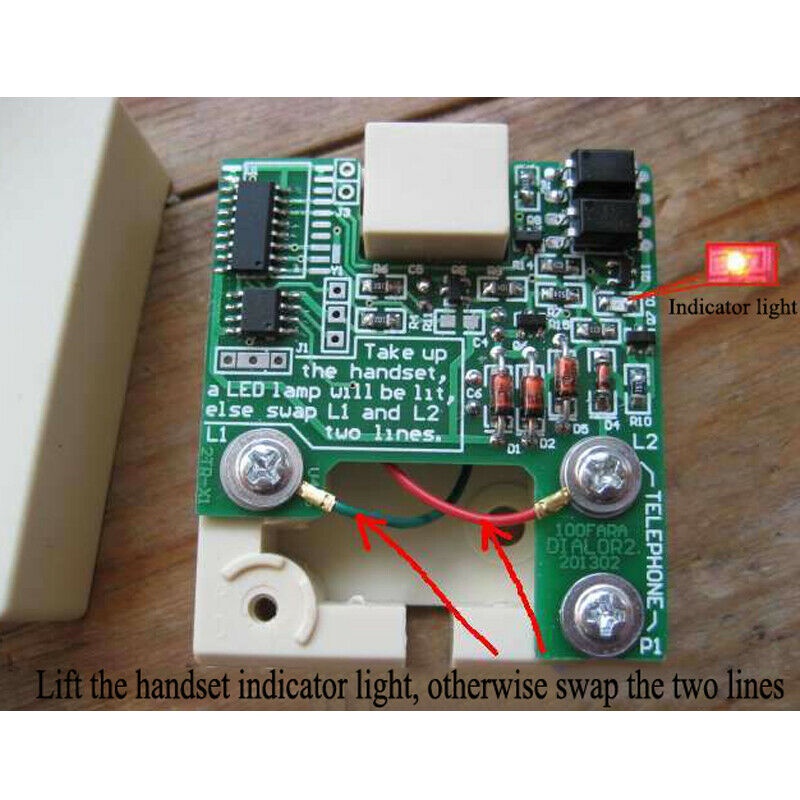

Telephone is connected at P1 / L2
1. Lift the handset indicator light, otherwise, adjust L1 / L2;
2. If the dial pad is dialed, the indicator light is off, otherwise there is a problem with the phone.
3. Release the dial, the indicator light will flash
These three points must be consistent
