Detail {LUCKID}ESP8266 ESP-12E ESP-12F Wireless Transceiver Adapter Module 3.3V Regulator

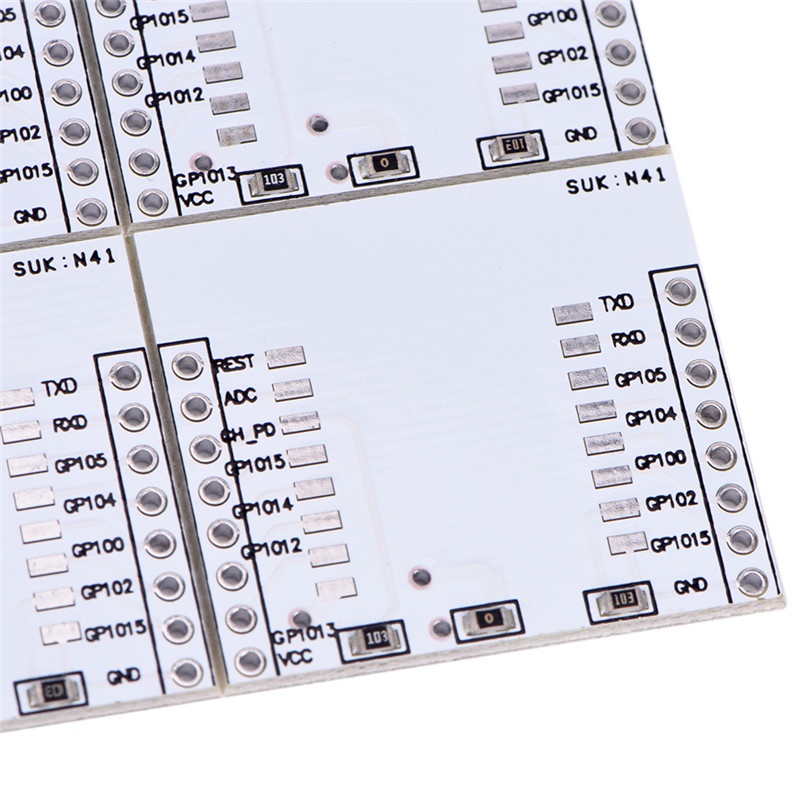

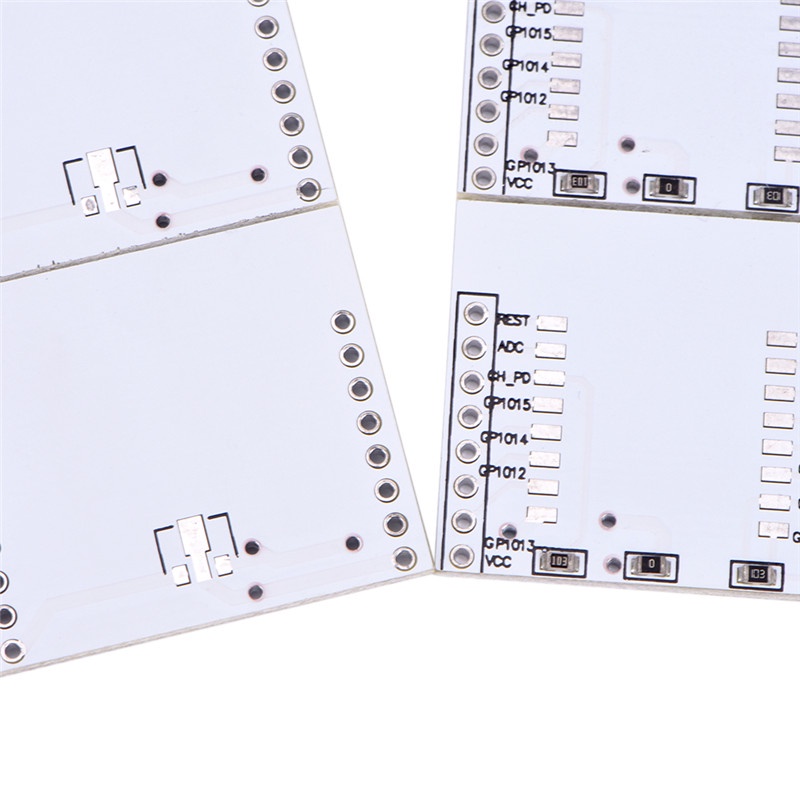

Description：Used to convert the IO ports of ESP-07 (ESP-12,ESP-12E,ESP12F) to 2.54mm pitch pin headers, so it is easy for beginner to
test the module.When you want to use the adapter board with the 3.3v regulator and apply 5v to the board, you also need to
desolder the middle SMD resistor on the adapter board.
Features:
Before use, the user should first follow these steps:
Firstly, Solder the ESP-07 or other module to the adapter board

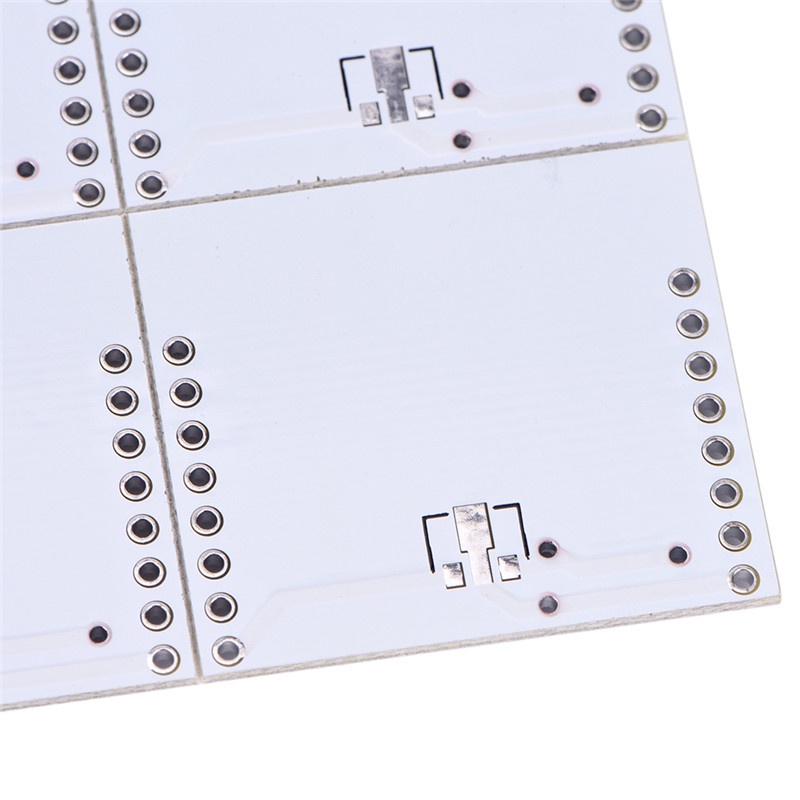

Secondly, Solder the 3.3V regulator to the bottom of the adapter board
Thirdly, Solder the 1X8P pin header to the adapter board
Because there is a 3.3v regulator onboard, the range of VCC pin on the adapter board can be 3.3V to 5V
Not included ESP8266 Module

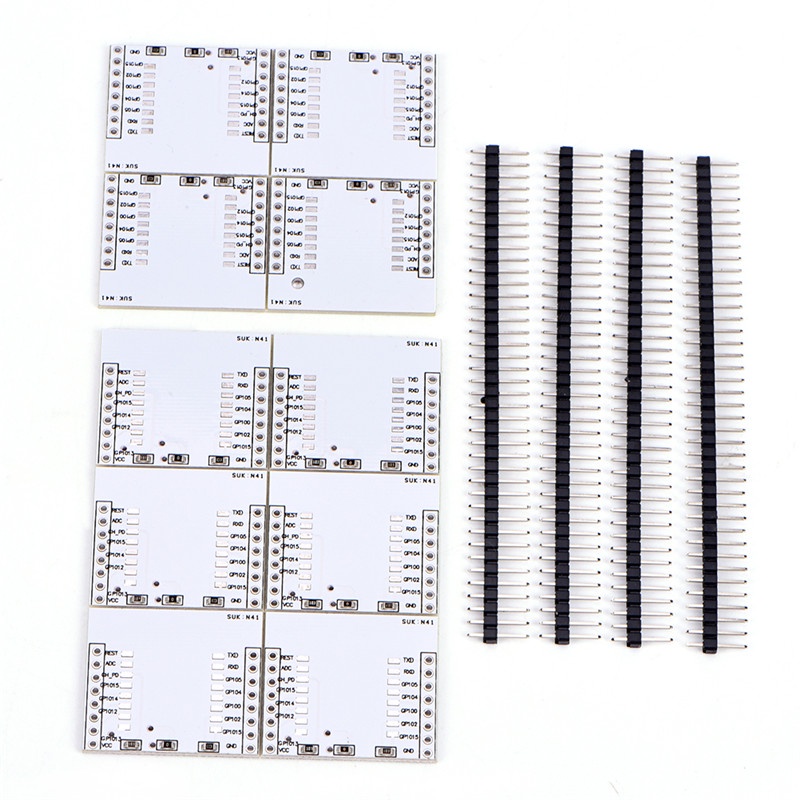

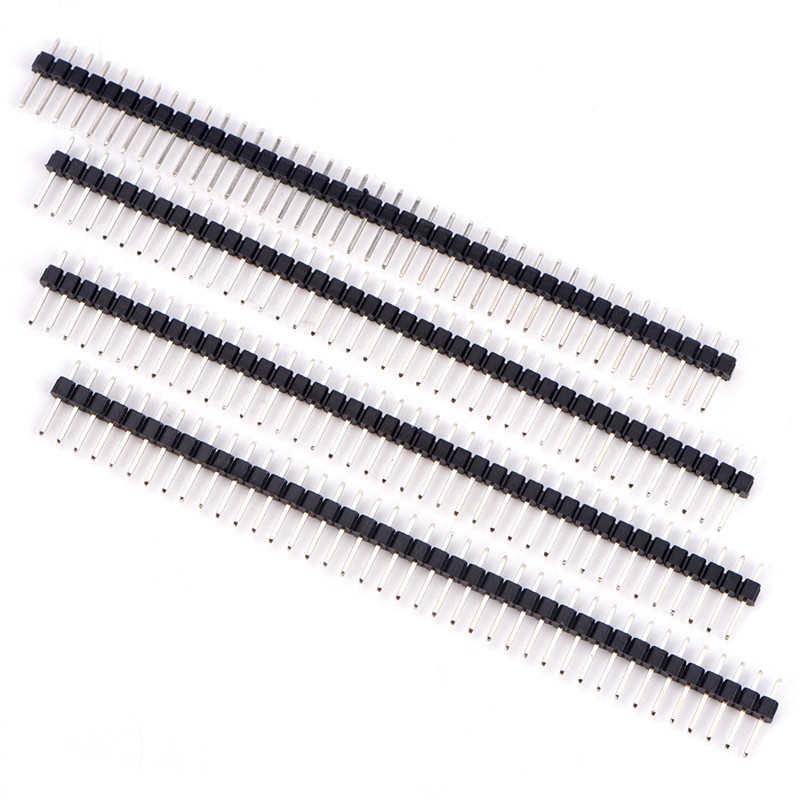

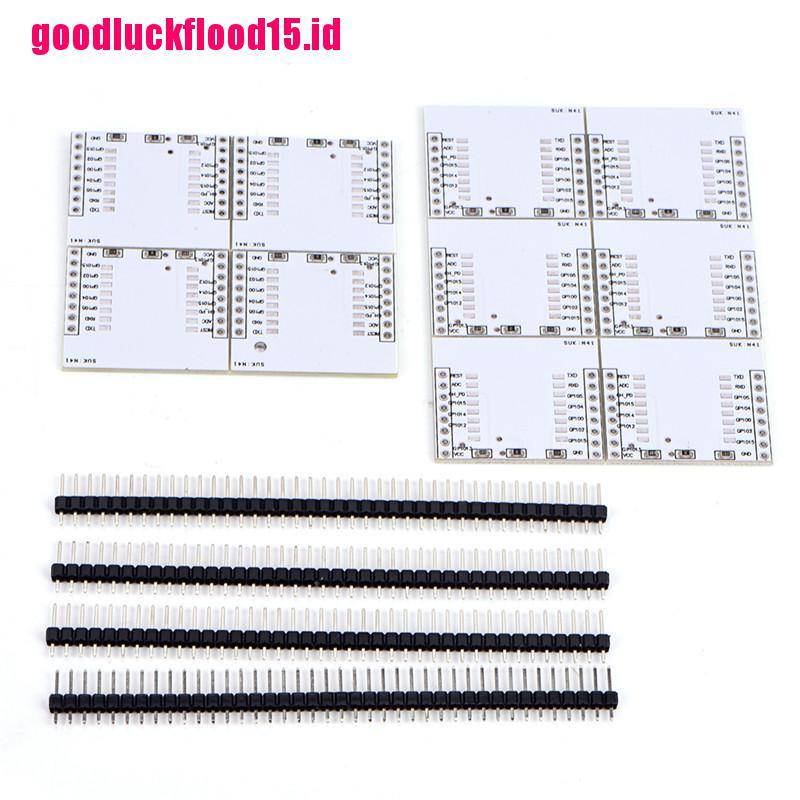

Package：1X Adapter Board 2X 8P pin headers
