Features:
This Auto Car LED Daytime Running Light Controller can be used to control your car light intelligently
Mini shape, light weight and waterproof
Fit for all Brand of cars
Time-lapse power off function
Simple installation, with no need to change any electric line
Intelligent start up: when the engine is started, the daytime running lights light automatically. when the engine is flameout, the daytime running lights turns off with the delay of 12s
Specification:
Name: Auto Car LED Daytime Running Light Relay Harness DRL Control Dimmer ON/OFF 12V
Material: ABS
Cable length: 74cm/29.13 inch(approx)
Working current: 5A

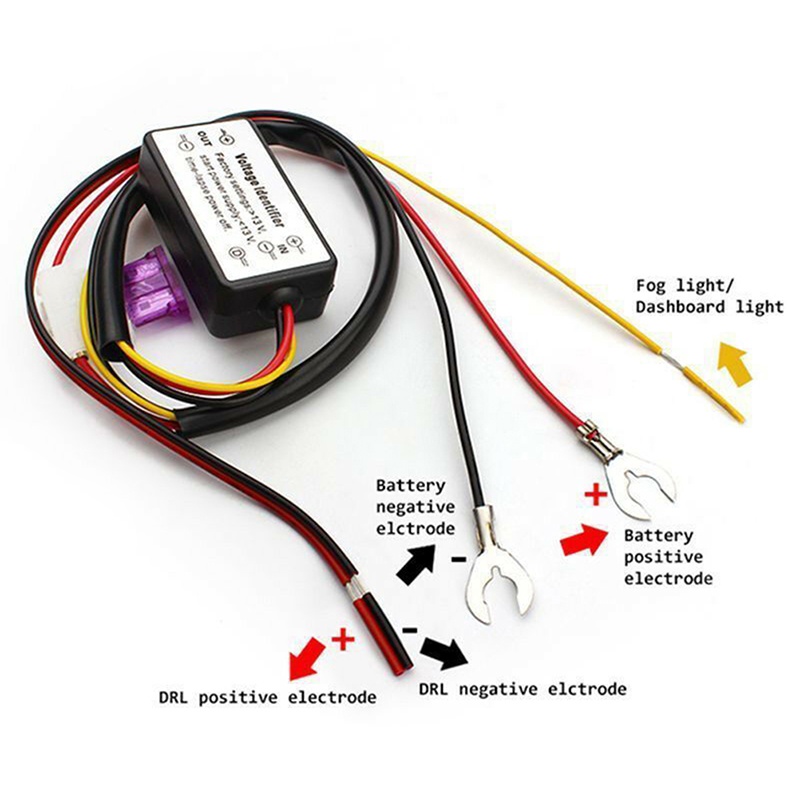

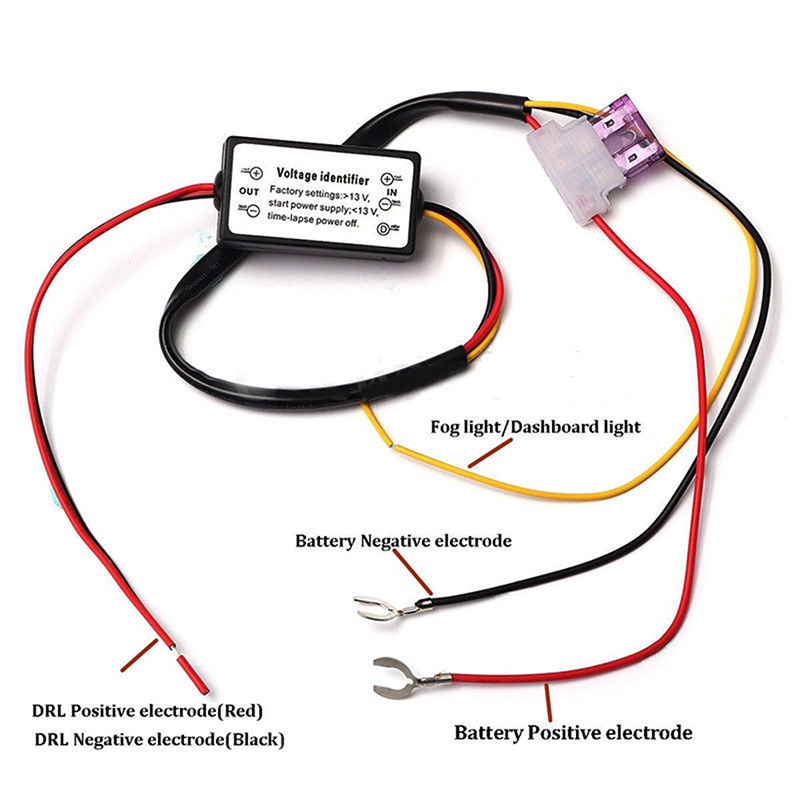

Wiring Instruction:
1. The red and black wire (the end with a fuse) are connected directly to the car battery + & - .
2. The red wire goes to positive pole of the LED daytime running lights, the black wire of the output end is to goes to the negative pole of the daytime running lights.
3. The white wire is to connect to the headlights (or dashboard lights), when headlights or dashboard lights are turned on, the brightness of the LED daytime running lights will be halved.
Package contents:1* Daytime Running Lights Controller
