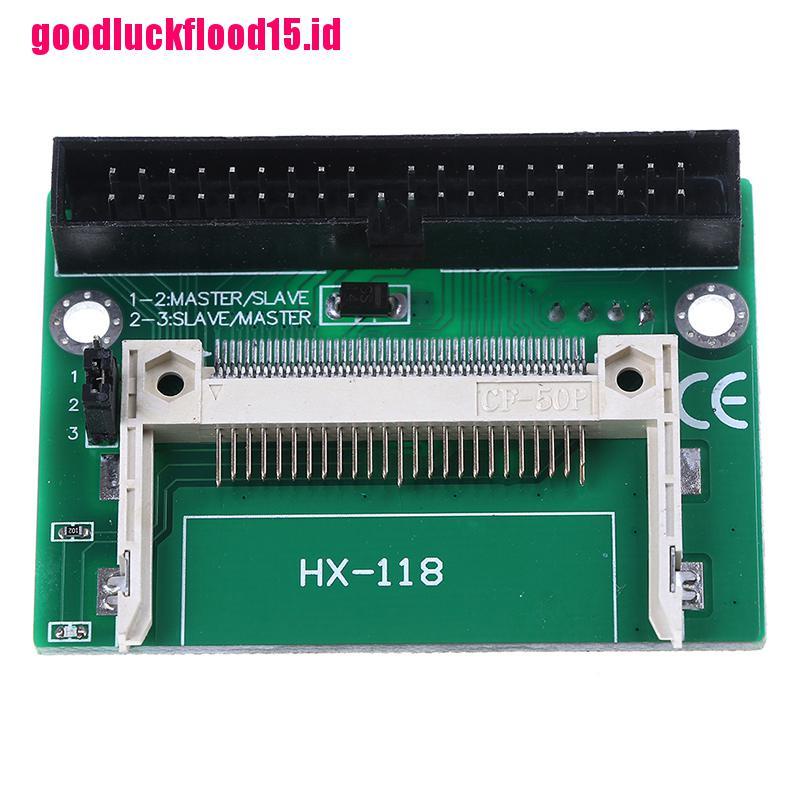

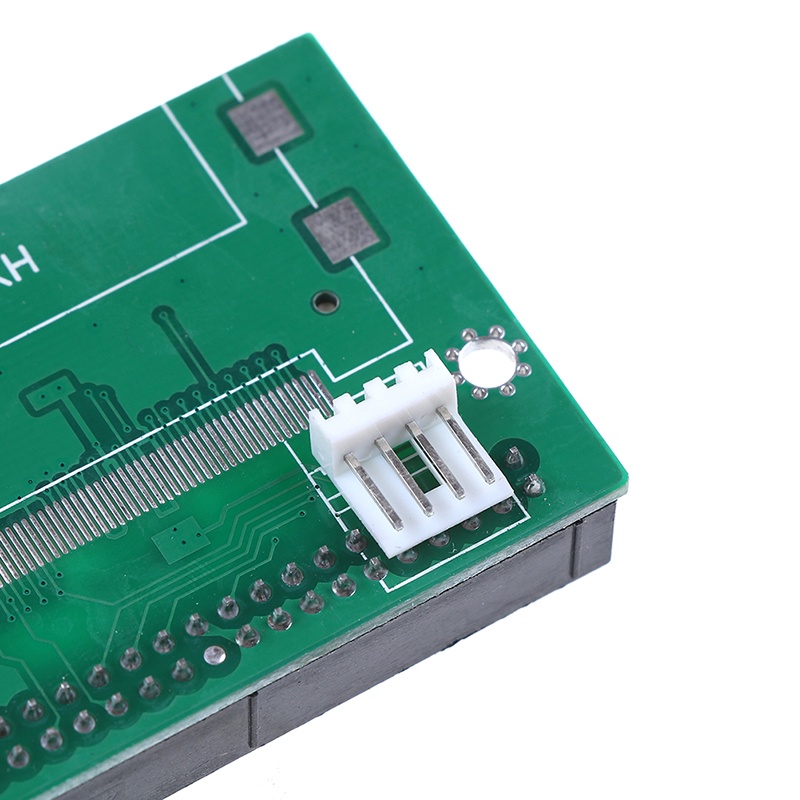

(LUCKID) 1pc adapter CF Ke 3.5 IDE 40Pin Male

Detail (LUCKID) 1pc adapter CF Ke 3.5 IDE 40Pin Male

Description:
-40-pin standard IDE connector
- CF card is essentially an ATA mode of portable solid-state electronic disk. It is characterized by small size, large capacity, intelligence, wide temperature and hot plug-in. CF-IDE adapter adapter specially designed for industrial use is designed and developed with four-layer board structure, which is convenient and flexible to use. The CF card holder designed by us can meet the need of using CF card in your industry. You can use it to extend CF card on IDE interface.
- CF card is suitable for repeated erasing. It can store both program code and data rewritten in large quantities. With the hot plug-in characteristic of CF card, it can be used in data acquisition and storage of instruments to replace the portable floppy disk or USB storage disk.
- Standard IDE Interface, CF Card Extension Supporting IDE Interface
- Seat/Mother Support can be plugged directly into the motherboard or connected to the hard disk line.
- Multilayer board design conforming to industrial standards, strong EMI resistance
Performance characteristics:
- Standard IDE interface: true-IDE mode;
- Support CF-I and CF-II cards;
- The IDE interface is 40 feet/2.5mm bus connector, which inserts the card directly into the IDE socket.
- Master/slave jumper settings: can be configured as master or slave;
- Use CF card as DOM: power supply from external floppy drive power base;
Packaging includes:1pc
