(lsingers1) Zvs Papan Modul Induksi Panas Tegangan Tinggi 1000W Untuk Driver Flyback

Detail (lsingers1) Zvs Papan Modul Induksi Panas Tegangan Tinggi 1000W Untuk Driver Flyback

Description:

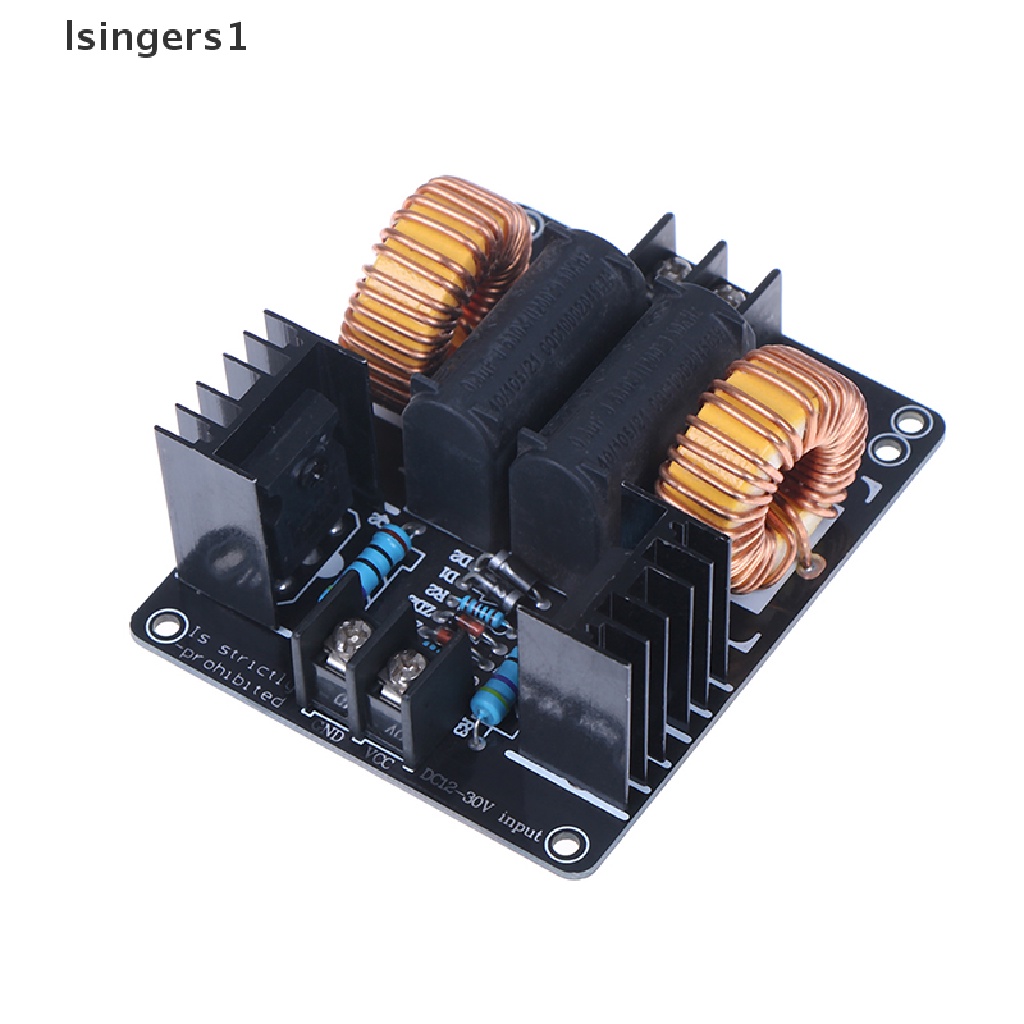

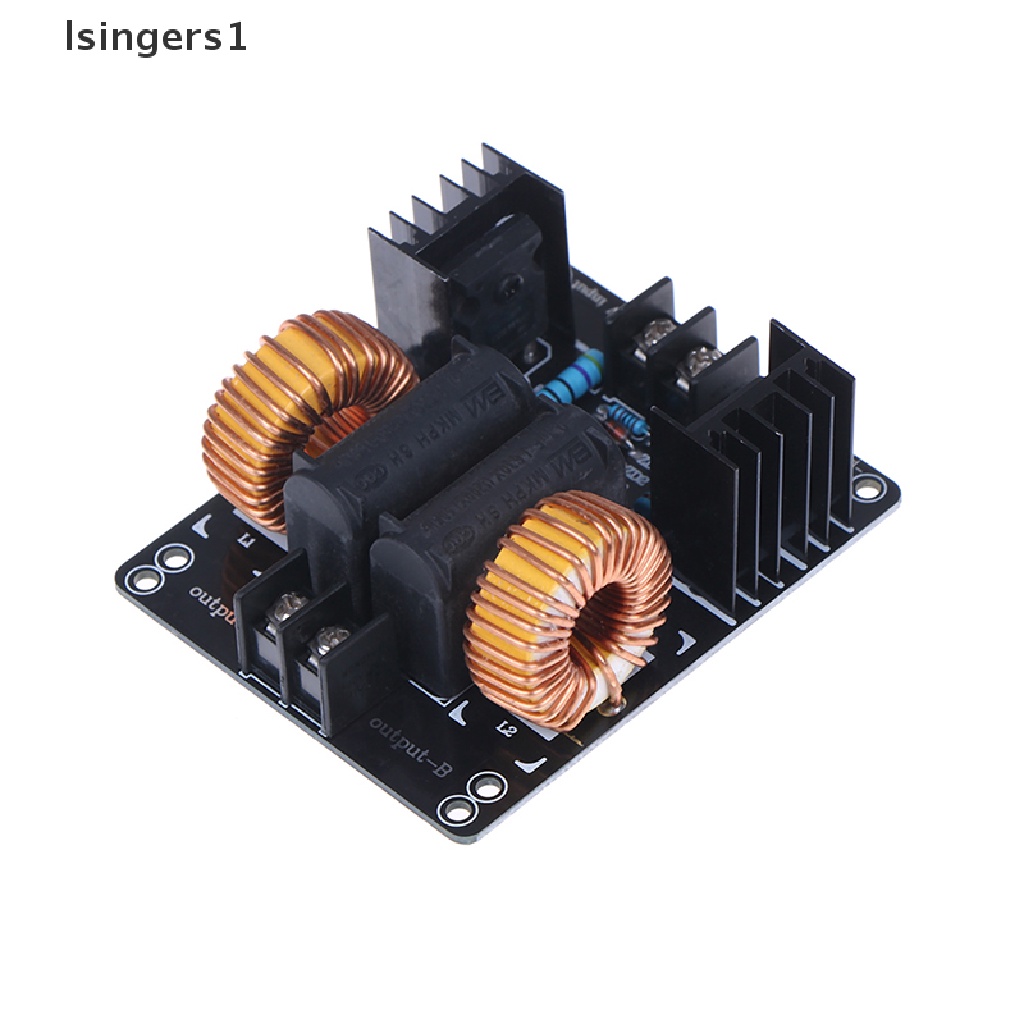

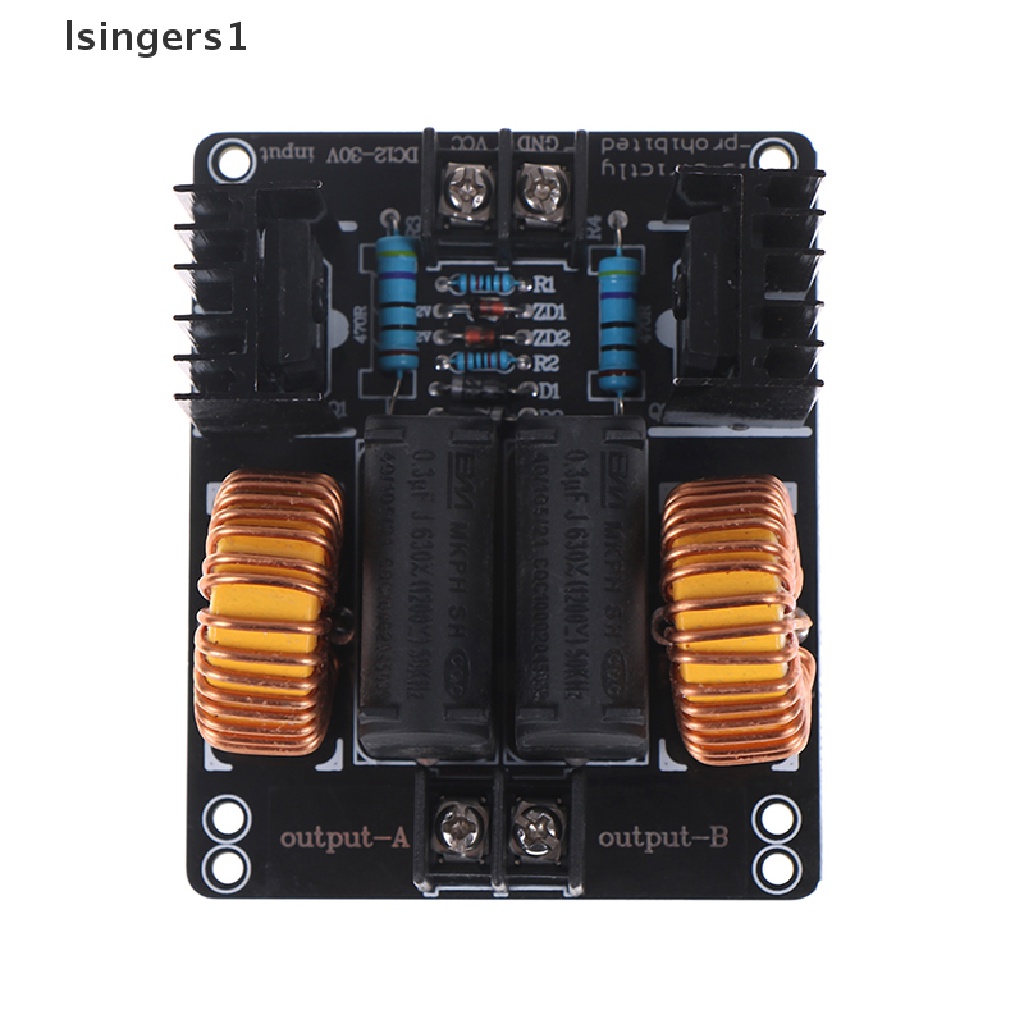

This ZVS board uses high quality 1.6mm double layer fiberglass board, large inductance coil and stable 5-band resistors that ensures its stable performance. With a proper power supply and correct circuit, you can create a beautiful electric arc by yourself. This is a popular board and you can buy one for yourself or give one to your electronics hobbyist friend as a gift.

Features:
The driver module is made of high standard 1.6mm double layer fiberglass board for durability.

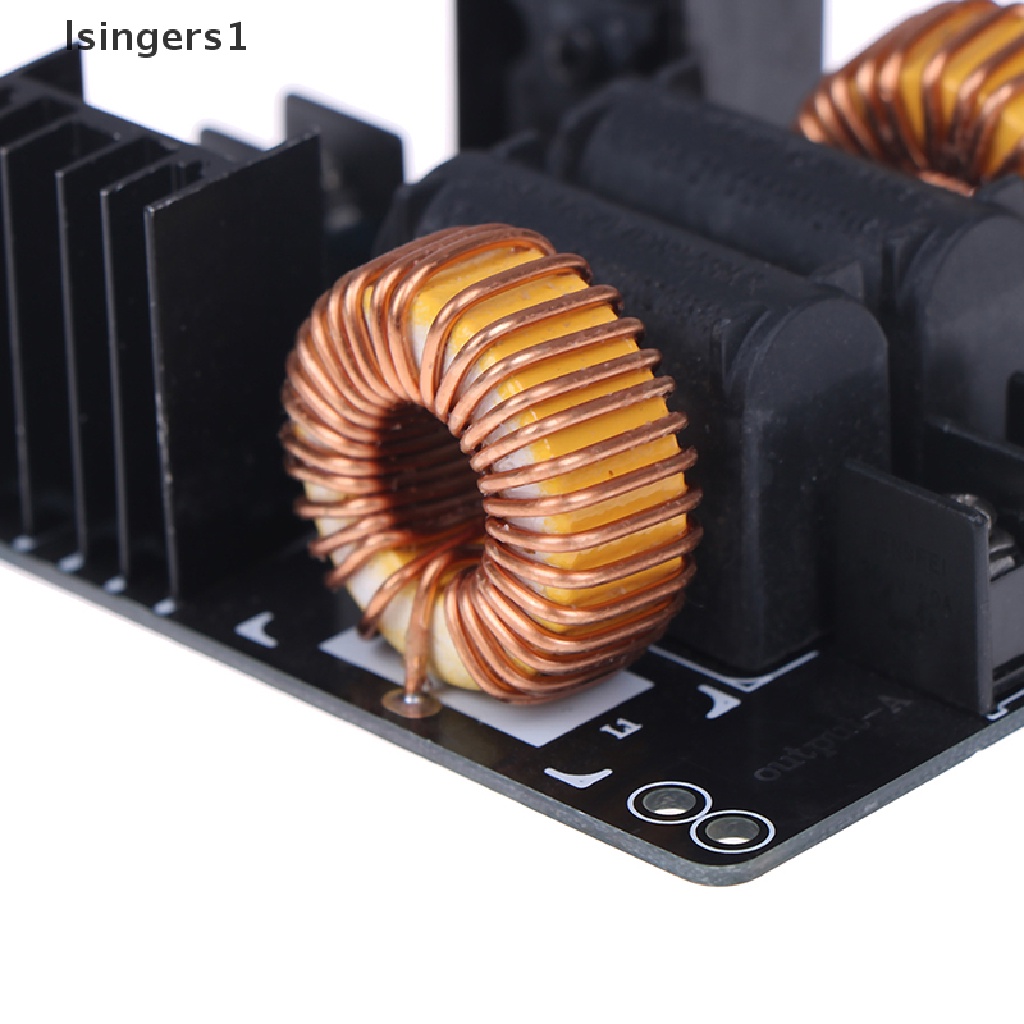

Factory customized large inductance coil is winded with 1.2mm copper wire for more stable performance and consistent parameter.
This ZVS driver module uses 5-band resistors for small error and stable performance.

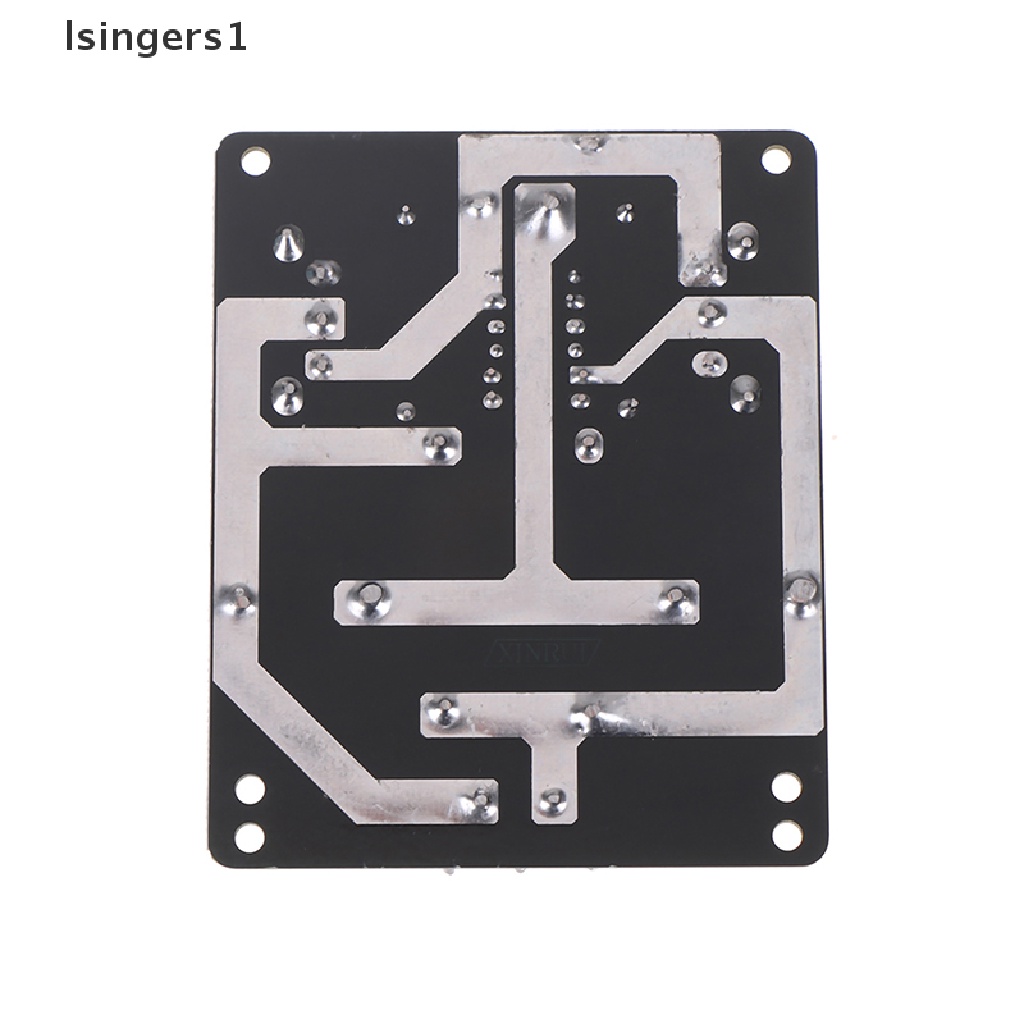

More tin is added on the board bottom so the driver board can be used for induction heating without burning out.
Use 12-30V DC power and current is more than 10A. The higher the voltage, the longer the arc (tested with 27V/15A power supply and it can generate 80mm long arc). As a induction heating board, the higher the voltage, the faster and hotter heating will be. Recommended heating object diameter is less than 2/3 of coil.

Specifications:

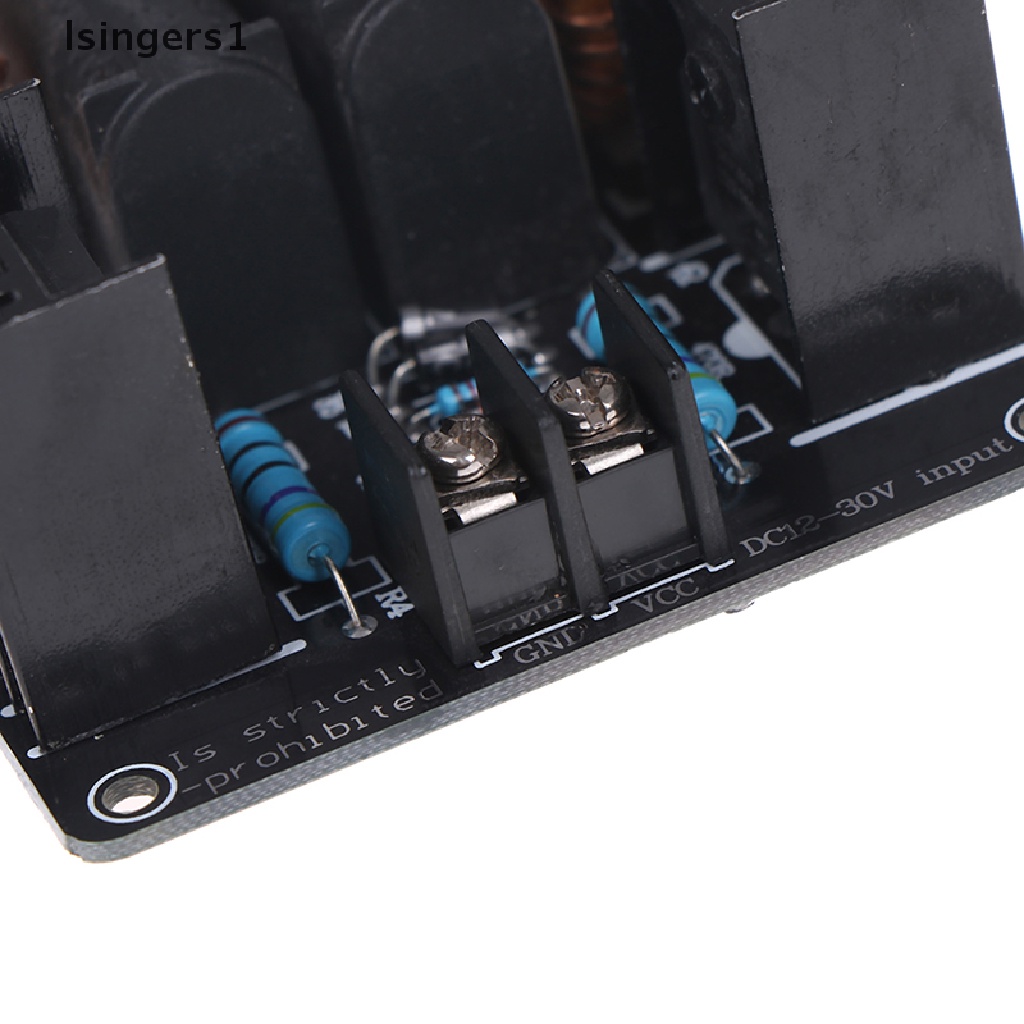

Voltage: DC12V-30V
Max. Current: 20A
Max. Power: 1000W
Size: 69 x 85 x 30mm / 2.71 x 3.34 x 11.81"

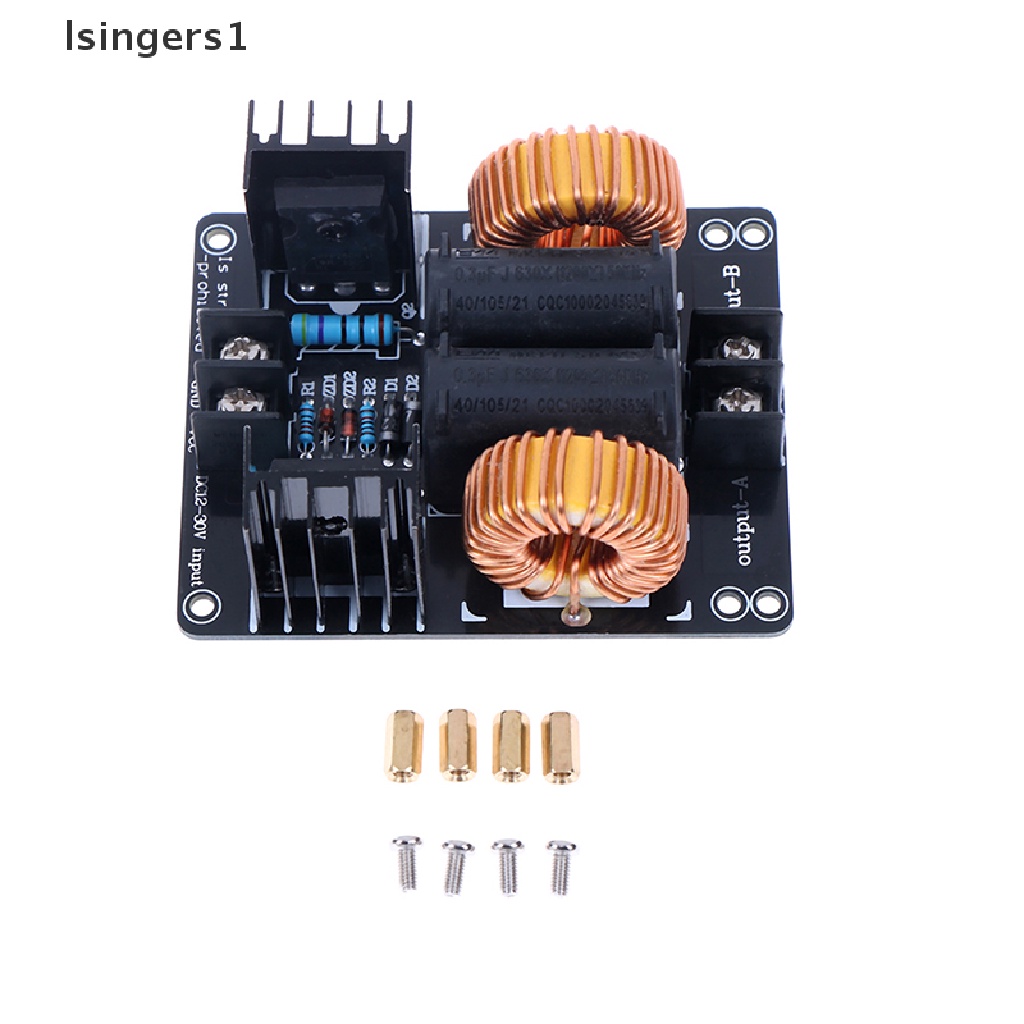

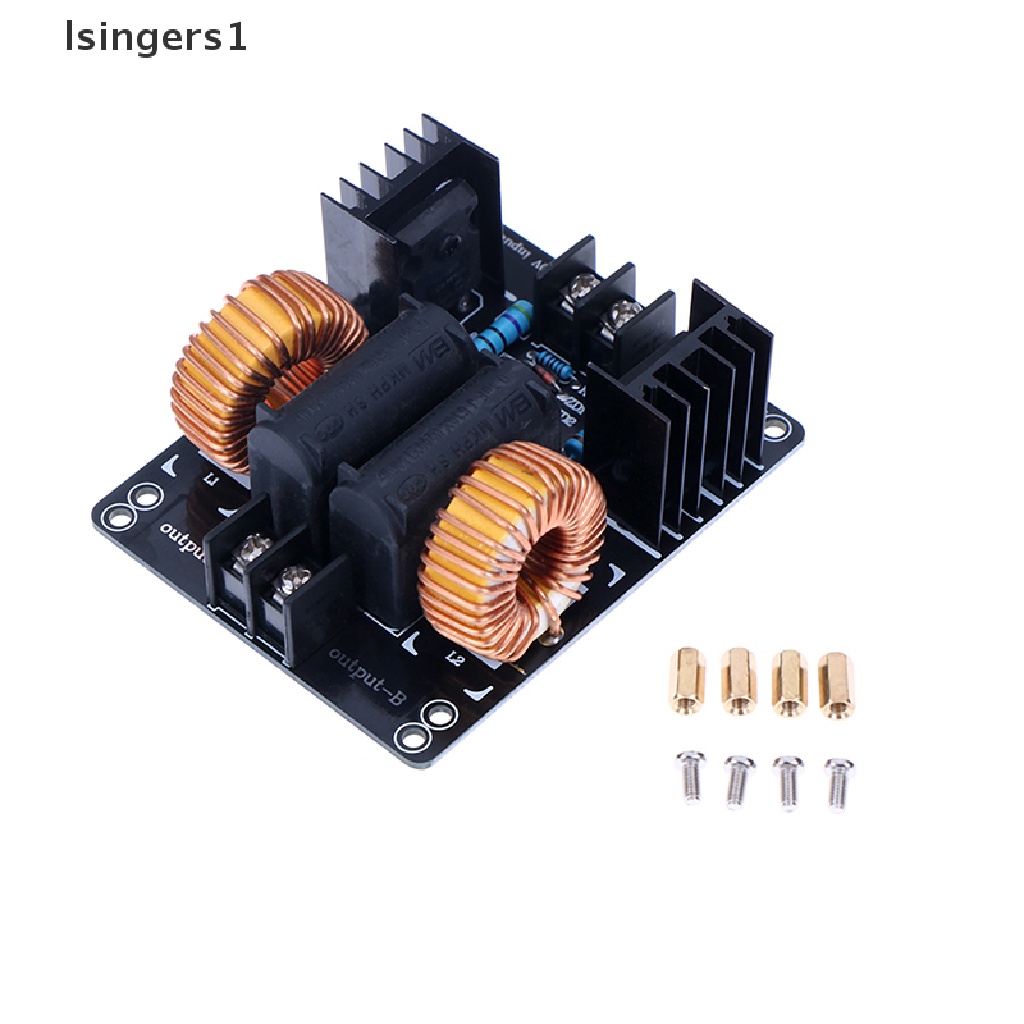

Package Includes: 1 x ZVS Board

Note:
Under the influence of light and the display, the color difference may decrease slightly.
