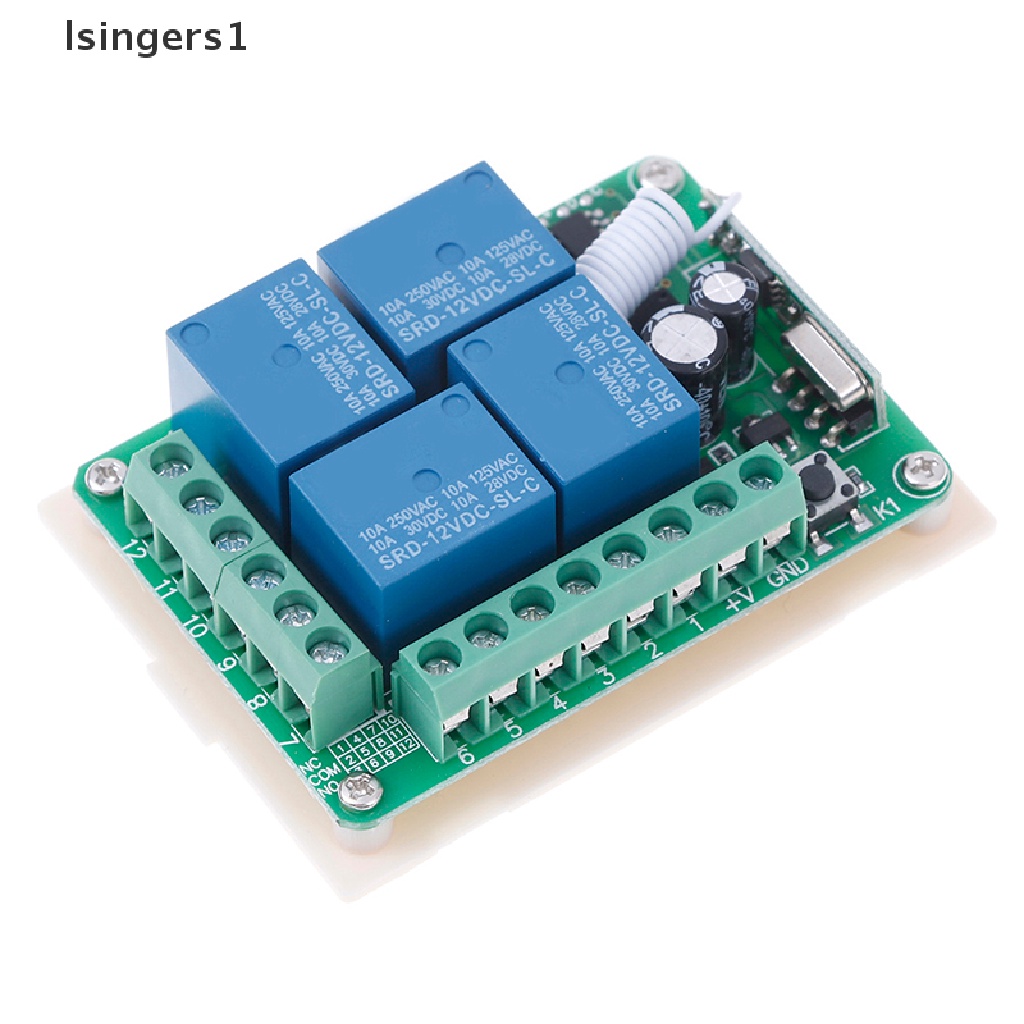

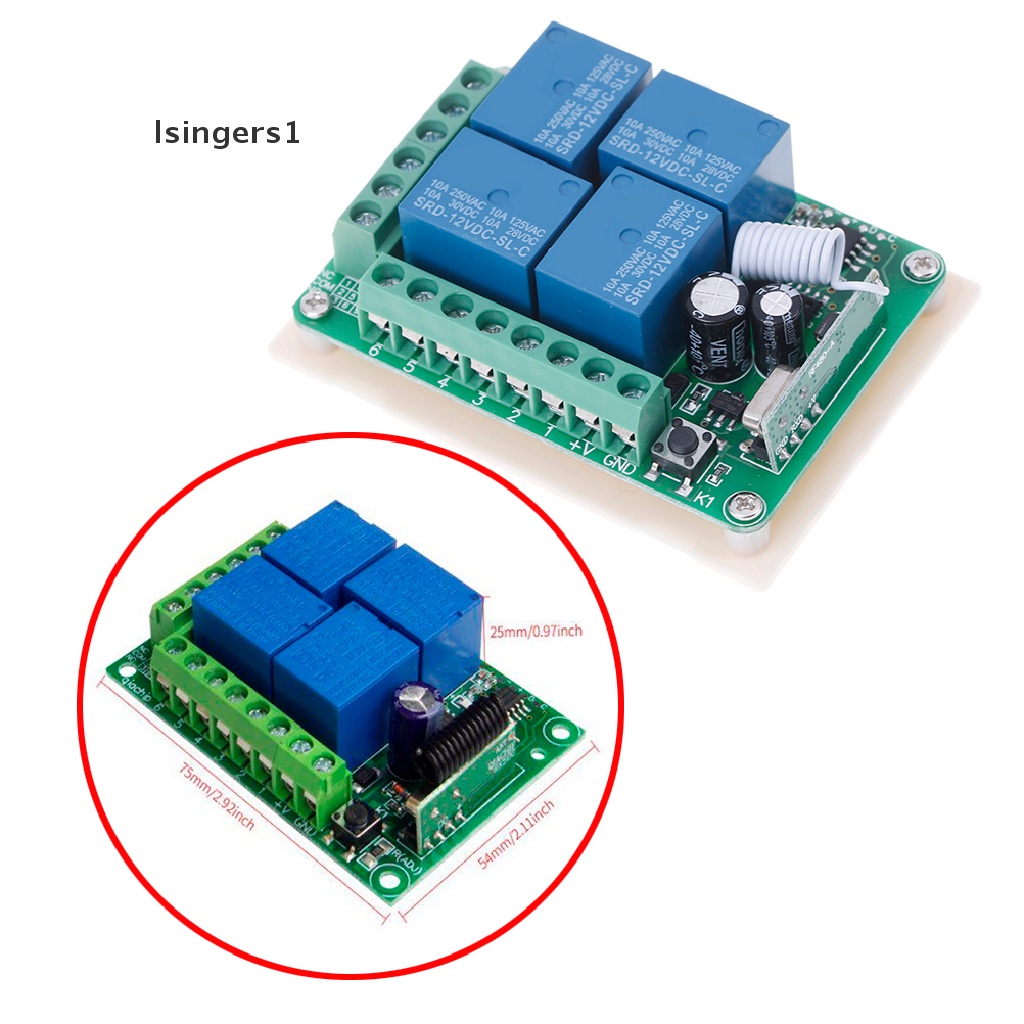

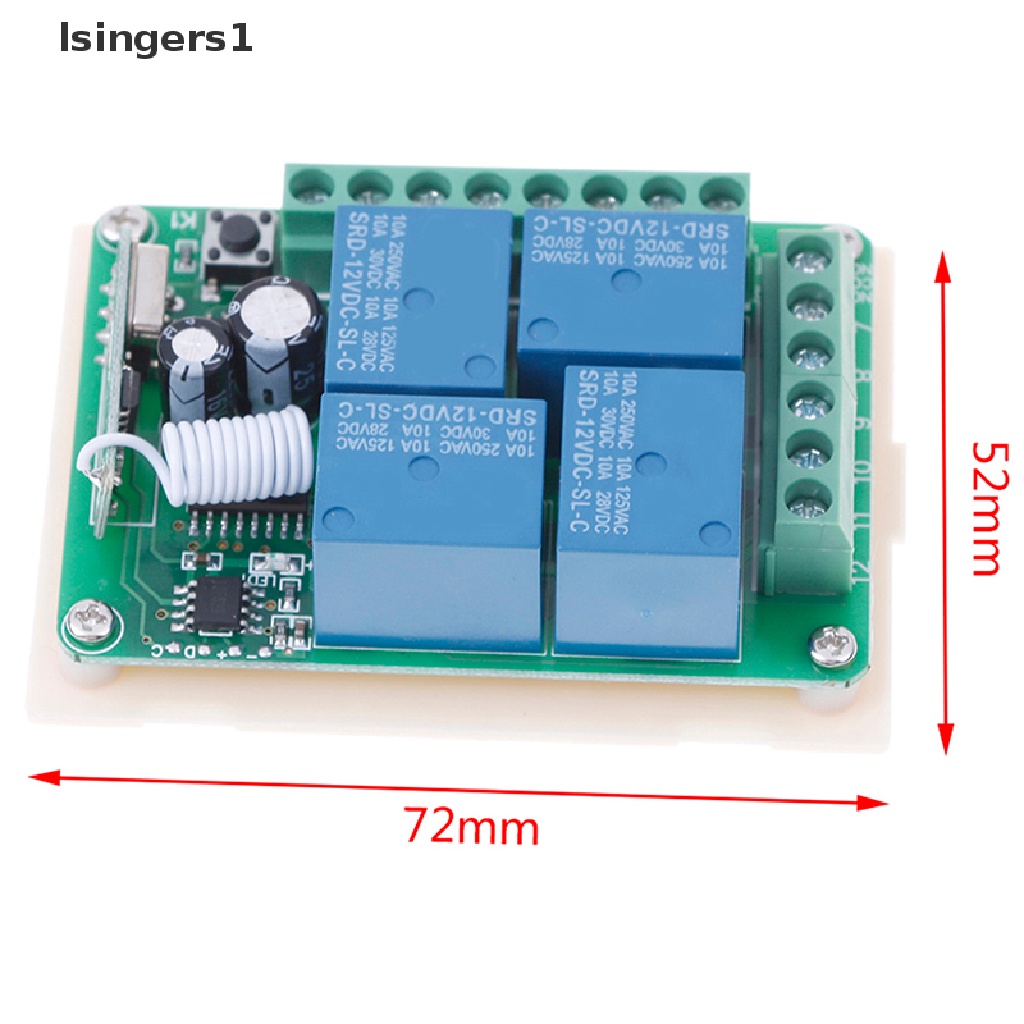

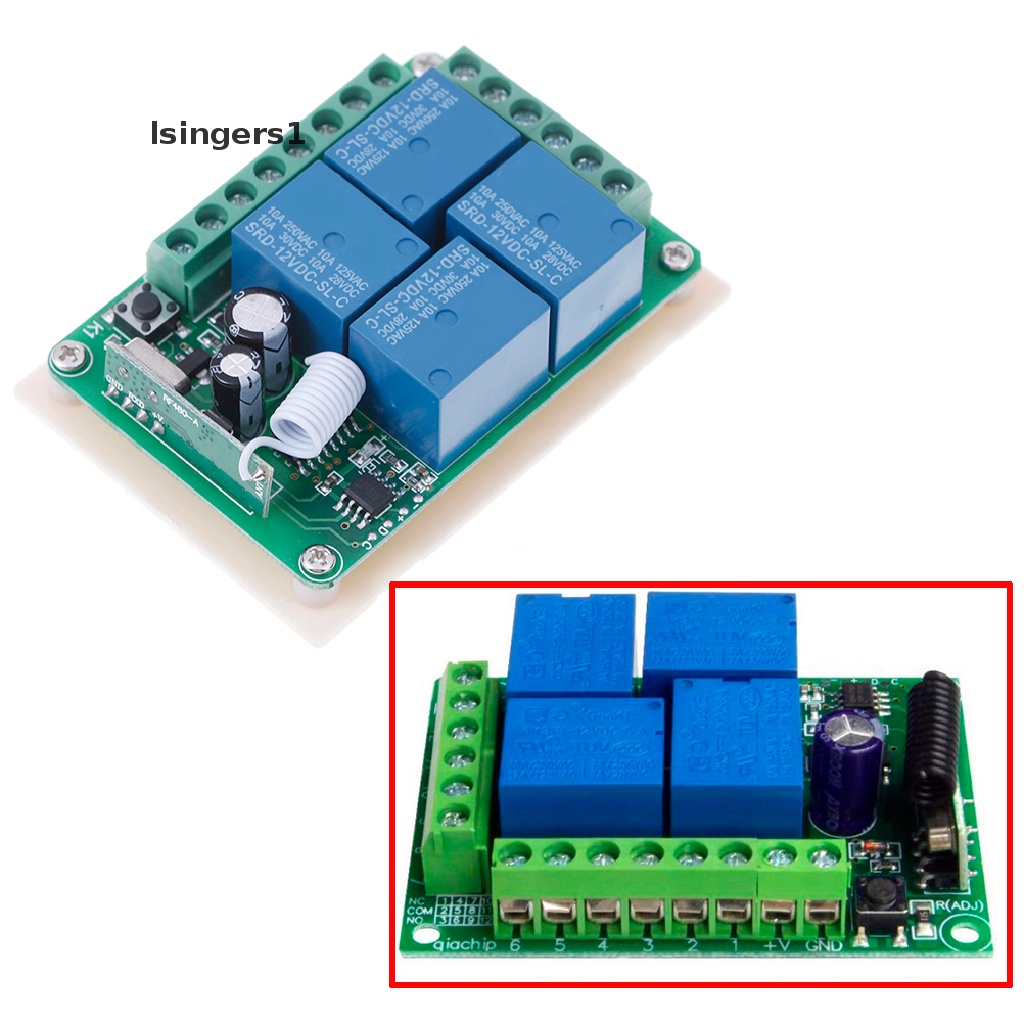

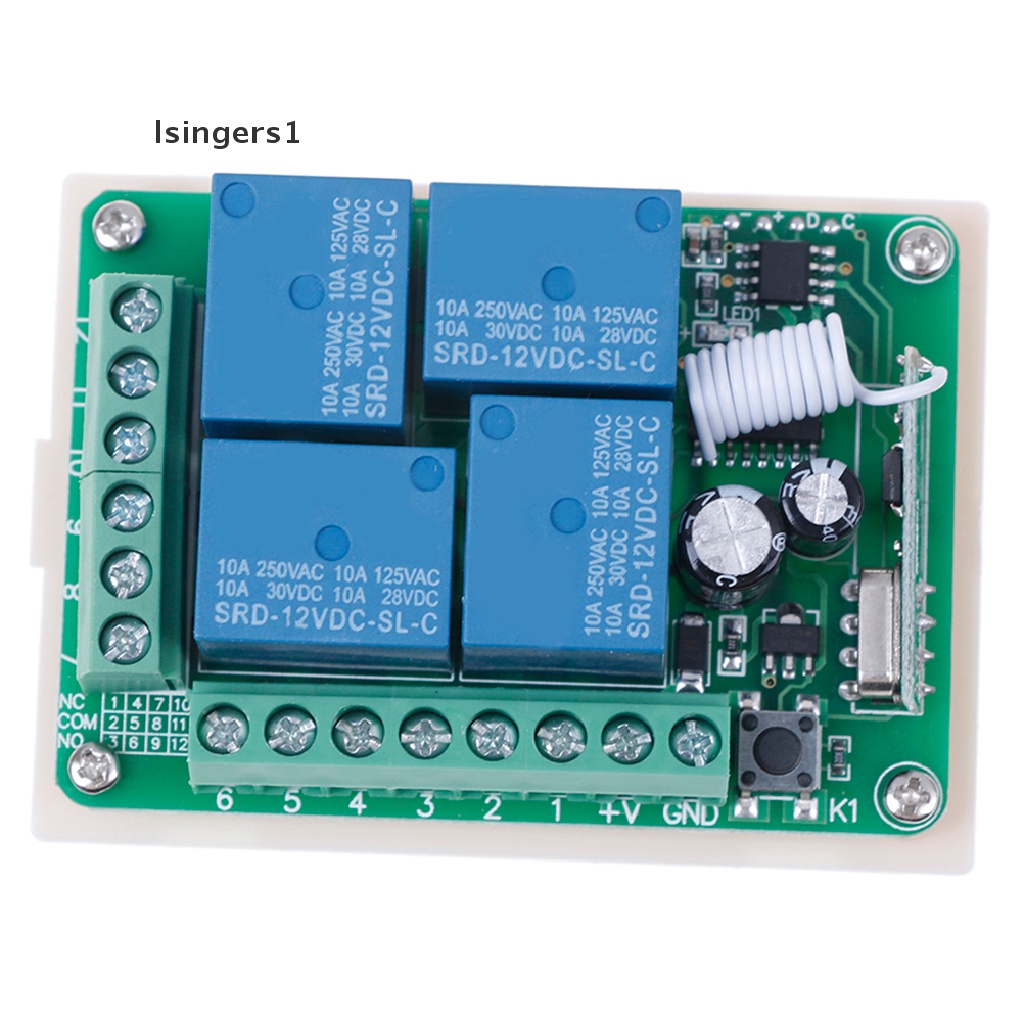

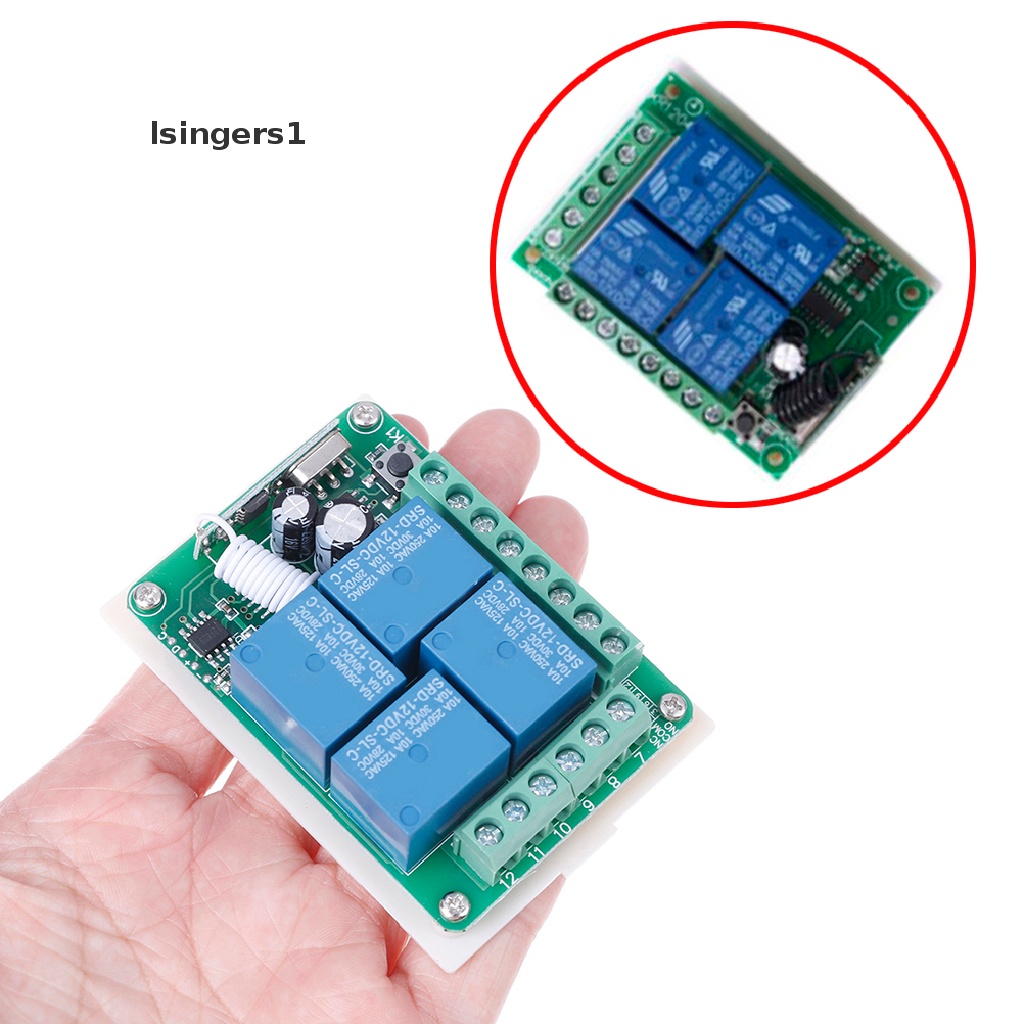

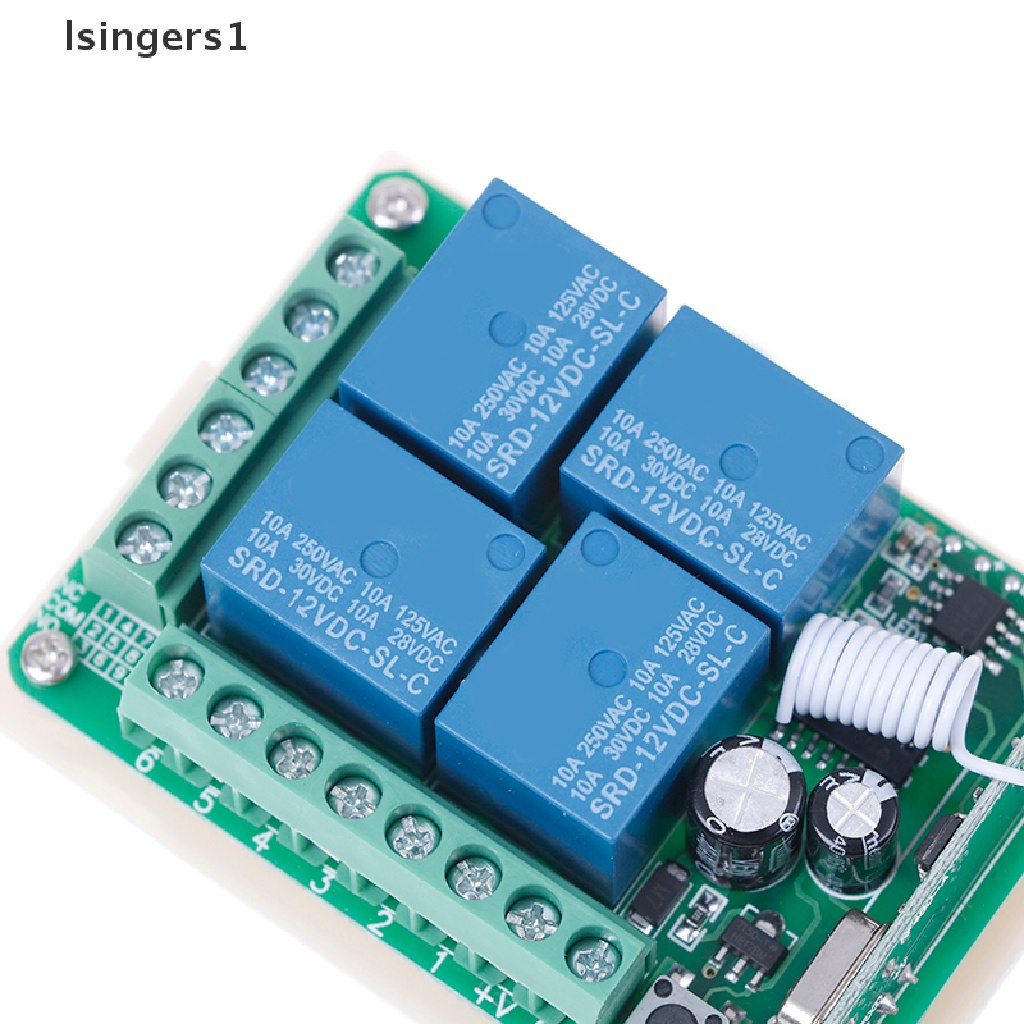

(lsingers1) Switch relay rf wireless 4ch DC 12v 10a 433mhz

Detail (lsingers1) Switch relay rf wireless 4ch DC 12v 10a 433mhz

Specifications:
Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.
1.Transmitter
Channel: 4 CH
Remote Control Distance:0-100m
Encode: EV1527
Frequency:433 MHz
2.Control Mode
1)Toggle/Self-Lock: Press->On; Press again->Off
Press one button for one time is working/ON .press the same button again is stop/OFF .(1 channel switch(receiver) need 1 button remote control (transmitter).
2)Latched/Inter-Lock: Press->On; Press other button->Off
Press one button is working/ON ,press another button is stop/OFF . ( 1 channel switch( receiver) need 2 buttons remote control (transmitter).
3)Momentary/Jog: Press and hold->On; Release->Off
Keep pressing one button is working /ON. loosen your finger is stop/OFF .1 channel switch(receiver) need 1 button remote control (transmitter)
(Original Setting is Momentary , Change it by yourself.)
Decode: Fixed code, soldering

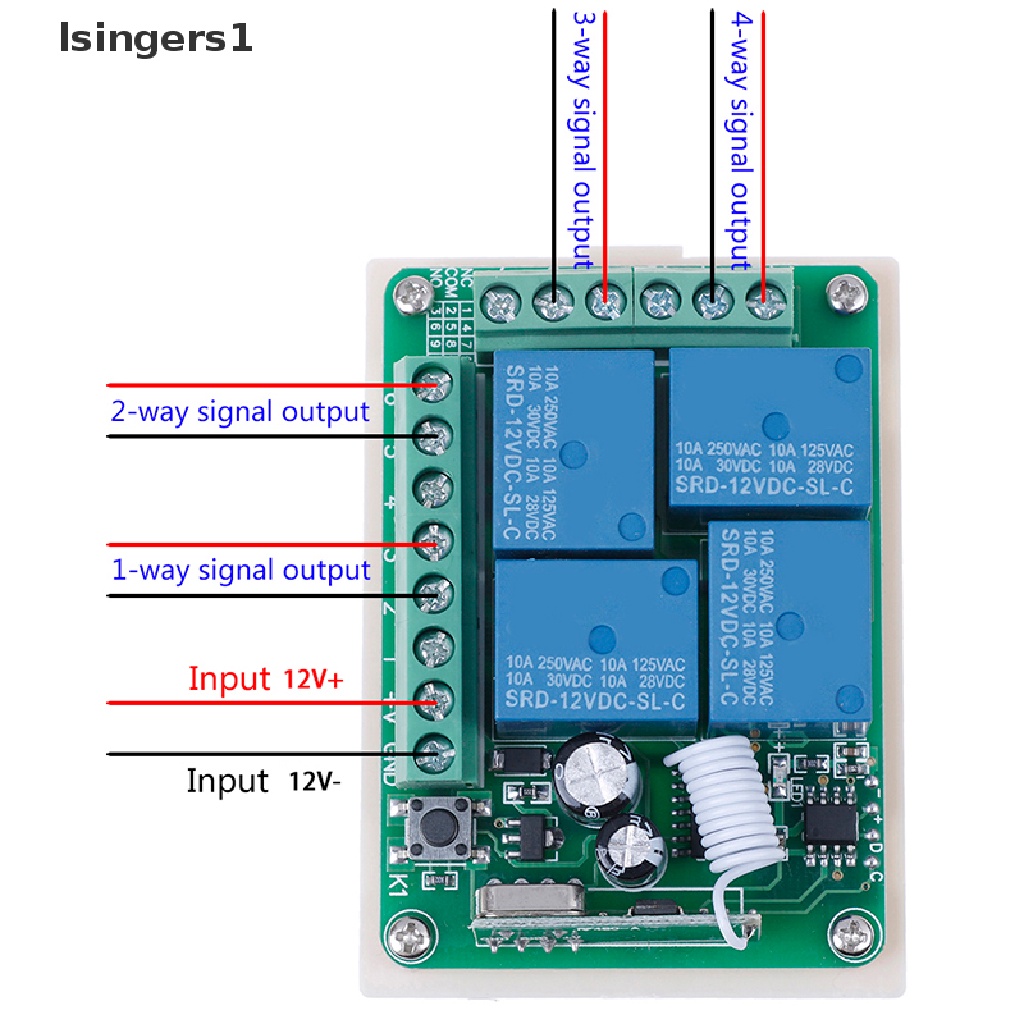

Power Supply (Operating Voltage): DC 12V
Sensitivity:-105 dBm
Operating Temperature:-40‘C - 80’C
3.Package Included

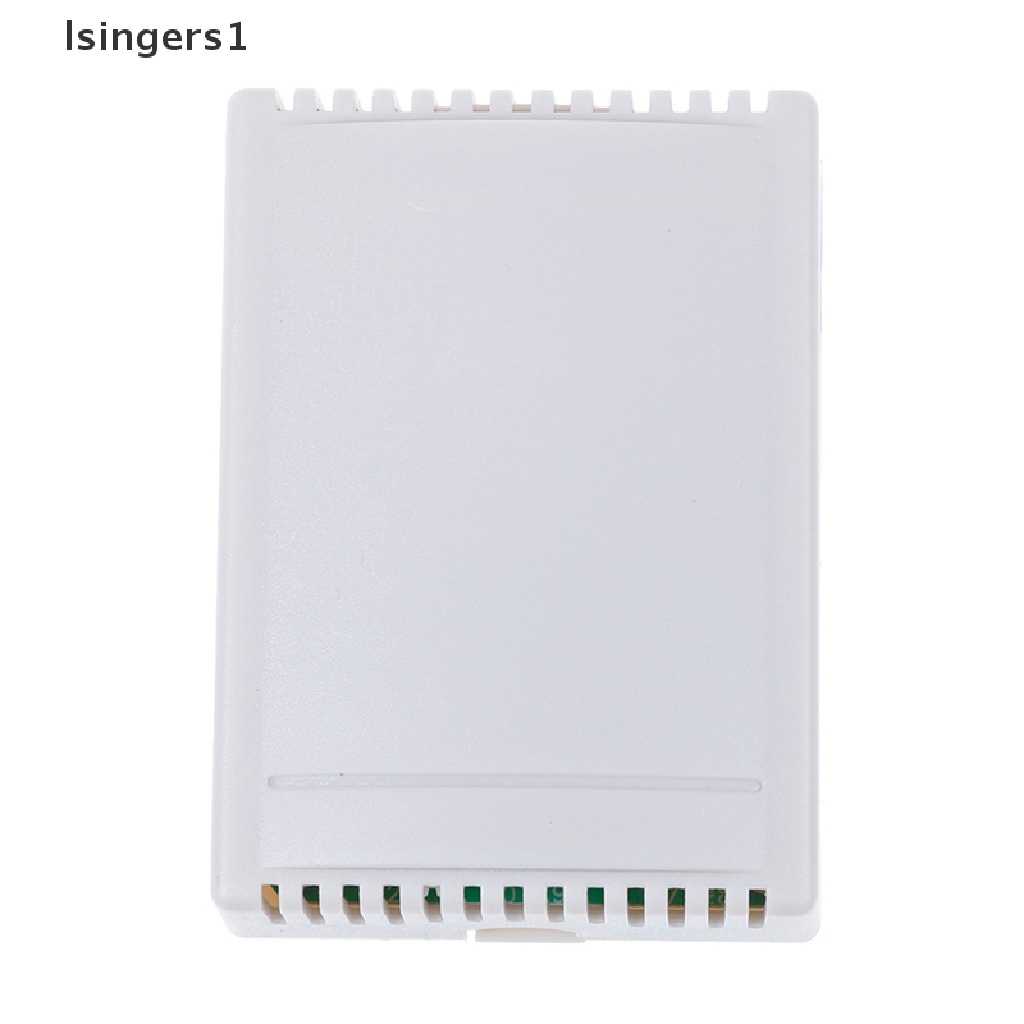

1 x Receiver(with cover)
1.Learn:Press the learning code . The indicator from 'on' to 'off' , loosen your finger, press any button of the remote control ,the indicator flash 2 times and off .it mean you learn it successfully.
2.Remove :press the learning button about 8 seconds , the indicator turn on to off , it means the Code had been removed successfully.
