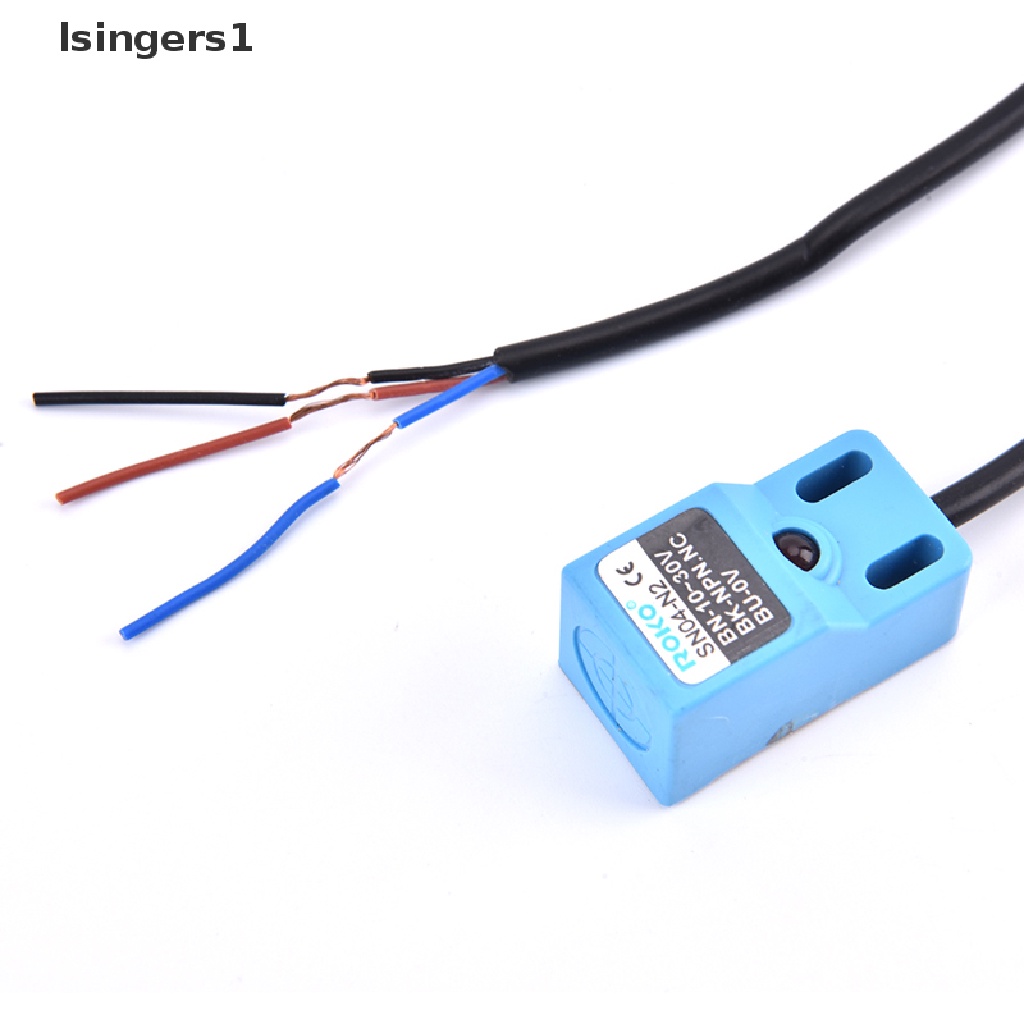

Detail (lsingers1) Sn04-n switch sensor Deteksi Logam Untuk Inspeksi metal
Features This product can be applied to control relays, counters,PLC, etc.!
Description: 100% brand new and high quality Detection distance :4mm ± 10% Set distance:0~3.8mm Delay distance:10% below of the detection distance Detection object:Magnetic metal(the detection distance decreases when it is non-magnetic metal) Stand detection object:Iron 18*18*1mm Response frequency:DC:0.5kHz Supply voltage:DC type:DC12V DC24V DC36V(DC6~36V)impulse(p-p)10% below Withstand voltage:AC1000V 50/60Hz 1min between charging part and housing Meterial:(Housing:Nickel plated brass) (Detection surface:ABS) Protection influence:IP67(IEC specification)
Package include: 1 x Metal detection sensor
Notes: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow 1-3cm measuring deviation due to manual mearement.
Gambar produk
(lsingers1) Sn04-n switch sensor Deteksi Logam Untuk Inspeksi metal
