1Pc 400W AC Motor Speed Controller Speed Pinpoint Regulator Forward And Backward AC 220V 50Hz 60Hz Mini Motor Speed Control Unit

Features:
This motor speed controller is suitable for AC 220/240V 50/60HZ motor.

Speed regulation range is 90-1400r/min 50Hz, 90-1700r/min 60Hz.

uitable for packaging, printing, food, electronics, instrumentation, medical equipment, clothing industry production line for speed control drive device.

The controller uses high quality electronic circuit and integrated components for durability.

It has small size, high precision, wide speed controlling range, and long service life.

Method of use:

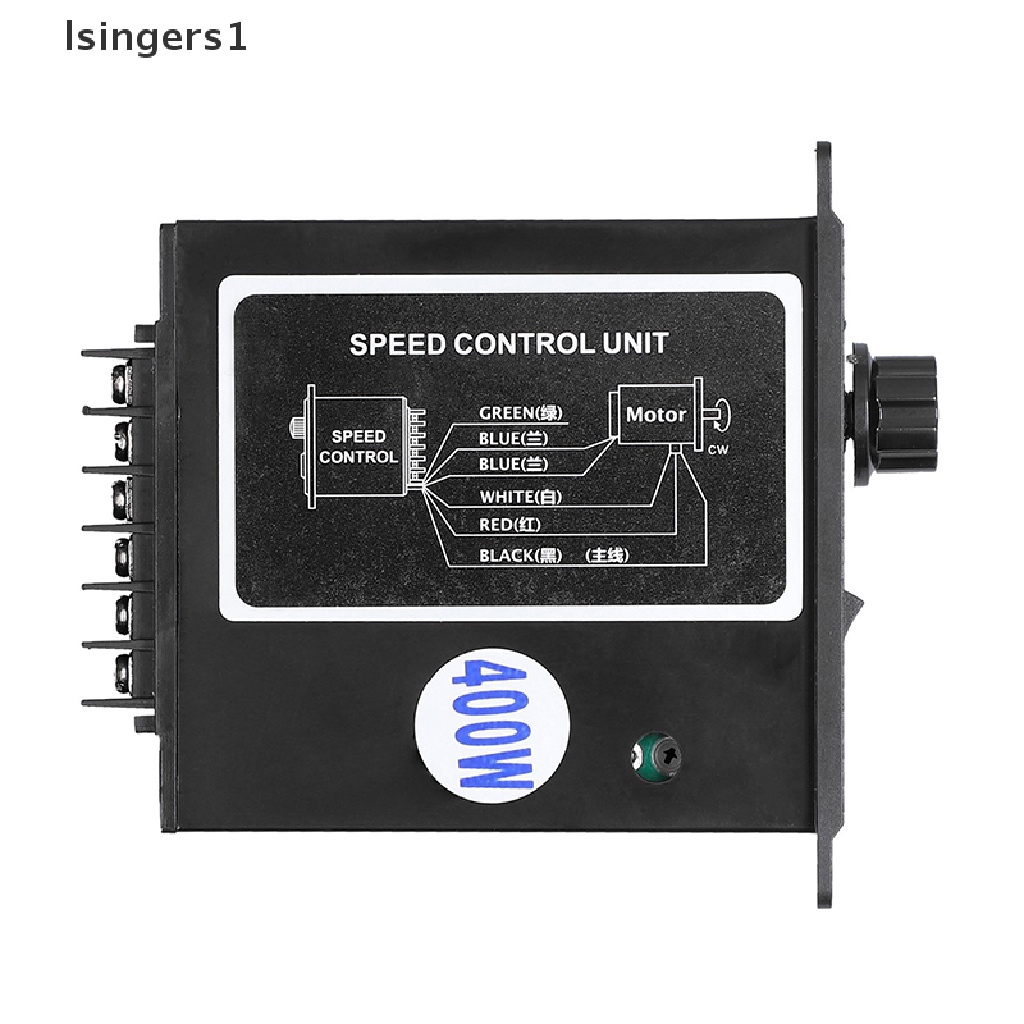

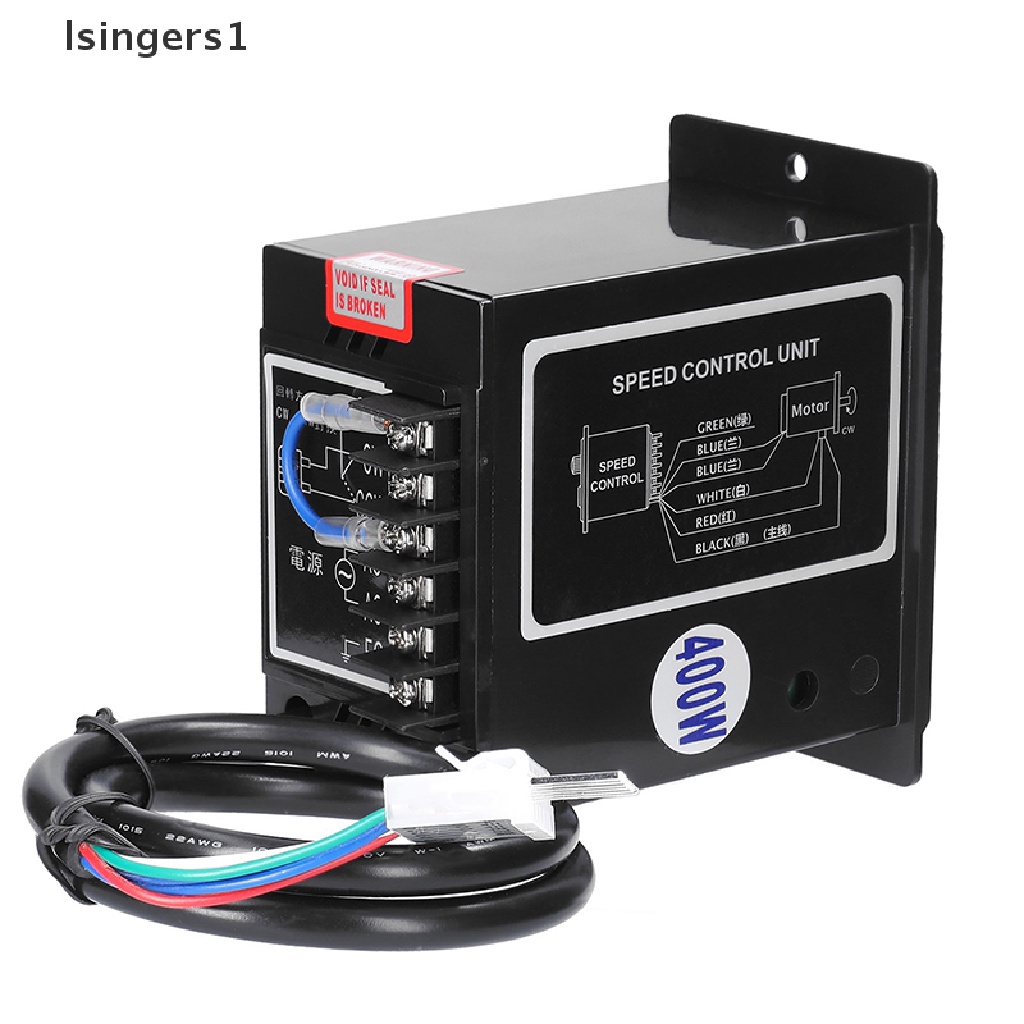

1. Turn off the power, connect it according to the wiring diagram and make sure the connection is correct.

2. Fix the controller well and set the speed to the lowest "0", so as to avoid sudden large current and permanent damage when starting the power supply.

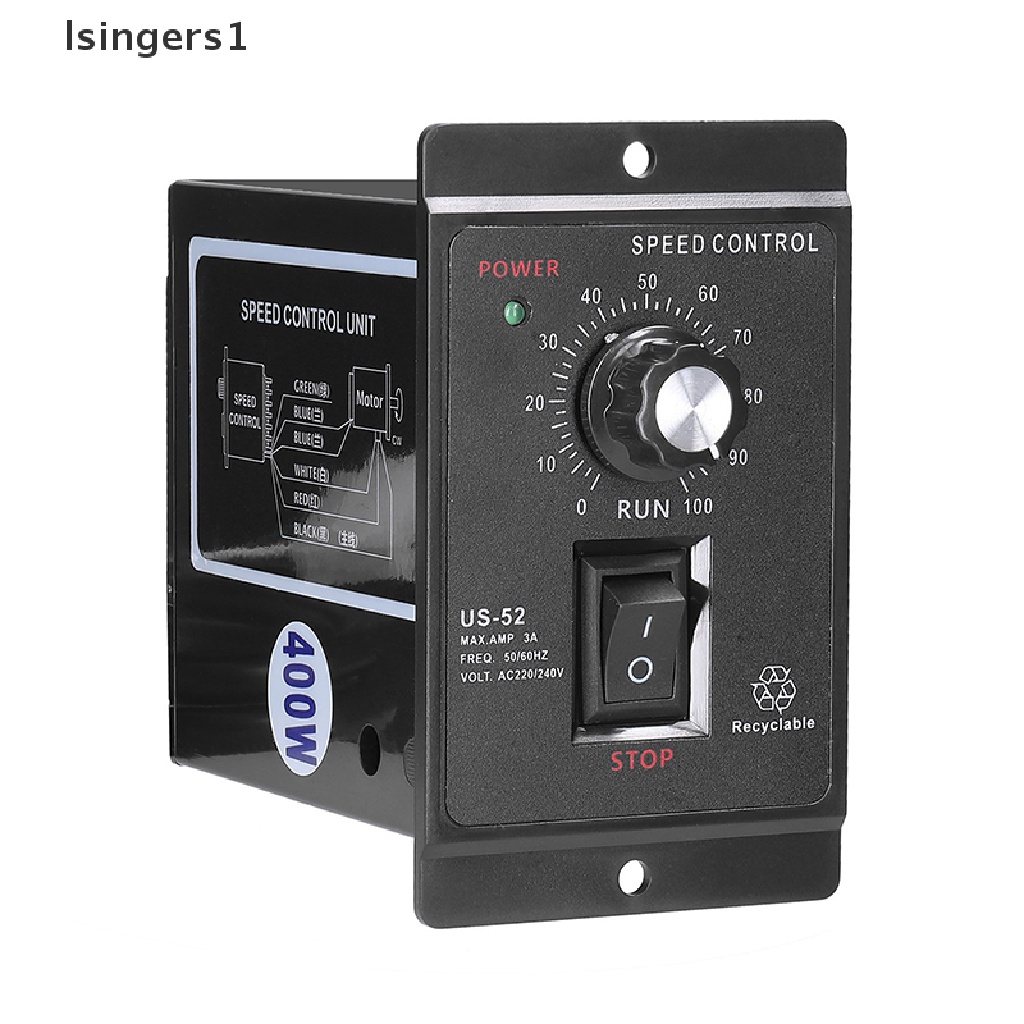

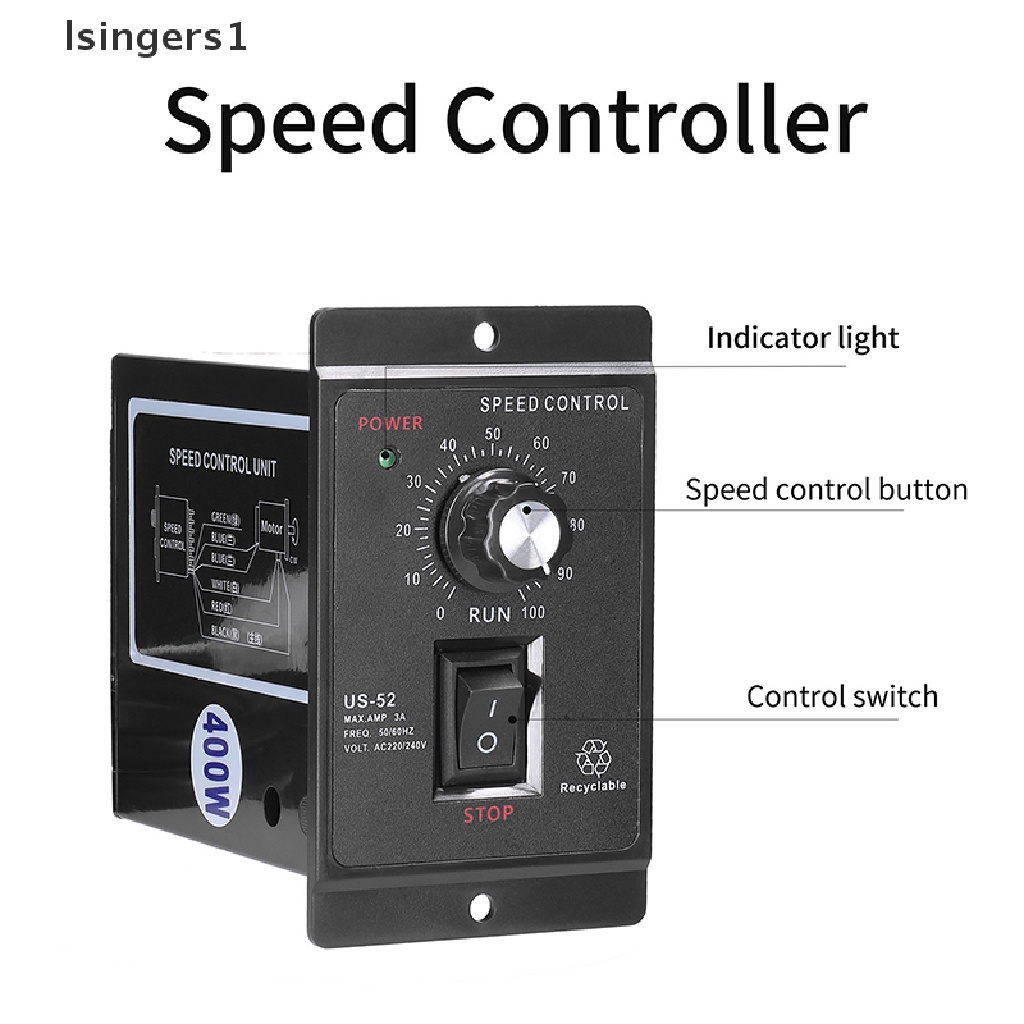

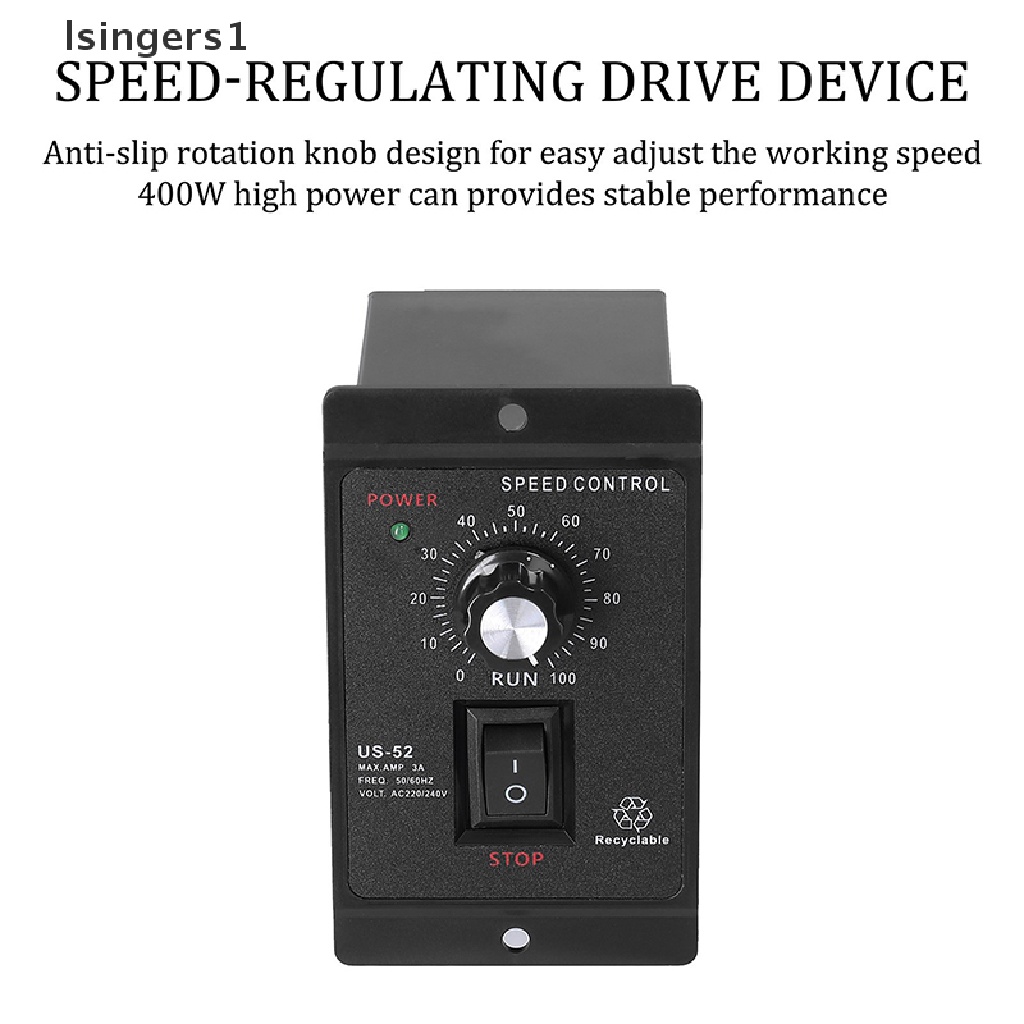

3. Then turn on the power and adjust the speed knob to the desired position. Please turn off the power when not needed.

4. The governor is connected to the motor. If the torque or speed is found to be inconsistent with the requirements, please adjust the fine-tuning potentiometer on the side of the product.

5. To change the running direction of the motor, simply replace the jumper lines of "CCW" and "CW" on the back of the controller.

6. Select COM and CW short connection, then the motor will rotate clockwise.

7. Select COM and CCW short connection, then the motor do counterclockwise rotation.

Specifications:
Color:As picture
Quantity:1PC
Working voltage: 220V
Power frequency: 50KHz
Output power: 6-400w
Speed regulation range: 90-1400
Rated current: 2A
Rated power: 400W
Package Include:1PC Speed Controller

Note:
1.Please allow 0.1-0.3cm differences due to manual measurement, thanks.
2.Please understand because of the light irradiation or computer display difference, so I can't guarantee photos and real color is 100% the same.
