Detail (lsingers1) Papan Pelindung charger Baterai Lithium Li-ion 18650 2S 8A 7.4V balance BMS

Description:
2 series 7.4V lithium battery

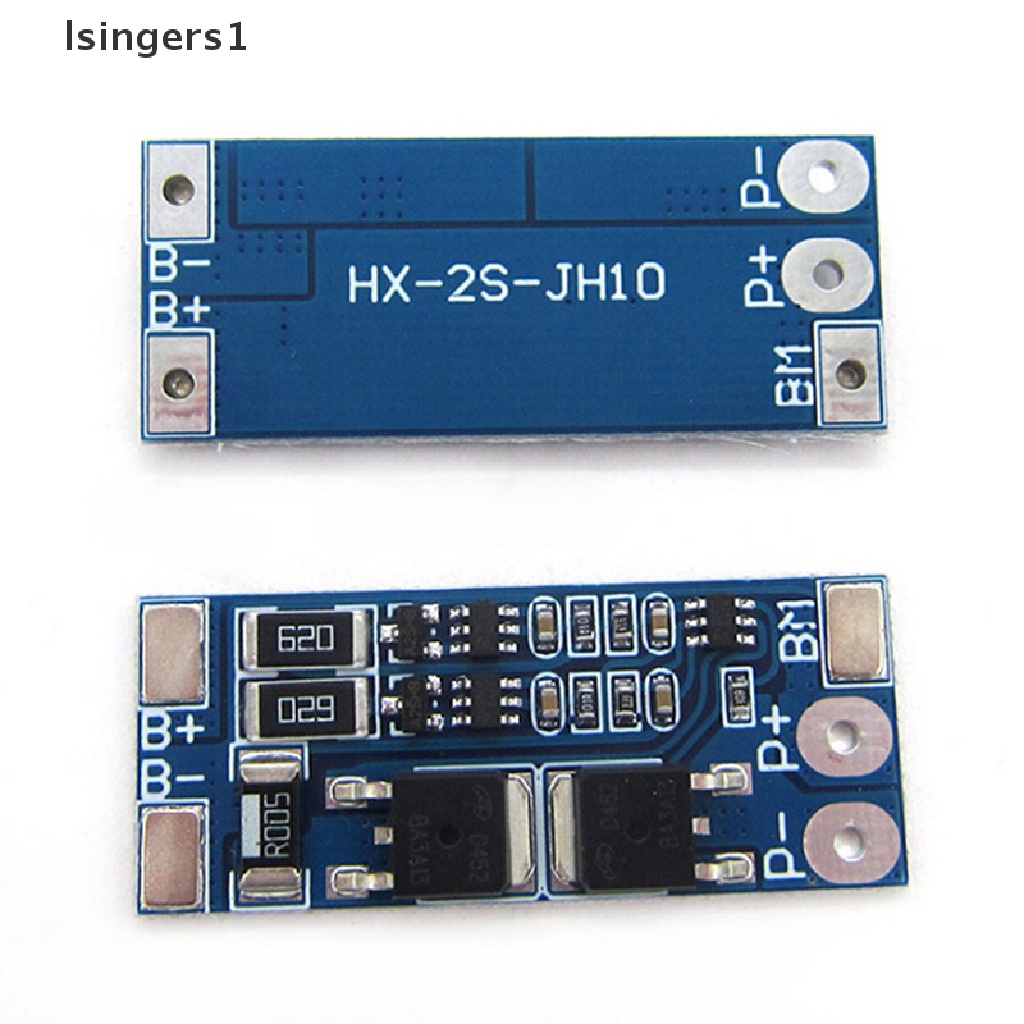

Model: HX-2S-JH10

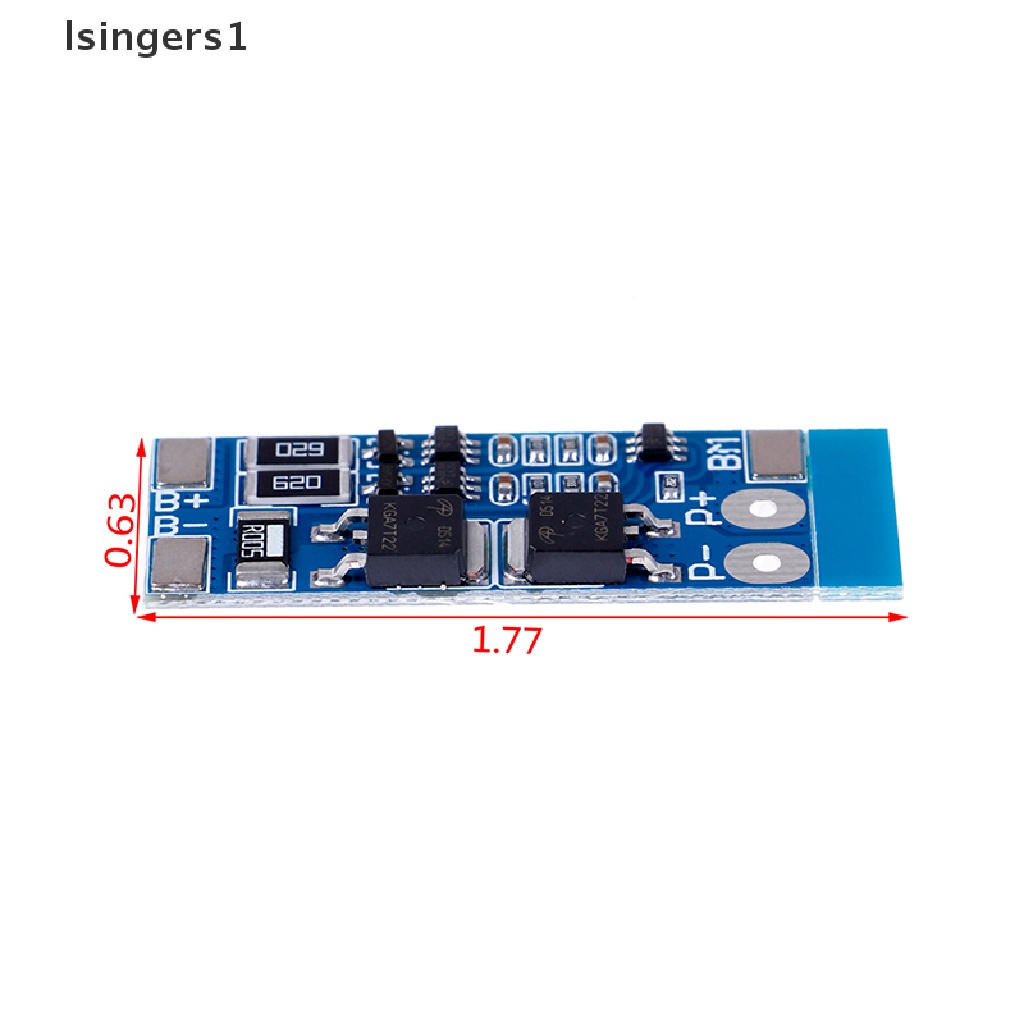

Size: 40*17*3.5mm
Over-discharge voltage range: 2.5-3.0v±0.05v
Overcharge voltage range: 4.25-4.35v±0.05v
Upper limit working current: 8A
Upper limit instantaneous current: 10A
Working temperature: -40--- 50 °C
Storage conditions: -40-- 80 ° C
Quiescent current: less than 10uA
Effective life: more than 50,000 hours
Internal resistance: less than 300mΩ
Charging voltage: 8.4V-9V
Short circuit protection: protection, disconnect load delay self-recovery

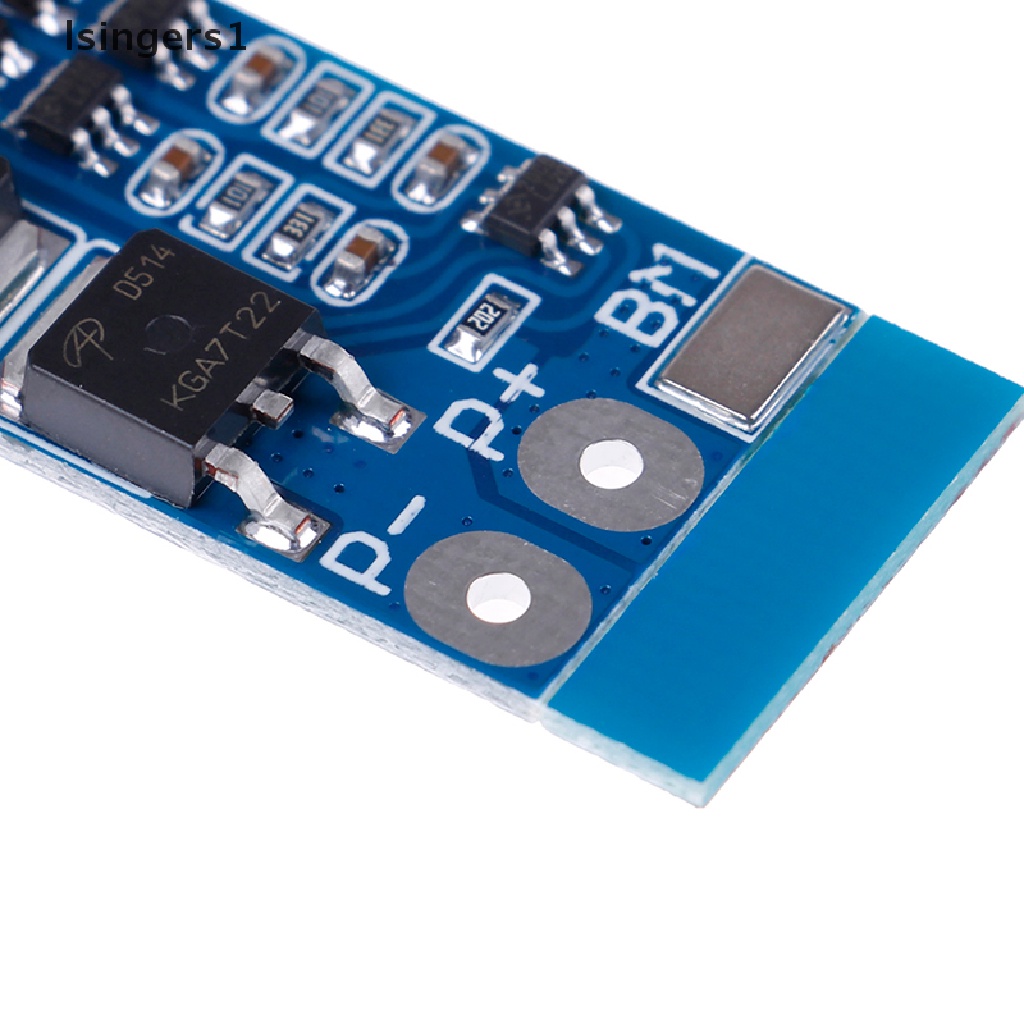

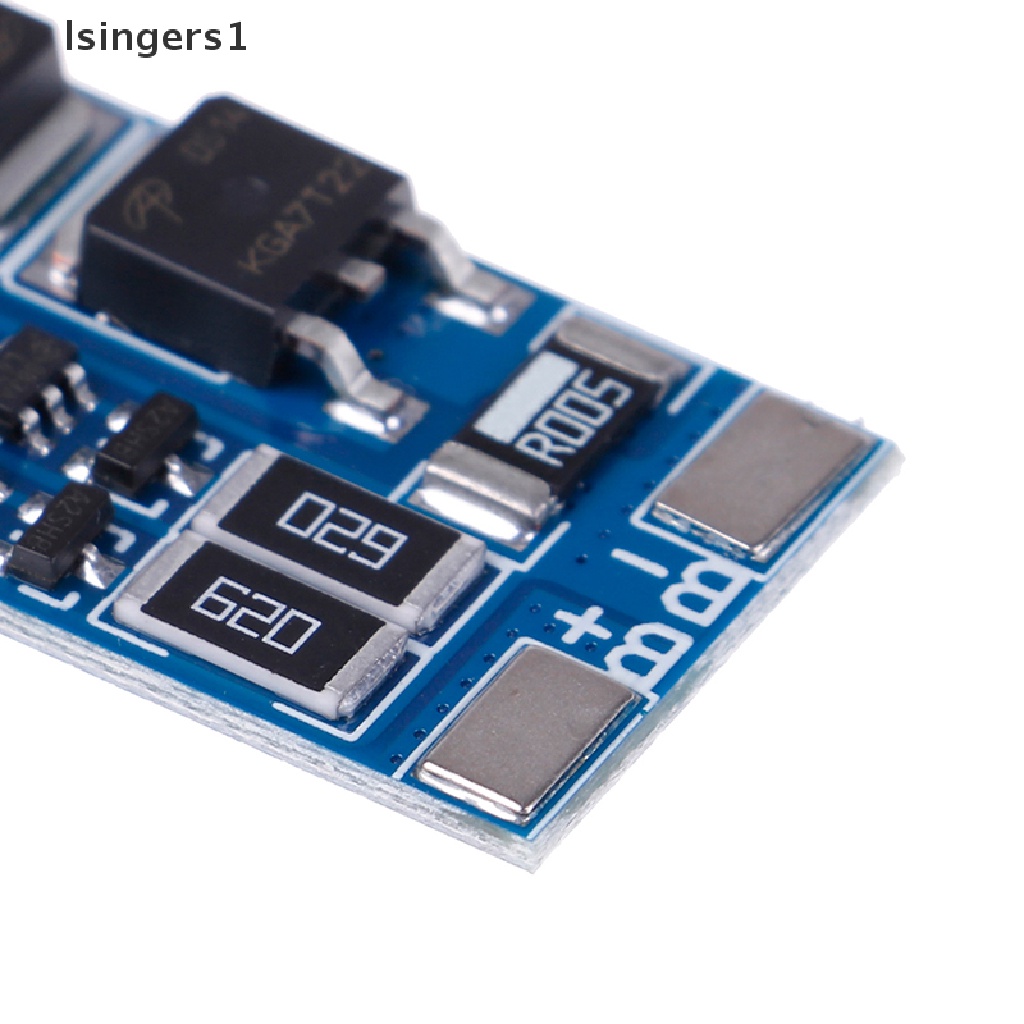

Solder joint description:
· B is connected to the battery positive pole;
· B- is connected to the negative pole of the battery;
· MB is connected to the connection point between battery 1 and battery 2;
· P is connected to the positive terminal of the charge/discharge terminal (the charge terminal/discharge terminal is shared);
· P- Connect the charge/discharge terminal negative (common to the charge/discharge terminal).

Package include:

1Pcs charger protection board

Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
