Detail (lsingers1) Papan pcb power supply 25A AC-DC Untuk amplifier audio

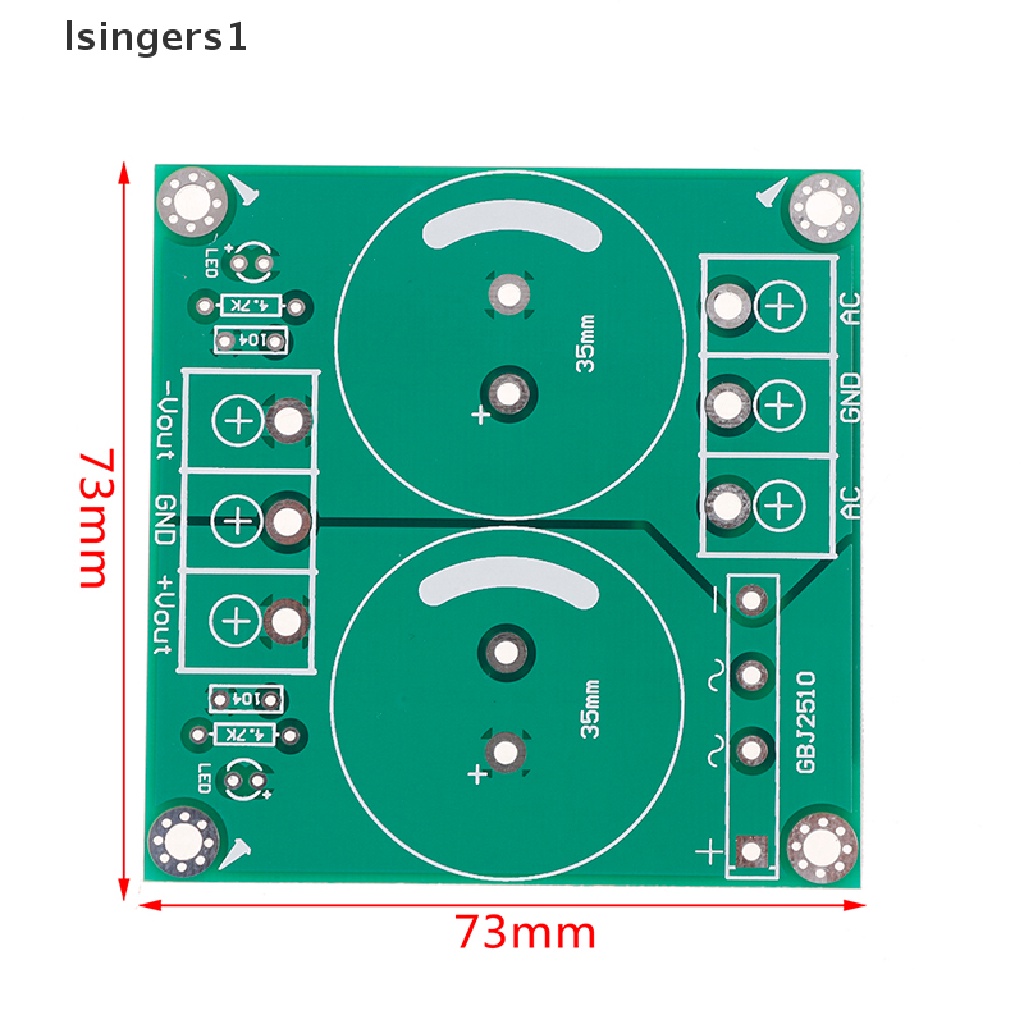

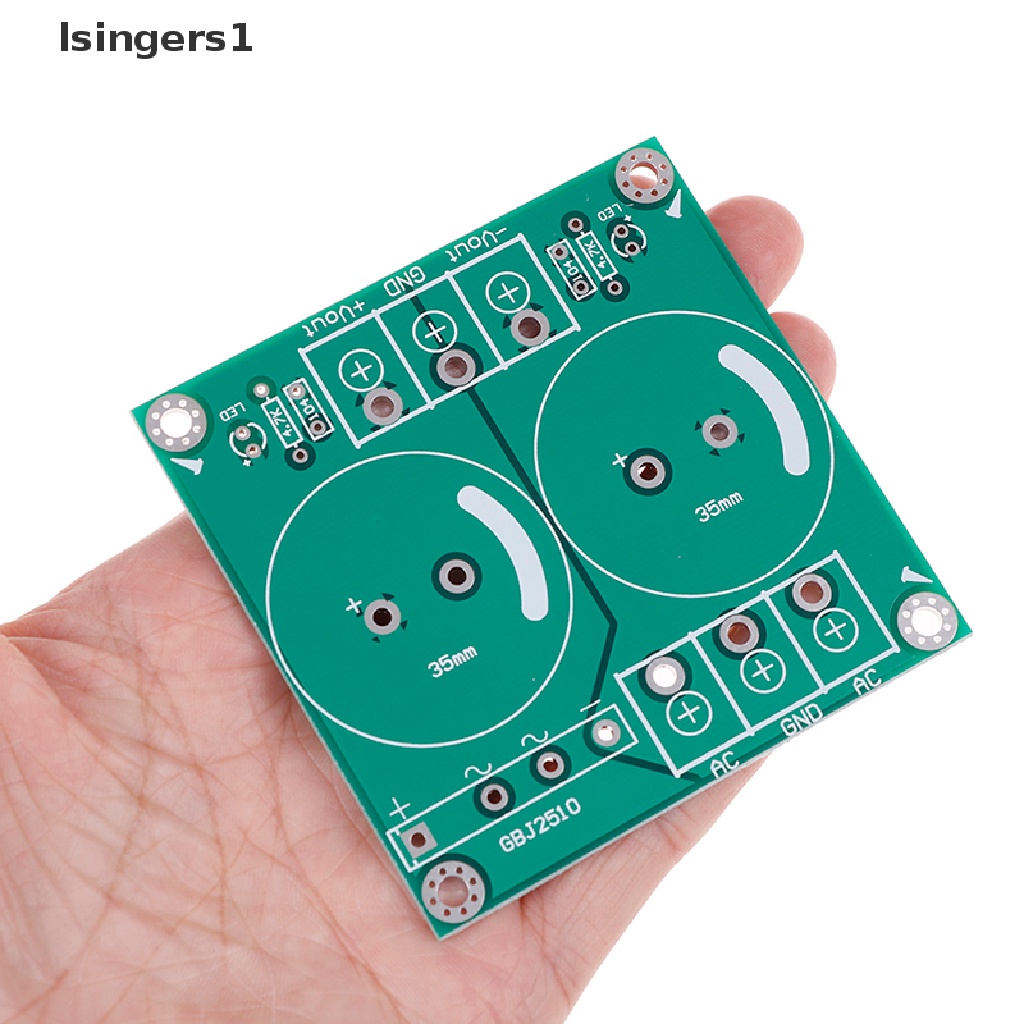

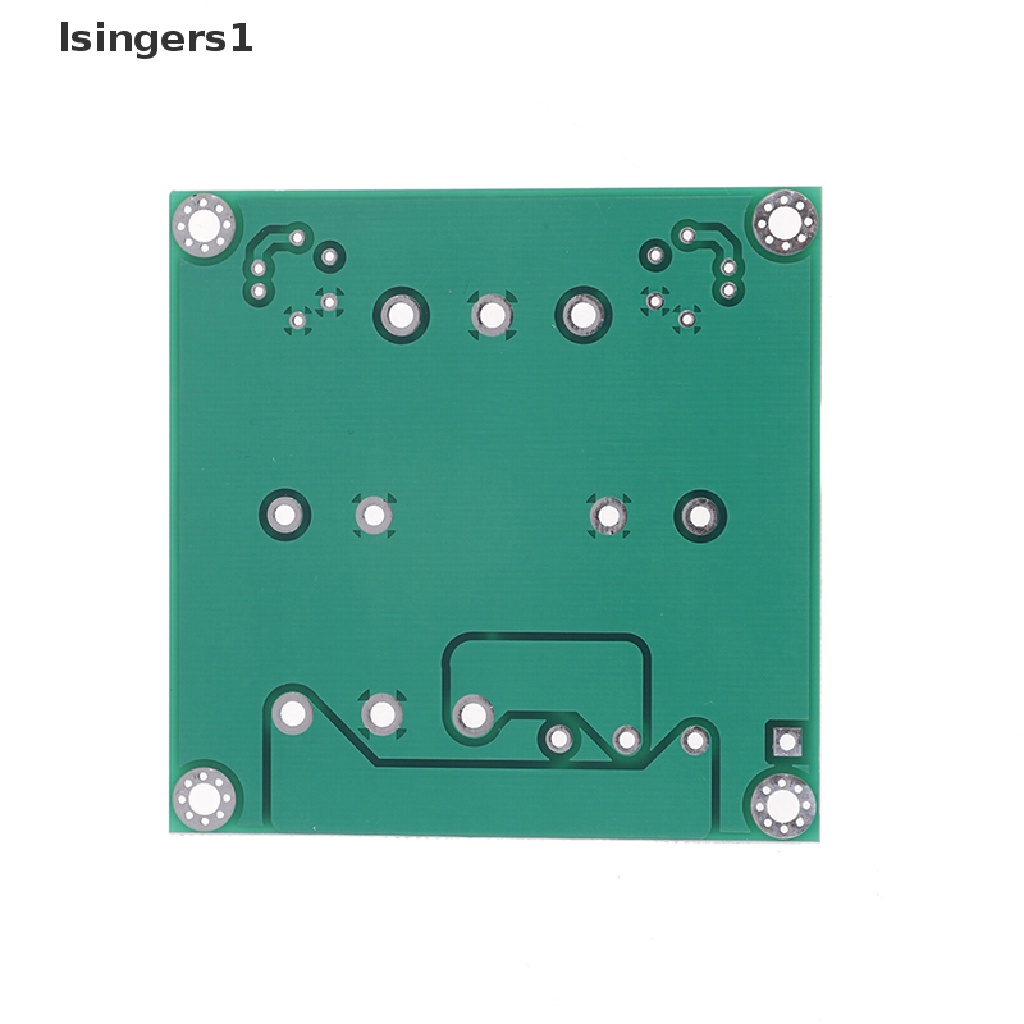

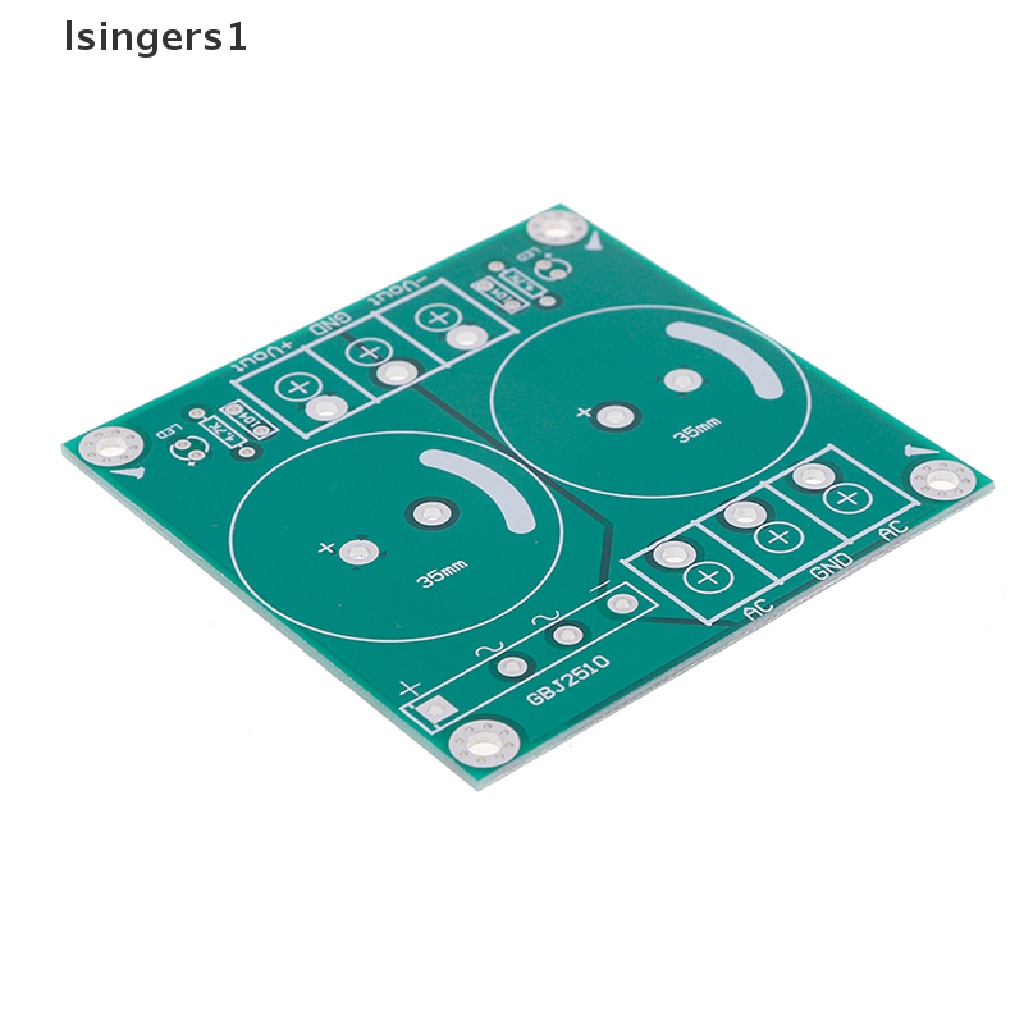

Note: this item is only one bare board, not contain other parts. Material: FR-4; Size: 73 x 73 mm (Length x Width);Thickness:1.6mm Surface finishing : double-sided solder resist for maximum durability. Max 25A bridge rectifier/2PC Capacitors (30mm or 35mm Diameter) AC input connector wiring: AC: AC transformer connection line GND: Ground connection transformer Note: Single-voltage transformer connected only either one AC and GND, an AC remaining empty, still double the output voltage! DC output interface wiring: -Vout: Negative electrical outlet GND: ground +Vout: positive output Package Included: 1 x Bare PCB
Gambar produk
