(lsingers1) Modul relay 1-Channel 5V level Rendah

Detail (lsingers1) Modul relay 1-Channel 5V level Rendah

Product description:
1, The module complies with international safety standards, control area load area isolation groove;
2, Genuine relay Songle;
3, With the power and relay action instructions, pull bright disconnect does not shine;
4, When a signal in the signal input terminal, the common terminal and the normally start conduction;
5, Microcontroller development board can be used as a module that can be used as a home appliance control;
6, There is a normally open and a normally closed contact;
7, Blue KF301 terminals to the line of control is more convenient.
Description of the high and low trigger, friends do not understand Take a look at:
High level trigger is a trigger voltage between the signal input and ground can be understood as a way of the signal input terminal and VCC cathode short trigger;
Low trigger means is the voltage between the signal input terminal and the ground for the OV trigger mode can be understood as a way of the signal input terminal and GND negative short trigger
Package include:
1 x 1 Channel 5V Relay Module

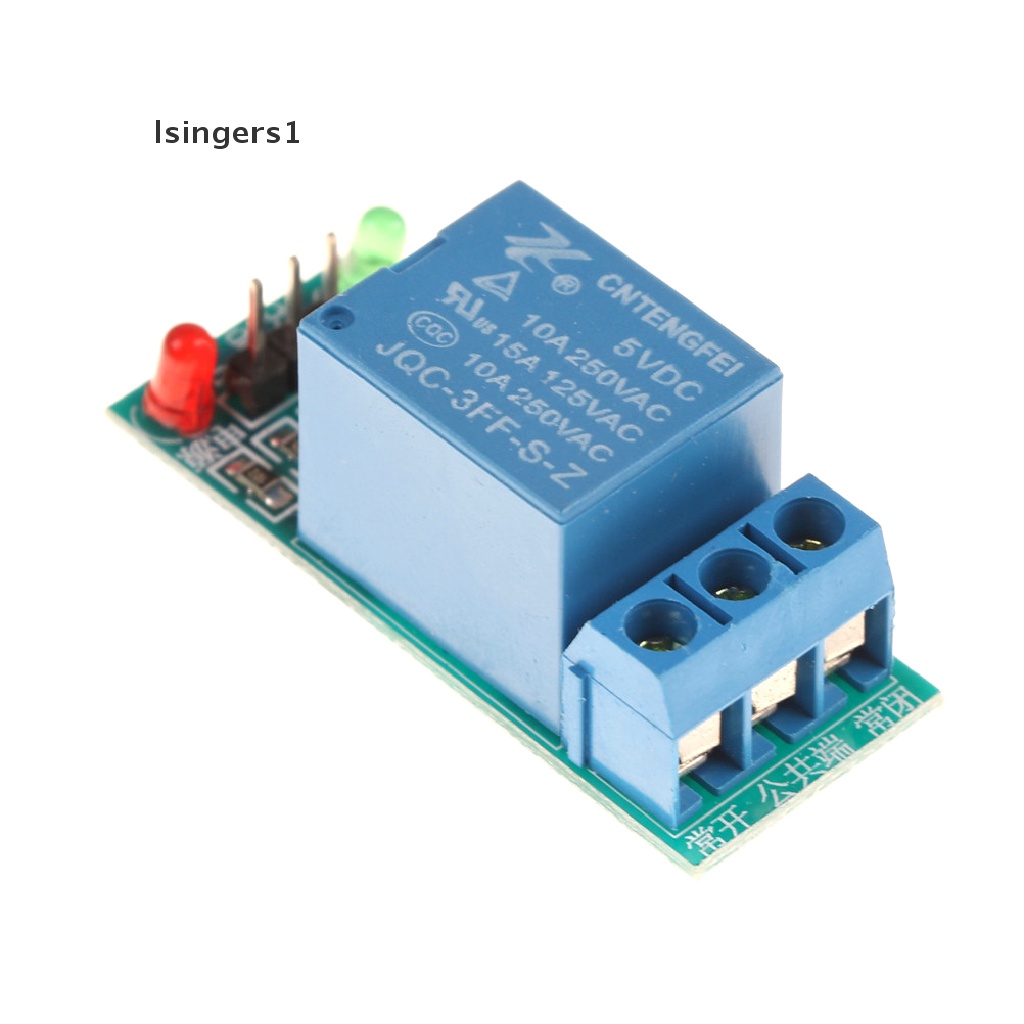

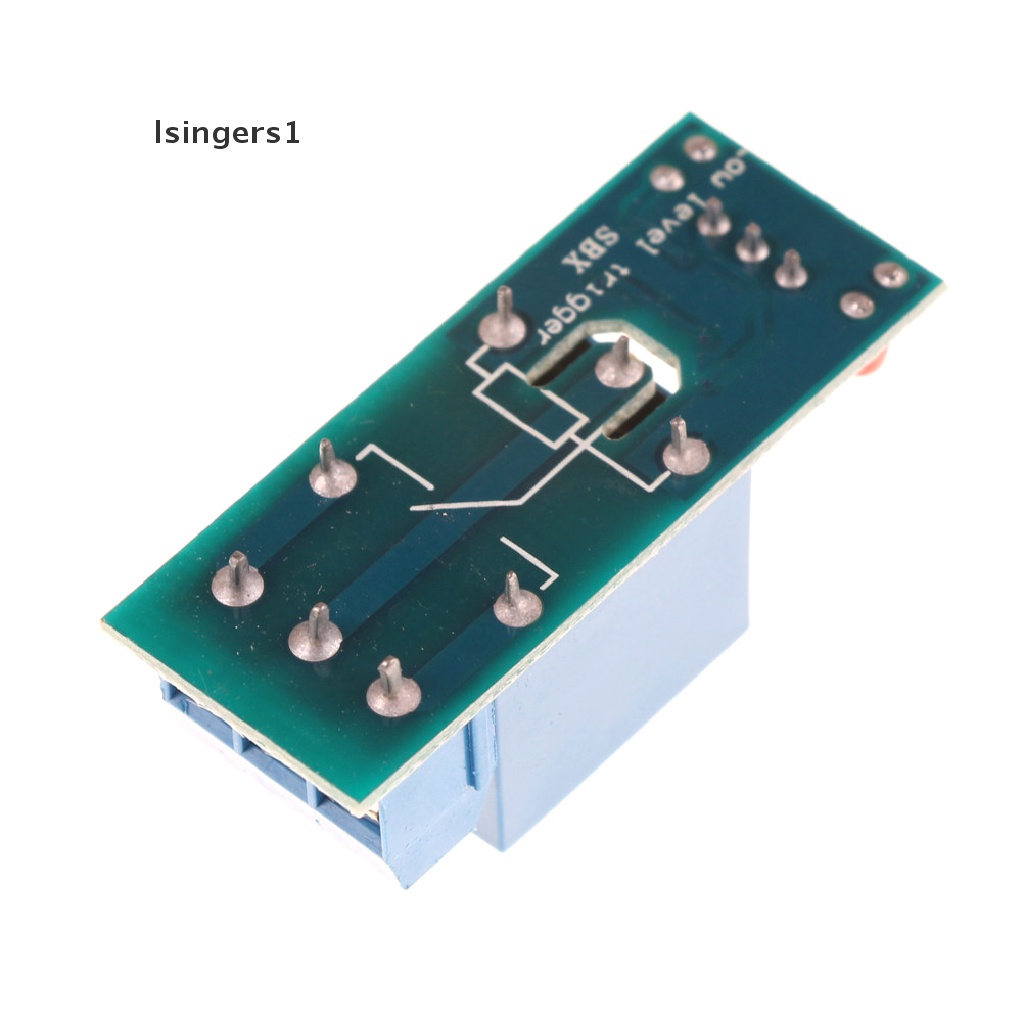

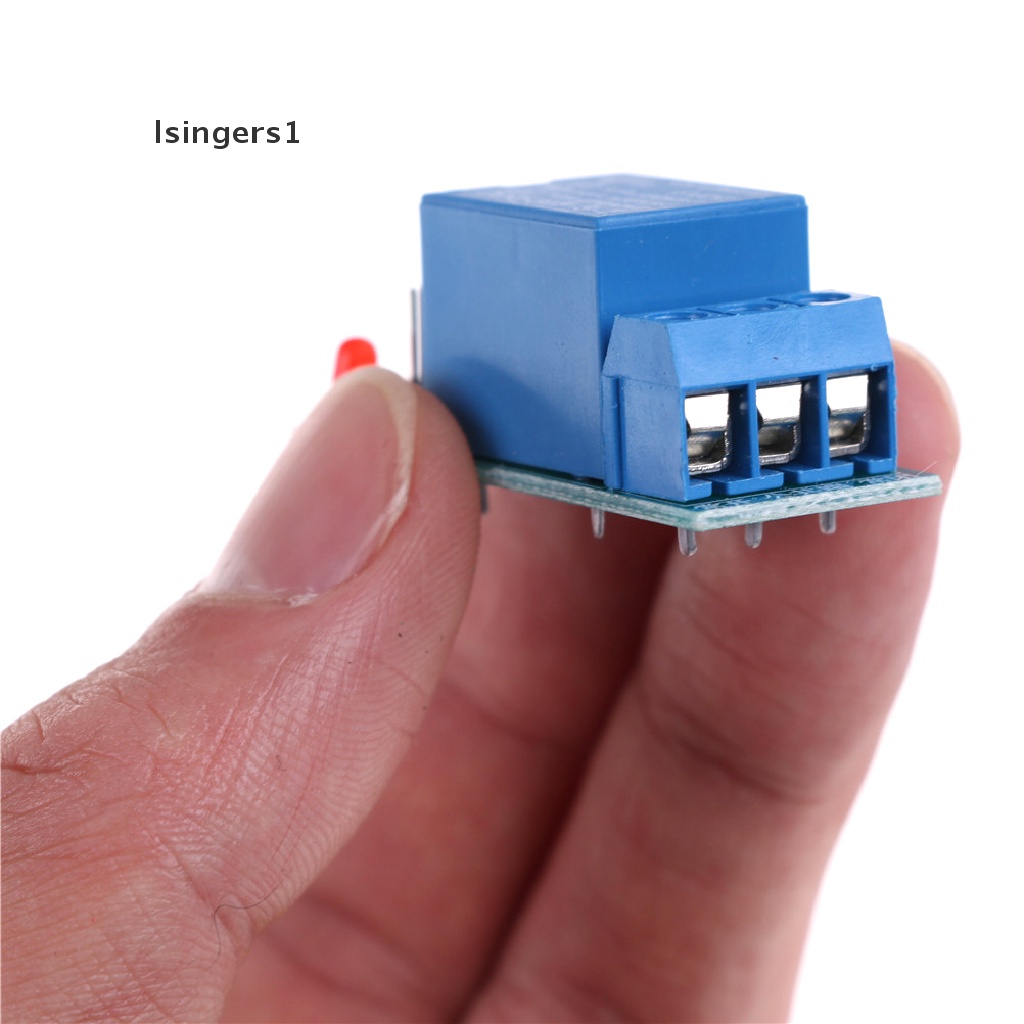

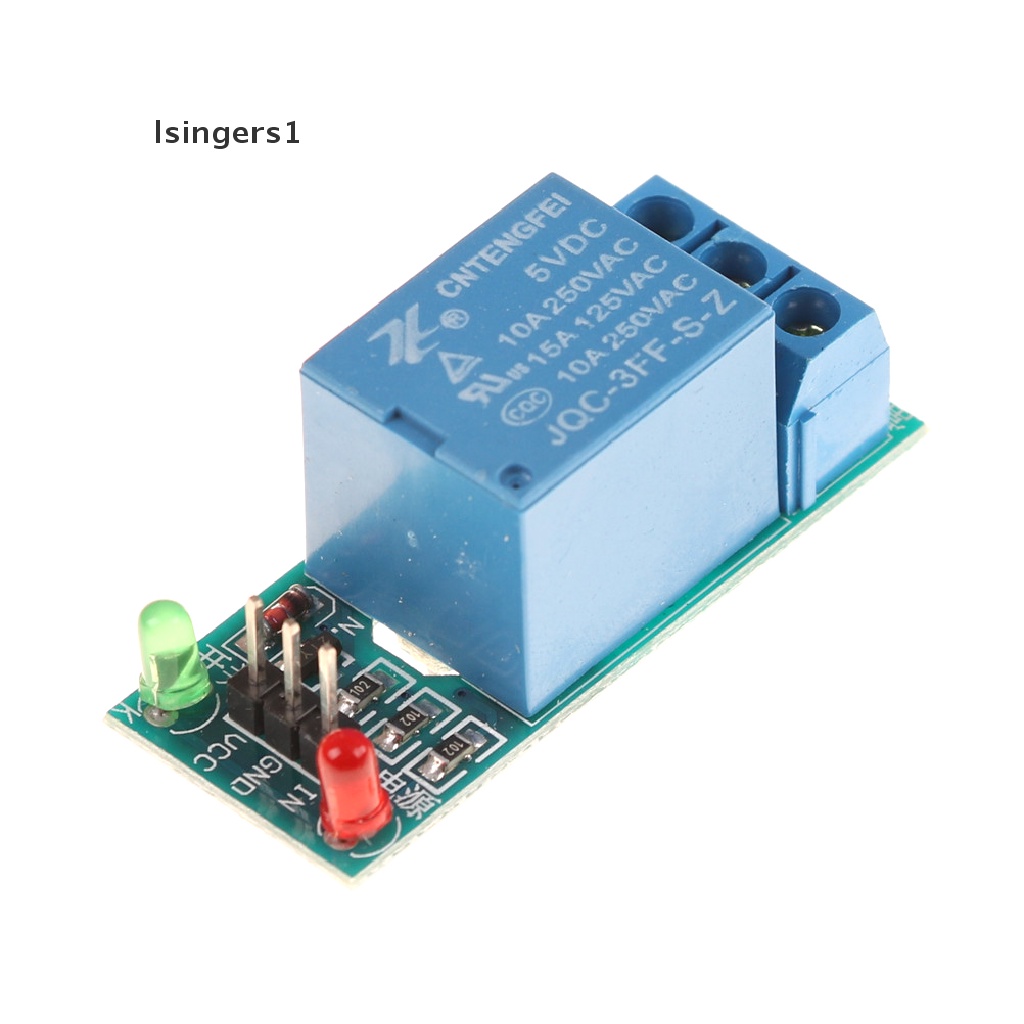

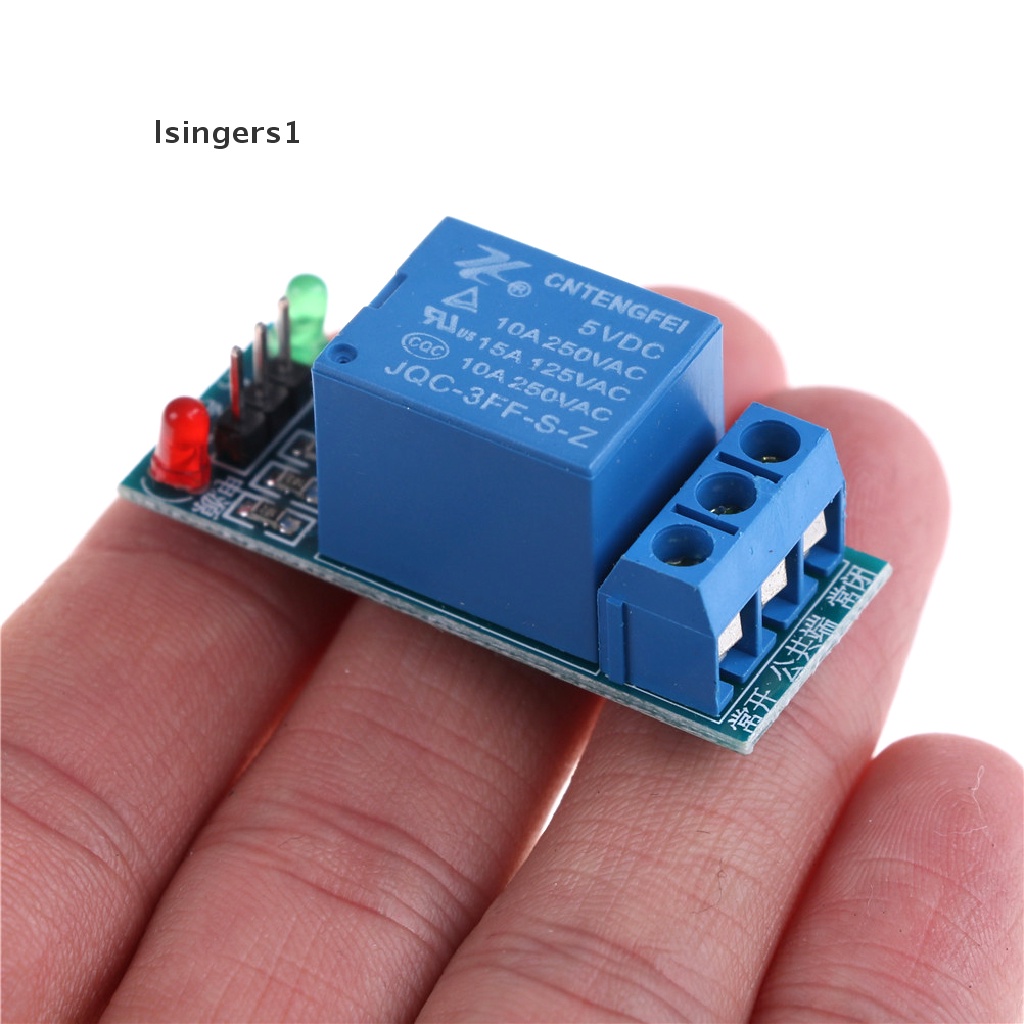

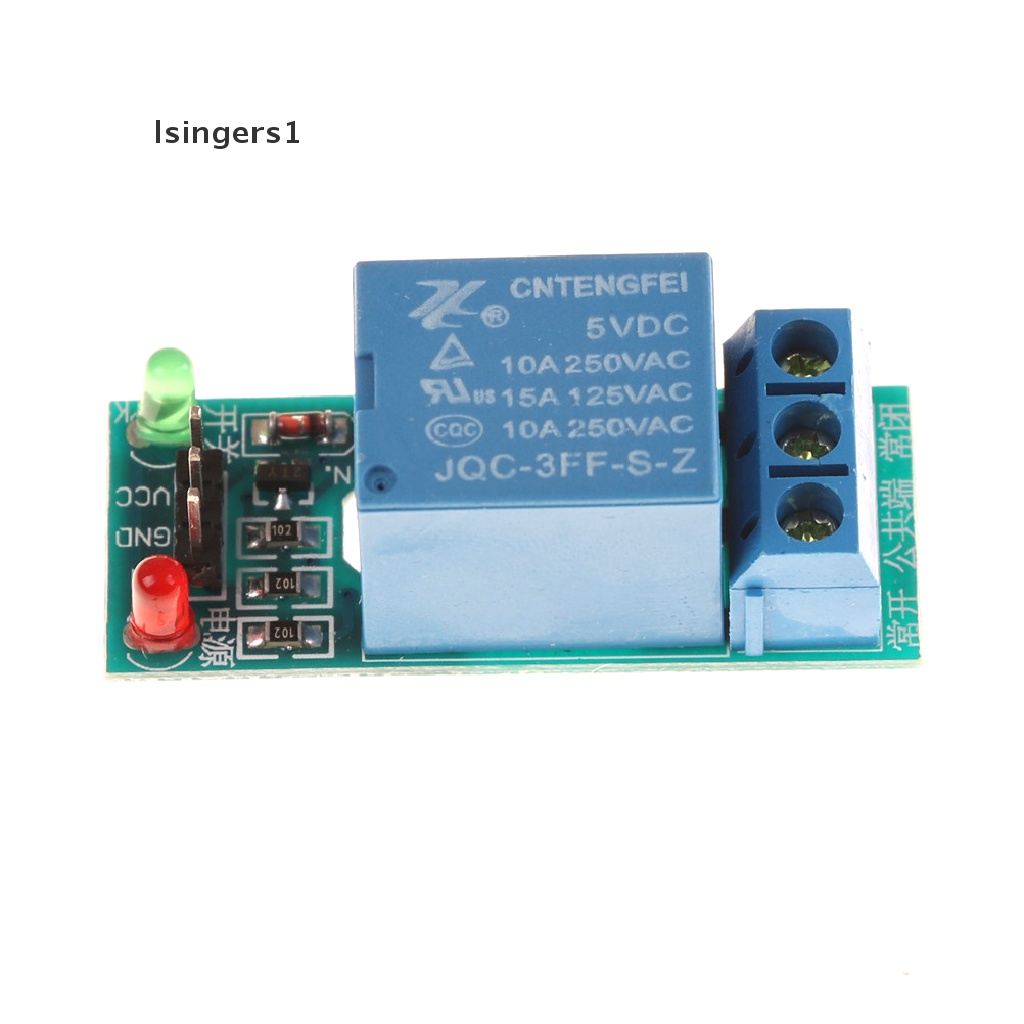

Gambar produk
