Detail (lsingers1) Modul Power Supply AC-DC 0.3A 3W 220V Ke DC 5V 12V 24V

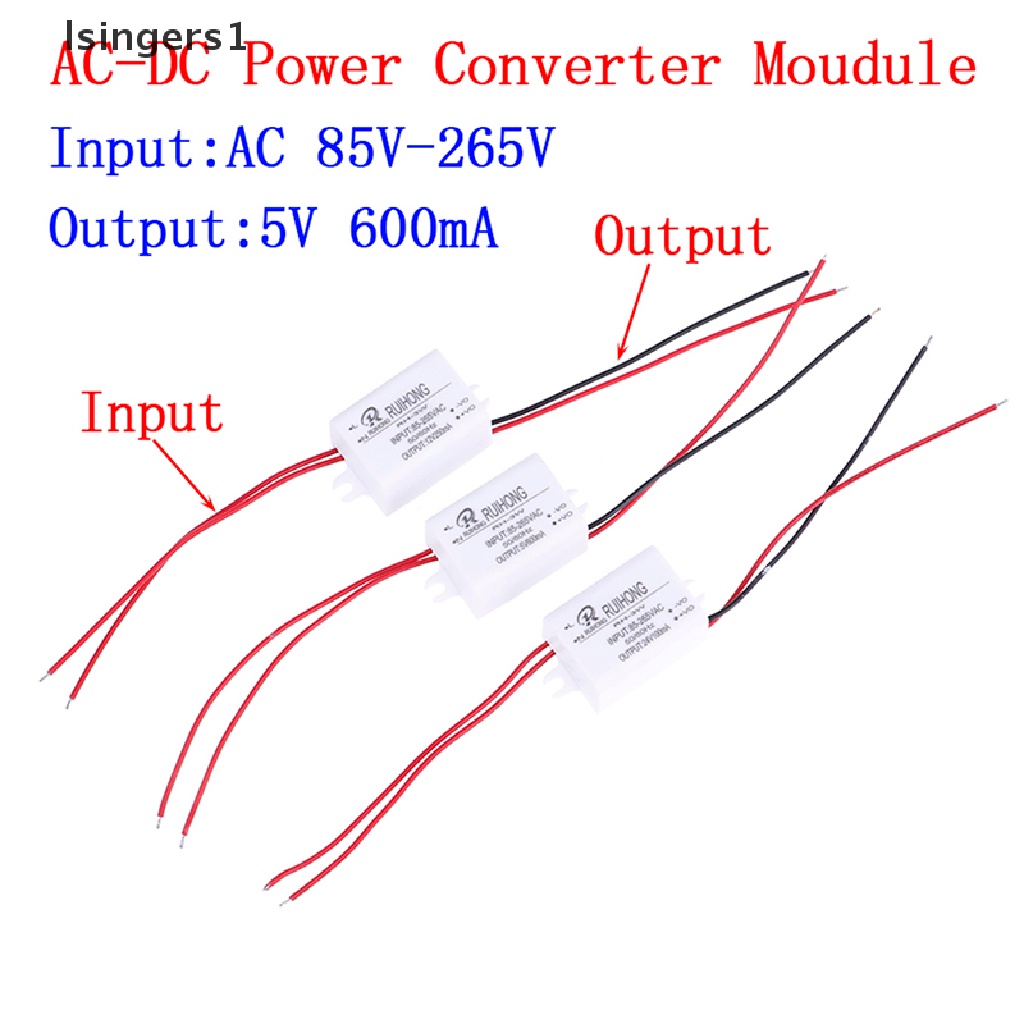

Description:Input voltage: AC 85V-265V
Input voltage: DC 100V-300V
Frequency range: 47HZ-63HZ
Standby power: <150mV/230VAC
5V:
Rated current: 600mA
Current range: 0-600mA
Rated power: 3W
Ripple: <150mV
Output accuracy: ±1%
Voltage regulation rate: ±1%
Load adjustment rate: ±1%
Switch overshoot: 10%

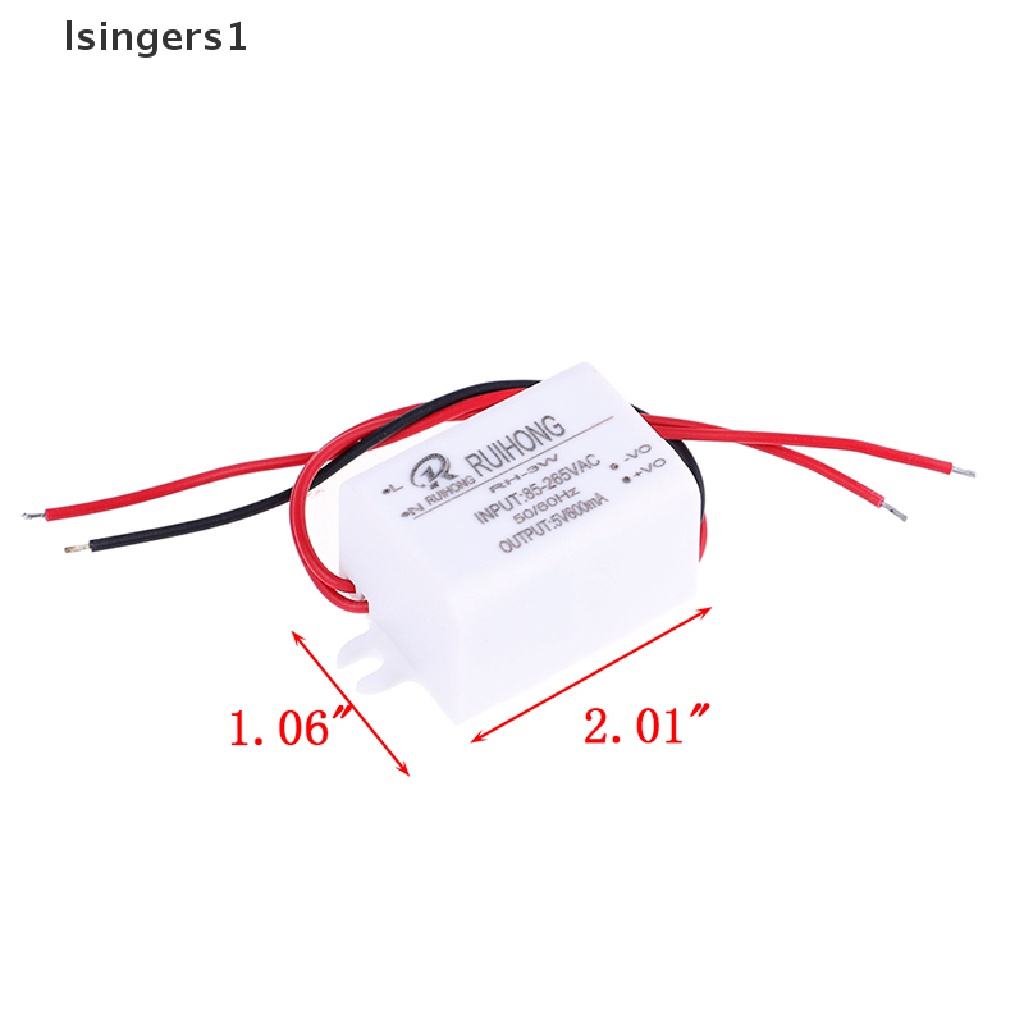

Size: Show in the picture
12V:
Rated current: 300mA
Current range: 0-300mA
Rated power: 3W
Ripple: <150mV
Output accuracy: ±1%
Voltage regulation rate: ±1%
Load adjustment rate: ±1%
Switch overshoot: 10%
Size: Show in the picture
24V:
Rated current: 150mA
Current range: 0-150 mA
Rated power: 3W
Ripple: <150mV
Output accuracy: ±1%
Voltage regulation rate: ±1%
Load adjustment rate: ±1%
Switch overshoot: 10%
Size: Show in the picture
Package include:
1Pcs Module

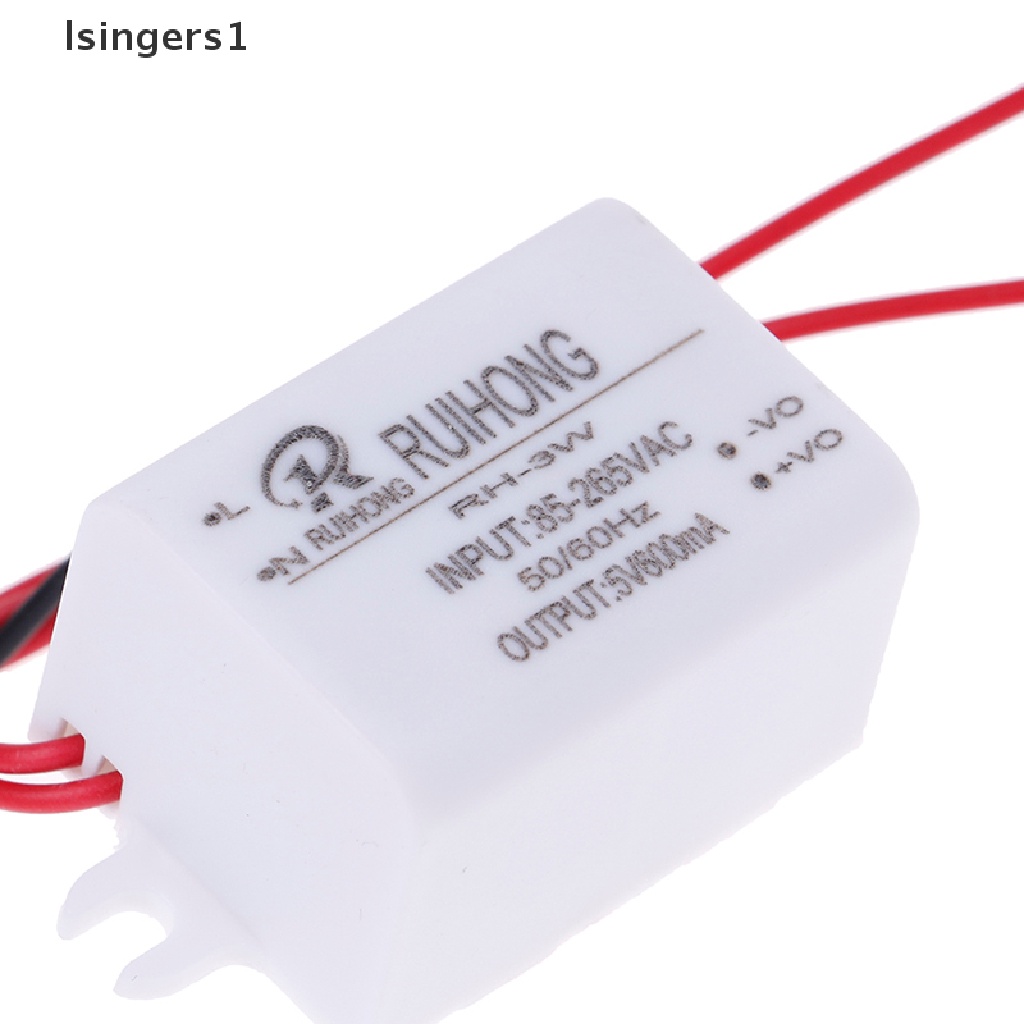

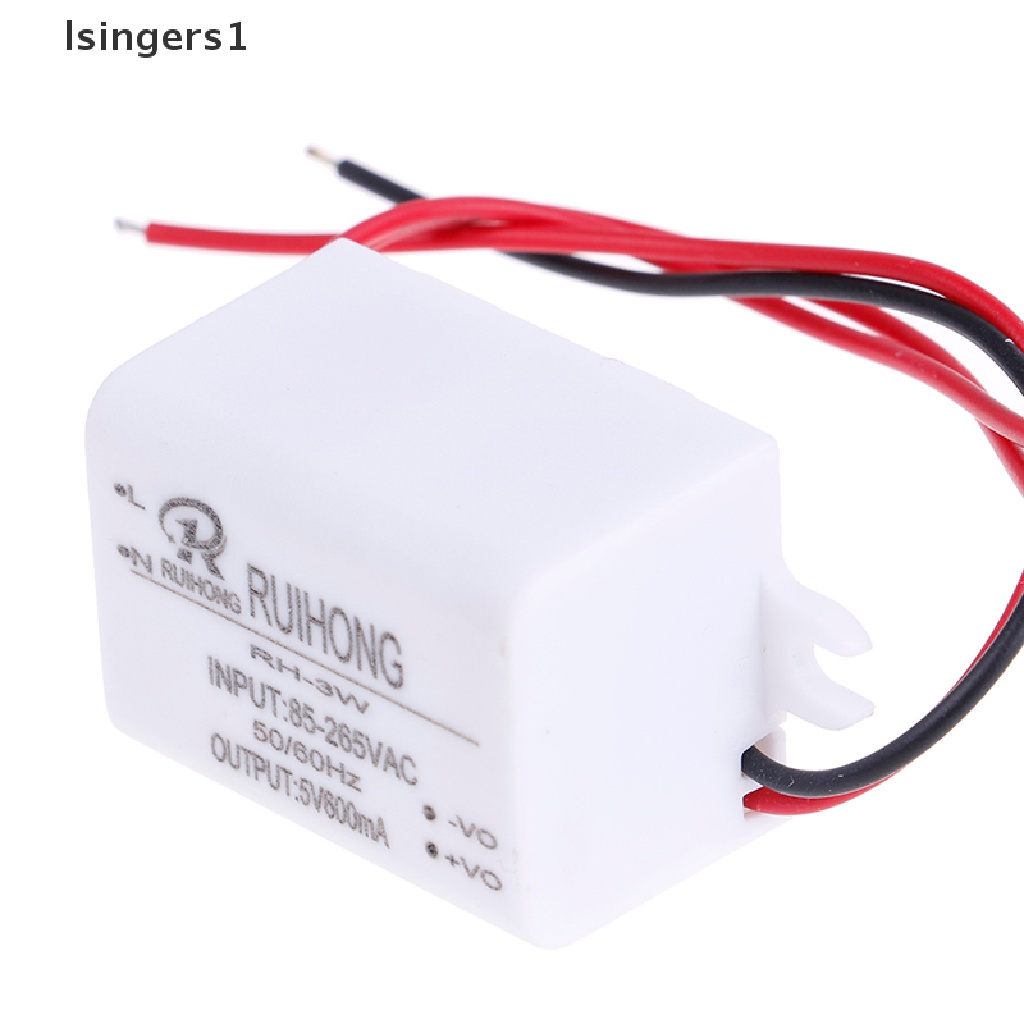

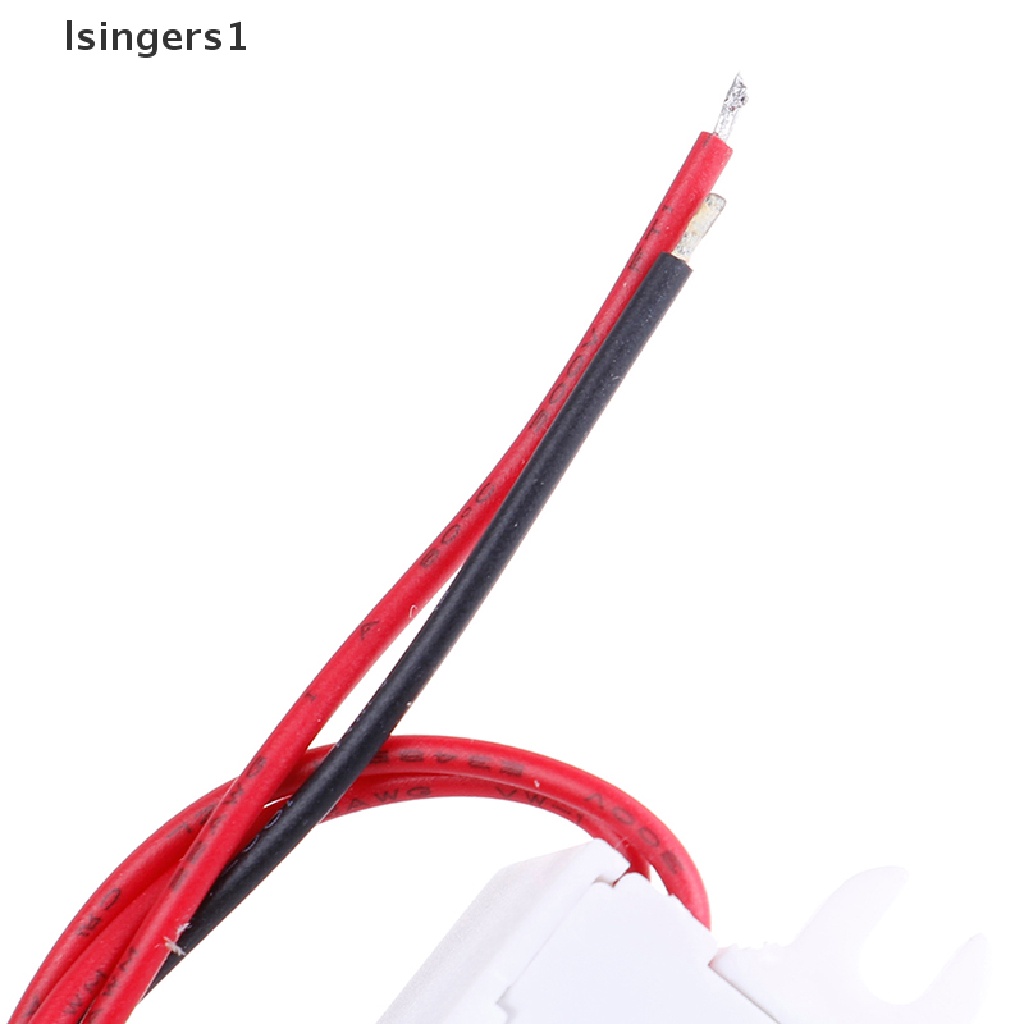

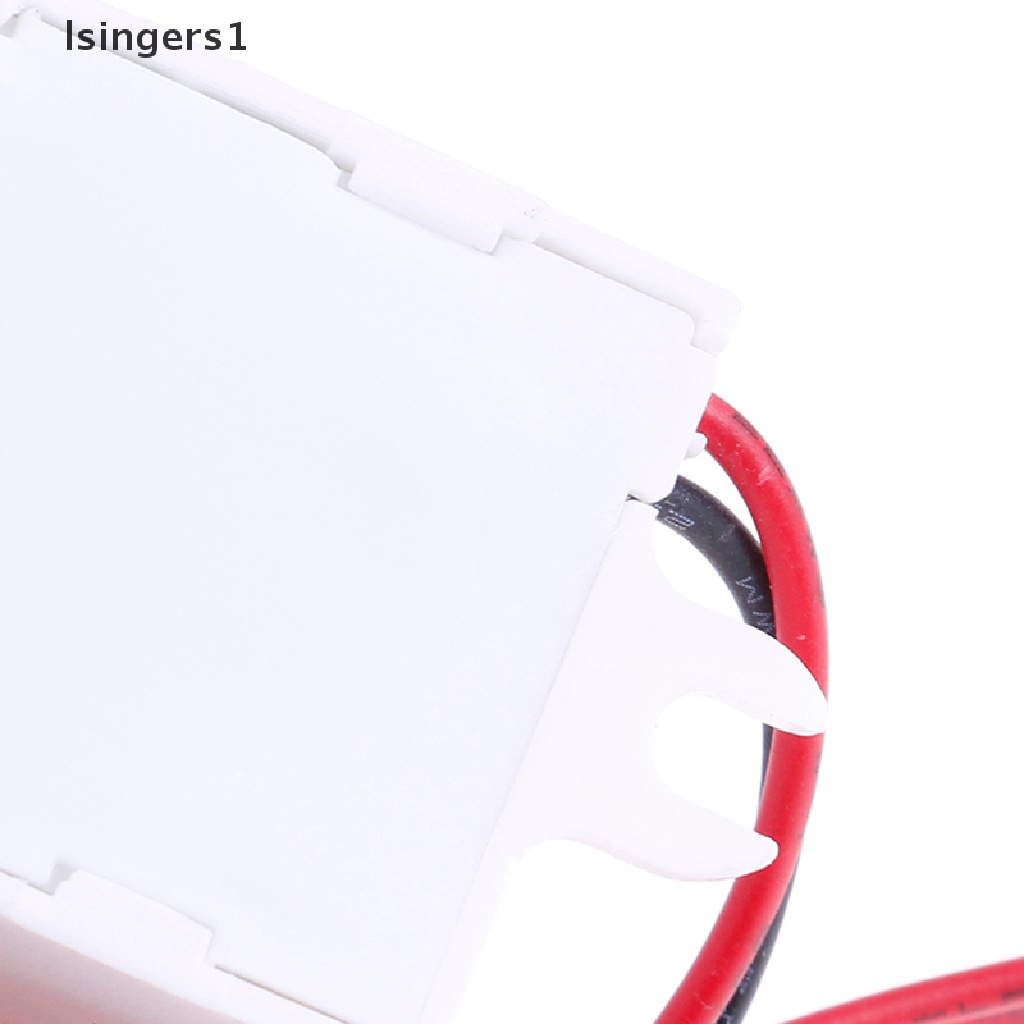

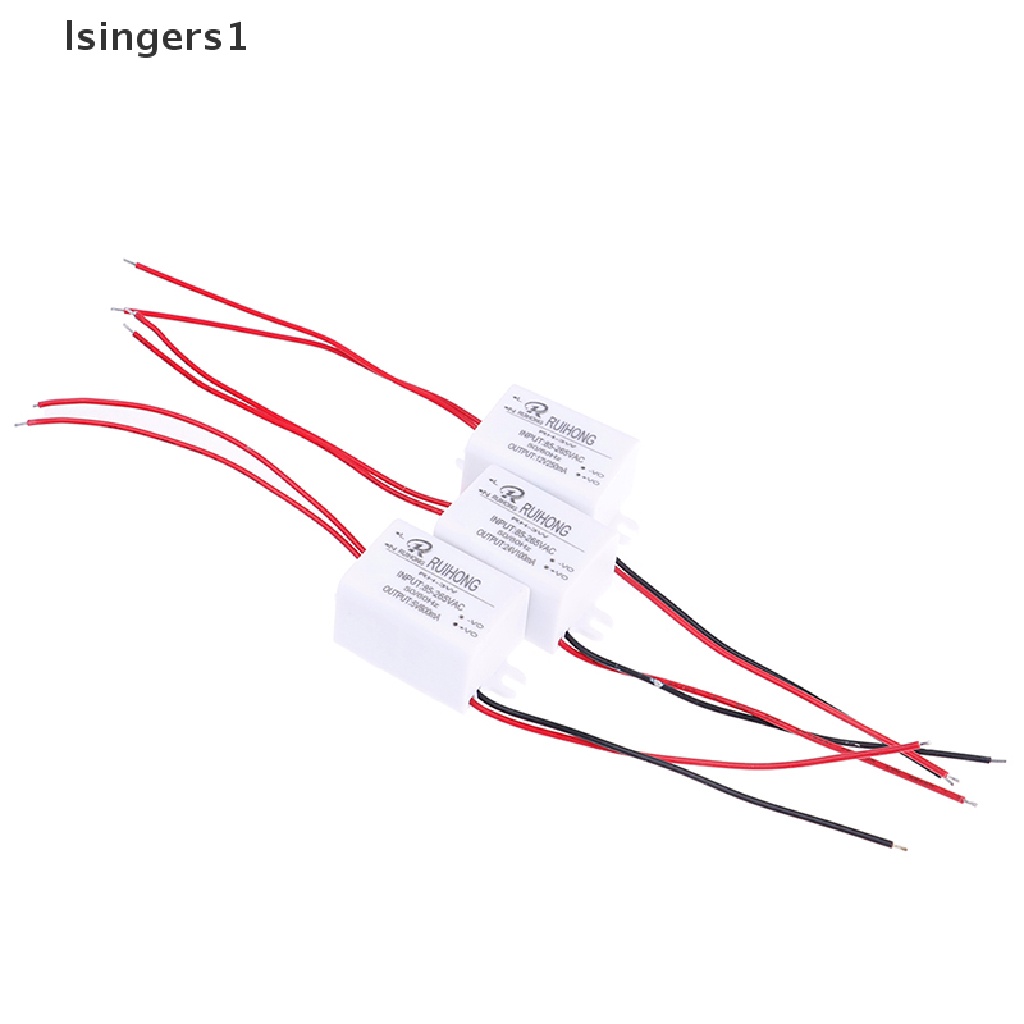

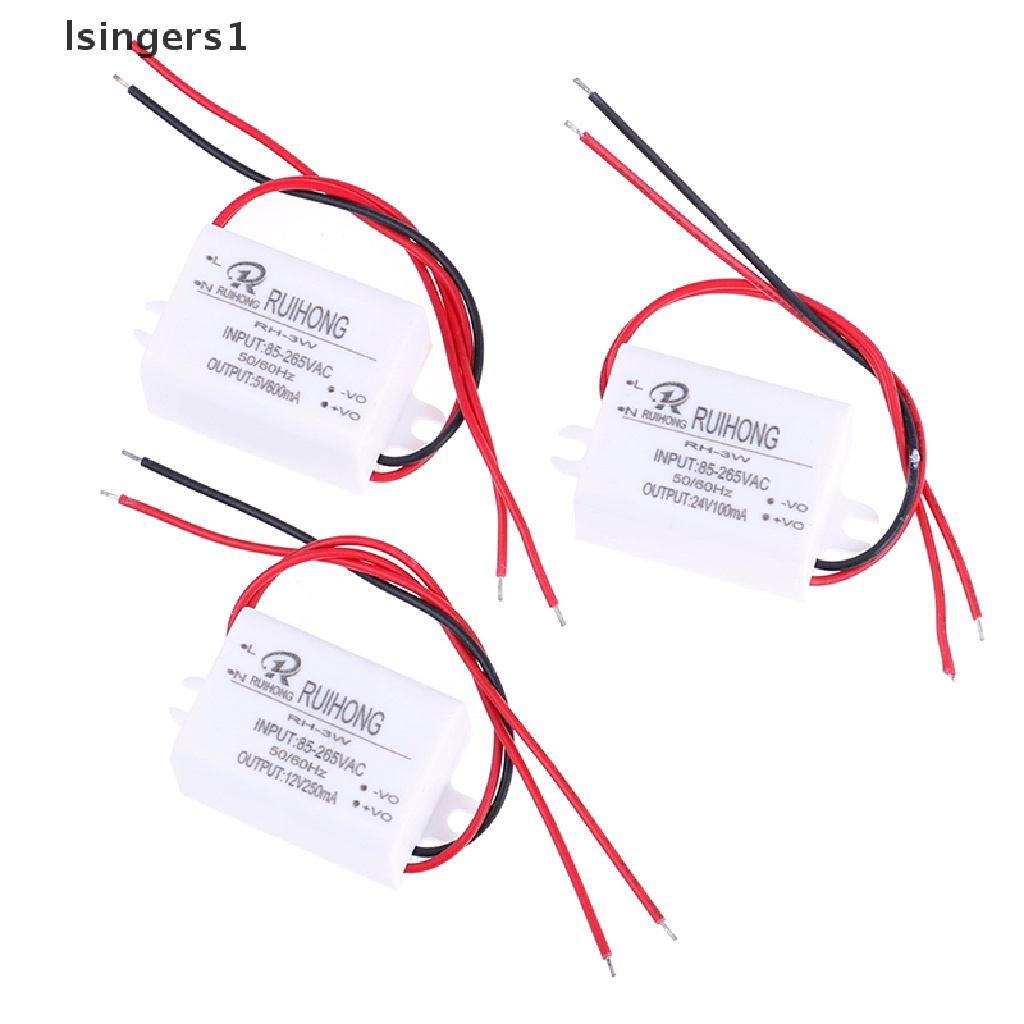

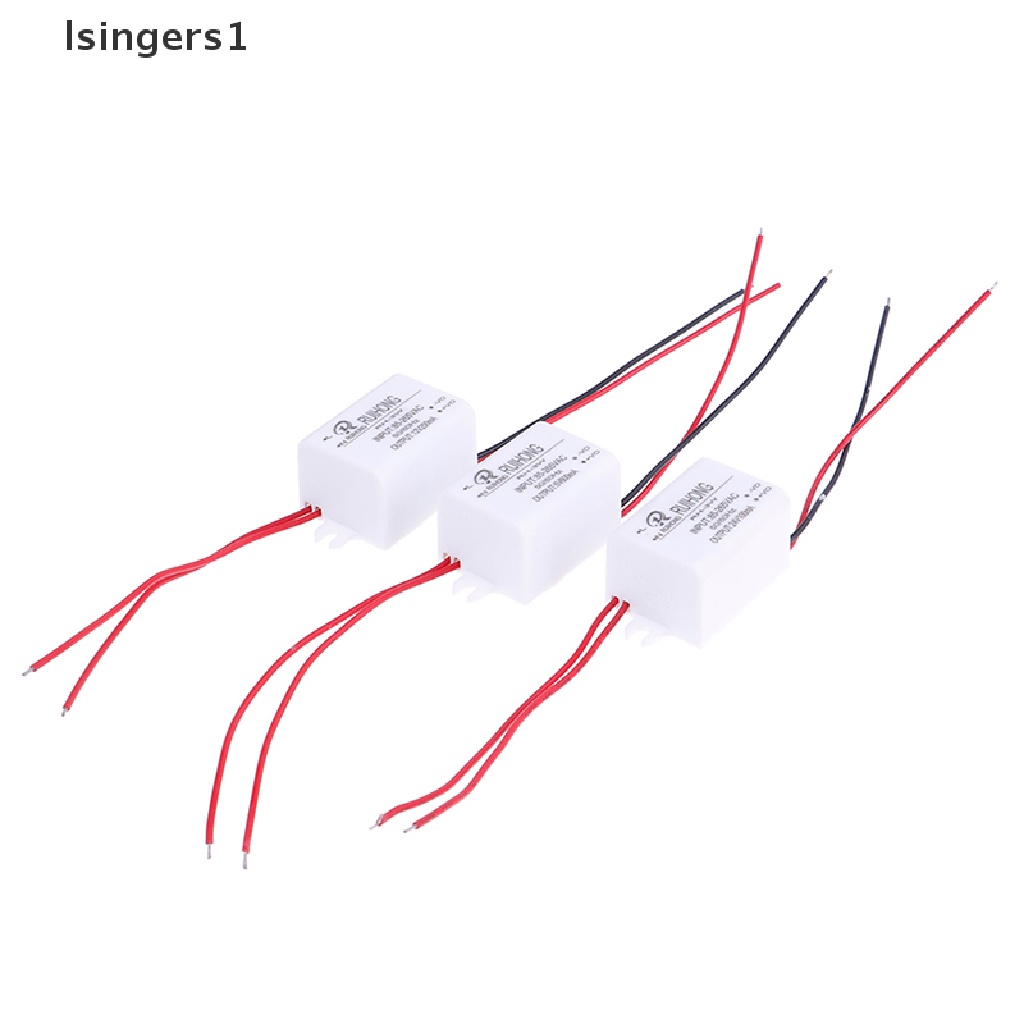

Gambar produk
