Detail (lsingers1) Modul power supply Konverter AC-DC 110v 220v 230v Ke 3.3v 5v 12v

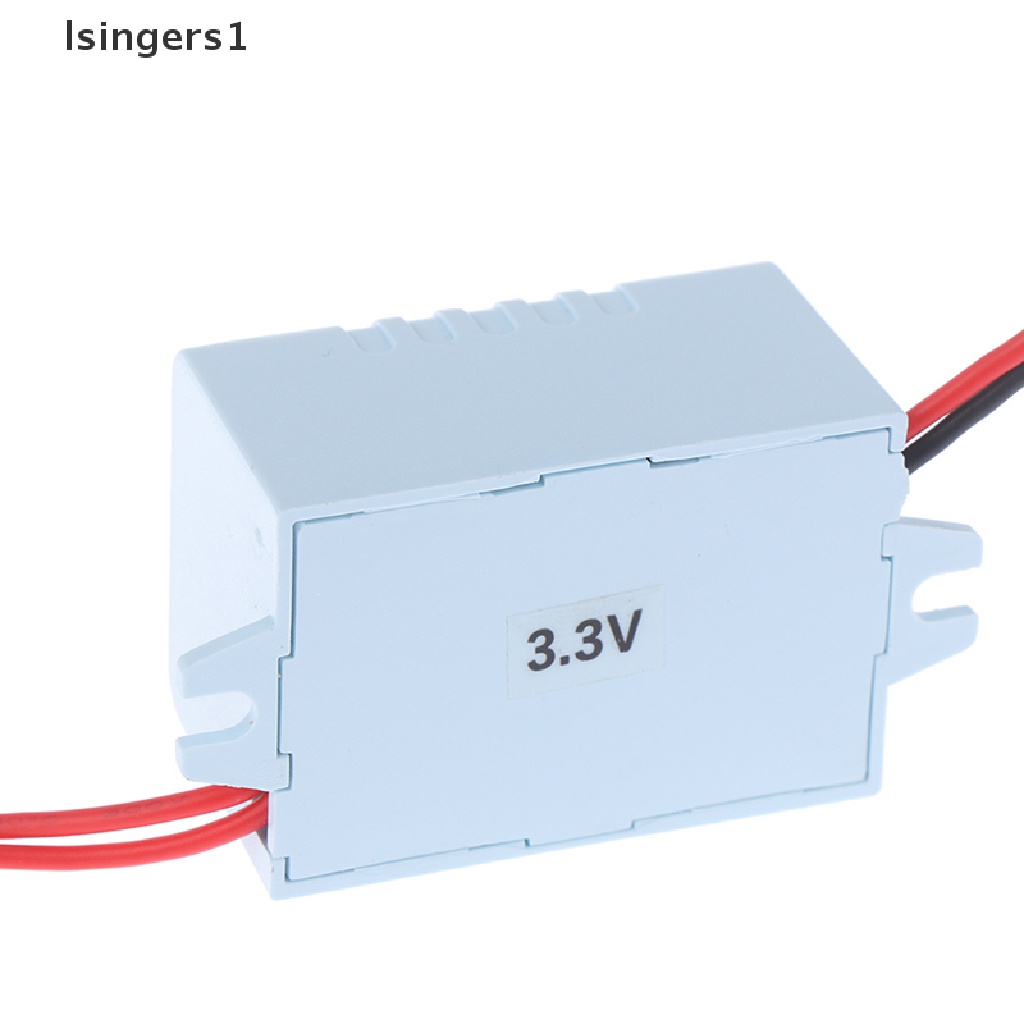

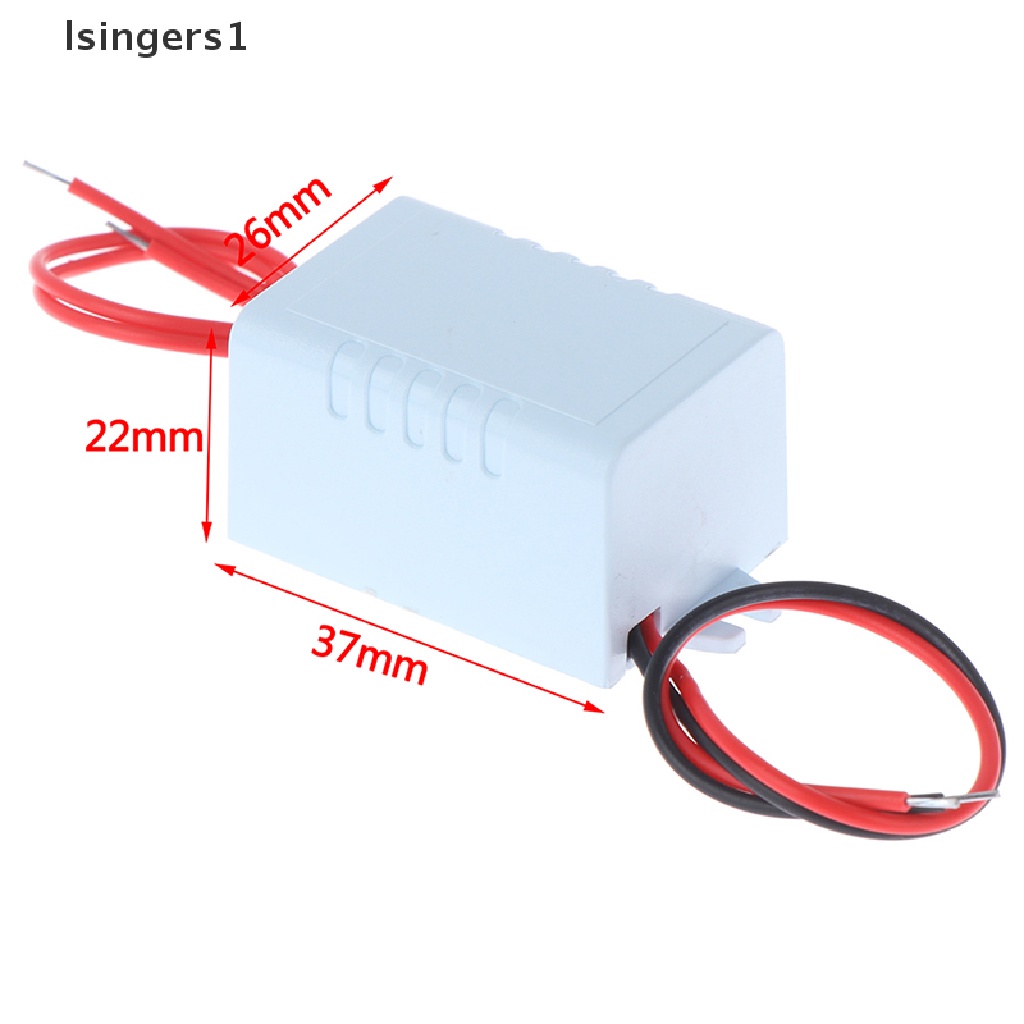

Specification: DC 3.3V Version: Input voltage: AC 85V-265V or DC 100V-370V Output voltage: DC 3.3V Peak output current: 1.5A (±0.15V) Output power:3W Efficiency:87% Full load output:Vpp < 150mV Output accuracy: ±1.0%V Swithing Frequency: 50-60KHZ Working temperature: -20℃~+60℃ Storage temperature: -40℃~+85℃ Relative humidity: 20-90% Size: 37*26*22mm
DC 5V Version: Input voltage: AC 85V-265V or DC 100V-370V Output voltage: DC 5V Peak output current: 1A (±0.15V) Output power:5W Efficiency:87% Full load output:Vpp < 150mV Output accuracy: ±1.0%V Swithing Frequency: 50-60KHZ Working temperature: -20℃~+60℃ Storage temperature: -40℃~+85℃ Relative humidity: 20-90% Size: 37*26*22mm
DC 12V Version: Input voltage: AC 85V-265V or DC 100V-370V Output voltage: DC 12V Peak output current: 0.4A Output power:4.8W Efficiency:87% Full load output:Vpp < 100mV Output accuracy: ±1.0%V Swithing Frequency: 50-60KHZ Working temperature: -20℃~+60℃ Storage temperature: -40℃~+85℃ Relative humidity: 20-90% Size: 37*26*22mm Package included: 1Pcs
