Detail (lsingers1) Modul laser Dioda 532nm Warna Hijau

Description:

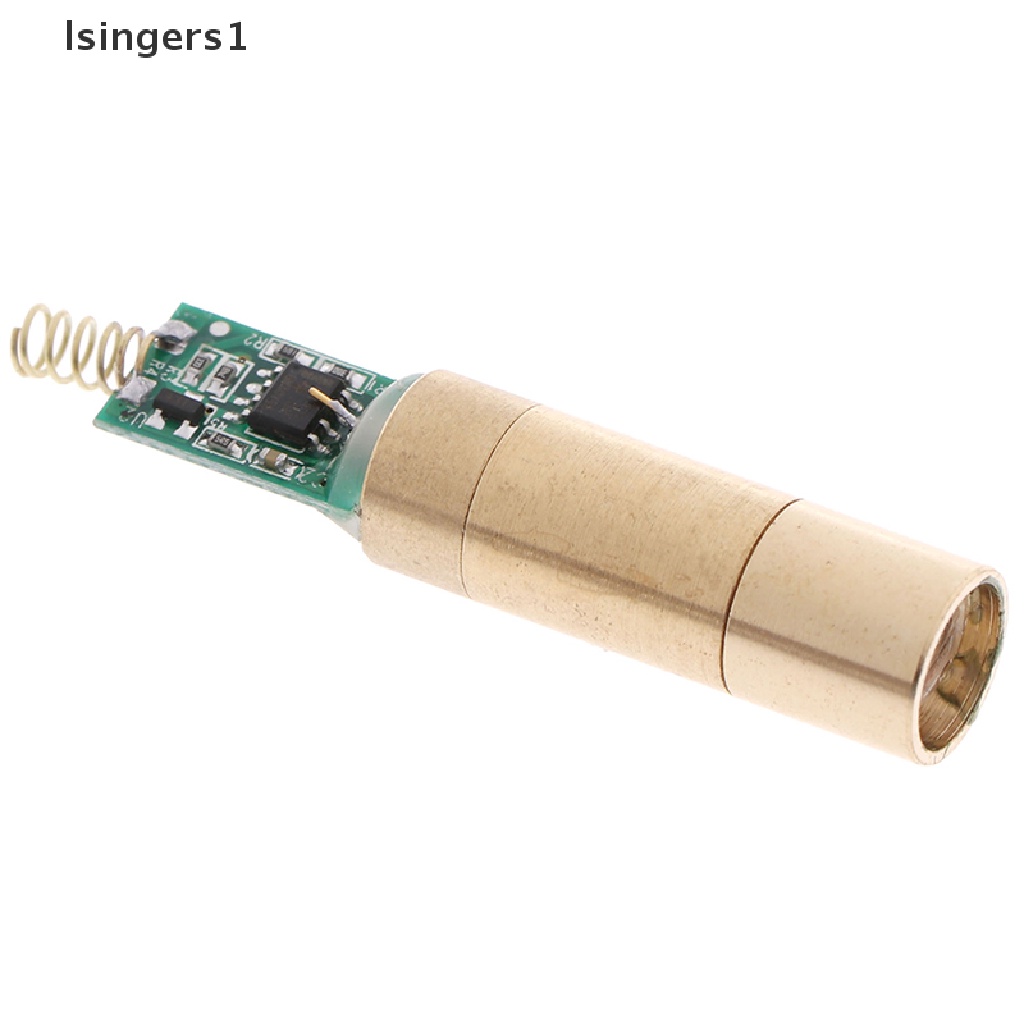

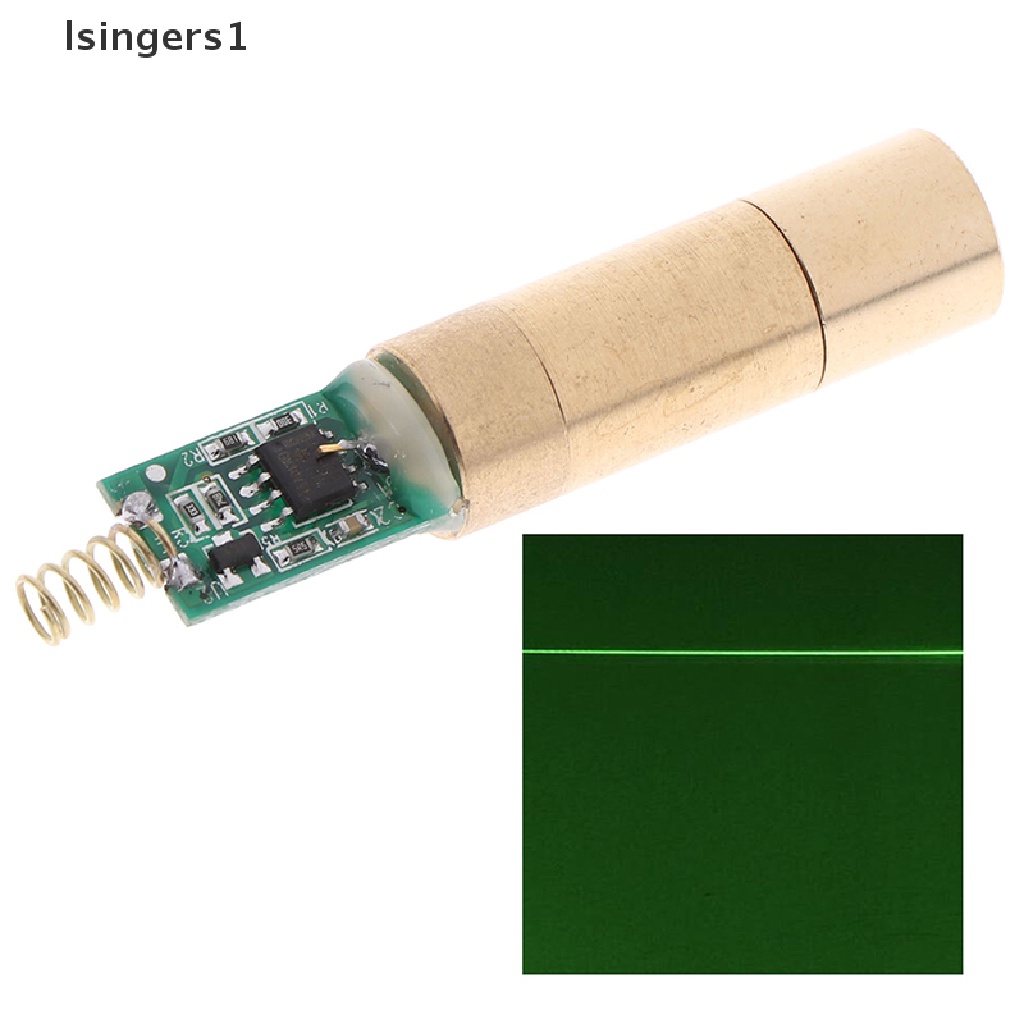

Green Line Laser Module
-Wavelength:532nm
-Power output:50mW with 5% tolerance
-Threshold current:260mA
-Maximum current:360mA
-Requirements Voltage:1.7~2.2V
-Working Temperature:+10dgC-+40dgC
-Storage Temperature:+10dgC-+50dgC
-Lifepan (under normal operation)>5000hours
-Size:12mmx35mm
Attention of Products:
-Red cable at "+"
-Black cable at "-"
-It working must with Cooling Heatsink/ Heat Sink together;

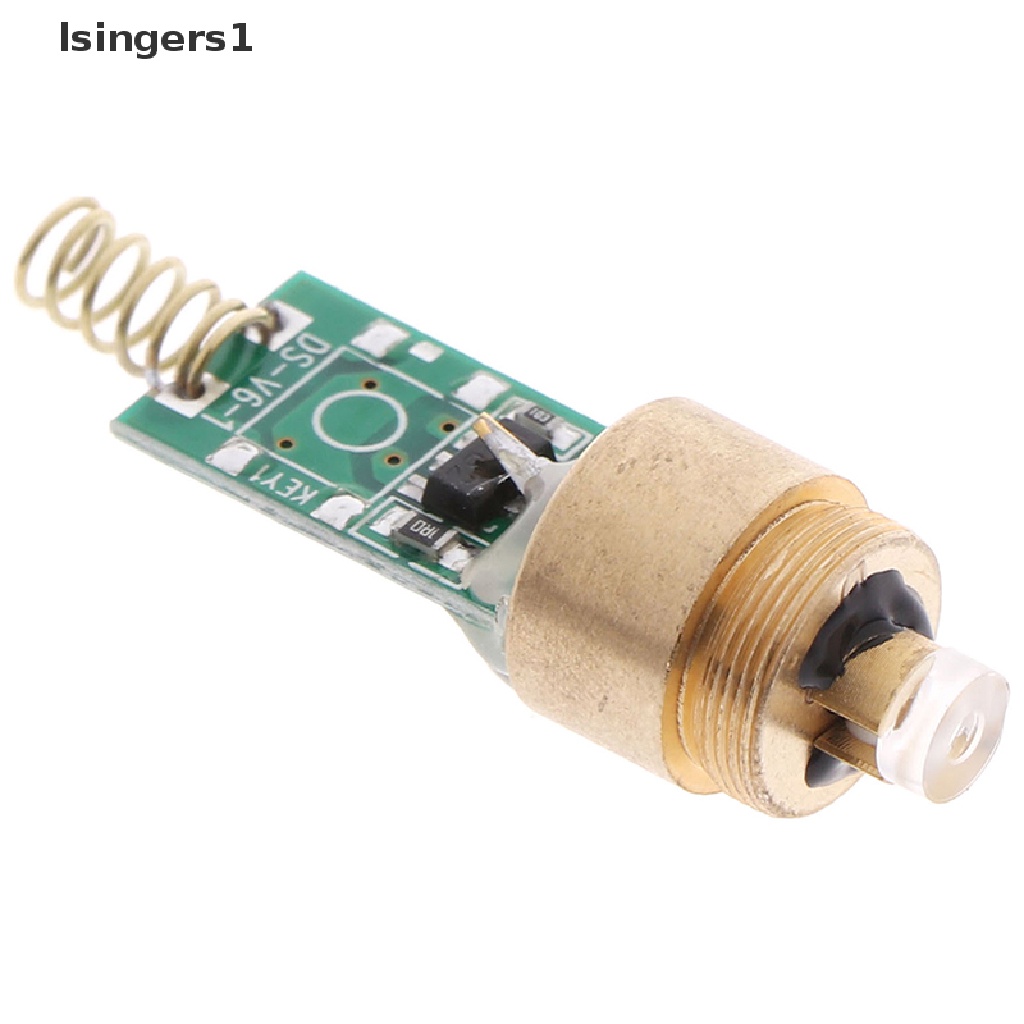

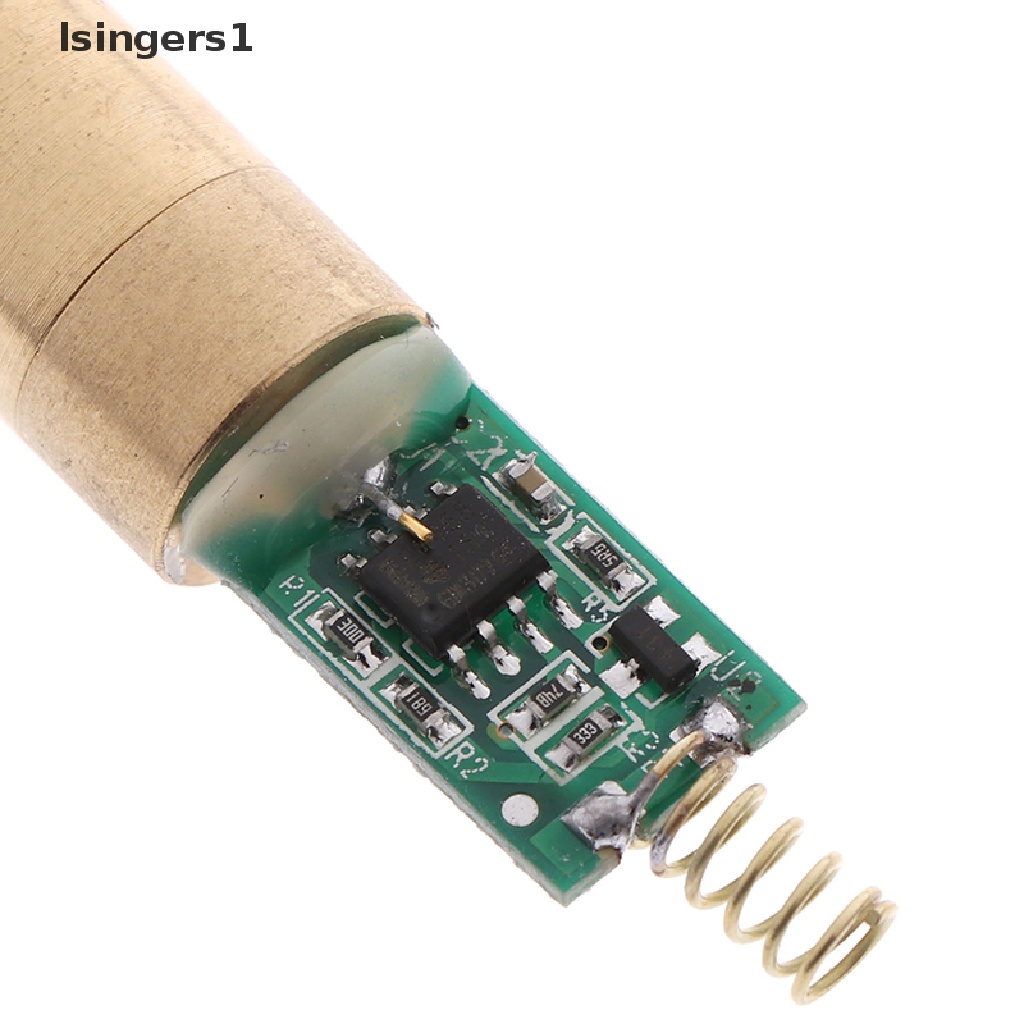

DESCRIPTION OF Driver:
All items are 100% new & never used.
Features:
1. Constant current Stable voltage IC circuit, laser diode can be better protected without being damaged
2.Constant current output , Can be adjusted(0~580mA).
3.DC supply voltage input 3.0~4.2V.
4.Suitable for 808nm 100mw~500mW laser diode,also be used in laser pointer or flashlight.
5. Power Supply: Li battery such as 16430,18650,14500 and 18500 .
6.Size:10.8mmx18mm(WxL)
Package:
1pcs Line laser module
Purpose:
It can be used for all kinds of laser products, such as laser sights, instruments and equipment, medical and health instruments, military, security, stage lighting, tools, U disk, mobile phone, projection teaching flipper, temperature measuring (ranging) instrument, scanners, marking instruments, level ruler, indoor and outdoor decoration and other products
