Detail Lsingers1 Modul Konverter serial port Ke RS485 RS485 Ke TTL Stabil
Highlights: (1) Compatible with 3.3V and 5.0V power supply. (2) Compatible with 3.3V and 5.0V signal. (3) Absolute using imported chips, industrial design, anti-interference ability, while using more effective mine design can be used in the industrial field and harsh field environments, the working temperature of -40 ℃ to + 85 ℃ transmission distance up to 1 kilometer (made with 850 meters of cable F1.5 tests recommended in the 800 meters, more than 800 m, please add repeaters). (4) Semi-hole pads, onboard module, thin PCB, having a thickness of 0.8mm. (5) Has RXD, TXD signal indicator light, monitor send and receive status.

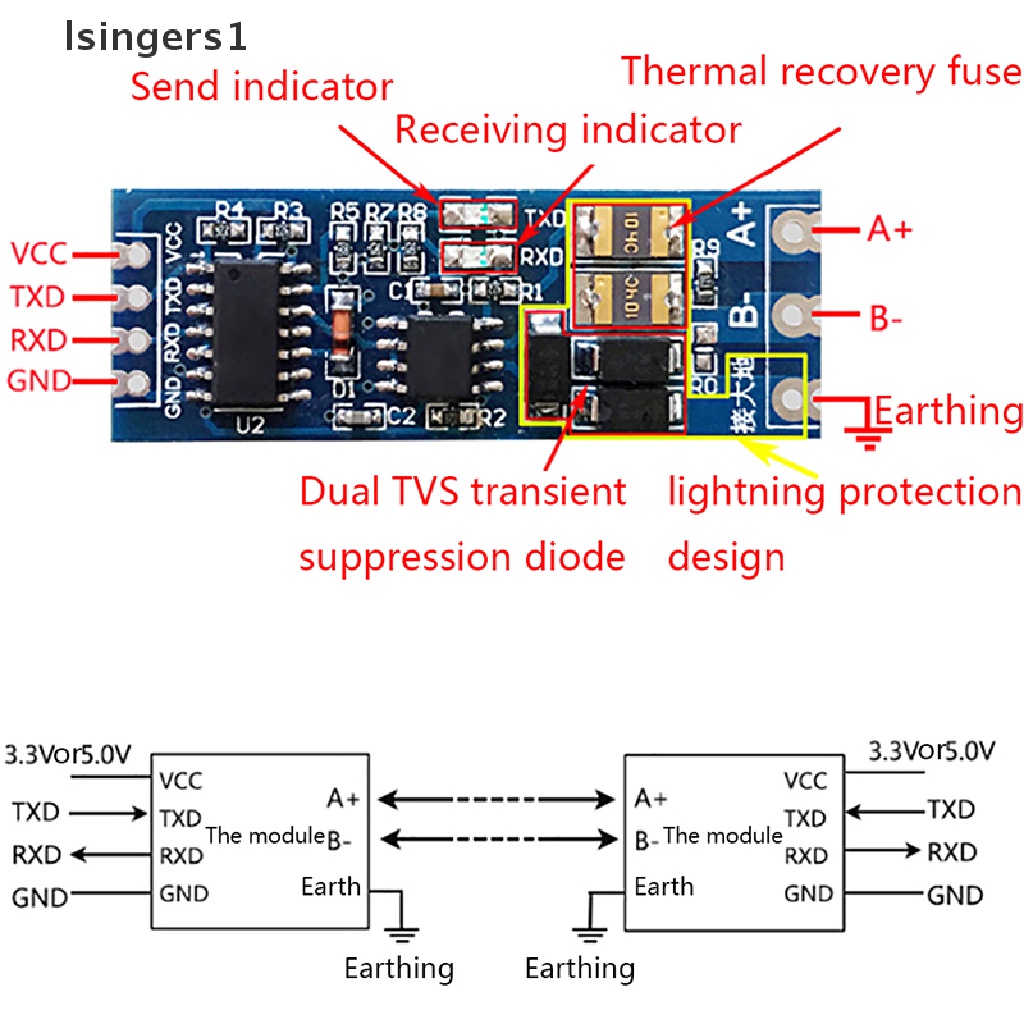

Features: (1) The module is fully considered mine design, long-distance transmission signal 485 in the wild, the module "Connected to the ground" terminal is connected to the earth, can play a very good anti-jamming and anti-lightning effect, more secure; it can not connect with the ground when the indoor short-distance transmission. (2) Using the standard 2.54 pitch design, easy secondary development. (3) Has a 120 ohm termination resistors, shorted R0to enable the termination resistor. (4) Support multi-machine communication, allowing access at up to 128 devices on the bus (5) The module can be hot swapped, the signal does not appear dead phenomenon. (6) A large area of copper to prevent interference.
Package Included: 1 x UART Serial Port to RS485 Converter Function Module RS485 to TTL Stable Module
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
