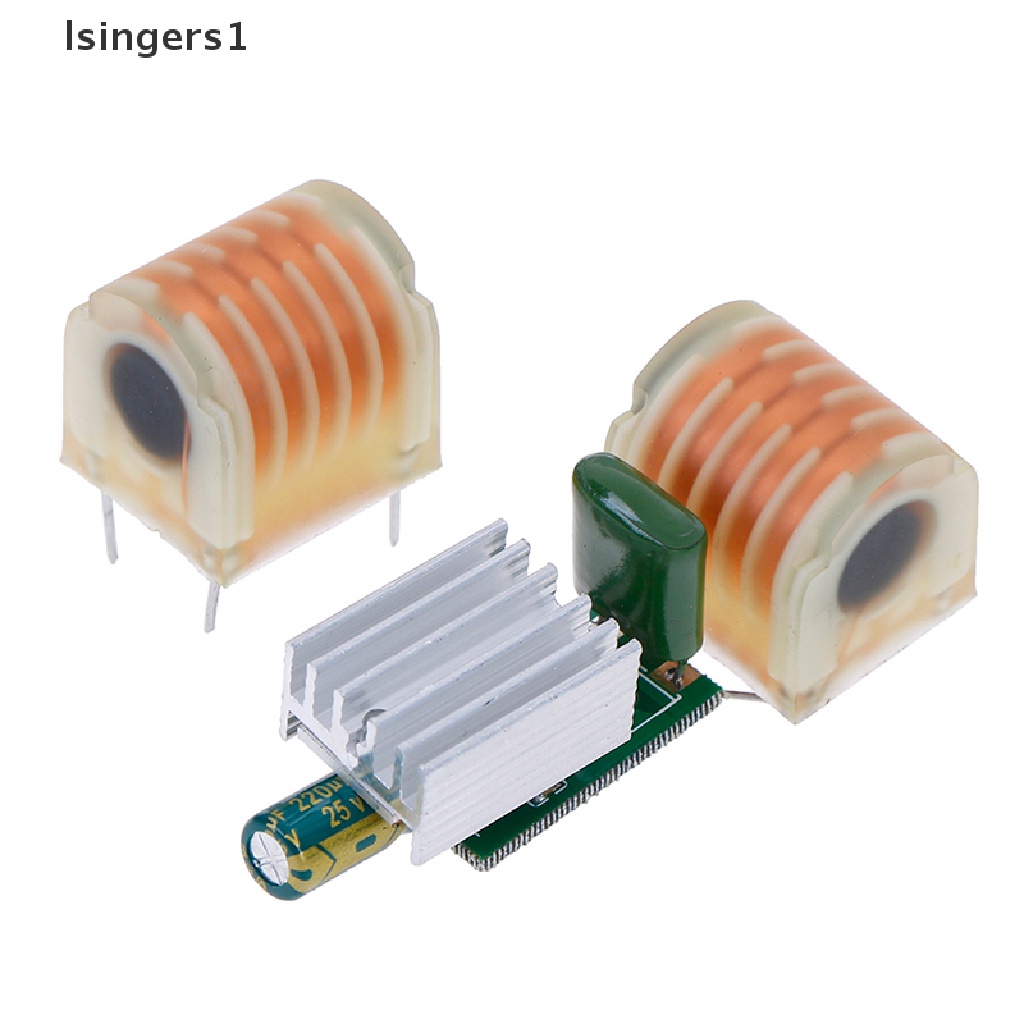

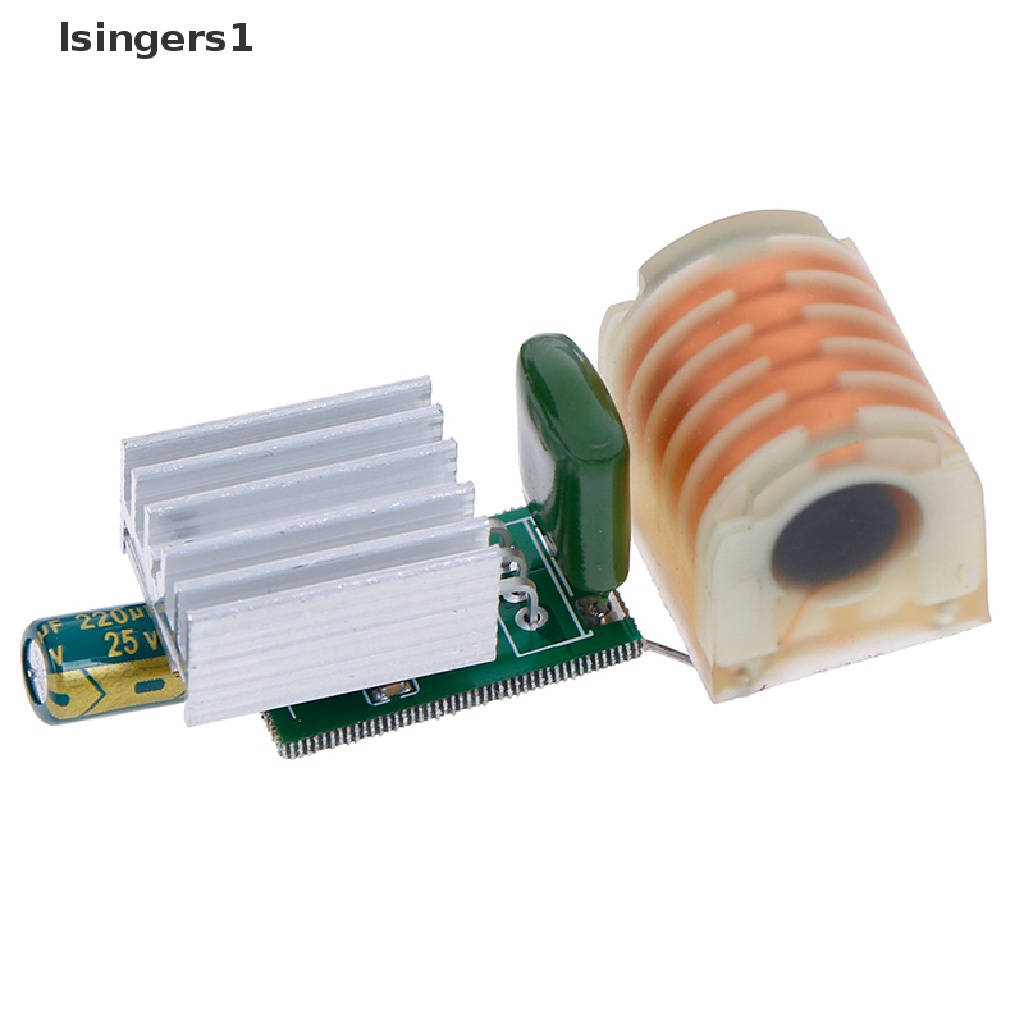

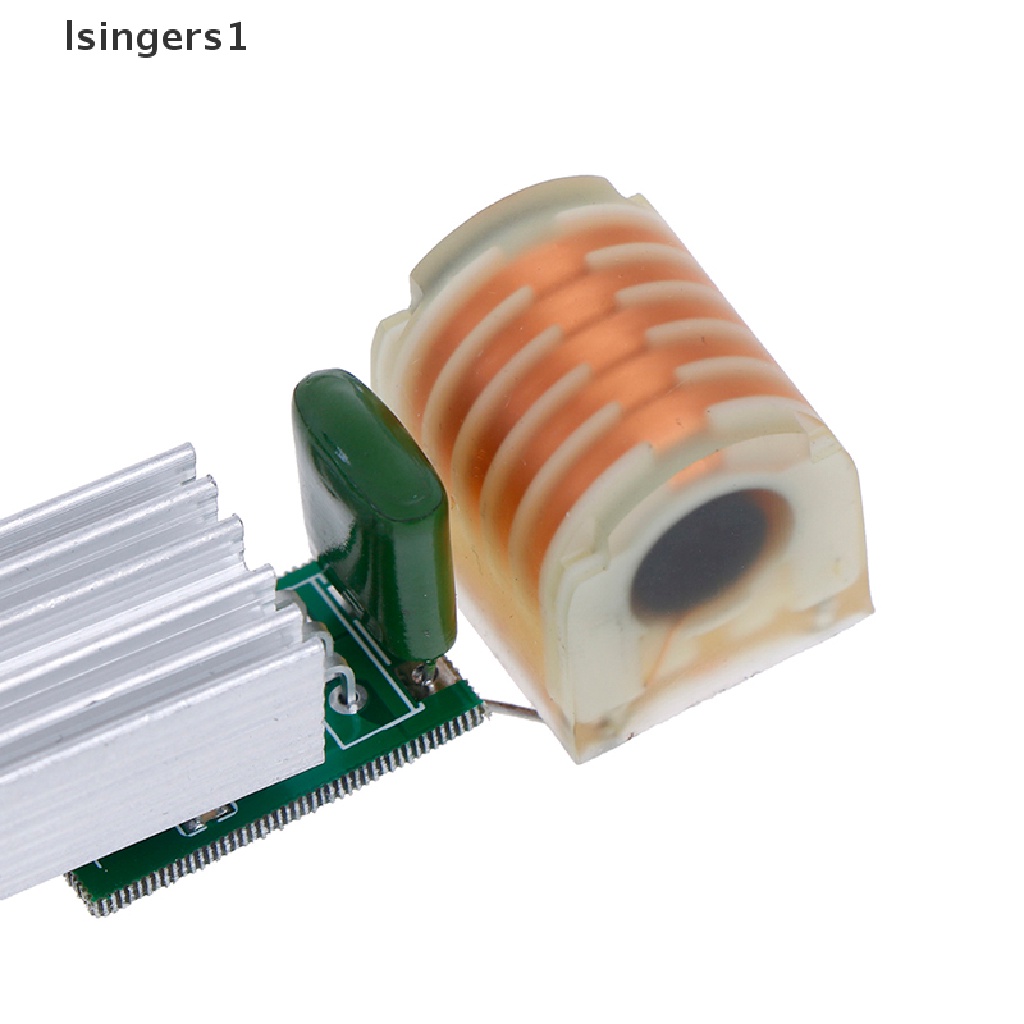

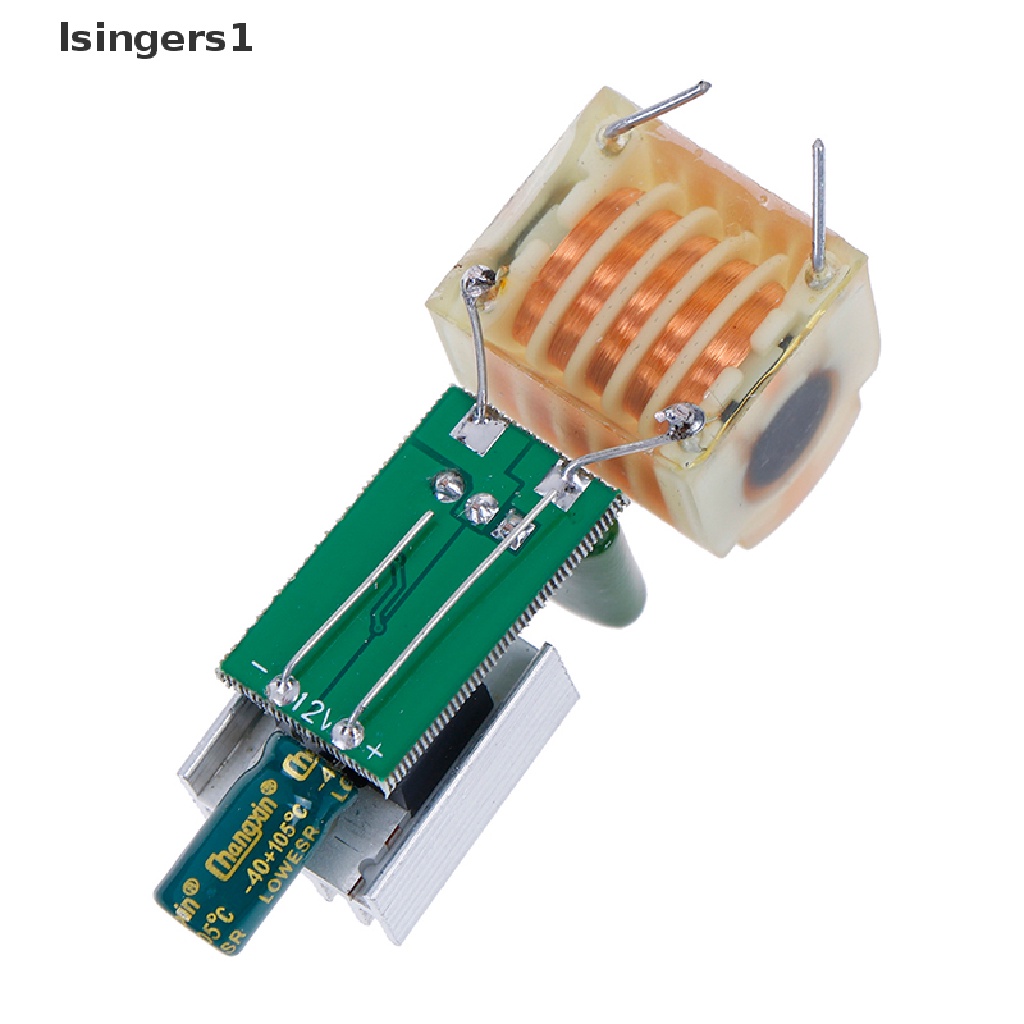

(lsingers1) Modul board inverter coil transformer Tegangan Tinggi 20KV

Detail (lsingers1) Modul board inverter coil transformer Tegangan Tinggi 20KV

100% Brand New

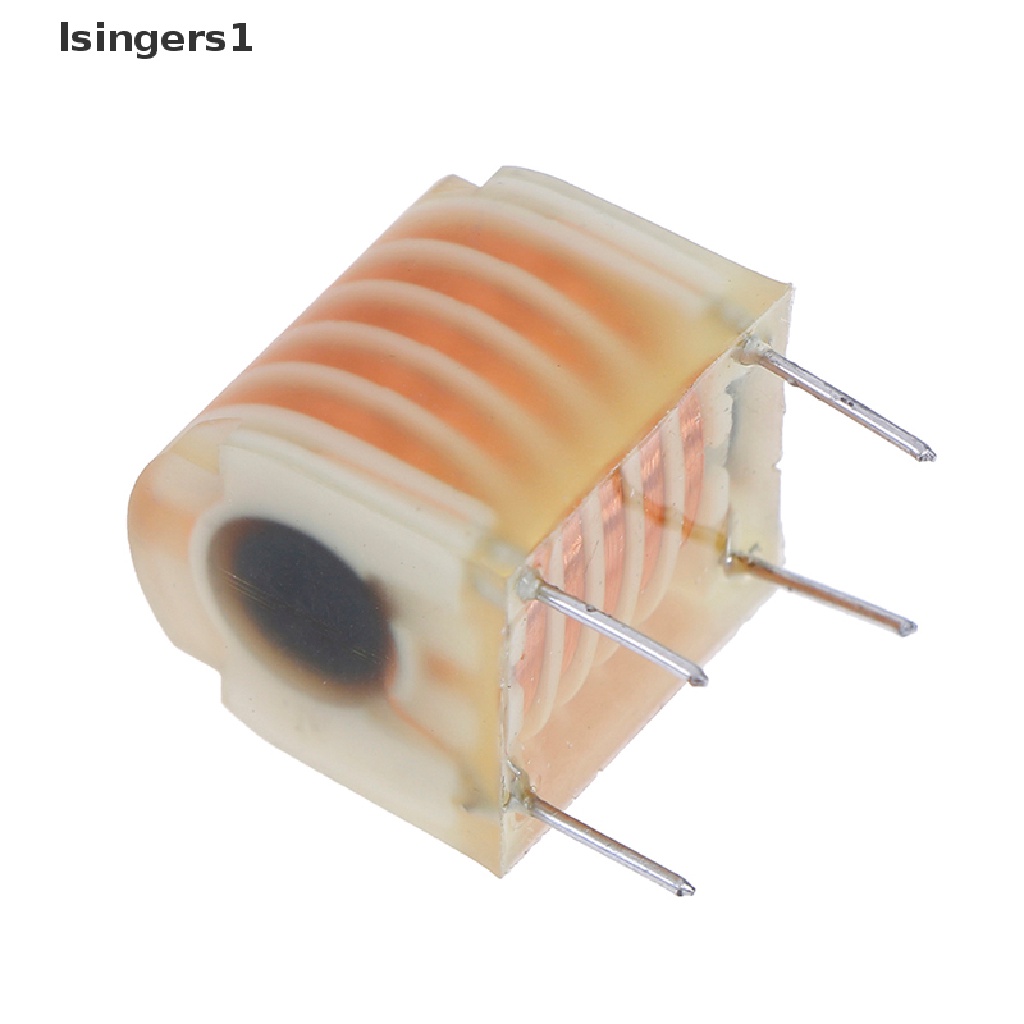

Turns ratio: 100 (the turns ratio is not equal to the boost ratio, usually using a flyback structure to achieve a higher boost ratio)
Continuous operating parameters:
Input voltage: <120V
Input current: <1A
Output voltage: <20KV
Output current: <20mA
Rated power consumption: <15W
Rated frequency: 20KHz~400KHz
Short time limit operating parameters:
Input voltage: <150V
Input current: <8A
Output voltage: <20KV
Output current: <60mA
Power consumption: <15W
Frequency: 10~800KHz

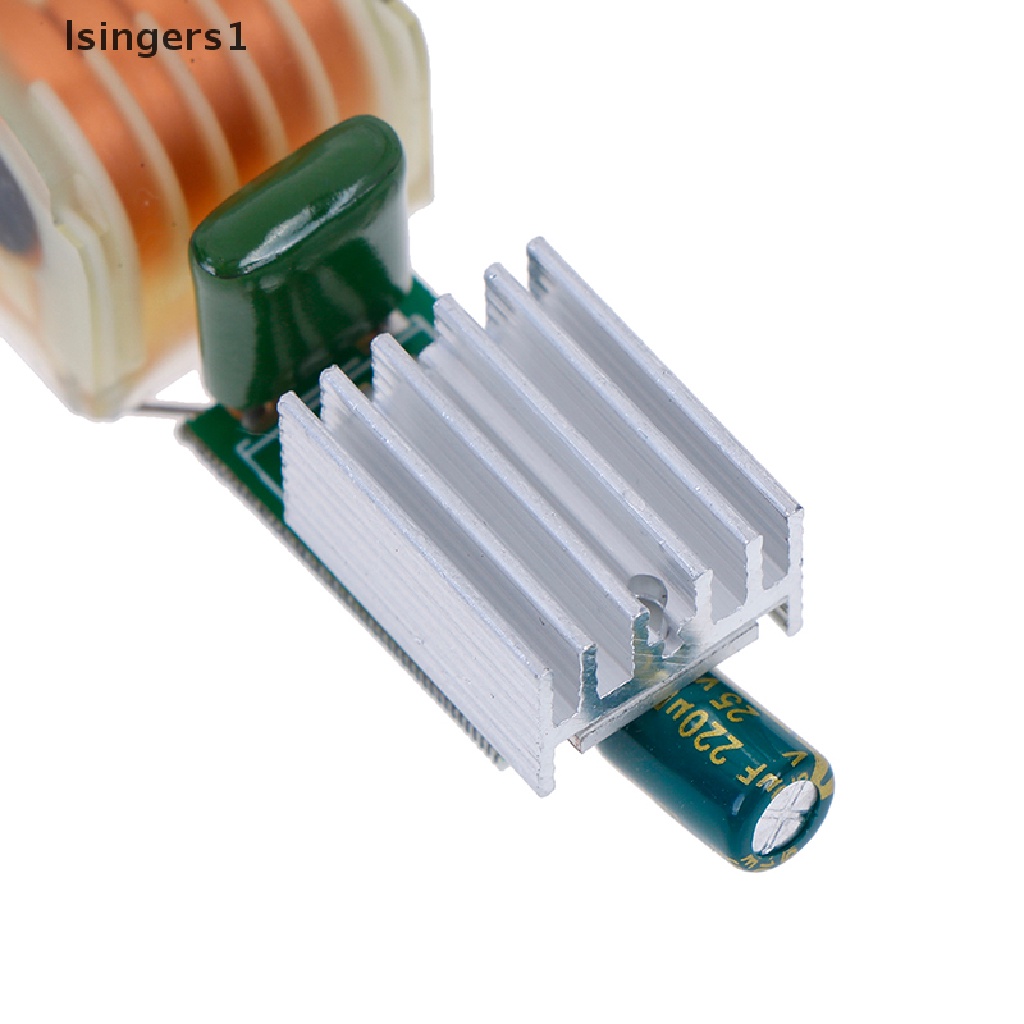

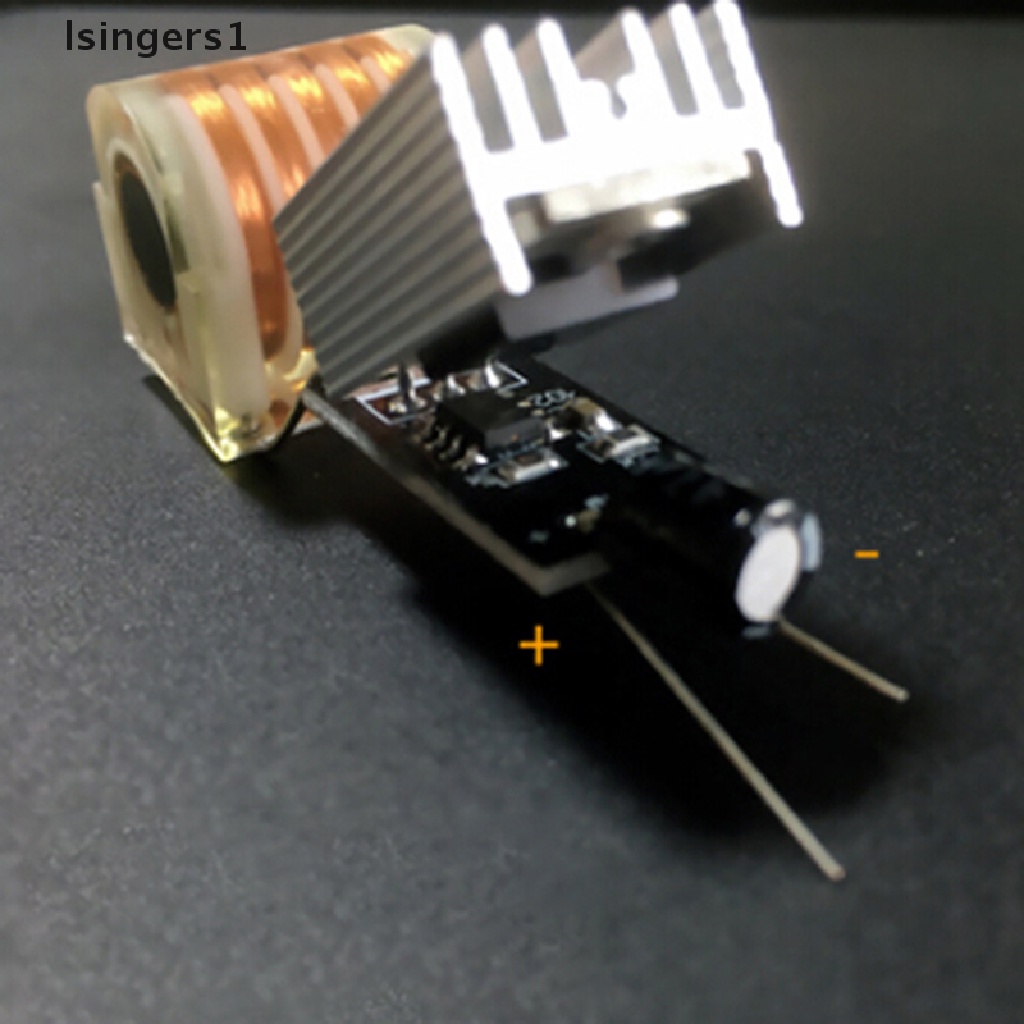

Driver board parameters:

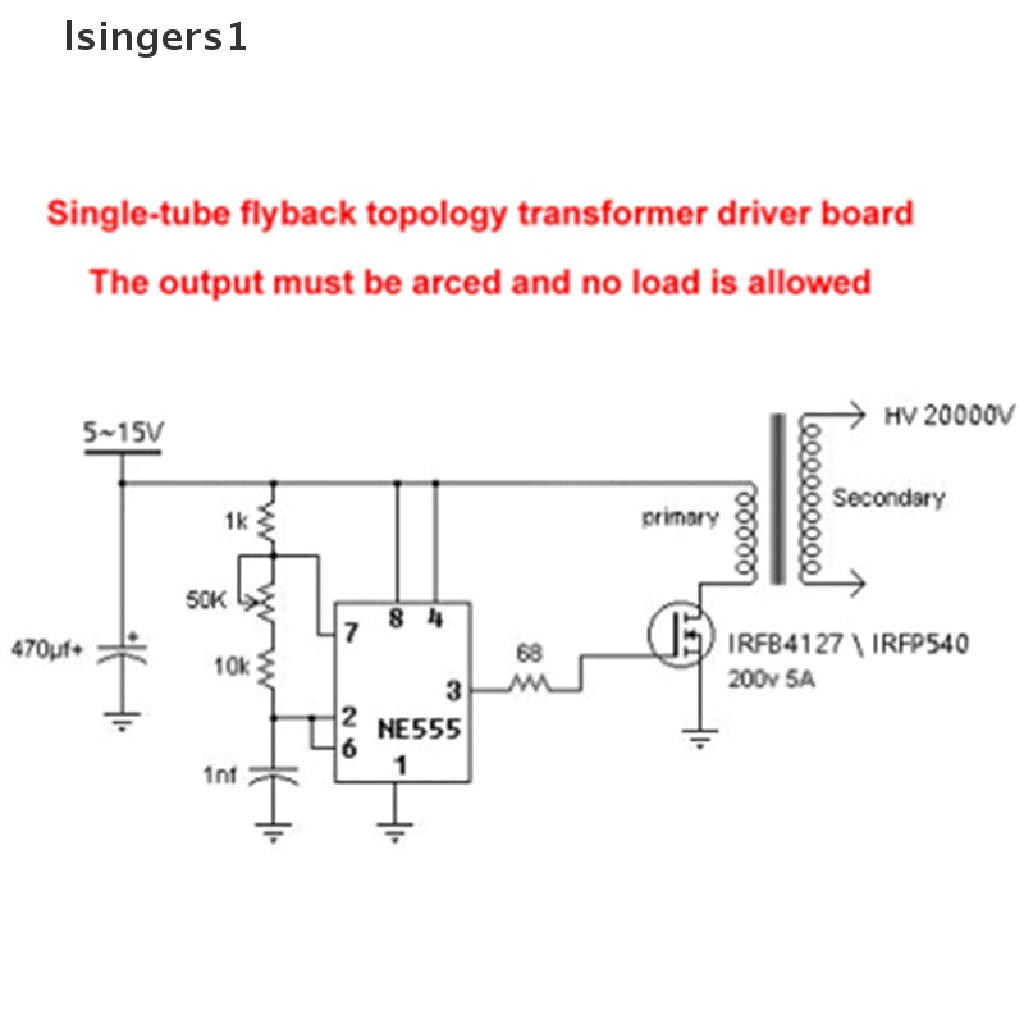

Model: Second generation single-tube flyback driver board
Input voltage: DC (DC) 5V~15V
Input current: <5A
Power: <70W
Frequency: <26kHz

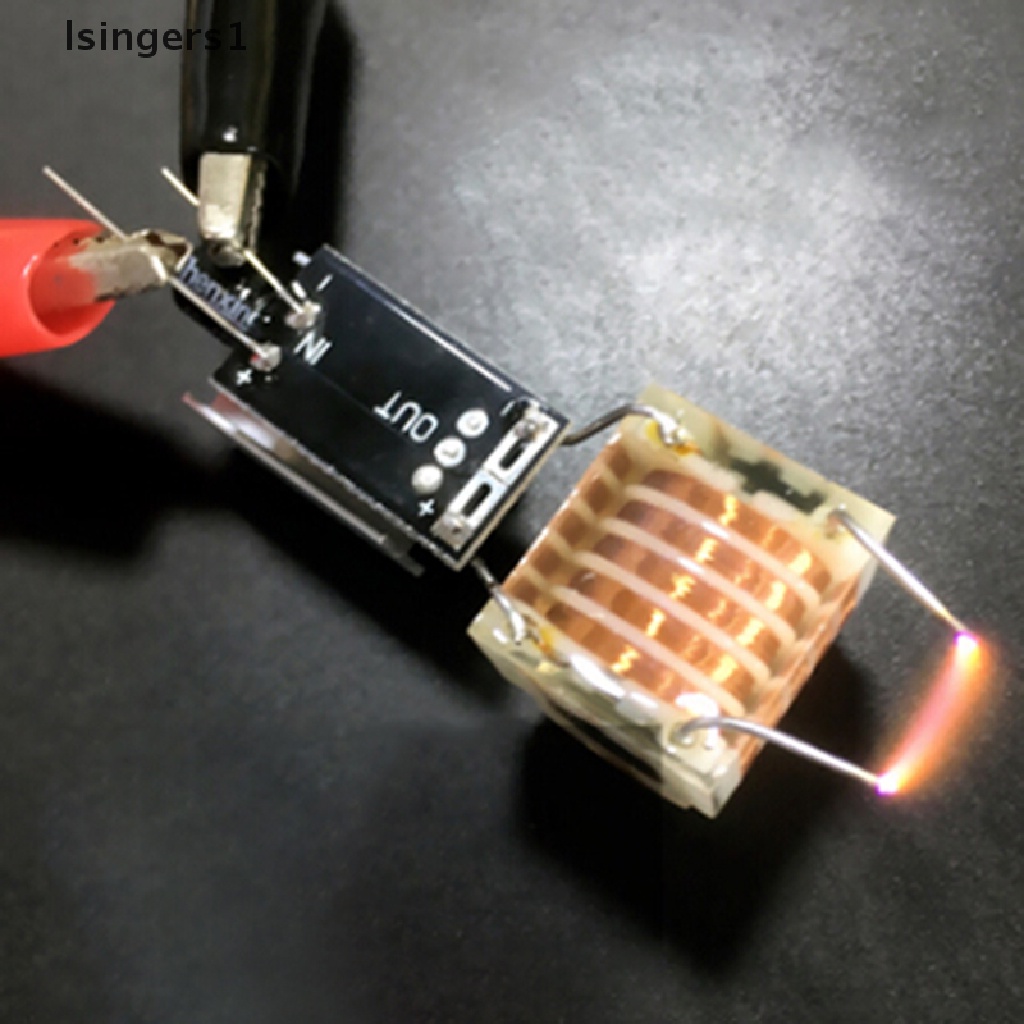

Please note before use: Single-pole flyback topology transformer high-voltage output must pull arc or load, no-load is prohibited! Single-tube type drive board should not work for a long time, if you need to add a fan for a long time or replace a larger radiator!
Package Included:
1 x (as your choice)
