Detail (lsingers1) Ld-600s Saklar Dimmer Sentuh 3 Arah Plug US / EU

Specification:
Model: LD-600S
Rated current: 0.3A/0.8A
US Type: 120V,60Hz
Input: 220~240V ac, 50/60Hz, 0.8A
Output: 25~150W Incandescent Lamps / Tungslen Filament Lamp
EU Output: 3-25W LED Driver / LED light / LED Bulb
Type:US/EU
Switch Type: 3 way touch dimming dimming/ON OFF

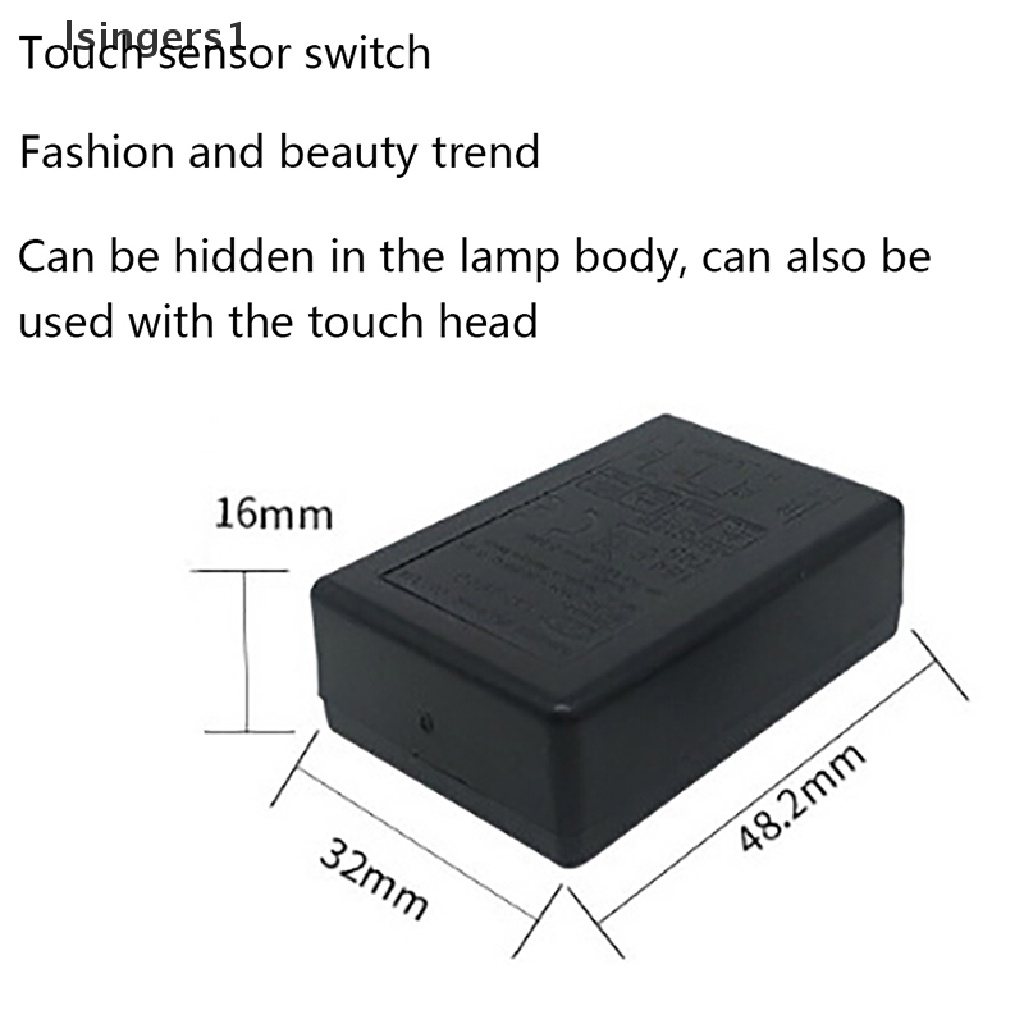

Size:48.2*32*16mm

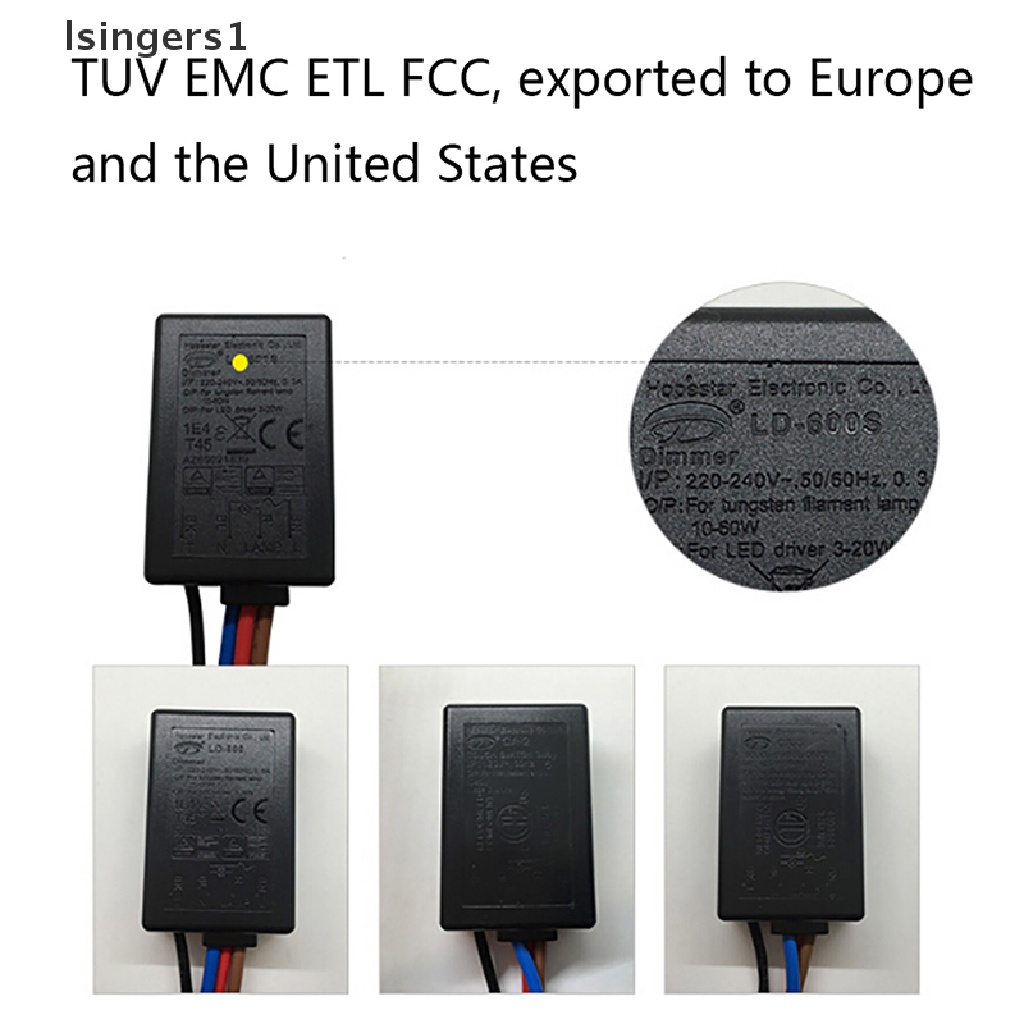

Approval: TUV/EMC/CE/SAA

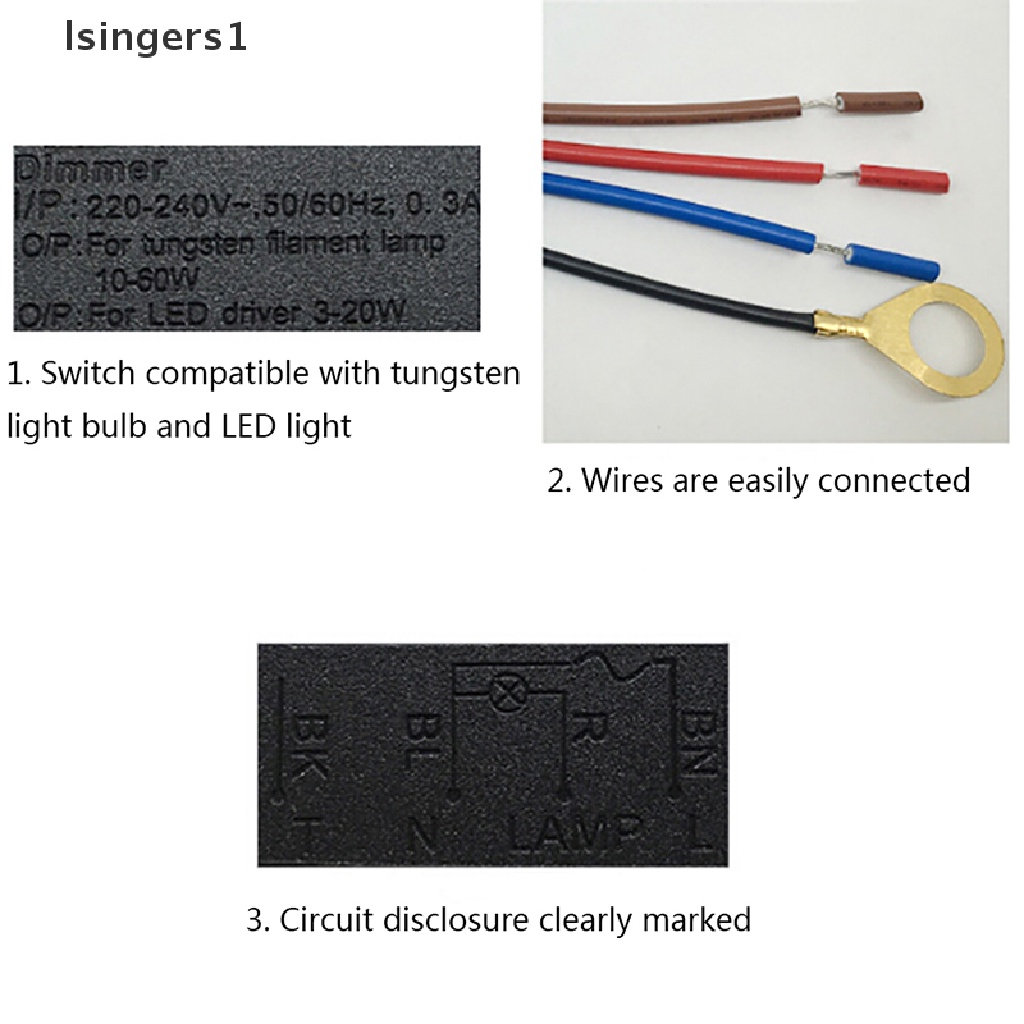

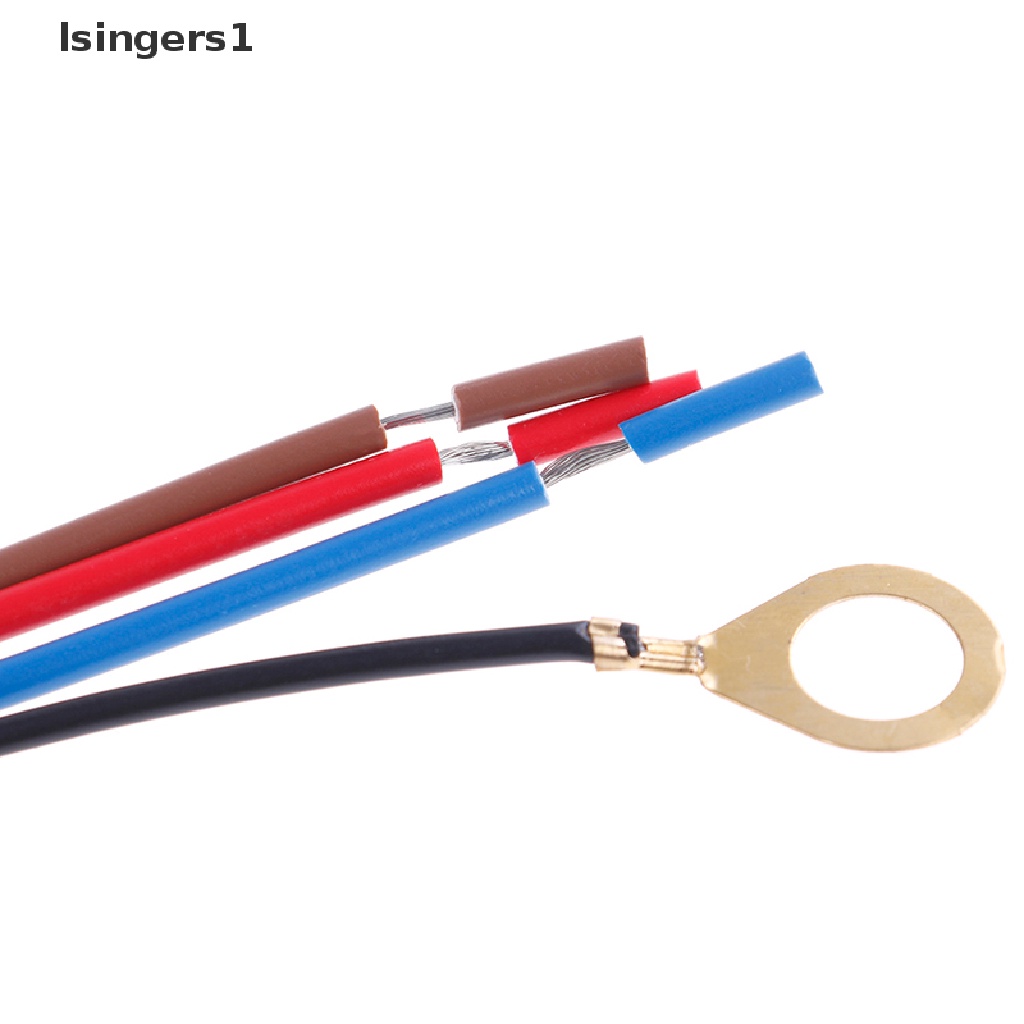

Touch switch connection:
Black with wire eared conductor
Red line connects one of the light bulbs
Brown wire connector wire L pole
The blue line is a common line, and the other line of the bulb and the plug line N pole are connected.

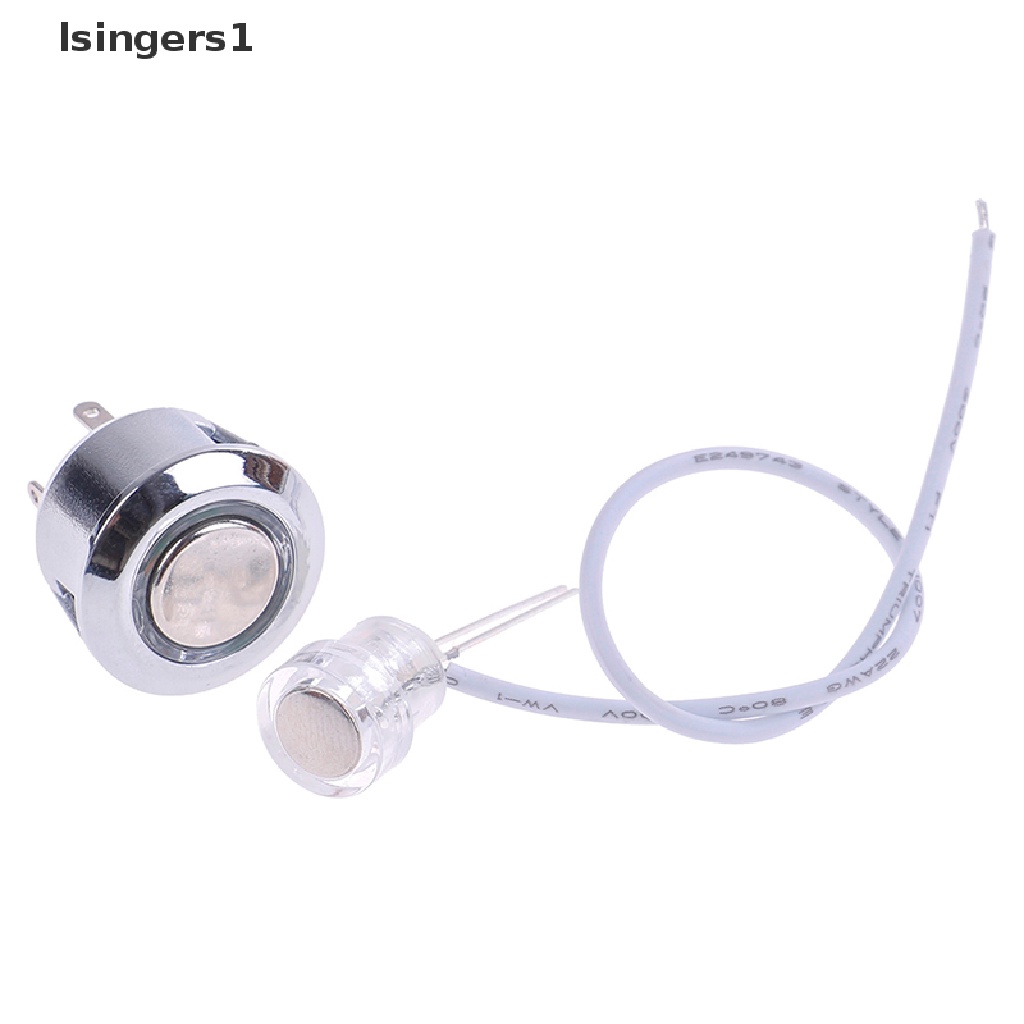

A Small transparent touch switch head:
White line: light line (the foot line on the board)
Long foot: positive (white line on the board)
Short foot: negative (black line on the board)

B Plastic touch switch head:
Middle foot: touch the foot
+: positive
-:negative electrode


Package included:1 x Switch touch

Note:
1.Under the influence of light and the display, the color difference may decrease slightly.
2.Due to manual measurement, please allow size differences about 1-3cm. Thank you for your understanding
