(lsingers1) Kts 011 Thermostat Pengatur Suhu Otomatis

Detail (lsingers1) Kts 011 Thermostat Pengatur Suhu Otomatis

High-performance switching
KTS 011: thermostat (normally open); Manufacturer of contact for the regulation of fans with filters and heat exchangers or
for the change of signal designed when the temperature limit has been exceeded.
Temperature difference switch:7 K (± 4 K tolerance)
Sensor element:thermostatic bimetallic
Type of contact:Contact snap-action
The service life:> 100,000 Cycles
Max. Switching capacity,250VAC, 10 (2) A,120VAC, 15 (2) A
DC 30 W
Connection:Two-pole terminal, Nm of maximum tightening torque :. Hard wire 2.5mm ⊃2; Flexible wire (with lugs) mm ⊃2;
Assembly:35mm DIN rail clip, EN60715 (or for the EF Series 118 output filter)
Casing:Plastic according to UL94 V-0, light gray
Dimensions:60x33x43mm
Mounting position: Variable
Operation / Storage temperature:-45 to + 80 ° C (-49 to + 176 ° F)
Operating Humidity / Storage Max. 90% RH (non-condensing)
Type of protection:IP20
Material: Plastic
Color: See pictures
Size: 60×33×43mm
Quantity: 1 Pcs

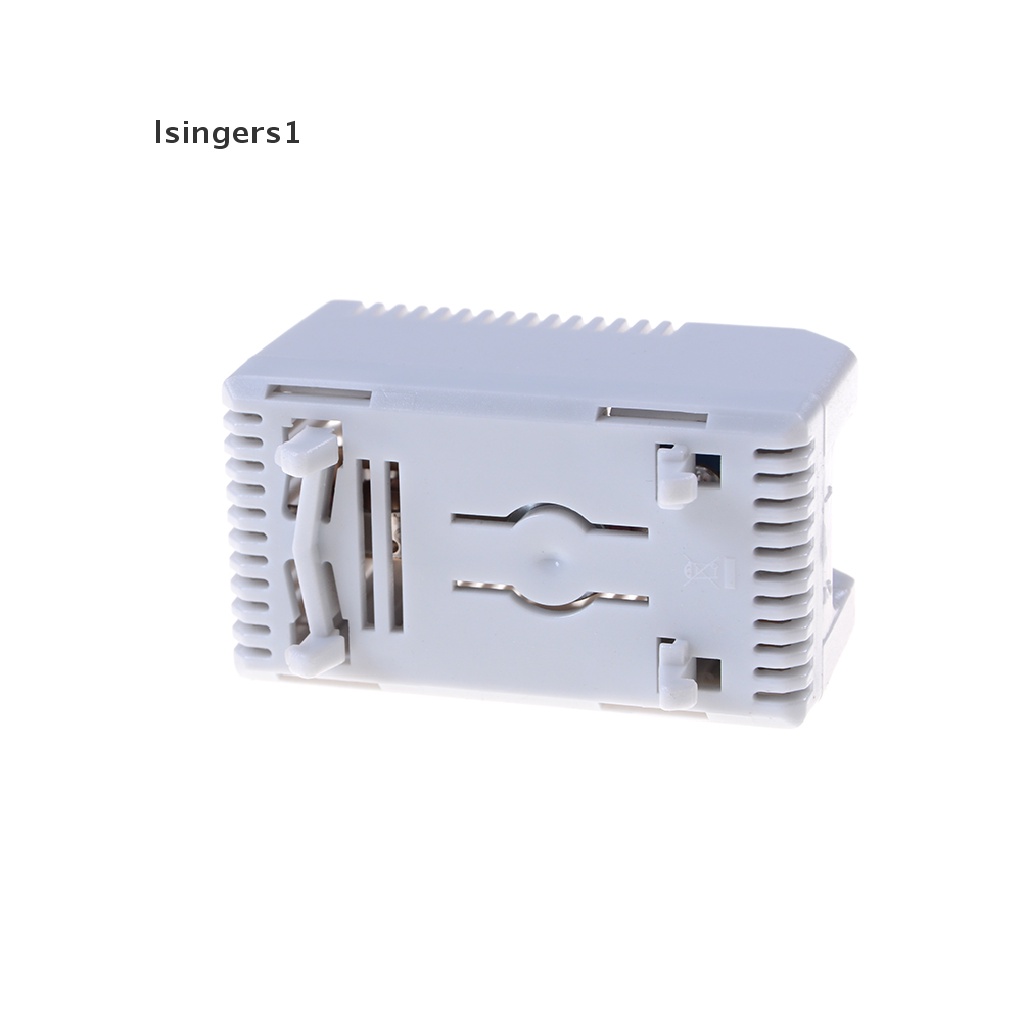

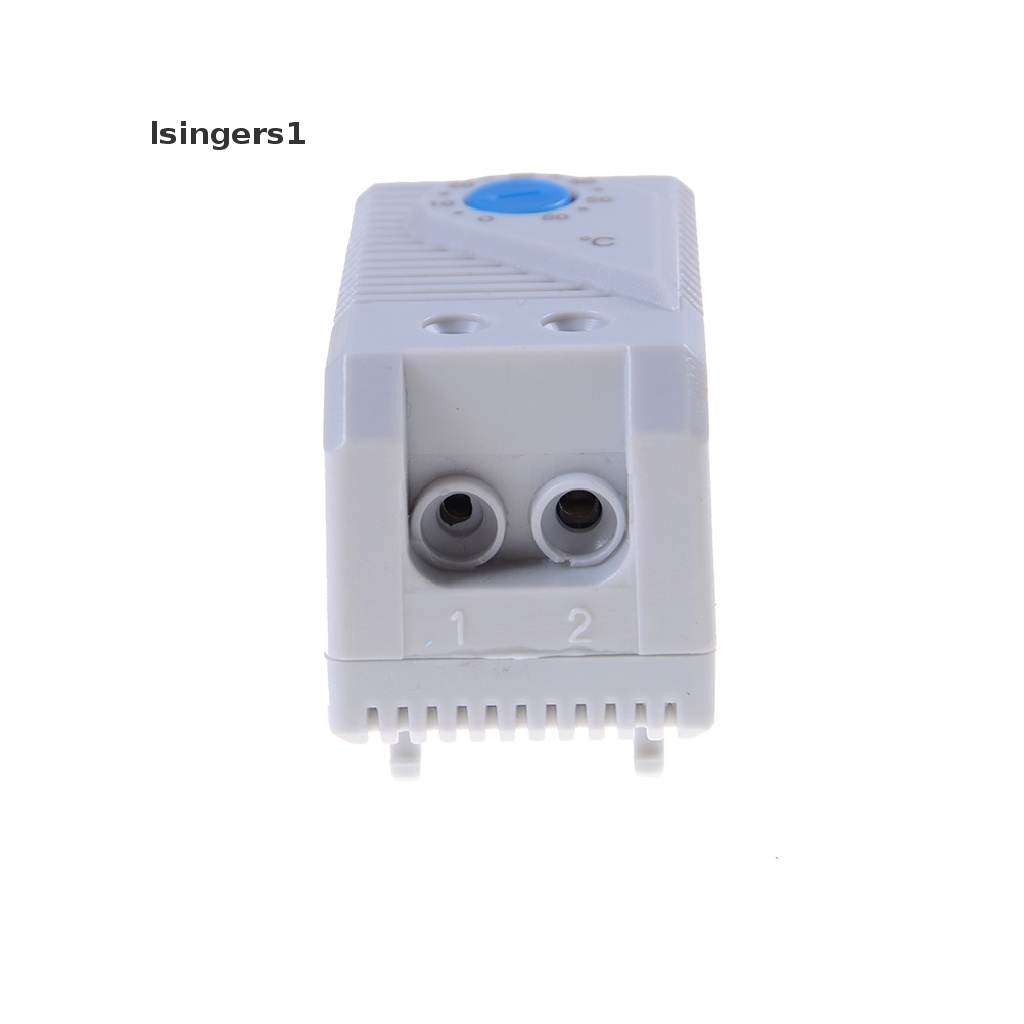

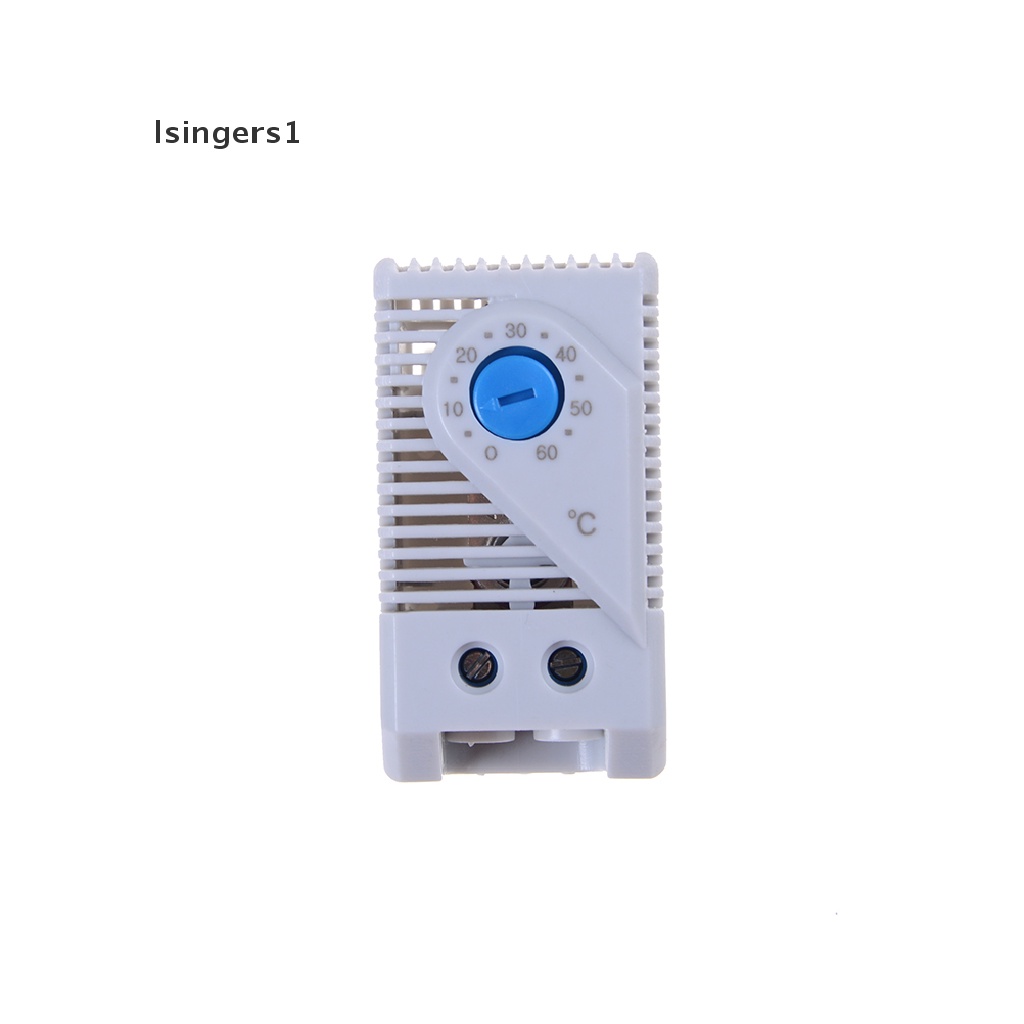

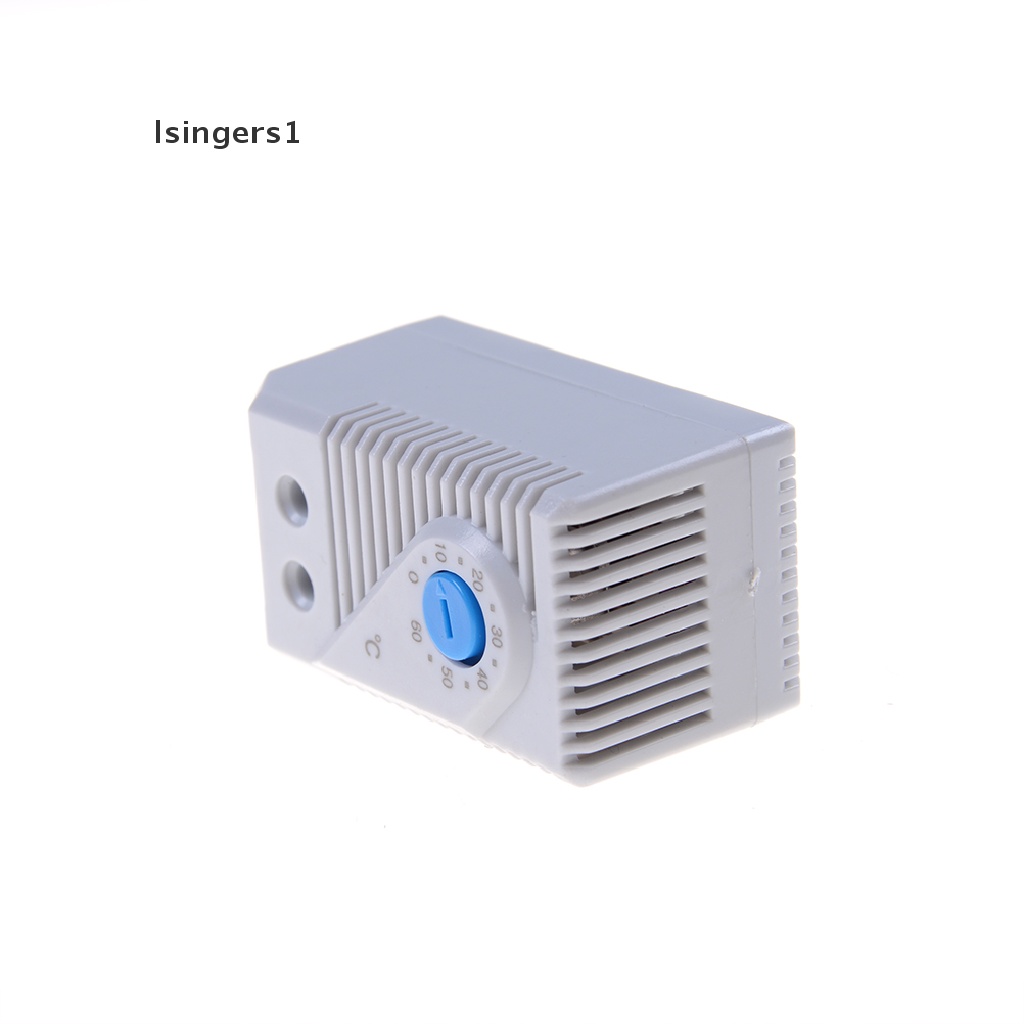

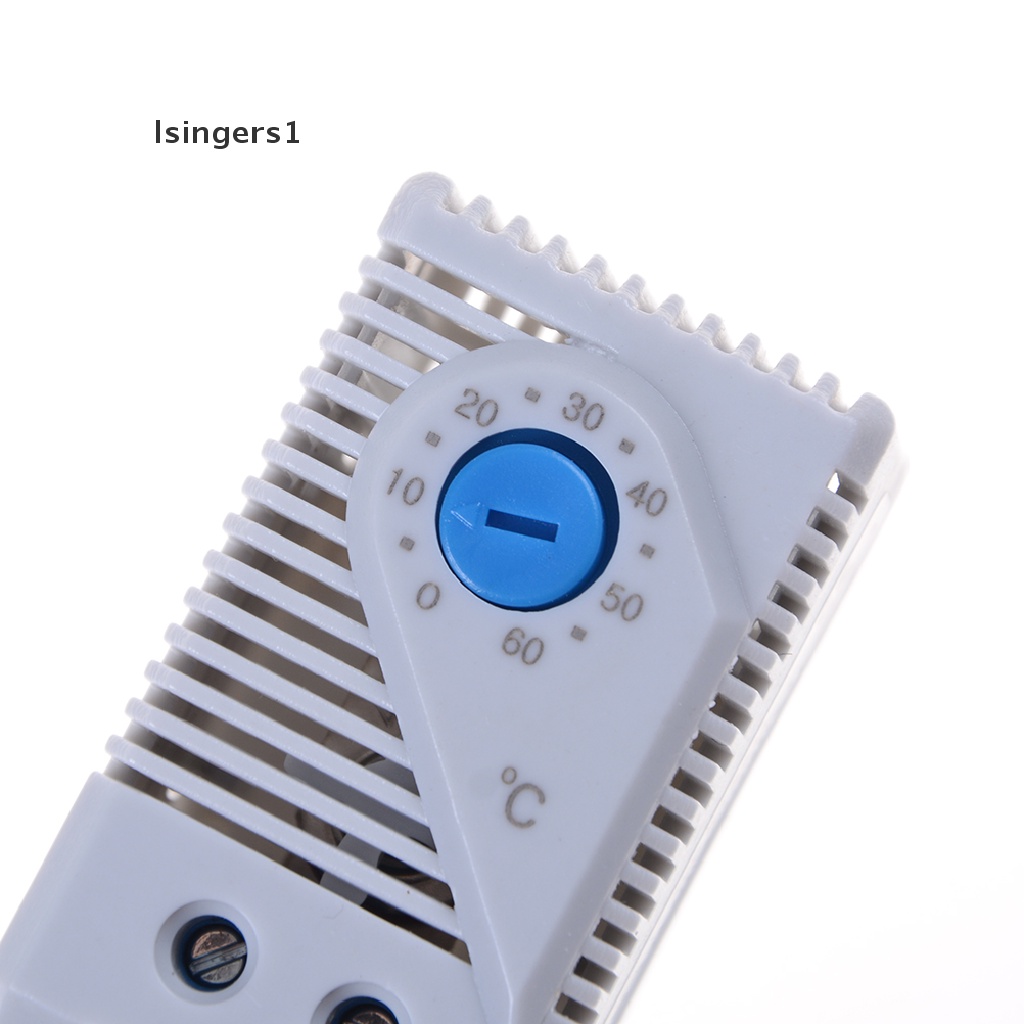

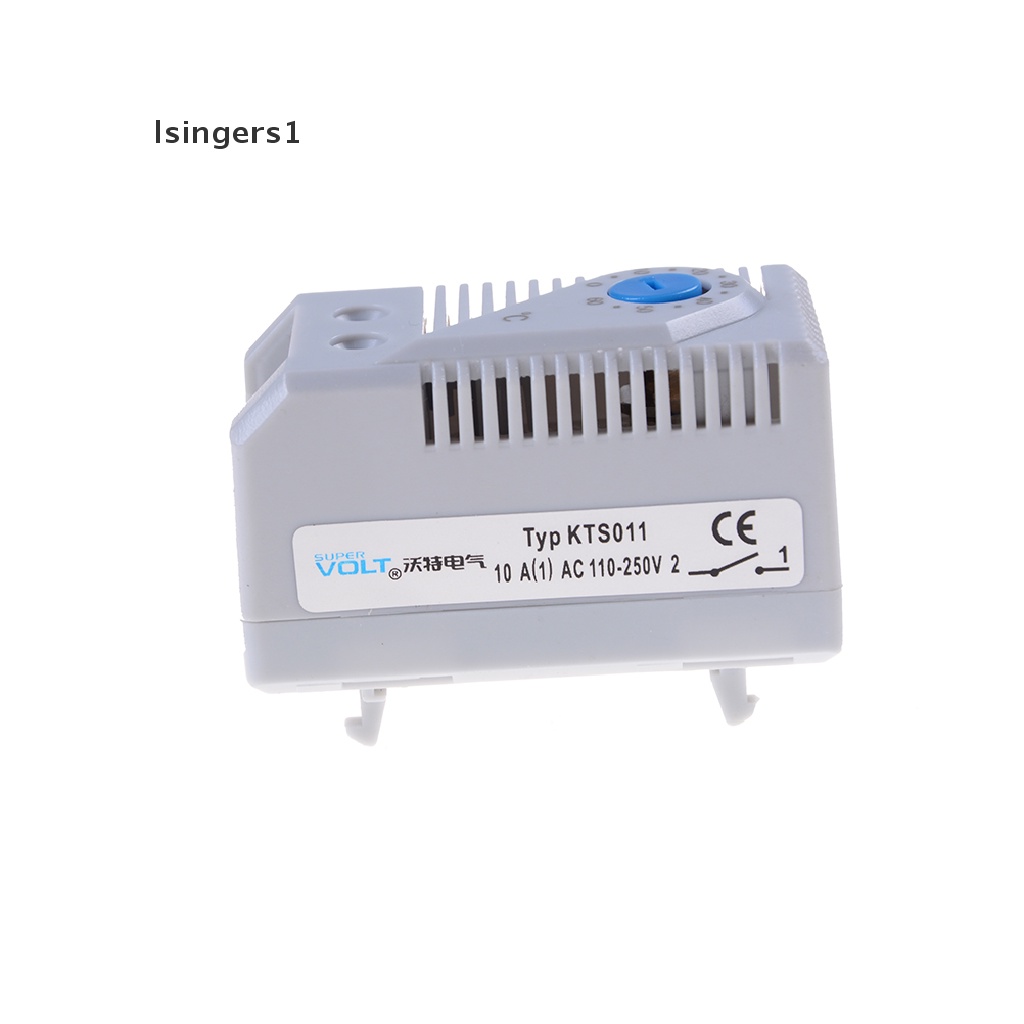

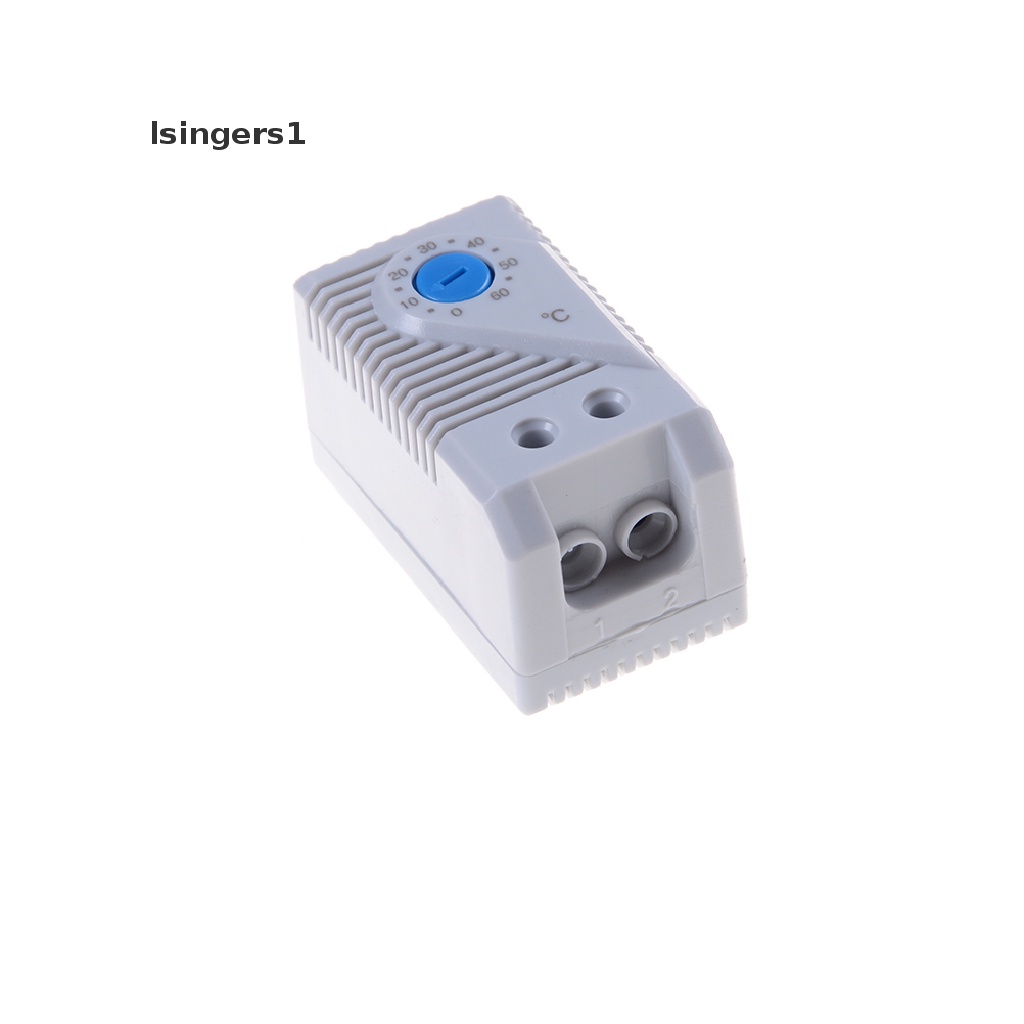

Gambar produk
