Detail (lsingers1) Konverter Booster power supply dual output 20W 5v Ke 265v 24 Posisi
Product Name: 20W +- 5-24V Positive & Negative Dual Output Power Supply Boost-Buck Converter Packing list: 1 PCS 20W DC DCStep-up/Step-down Converter Positive and negative voltage Dual voltage Module

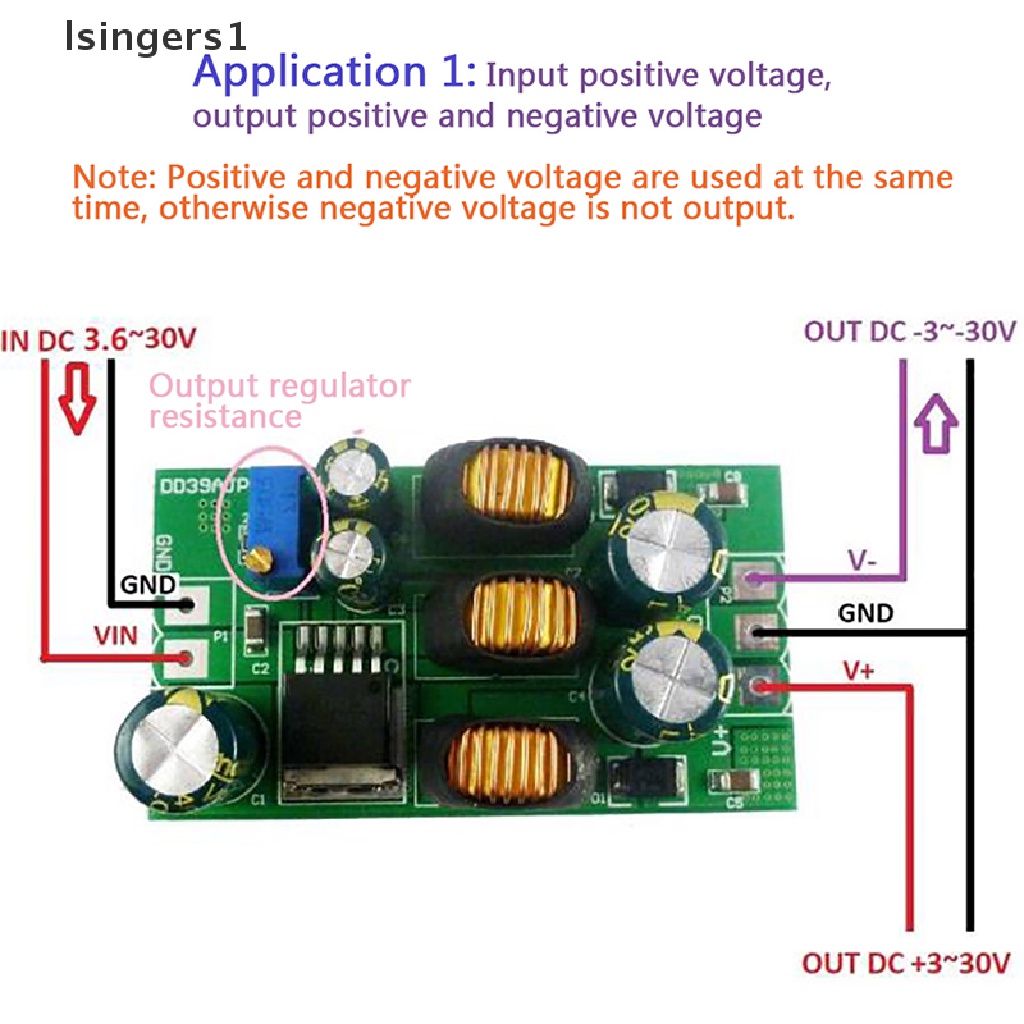

Description: Input voltage 3.6~30V,output ±3~±30V adjustable Maximum output power: 20W (For details, please see the description at the bottom or ask us for information.) Conversion efficiency :69-89% Quiescent current: 3-4mA 20W DC-DC Boost-Buck Converter working frequency 180KHZ. Operating ambient temperature : -40~+85 Degrees Celsius Size : 60 x 34 x 15mm High efficiency up to 89% Built in Frequency Compensation Built in Soft-Start Function Built in Thermal Shutdown Function Built in Current Limit Function Note: 1 In order to obtain a more stable voltage, it is recommended that the output is greater than 15MA 2 V- cannot be used alone, or no voltage output.But you can just use V+ 3 The startup current of the module is 2.5-3 times the operating current. 4 Increasing the 1UF-10UF MLCC capacitor reduces the startup current
Gambar produk
