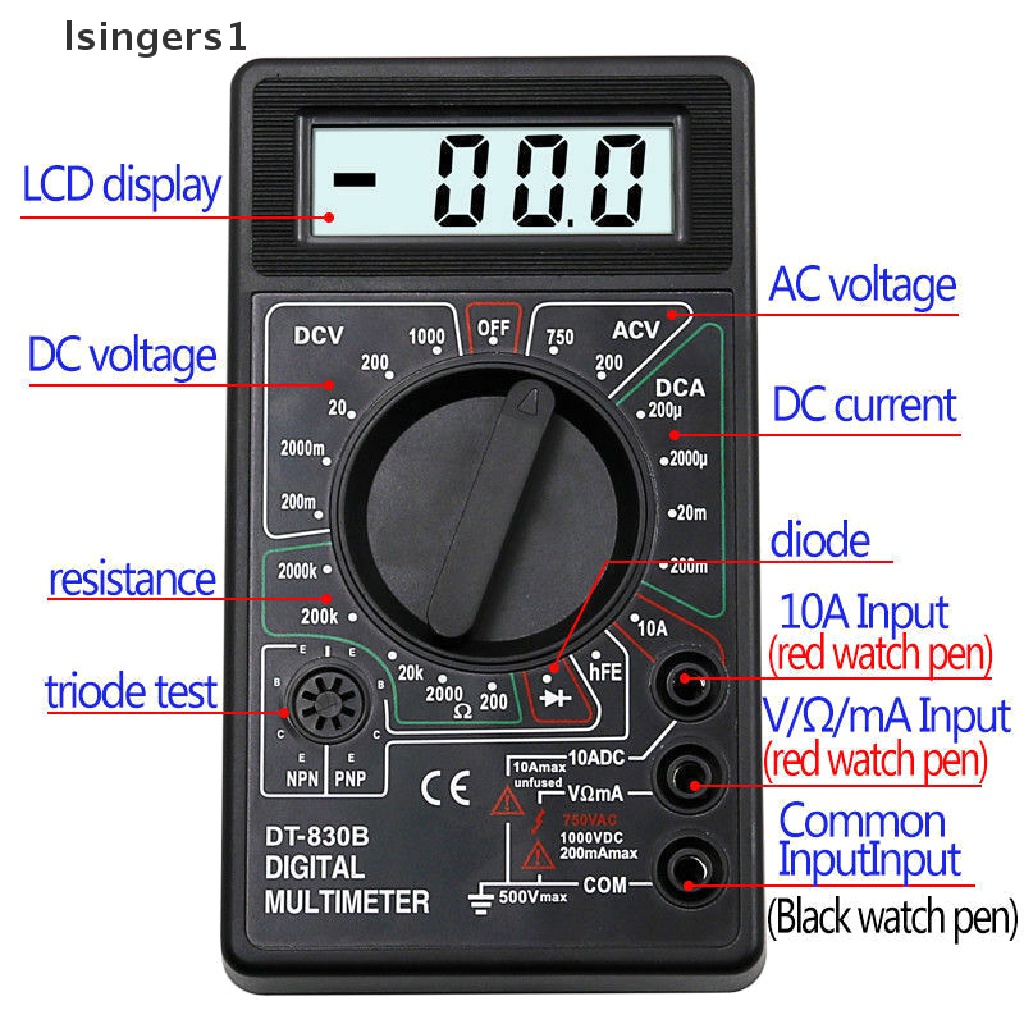

(lsingers1) Dt-830b multimeter digital Ukuran Saku Untuk Eksperimen Elektronik

Detail (lsingers1) Dt-830b multimeter digital Ukuran Saku Untuk Eksperimen Elektronik

Properties:

1, low battery indicator.
2, overload protection (0.5 A / 250 V fuse, 10 A no fuse).
3, diode and transistor testing, continuity.
4, with probes leads, wide scope.

5, bag and easy to carry, cost-effective.


Specification:

1, Product name: Digital Multimeter
2, DC voltage Measuring range: 200mV-1000V, Accuracy: ± (1.0% + 2dgt)
3, AC Voltage Measuring Range: 200V-750V, Accuracy: ± (2.0% + 10dgt)
4, DC current measuring range: 200μA-200mA, accuracy degree: ± (1.5% + 2dgt)
5, resistance Measuring range: 200Ω-2000KΩ, Accuracy: ± (1.2% + 2dgt)


Operation manual:

1. To avoid the risk of electric shock and / or damage to the device. Do not measure voltages that may exceed 500 V above ground.
2. Inspect the test leads, connectors and probes for cracks or tears in the insulation before using the instrument


Package included:

1 x digital multimeter (button battery not included)
1 x manual

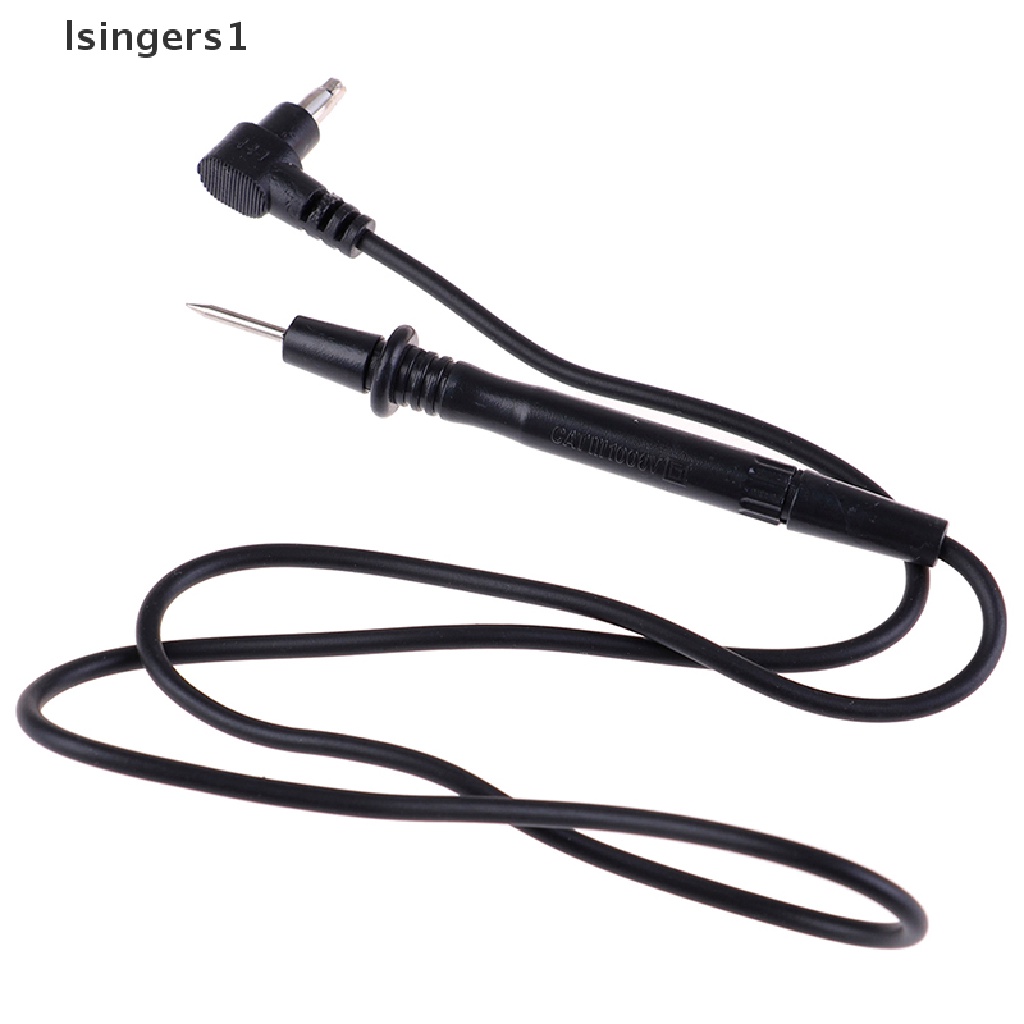

2 x test leads

Gambar produk
