Detail (lsingers1) At41 Modul Sirkuit delay switch timer 1s-40h 1500mA Untuk delay switch timer

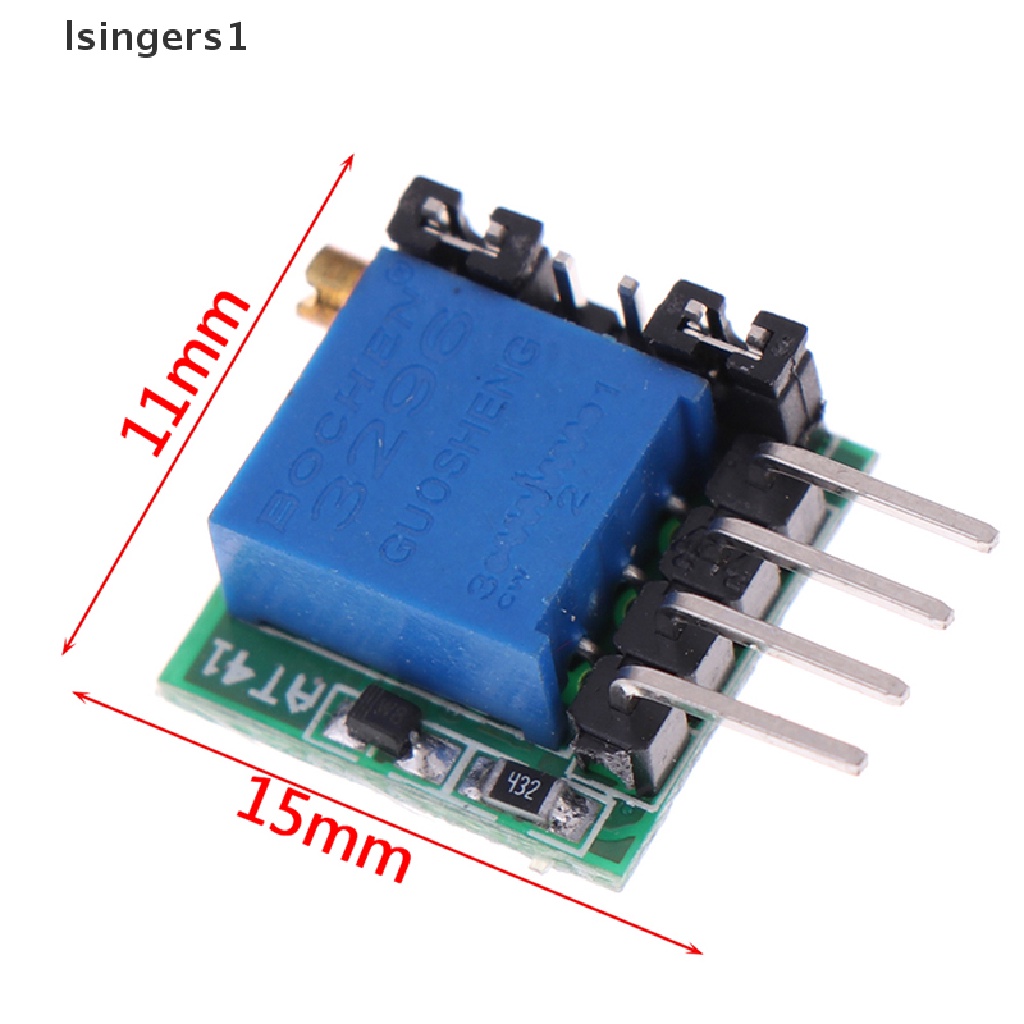

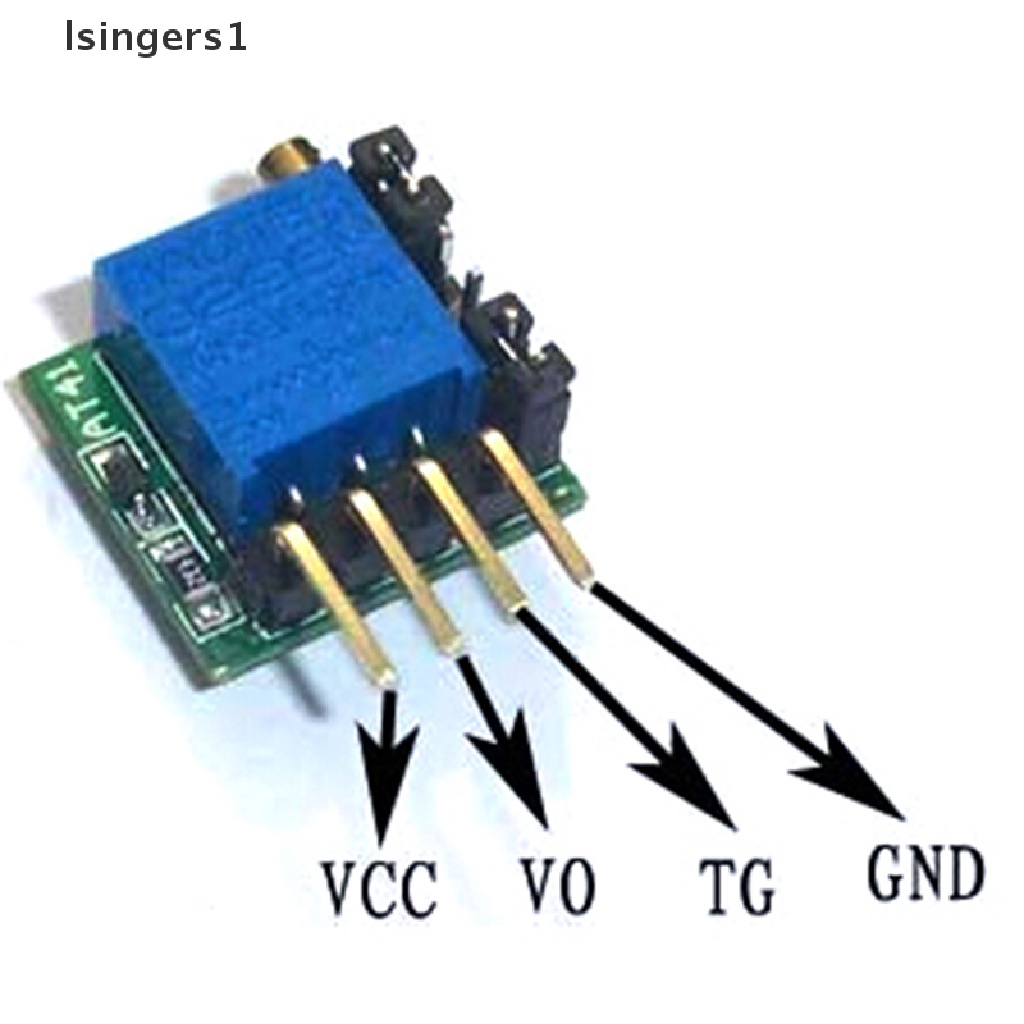

Introduction: 1.After power on,Vo output port has no output,after Vi port input high level signal trigger,Vo output port has no output;after delay for some time,Vo output port output high level.Above two modes can be shifted by module wire jumper 2.Delay Time Adjustment Range:1s-40h 3.Vo output port output high level;driving capacity is up to 1500mA (short time can up to 2500mA) 4.Power Supply Voltage:DC 3-27V 5.Note:when using module,load negative connects with power negative,load positive connects with module Vo port;that is controlling load positive on/off 6.Application:delay switch,timer 7.Size:15*11*8mm 8.Pin Space:2.54mm Max Operating Current: 1)3V:0.27mA 2)5V:0.56mA 3)12V:1.6mA 4)24V:4.4mA Pin Definition: 1.VCC:power 2.Vo:output port 3.TG:trigger signal input port (high level) 4.GND:power ground Include:1 x Module
Gambar produk
