(lsingers1) Alat Penghitung Digital LCD 0-99999 5 Digit Dengan Sensor Proximity Switch

Detail (lsingers1) Alat Penghitung Digital LCD 0-99999 5 Digit Dengan Sensor Proximity Switch

Features

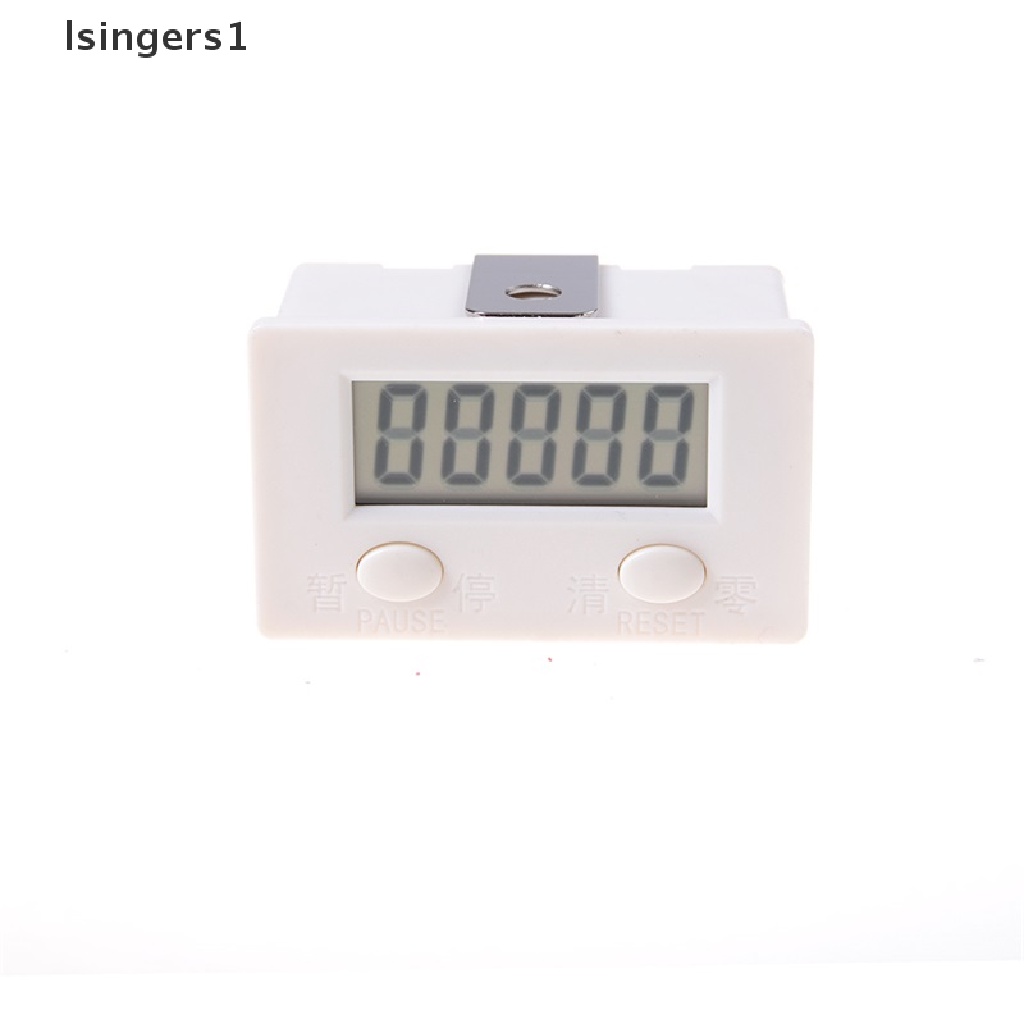

5 digit large lcd screen , display of large and clear

Use the common AA 1.5V batteries, without external power supply, and the replacement of the battery is convenient

Press the PAUSE key, Counting pause , then press PAUSE key, and restore counting

Input using ordinary contact signal, selecting the sensor is simple and convenient, accurate and reliable count

Resetable zero: panel / external dual use

Seismic design, effectively prevent data loss

No mechanical abrasion, reliable work, long service life

Specifications:
Power supply:DC6V-15.5V
Power: 1.5v AA cell(battery included)
Count range: 0----99999

Reset minimum pulse width: 0.1s

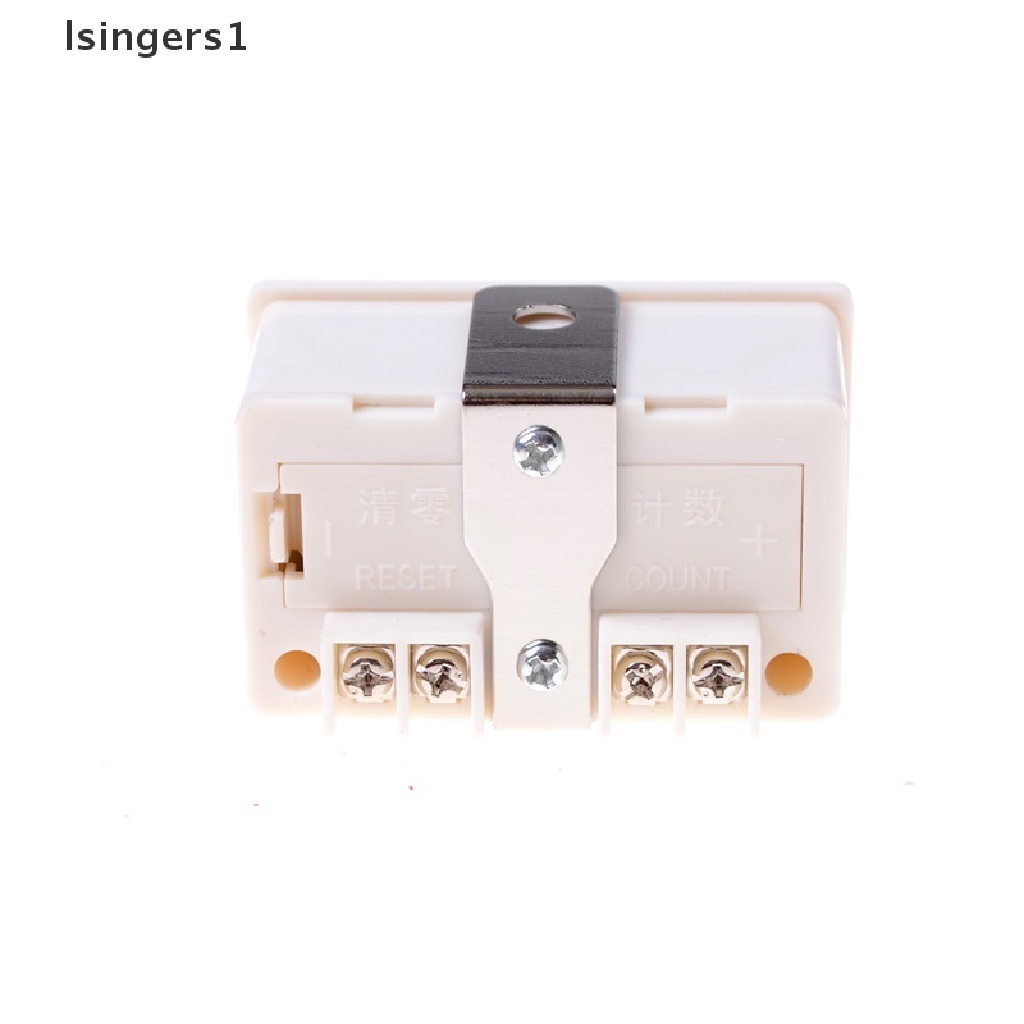

Reset method: manual panel/ external

Count the highest frequency: 20hz, or 20 times/s

Working temperature: - 5--40C
Count the minmum pulse width:10ms

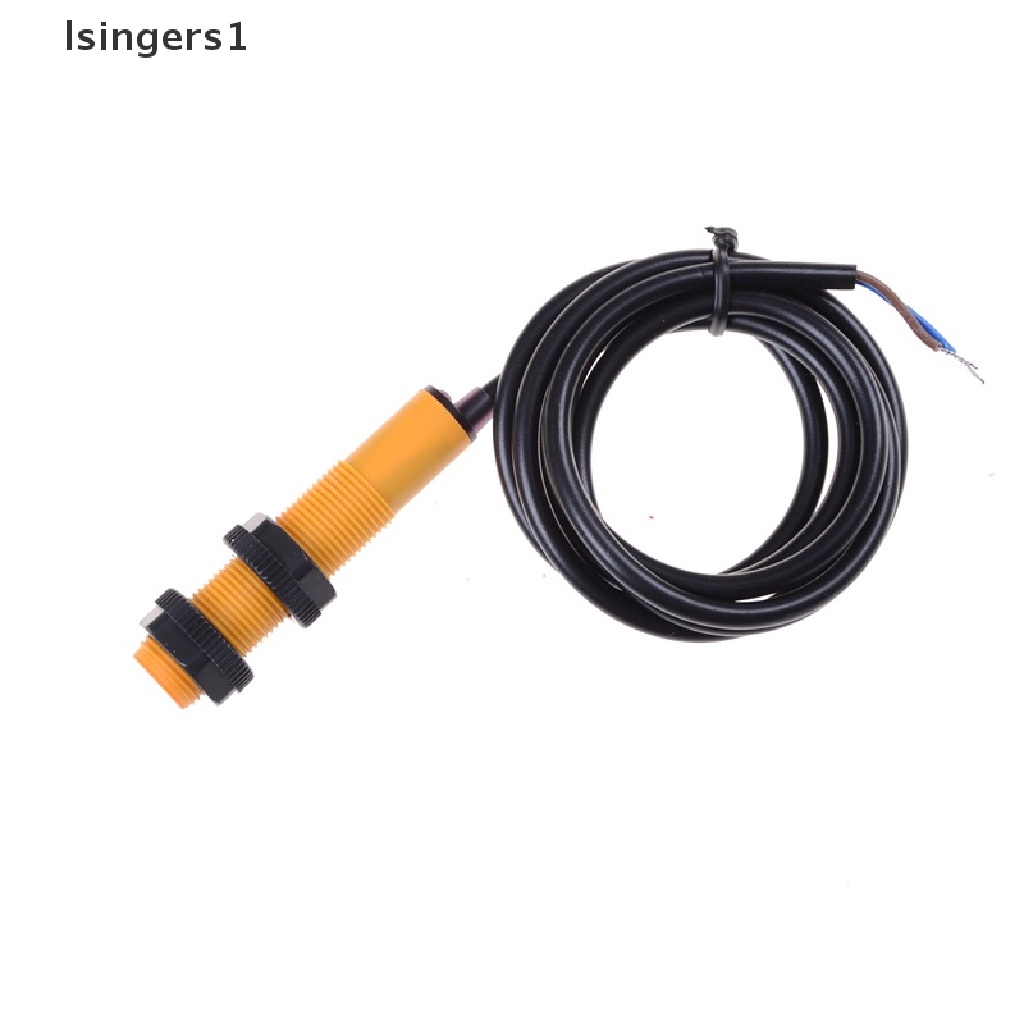

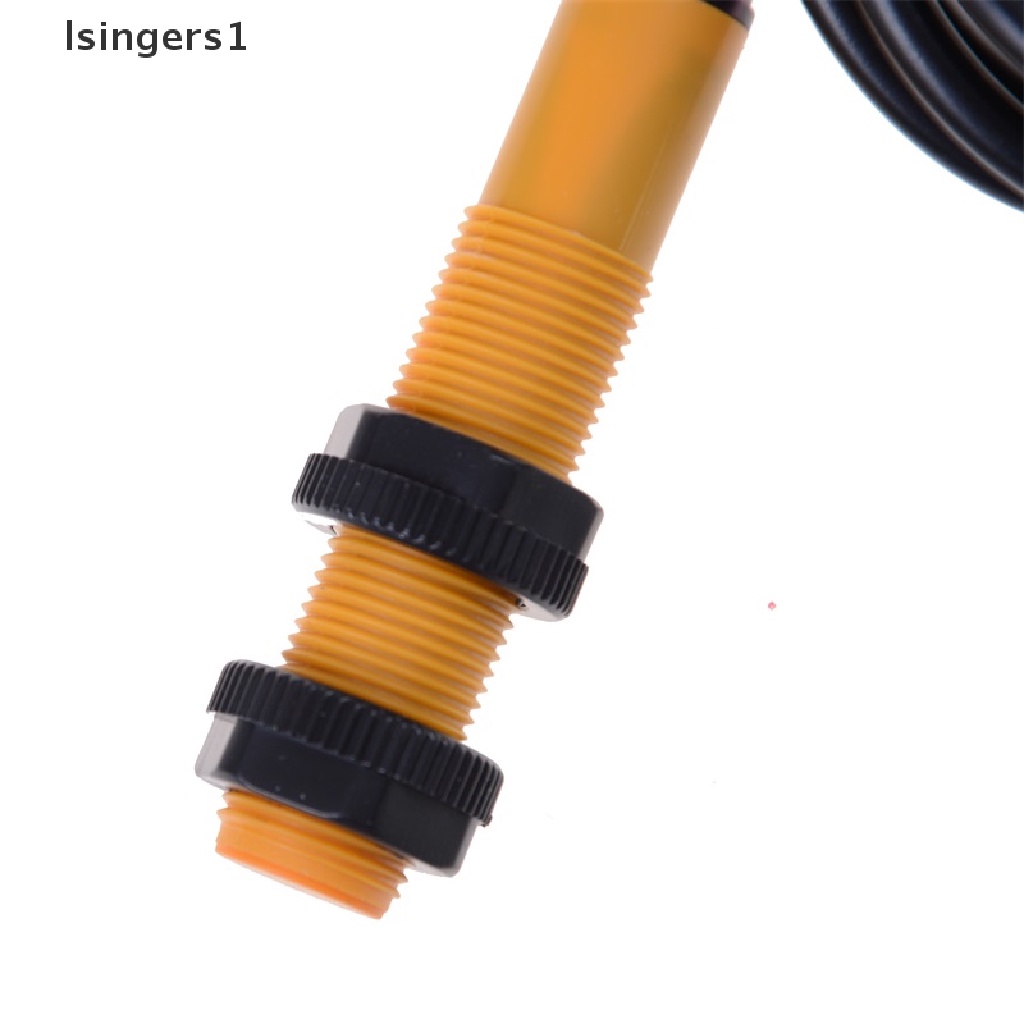

Promixity switch sensor: 2 wires, Length: 110mm, come with magnet
Detecting distance: 3-10mm
Size: 63 x 38 x 30 mm
Hole size: 61 x 36 mm
Maximum resistance when connect point on: ≤ 10KΩ

Minimum resistance when connect point off: ≥ 500KΩ
Net Weight: 0.05kg

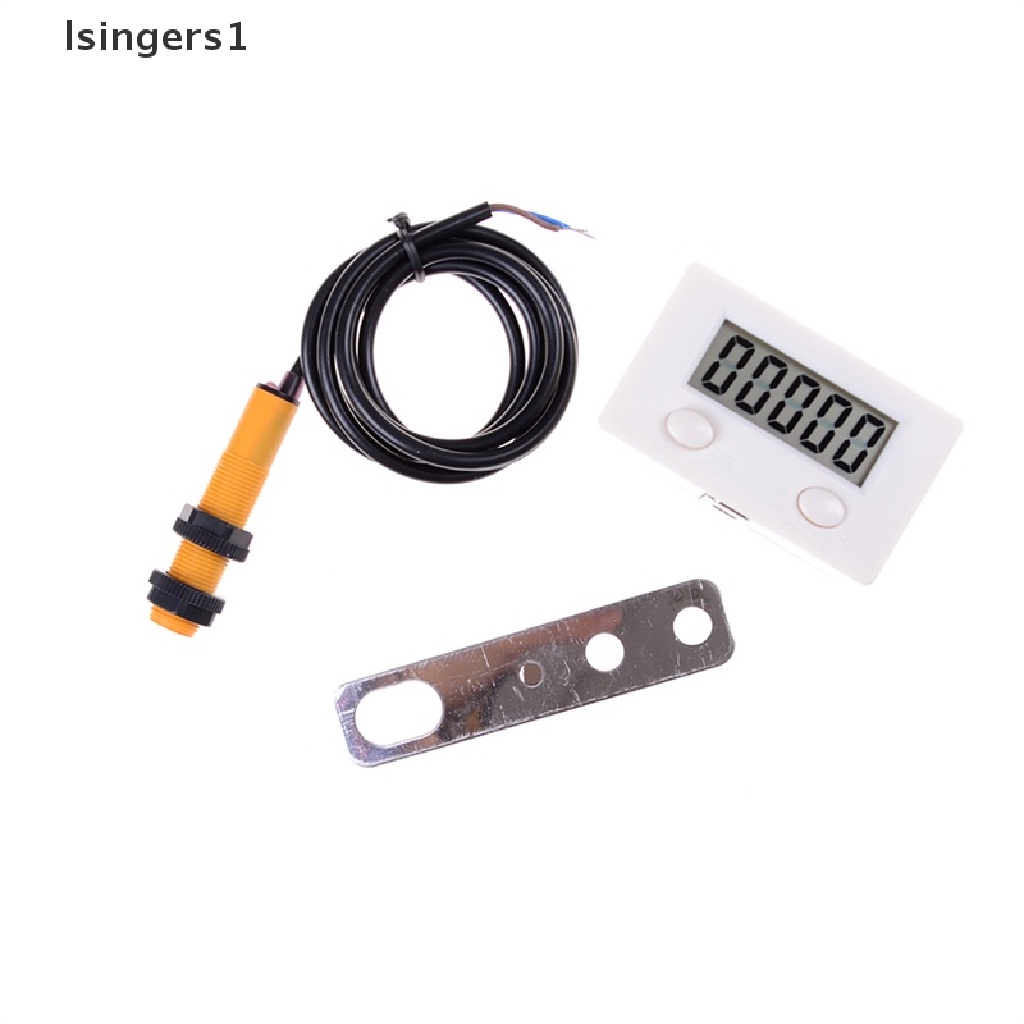

Packaging include
1 x Digital 5 Digit LCD Punch Counter

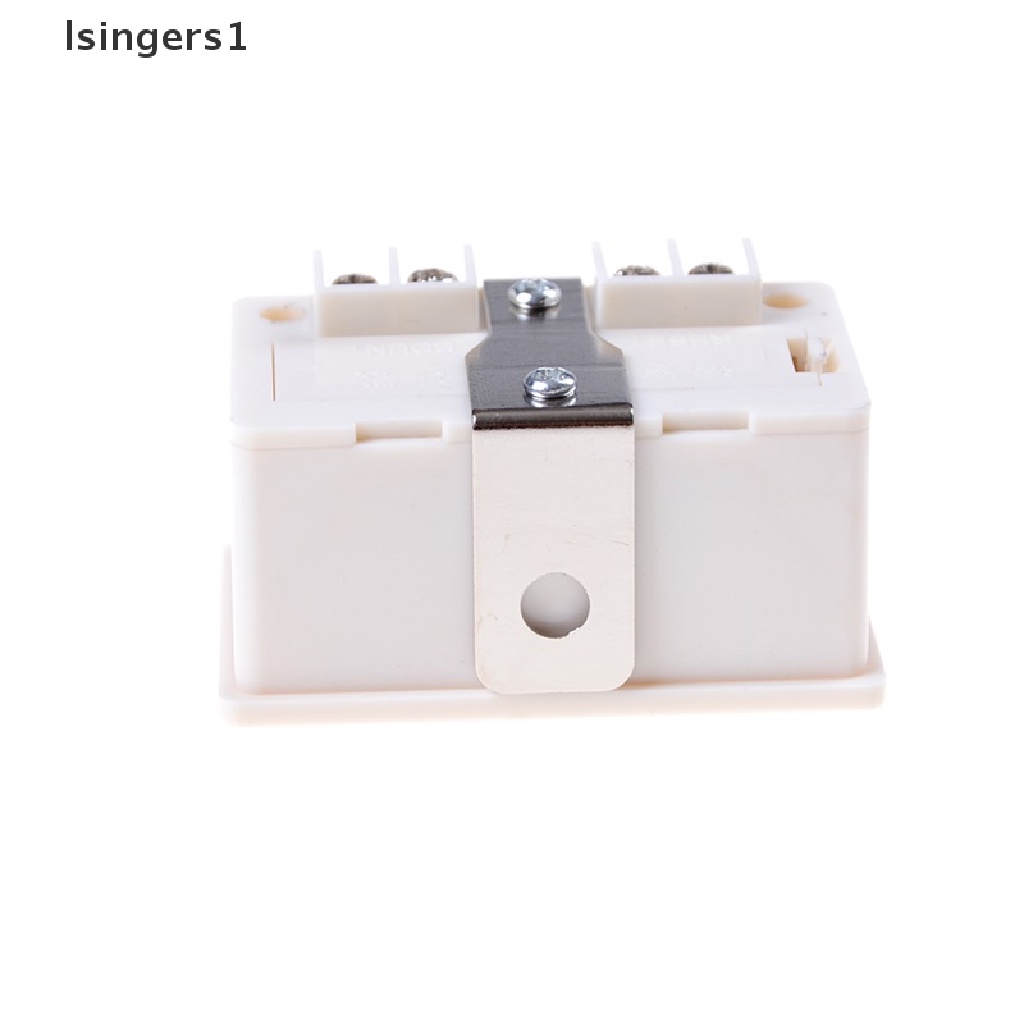

1 x Counter bracket

1 x proximity switch

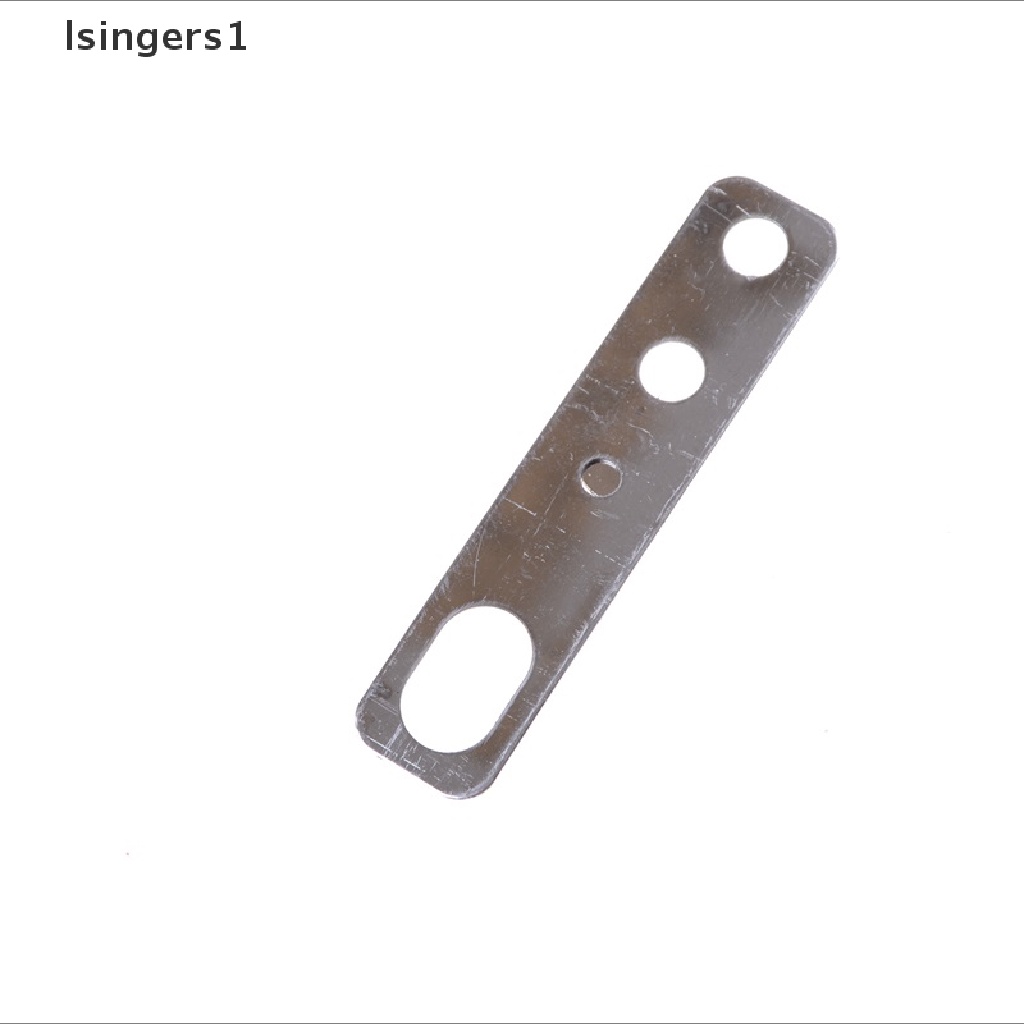

1 x switch bracket

1 x strong magnet
