(lsingers1) 5pcs / set Konverter Step Down Power Supply Mini 3A DC Pengganti LM2596

Detail (lsingers1) 5pcs / set Konverter Step Down Power Supply Mini 3A DC Pengganti LM2596

Descriptions

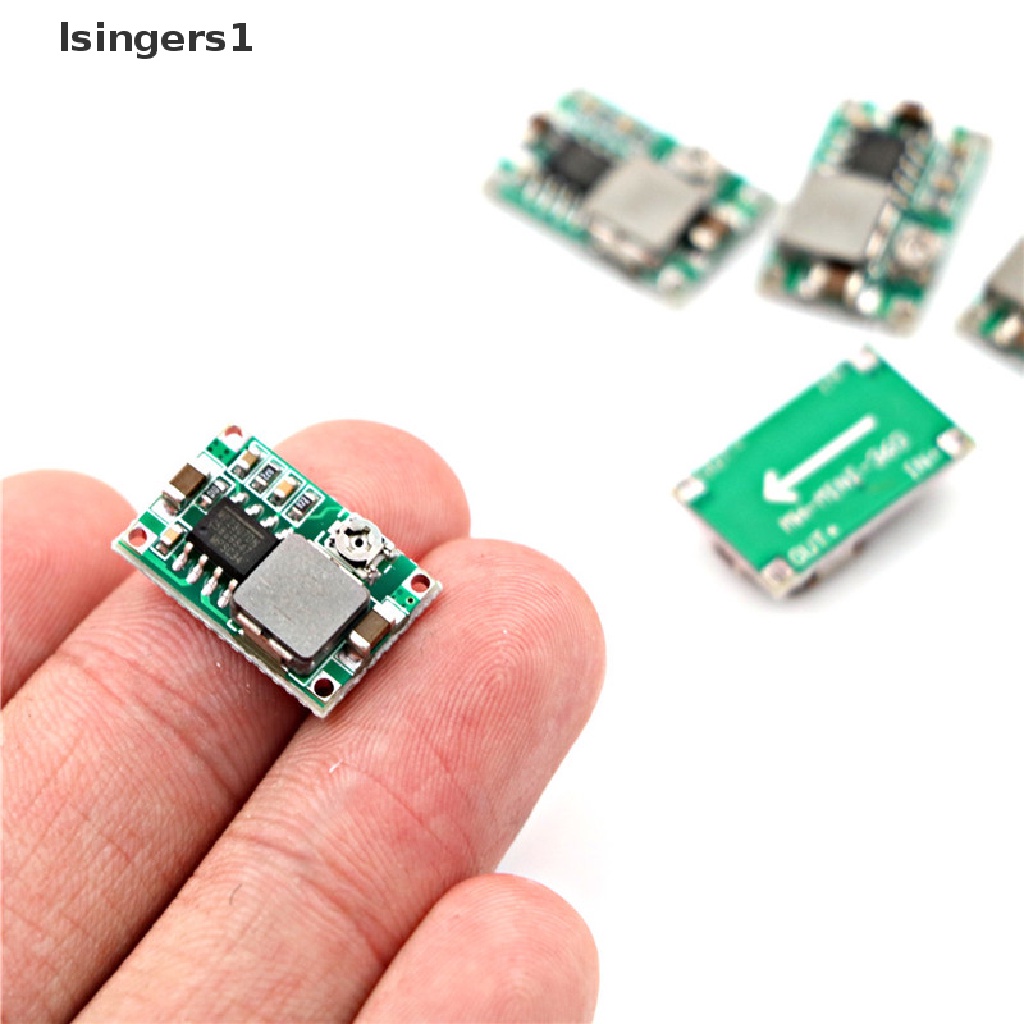

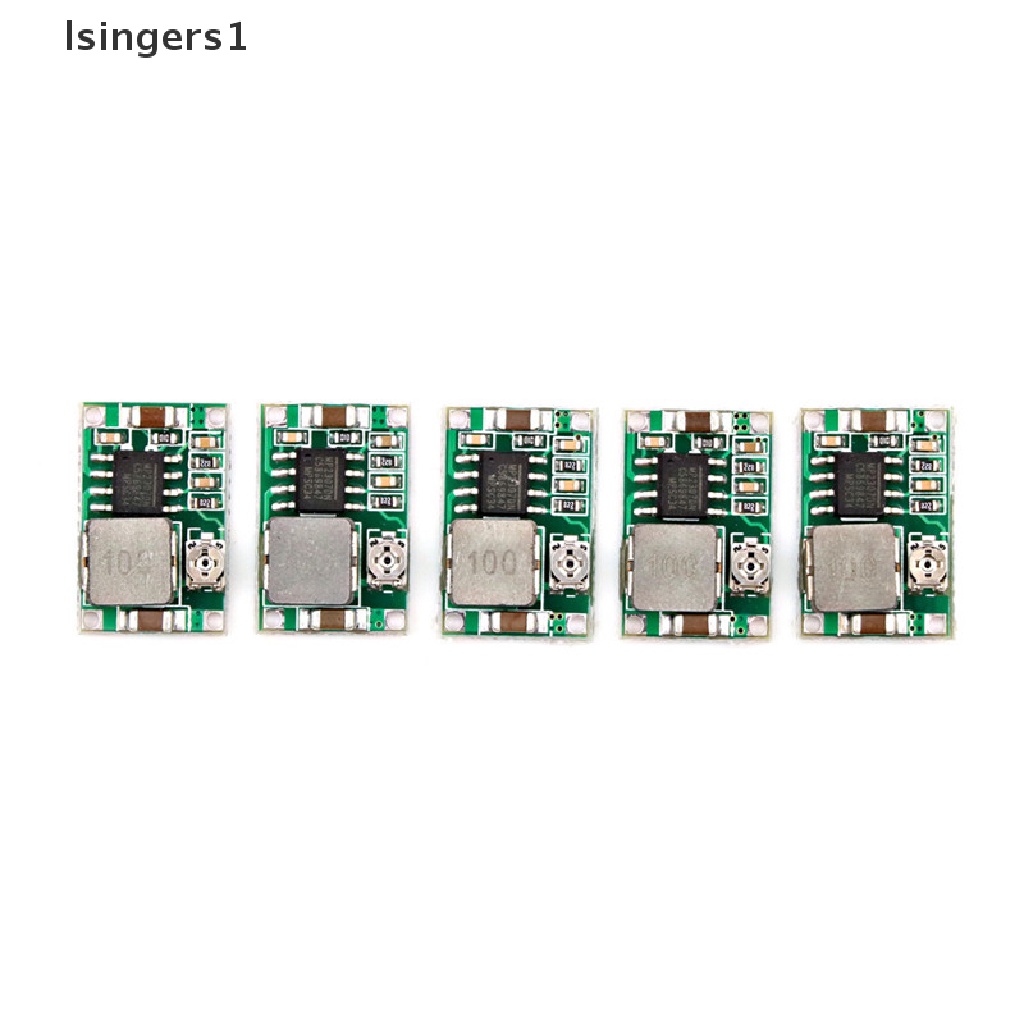

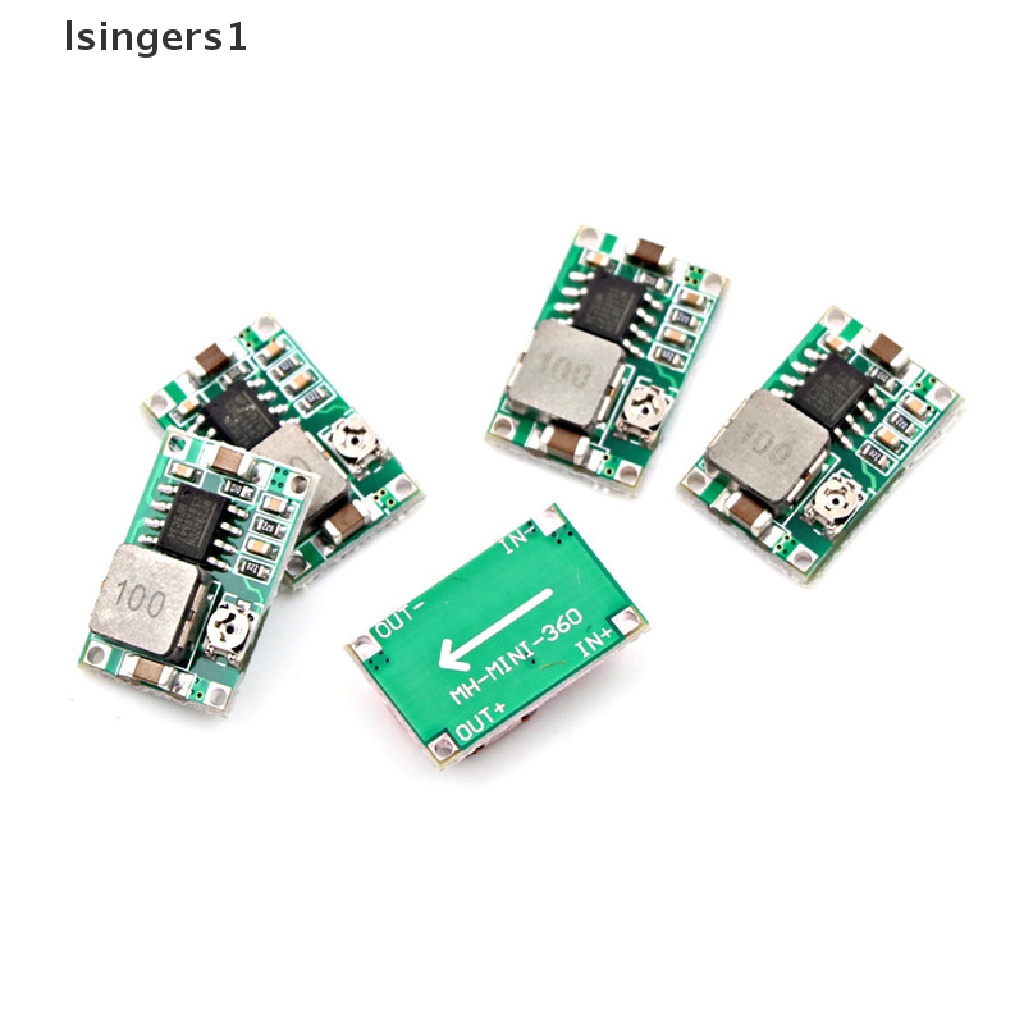

Mini-360 (ultra small size DC-DC synchronous rectifier buck module)
DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply, various right size and weight for demanding applications (such as aviation models, etc.).
Features: Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.
Specifications:
Module Properties: non-isolated buck
Rectification: synchronous rectification
Input voltage: 4.75V-23V
Output voltage: 1.0V-17V
Output Current: lowering the value of 3A, long 1.8A
Conversion efficiency: 96% (maximum)
Switching Frequency: 340KHz
Output ripple: 30mV (no-load)
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Working temperature: -40 ℃ to +85 ℃
External dimensions: 18 * 12 (L * W )mm
Package included:5x DC-DC Step Down Module
Note:
1.Due to the manual measurement and different measurement methods, please allow 2-3cm deviation.
2.Please be reminded that due to lighting effects and monitor's brightness/contrast settings etc, the color tone of the website's photo and the actual item could be slightly different.

Gambar produk
