(lsingers1) 5pcs KW4-3Z-3 SPDT NO NC Tuas Engsel Switch Mikro

Detail (lsingers1) 5pcs KW4-3Z-3 SPDT NO NC Tuas Engsel Switch Mikro

Description
Specification:
Product Name Limit Switch
Model No. KW4-3Z-3
Terminals 3 Terminal
Actuator Action Momentary
Actuator Type Hinge Lever
Contact Configuration 1NO,1NC(SPDT)
Voltage & Current AC 125V/250V 5A
Level Size 20 x 4mm/ 0.8" x 0.16"(L*W)
Fixing Holes Dia. 0.2cm / 0.08“
Hole Center Point Distance 1cm /0.4"
Switch Body Size 2 x 1 x 0.7cm / 0.8" x 0.4" x 0.27"(L*W*H)
Body Main Color Green
Net Weight 12g
Package Content 5 x Limit Switch
Description:
Features: Hinge Lever Actuator, 1NO+1NC Contact Configuration.
This Limit Switch can be used in various mechanical to control the position of moving parts of machines and plant.
It is suitable for both AC control circuits and DC control circuits.

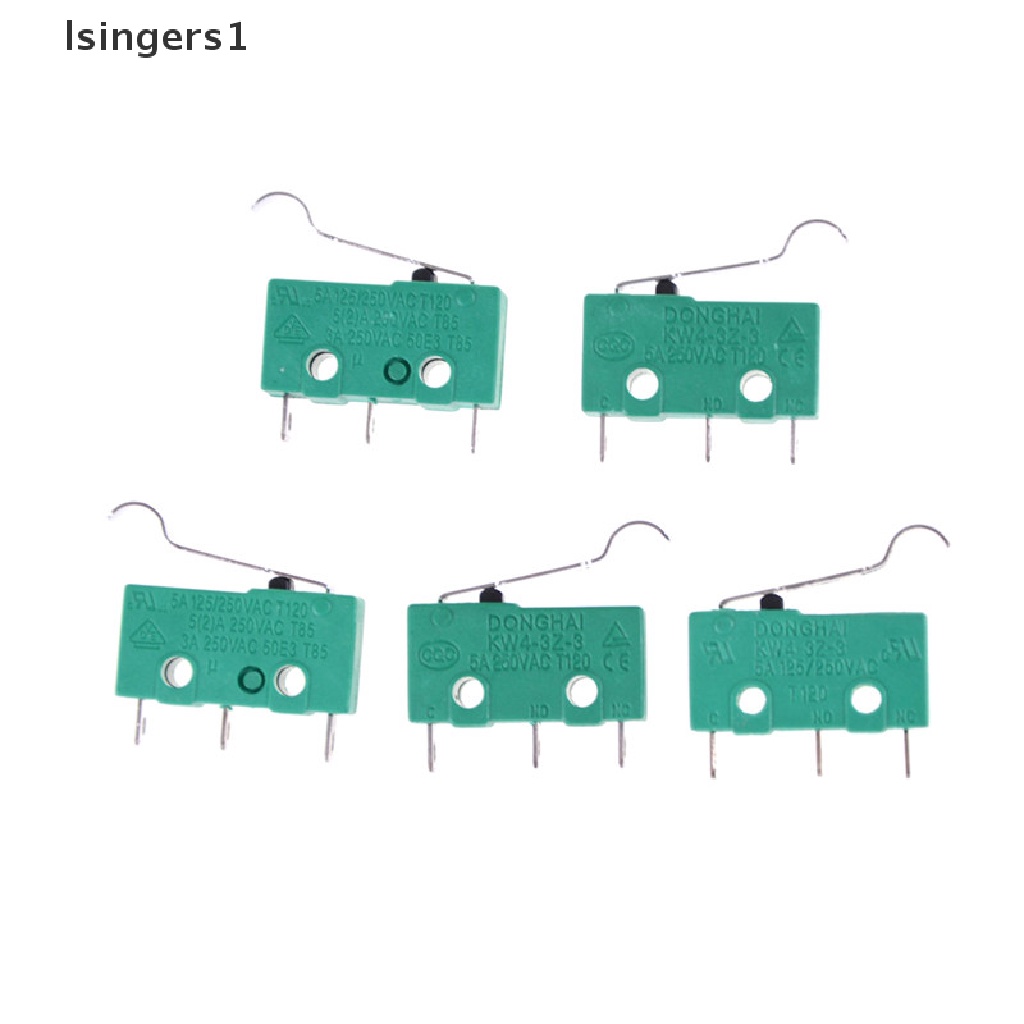

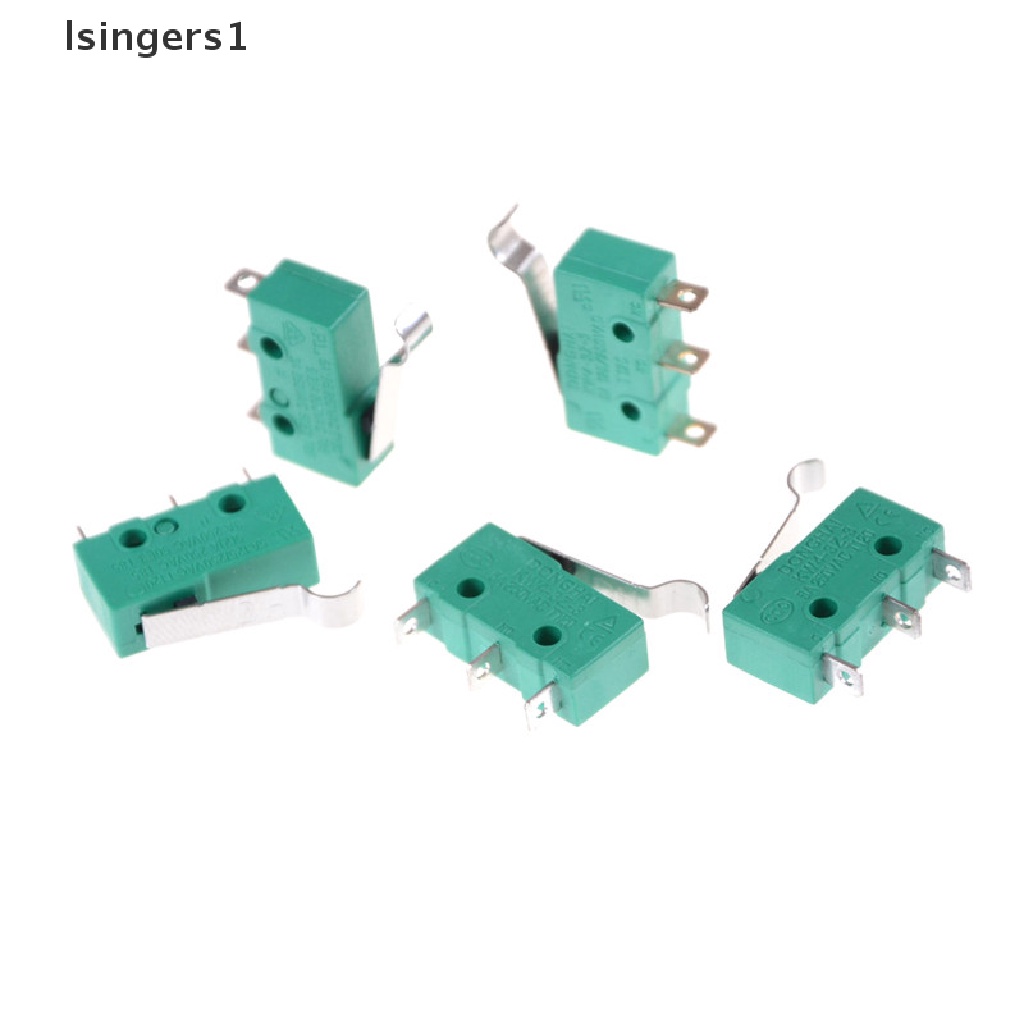

Gambar produk
