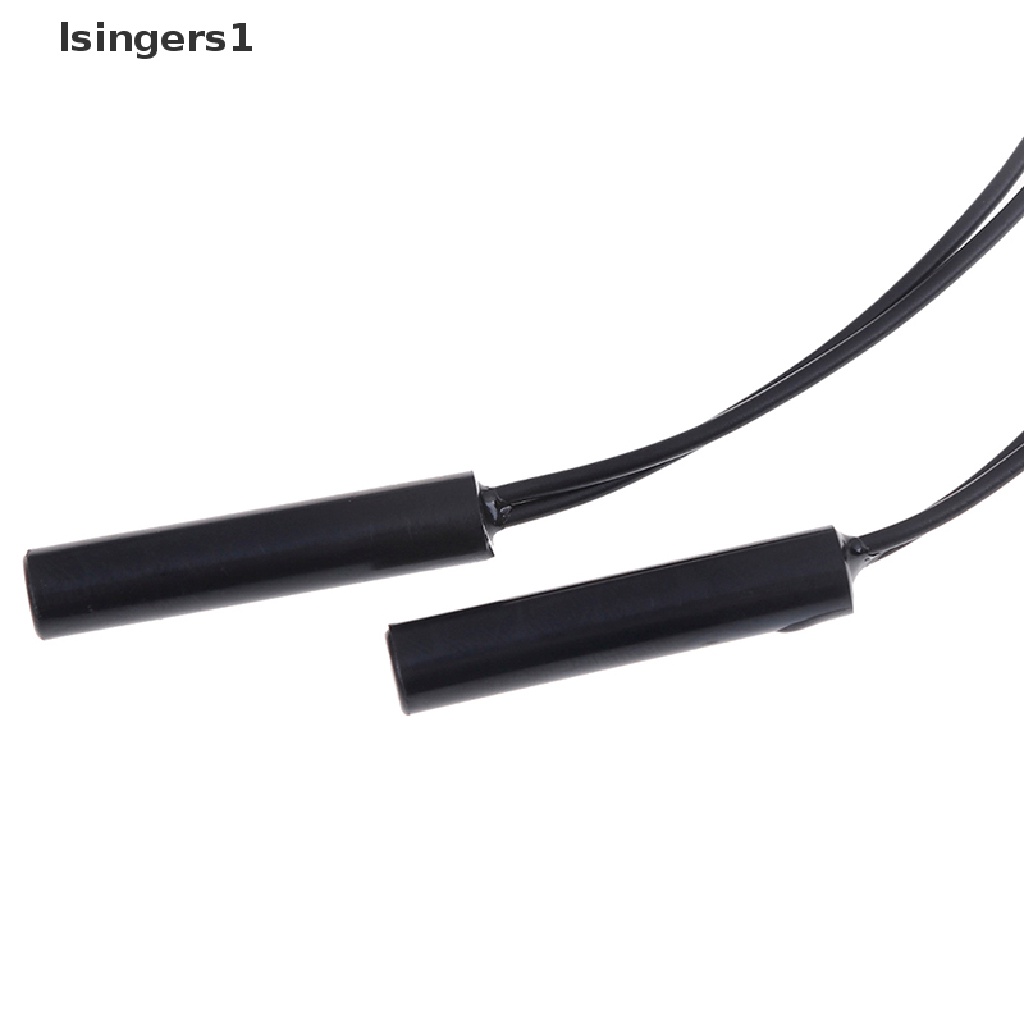

(lsingers1) 2pcs Saklar sensor Magnetik Bentuk Silinder Bahan Plastik

Detail (lsingers1) 2pcs Saklar sensor Magnetik Bentuk Silinder Bahan Plastik

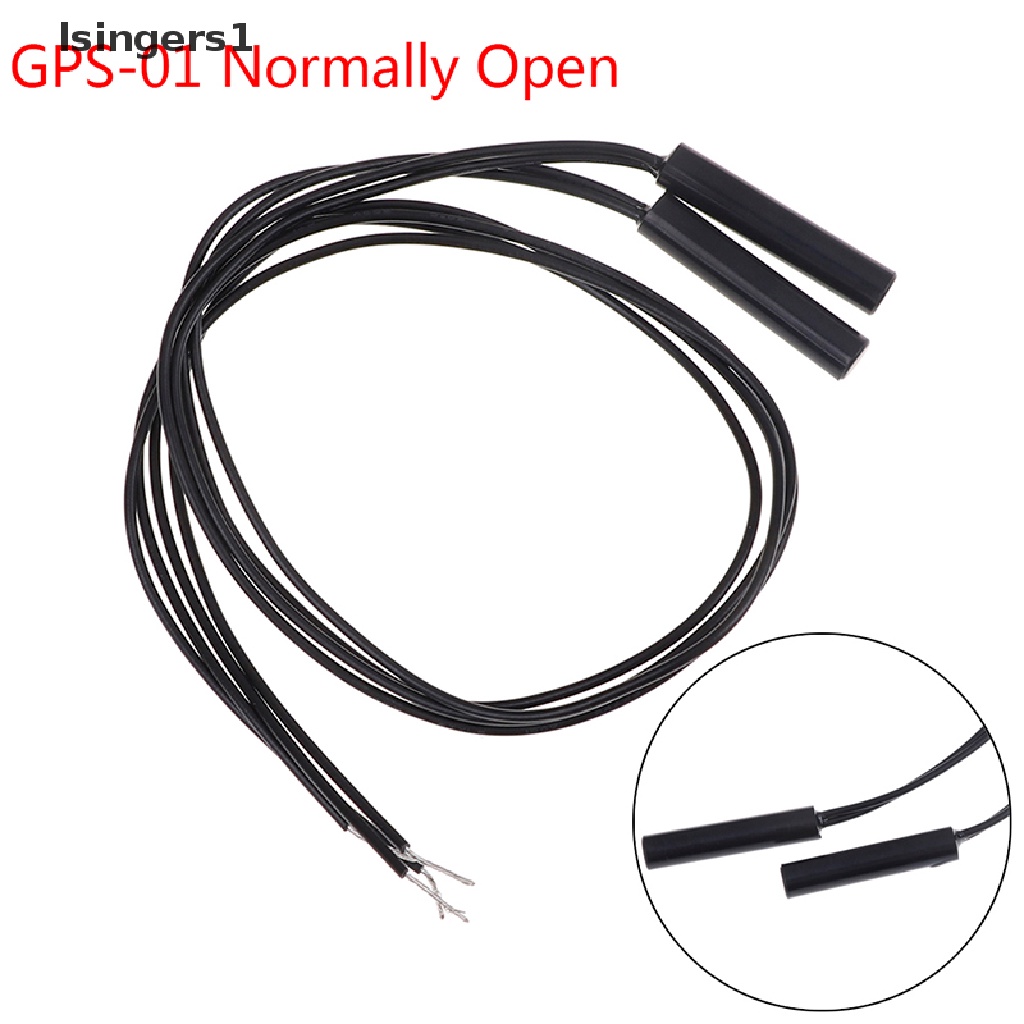

Proximity sensor contructed by shaping and sealing the magnetic spring tube connected with wires. Switching action will occur when a magnetic object is in the proximity. It is usually used as a position sensor is widely used in measuring instruments, office automated equipment, household supplies, security and safety equipment,transportation and transportation equipment.
Material:ABS & Epoxy
Simple installation and adjustment
Panel Mount Sensors
No Standby Power Requirement
Hermetically Sealed design and long life
Applications:
Position and Limit Sensing
Security System Switch
Door switch
Max contact rating: 10w
Max switching voltage: 100v DC
Max switching current: 0.5A
Min breakdown voltage: 200vdc
Max carry current: 1.0A
Max contact resistance: 100mΩ
Release time: 0.4ms max
Operate time: 1.0ms max

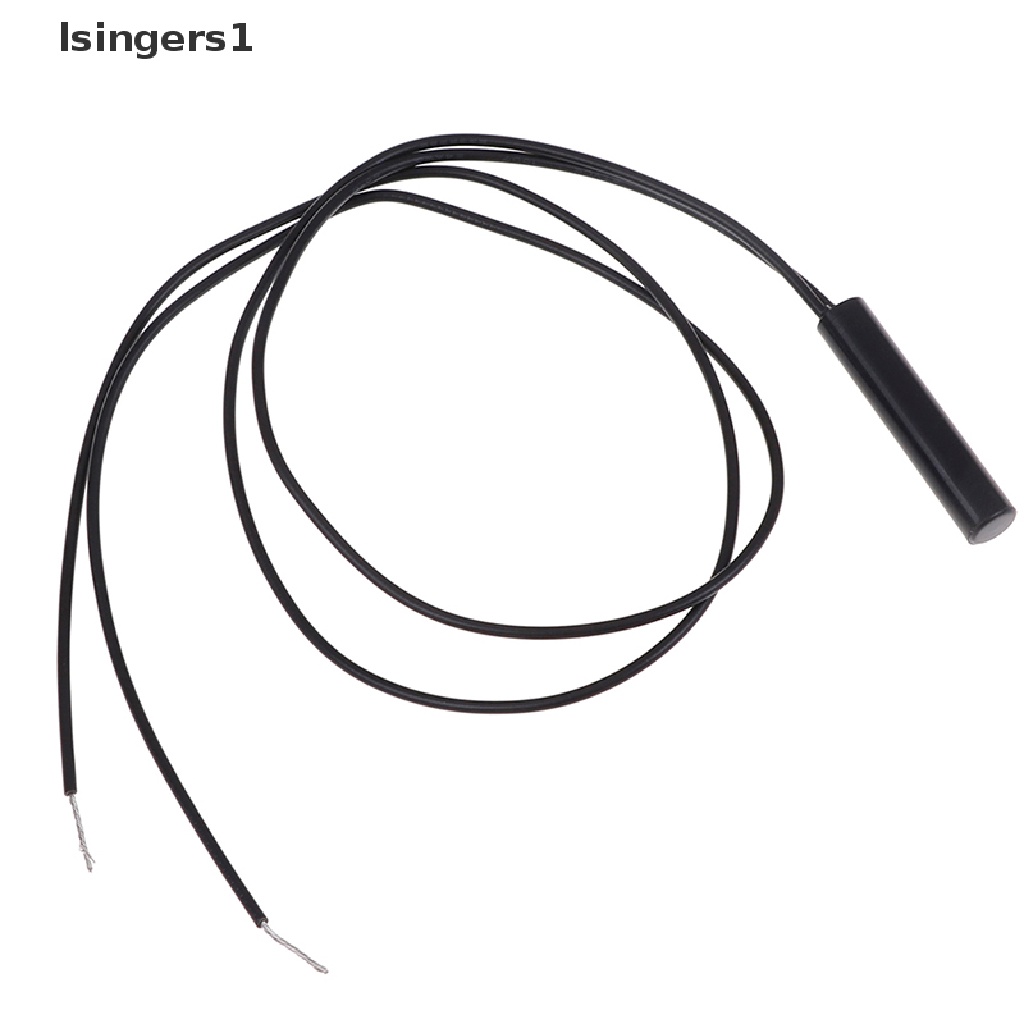

Diameter: 5.6mm
Length of sensor (not included the cable ): 30mm

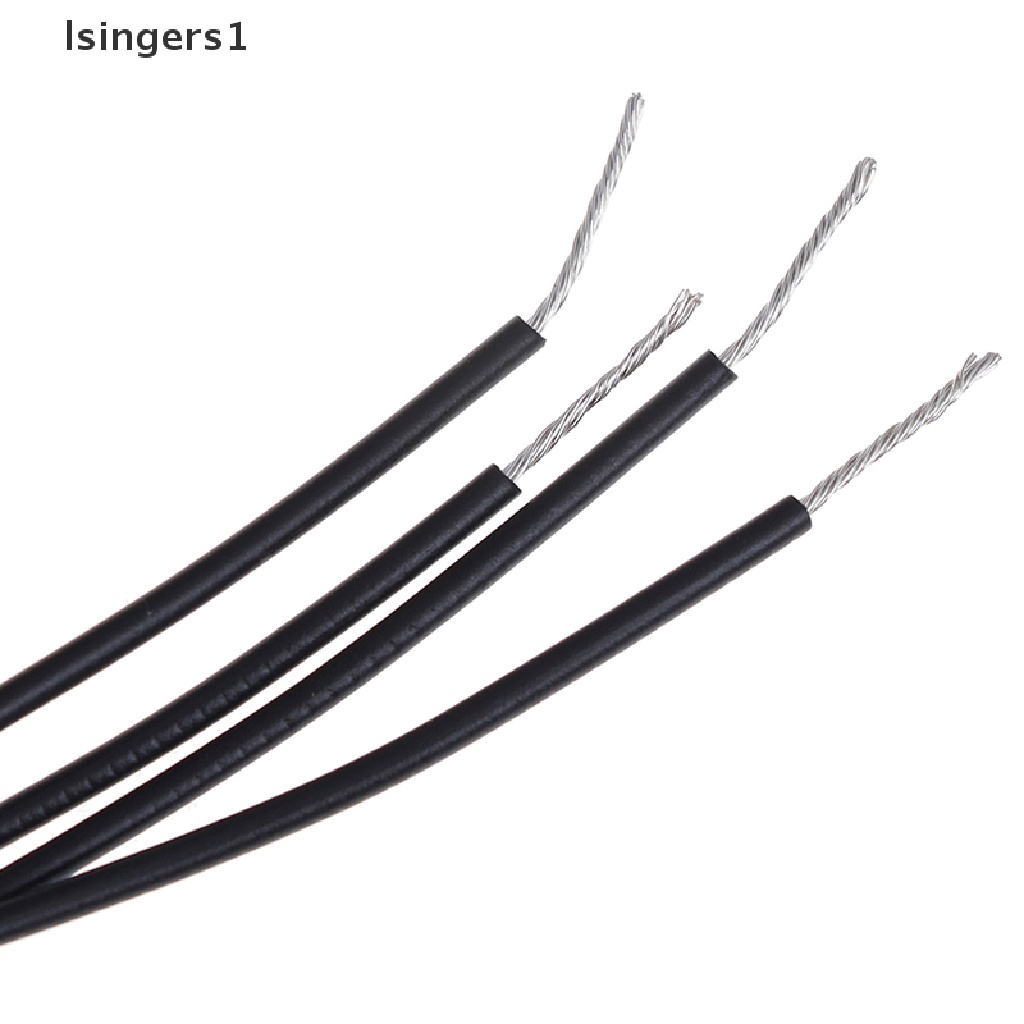

Length of cable: about 34cm
Included:

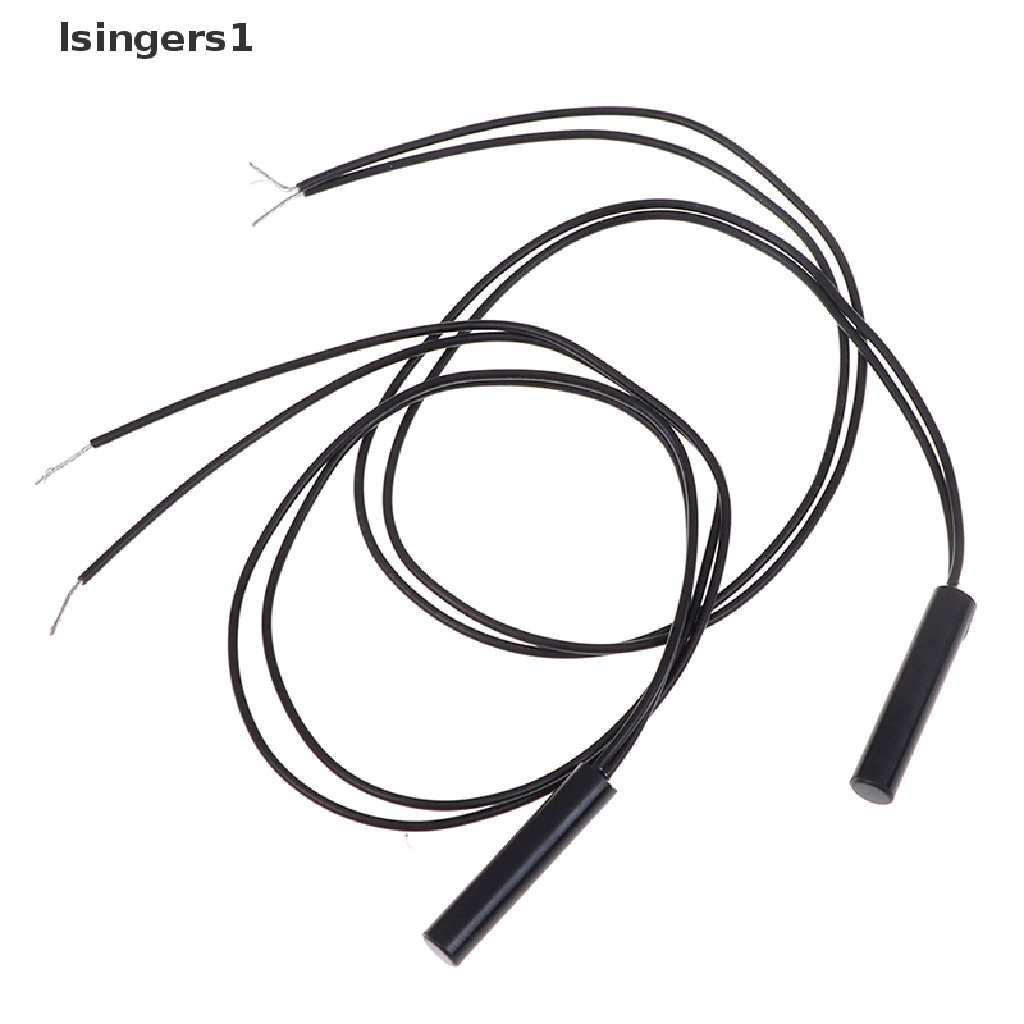

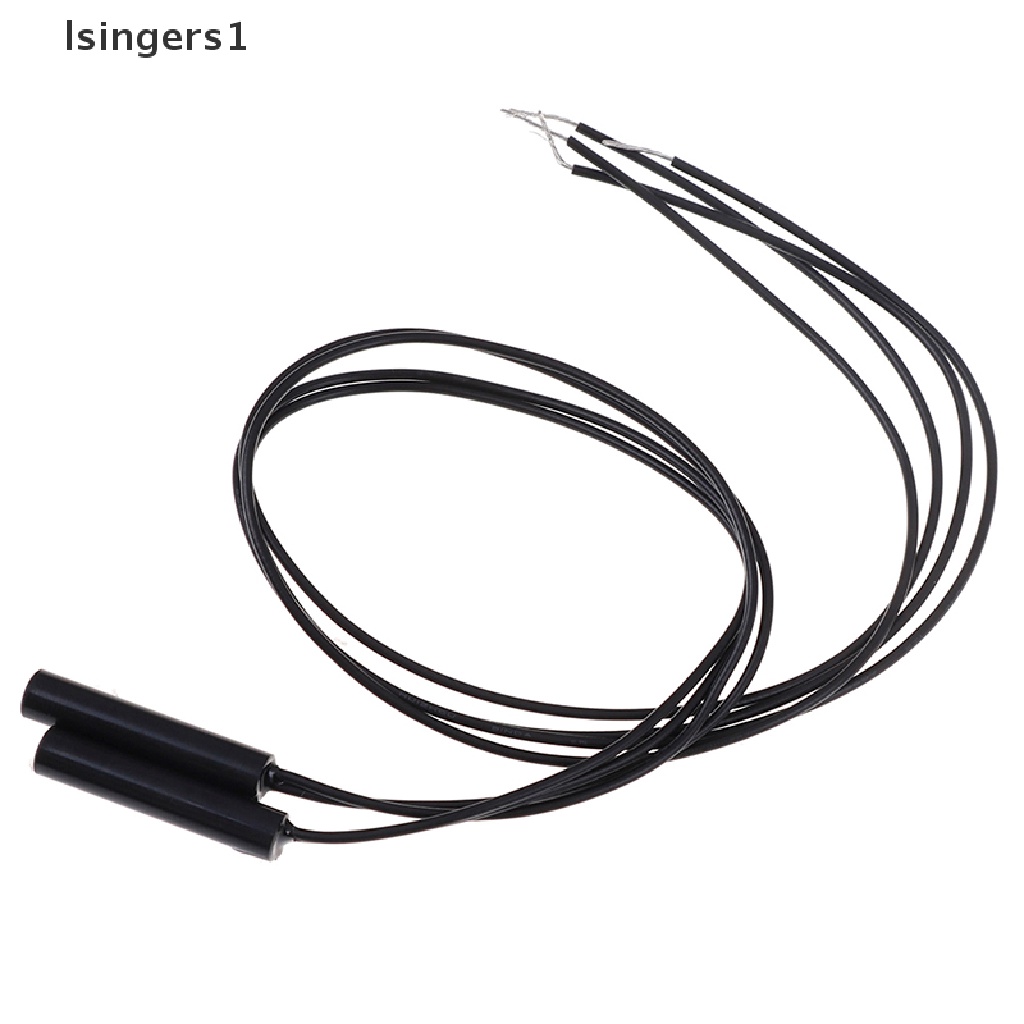

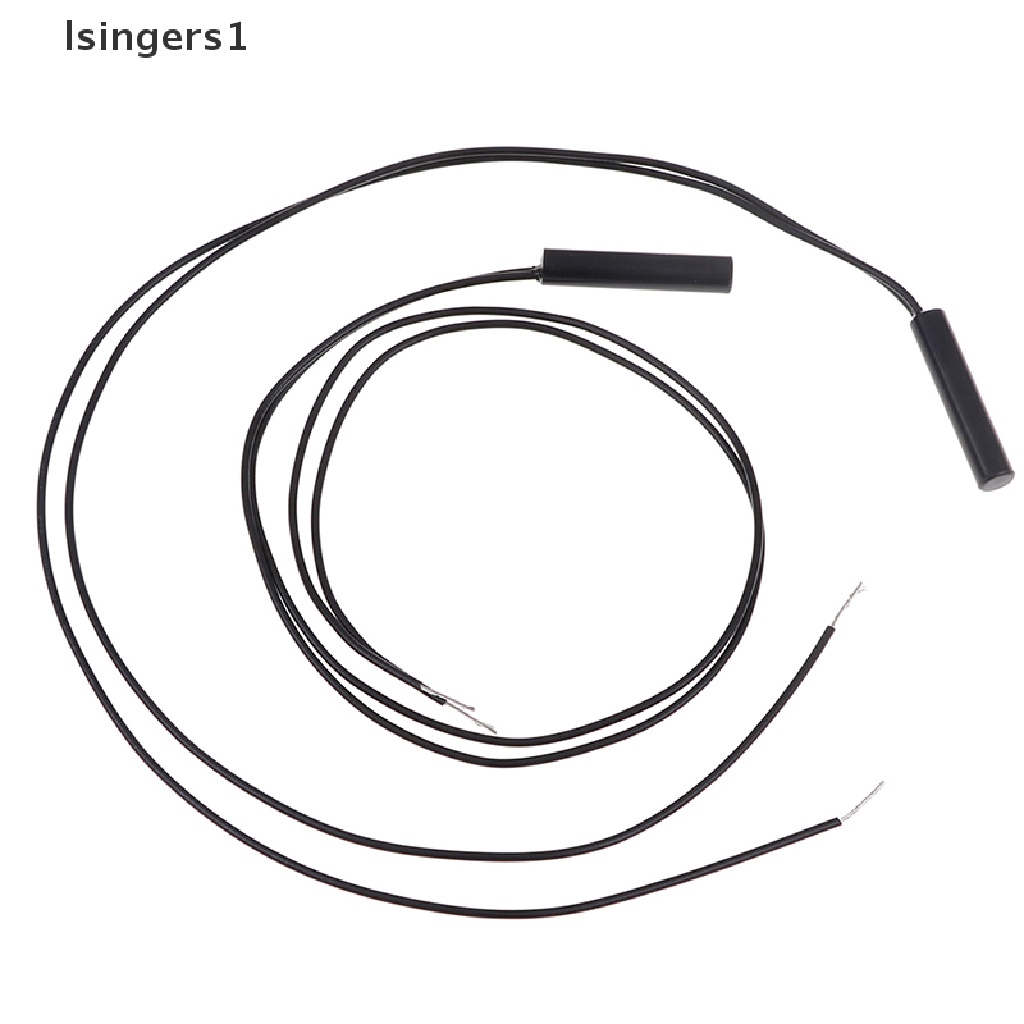

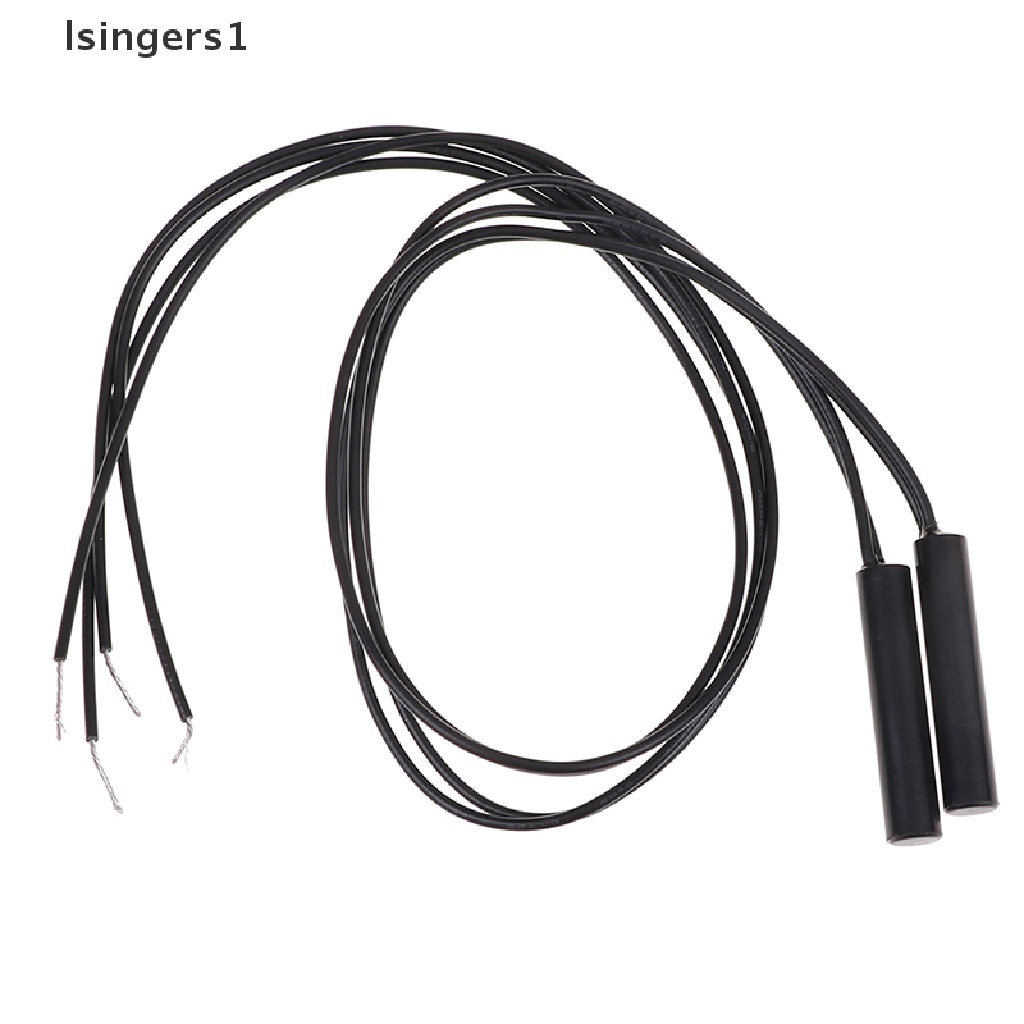

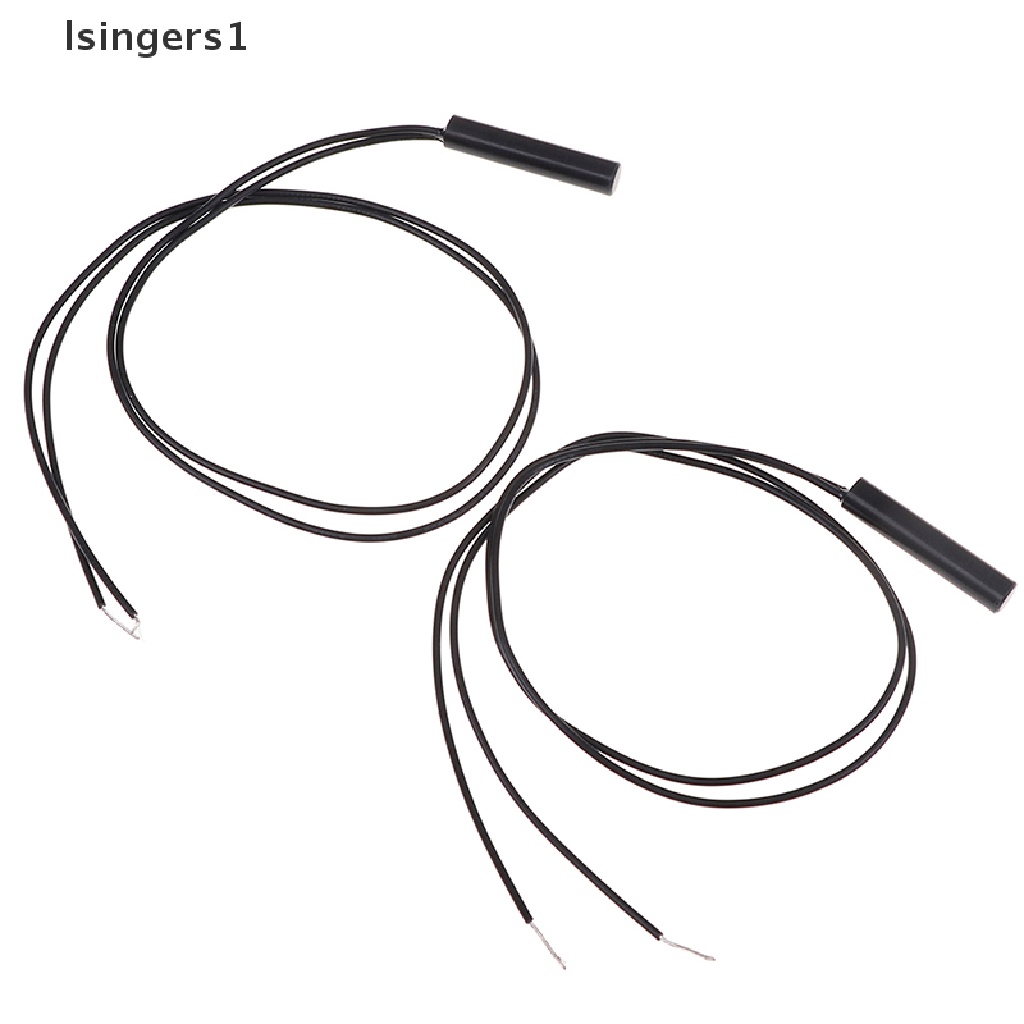

2 x Proximity switch
