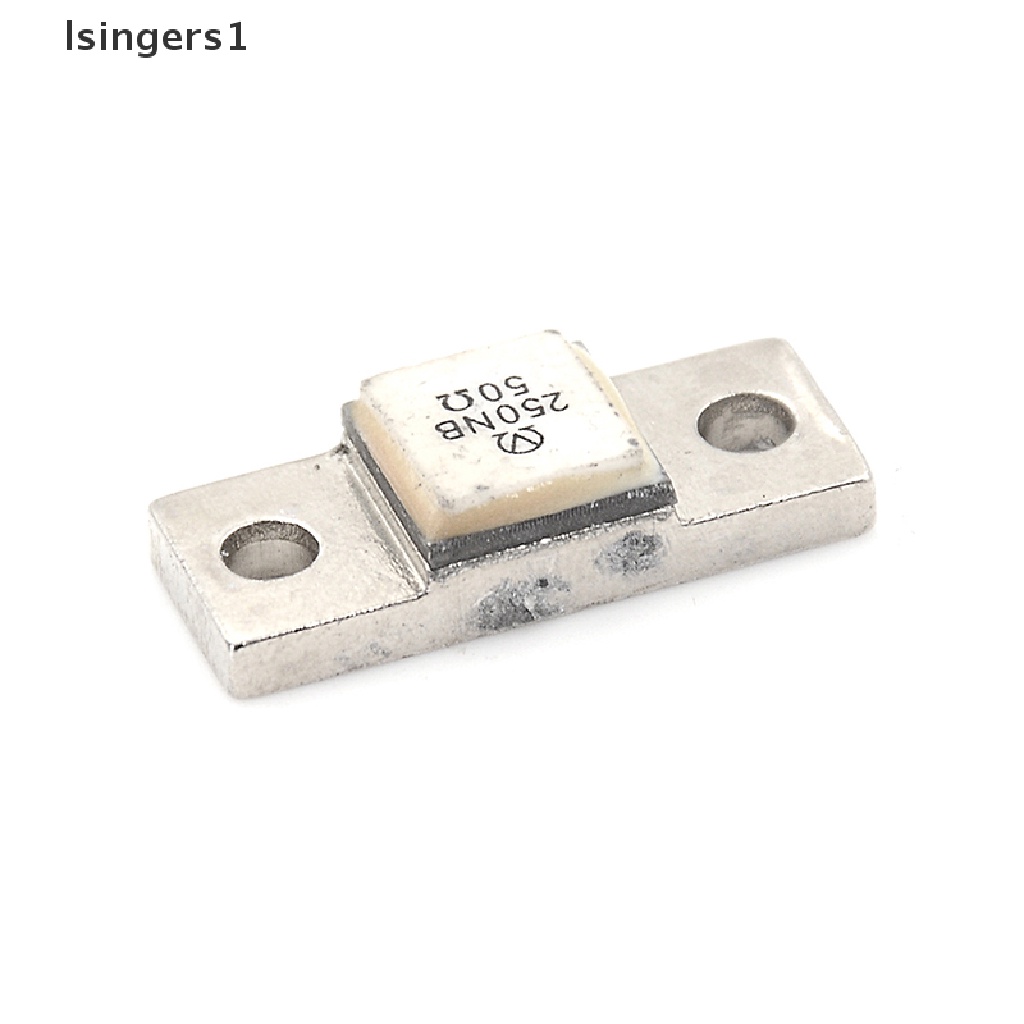

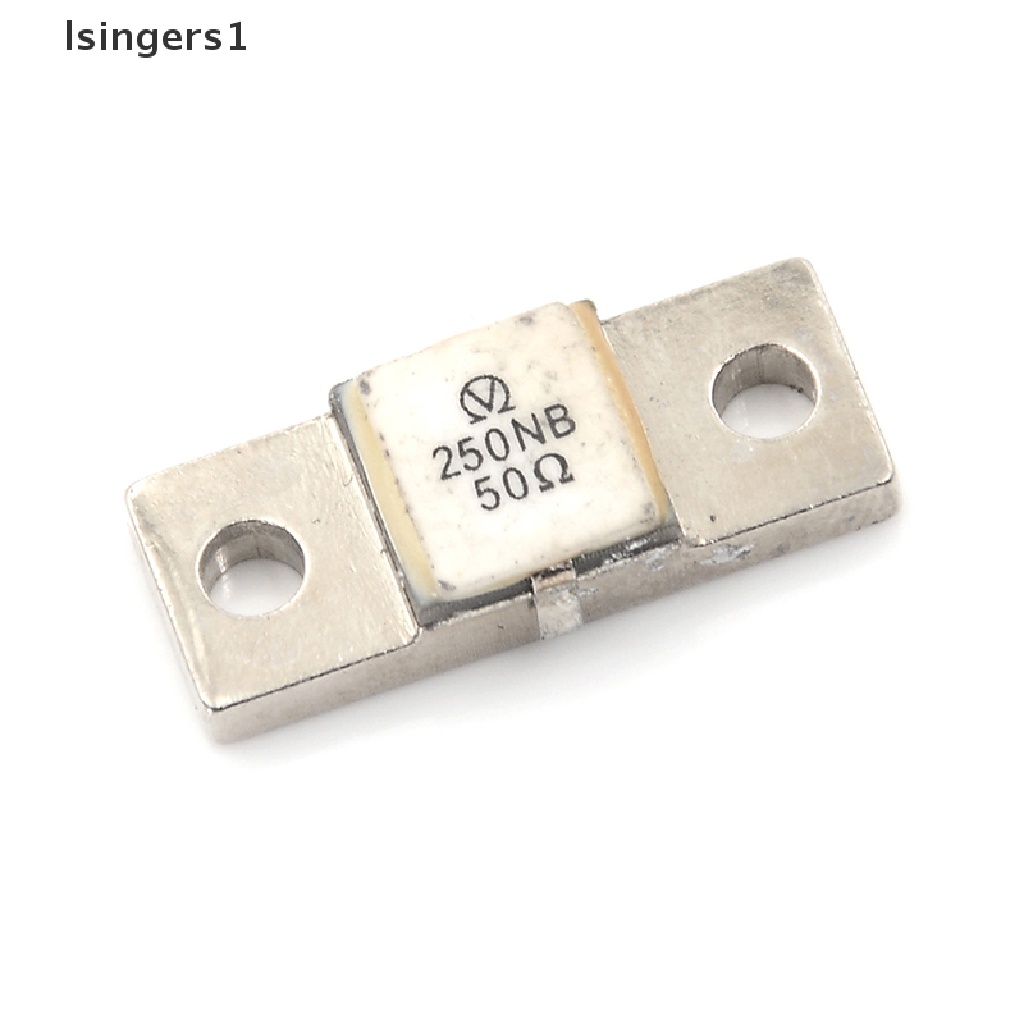

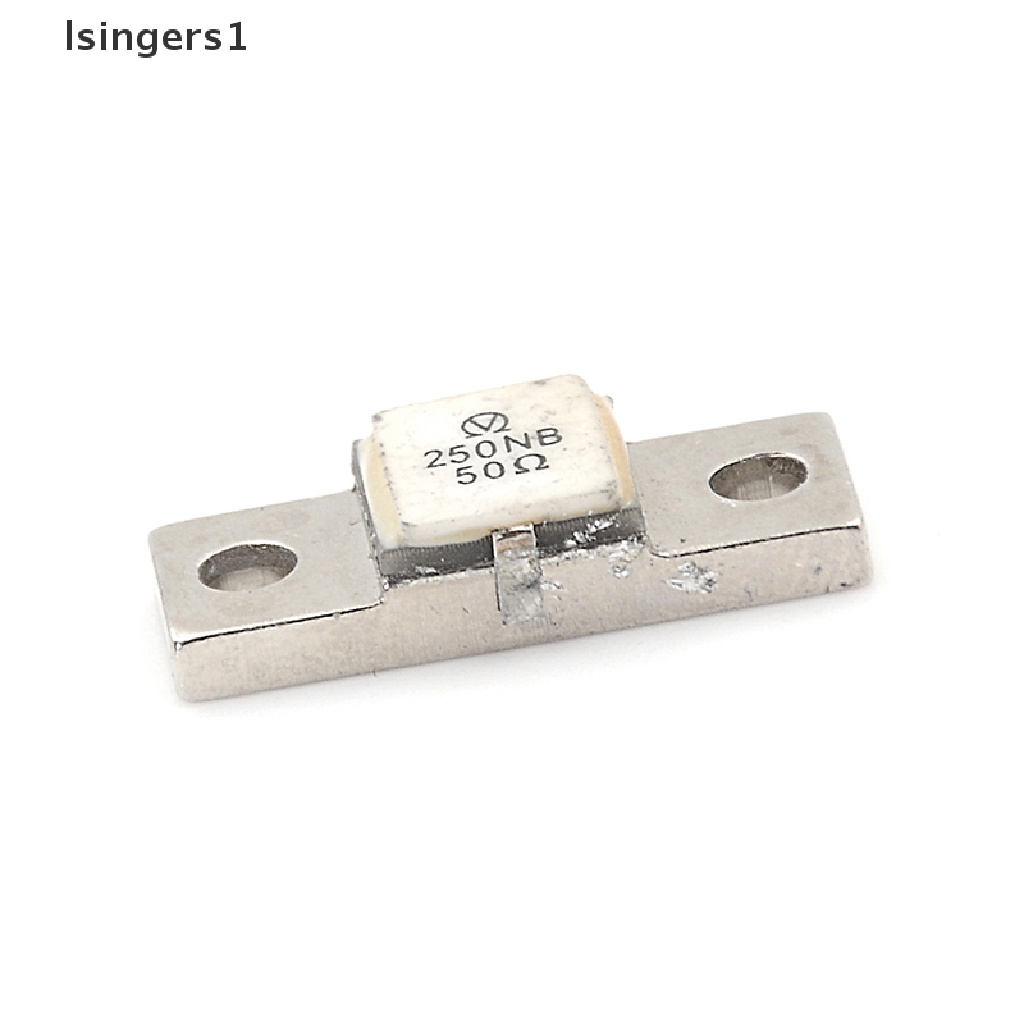

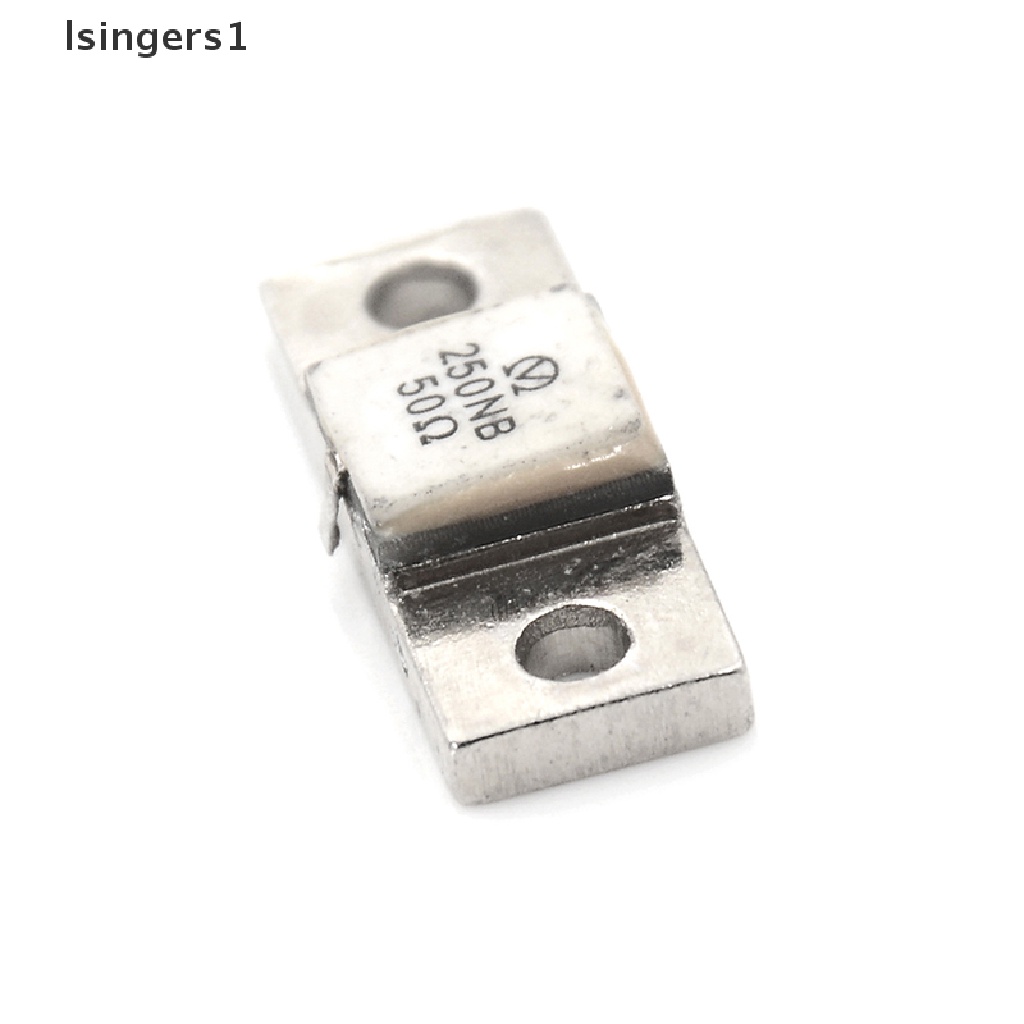

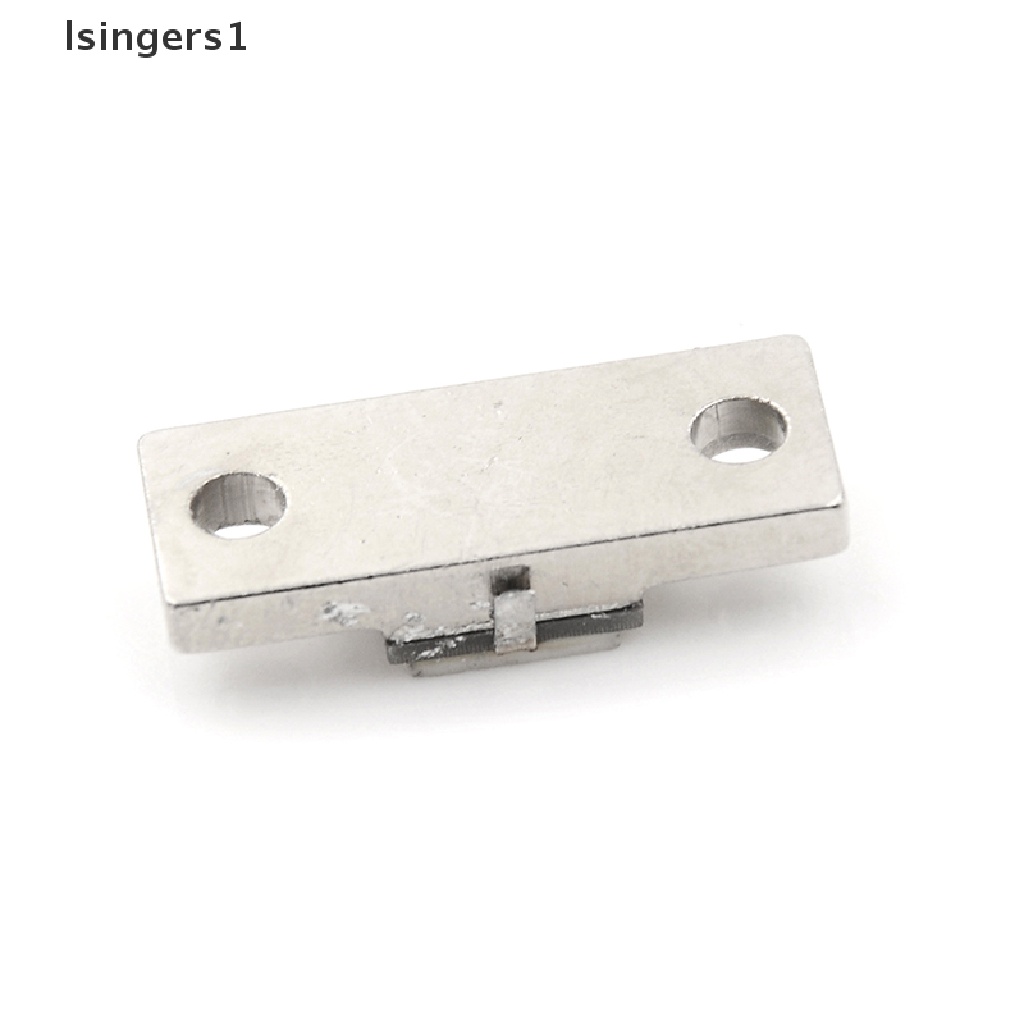

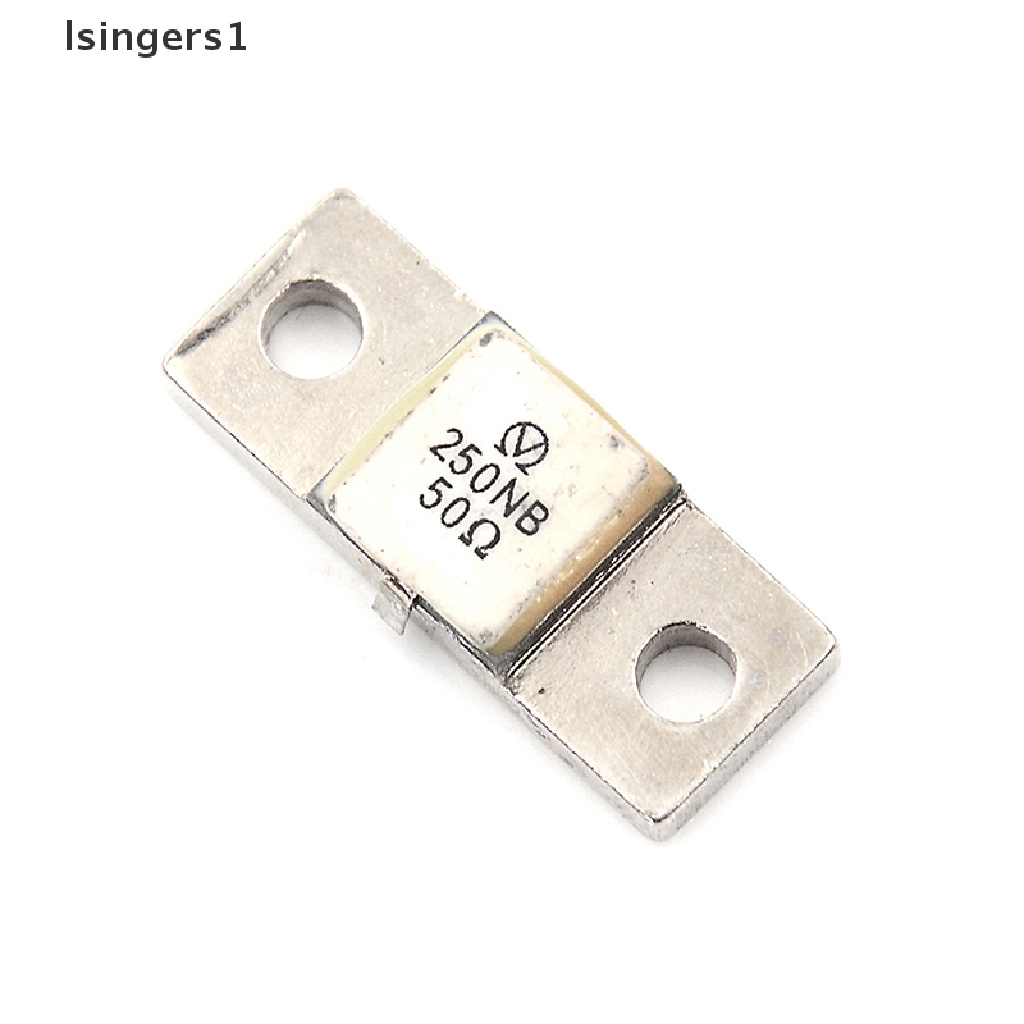

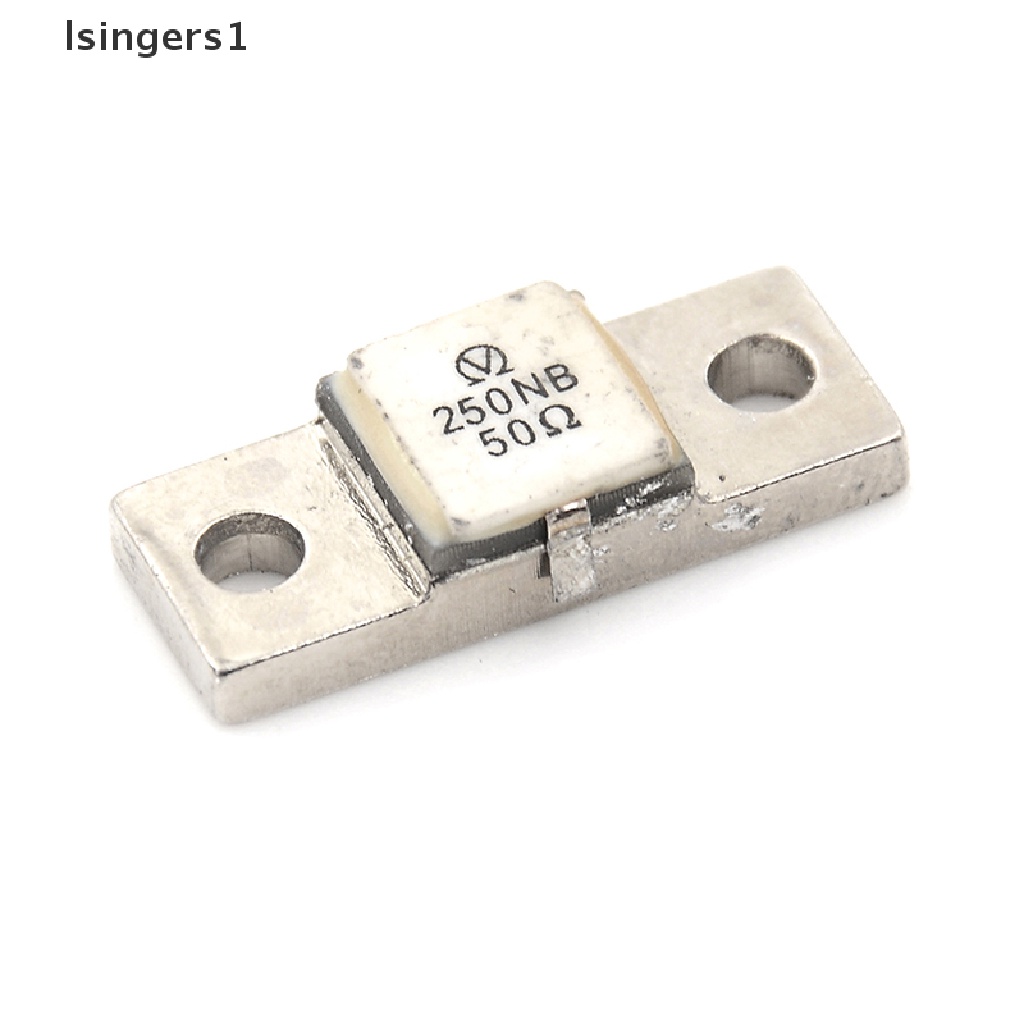

(lsingers1) 1pc resistor RFP 250N50 250w 50ohms Untuk microwave

Detail (lsingers1) 1pc resistor RFP 250N50 250w 50ohms Untuk microwave

Material: Electrical components
1, Microstrip pin for the relatively fragile silver, must be careful welding, do not often activities to prevent fracture.
2, Please ensure that the resistance closely installed in the radiator on the plane, and join the thermal grease to help heat transfer.
3, Silver microstrip pin as much as possible with the input signal parallel.
4, The working temperature -55 ° ~ +155 °.
Size: 25 * 10 MM
Aperture: 3MM
High-frequency high-frequency dummy load 250w 50 Ohm
Quantity:1Pc
Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Gambar produk
