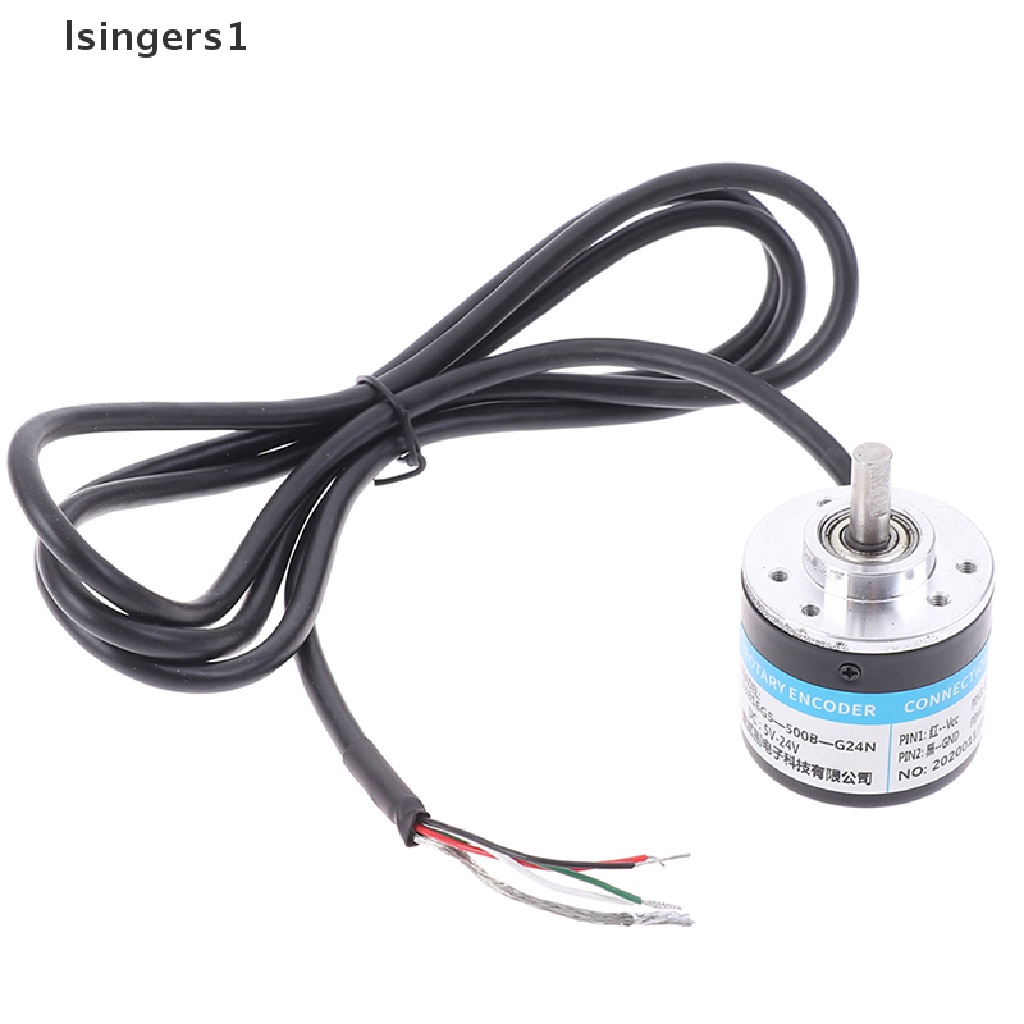

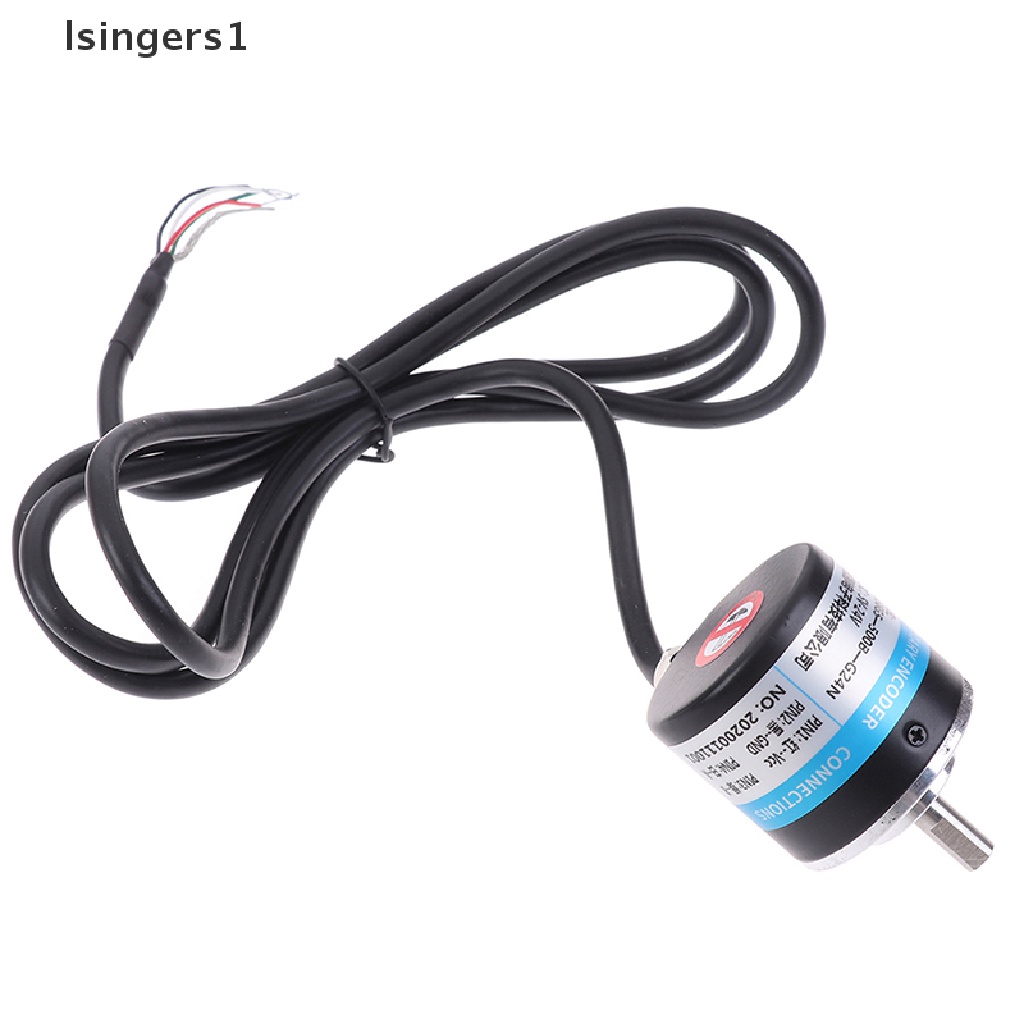

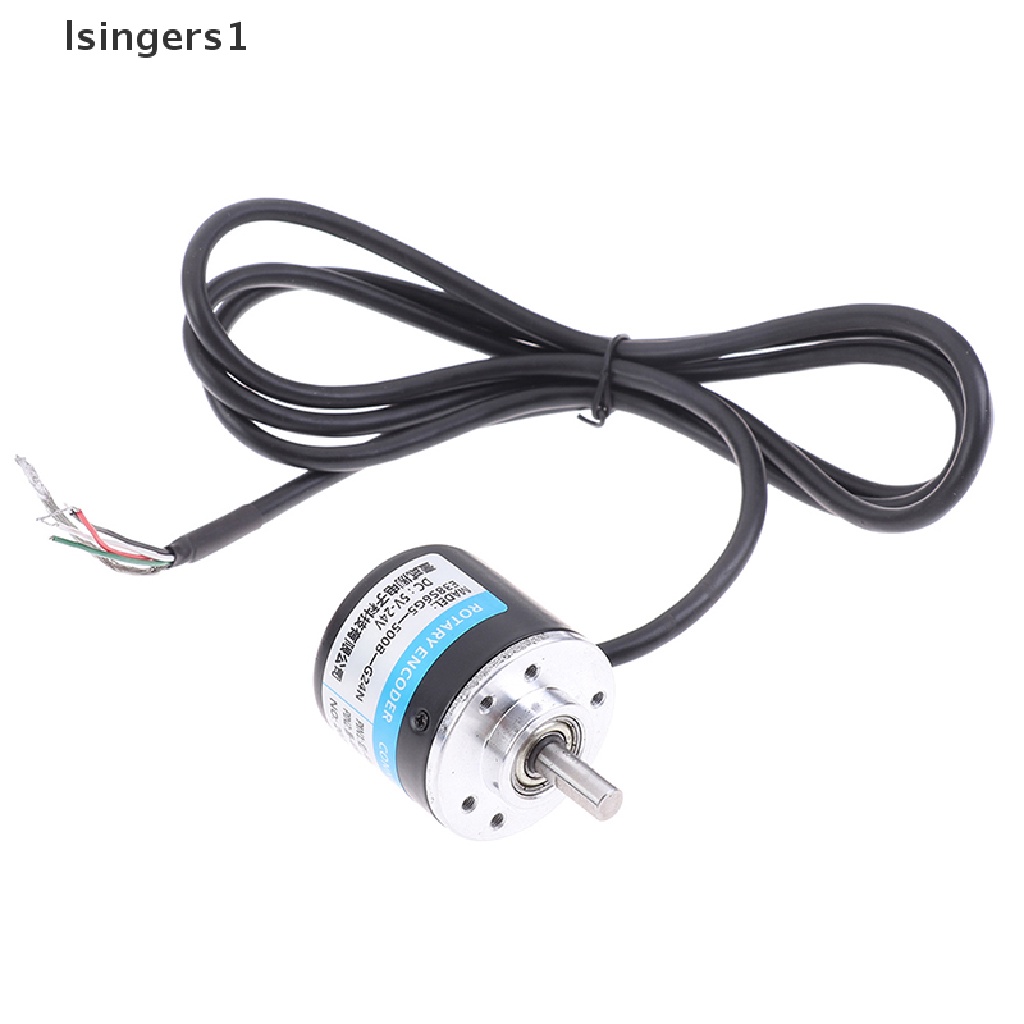

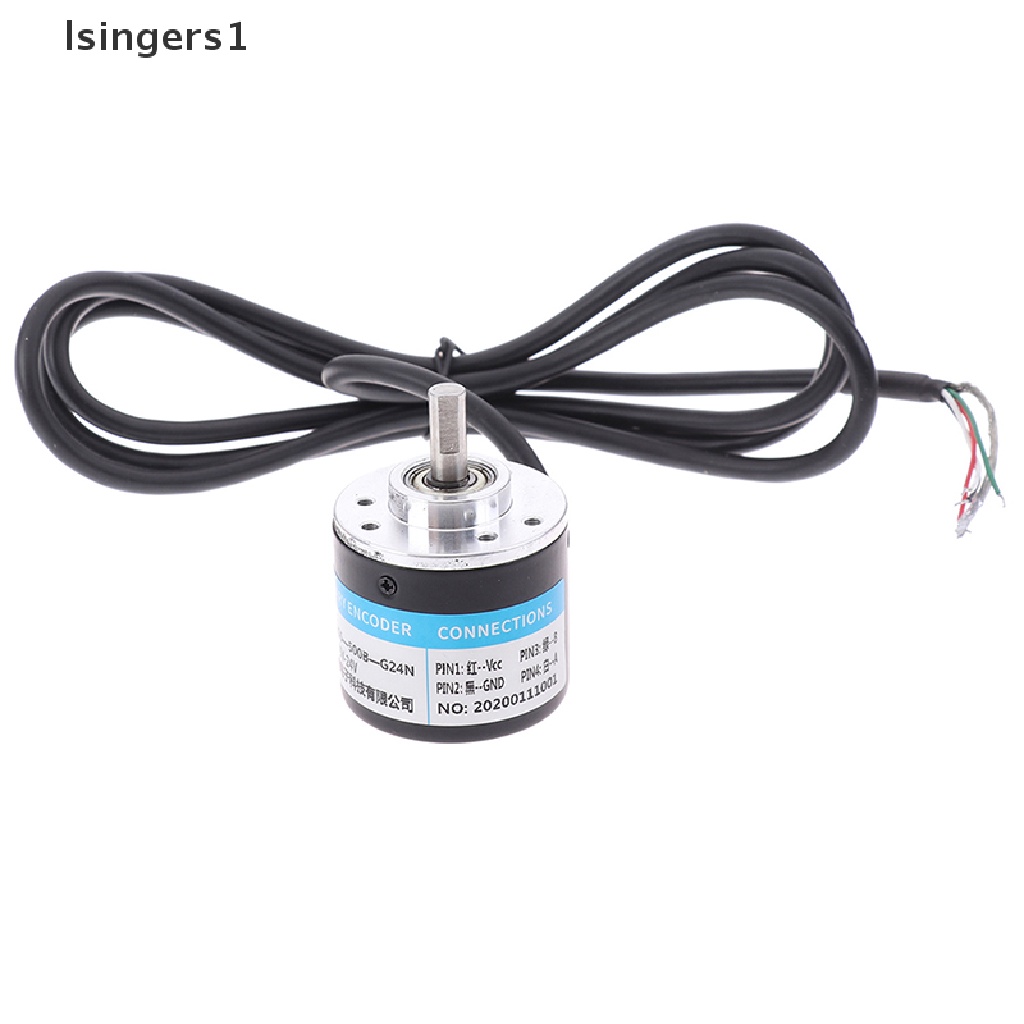

(lsingers1) 100 / 200 / 360 / 400 / 500 / 600P / R Photoelectric Incremental Rotary Encoder 5V-24V

Perlengkapan Rumah > Perkakas > Perkakas Lainnya > (lsingers1) 100 / 200 / 360 / 400 / 500 / 600P / R Photoelectric Incremental Rotary Encoder 5V-24V
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail (lsingers1) 100 / 200 / 360 / 400 / 500 / 600P / R Photoelectric Incremental Rotary Encoder 5V-24V

Power source: DC5-24V
Shaft: 6*13mm/0.23*0.51"
Size: 38*35.5mm/1.49*1.39"
Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical speed: 5000 R / min
Response frequency: 0-20KHz
Cable length: 1.5 meter
Notice:AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal

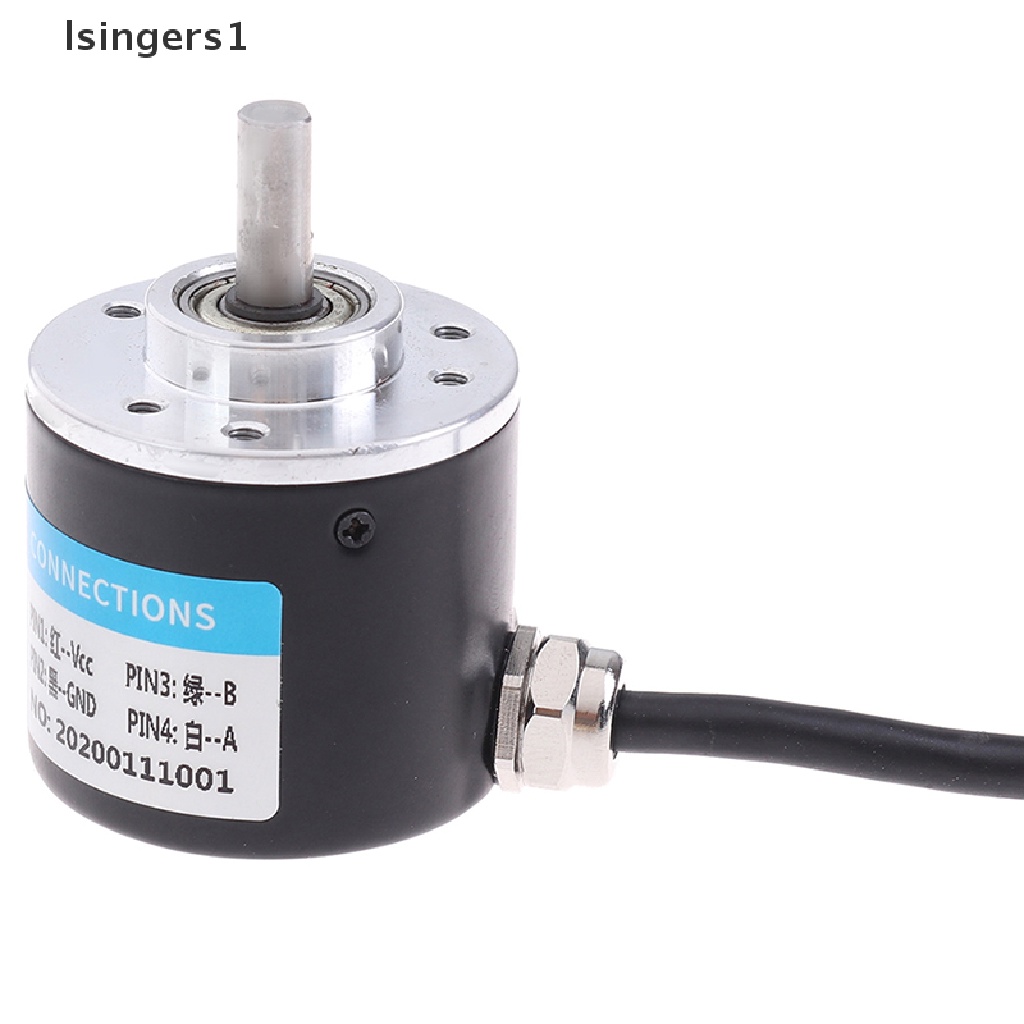

Connection:

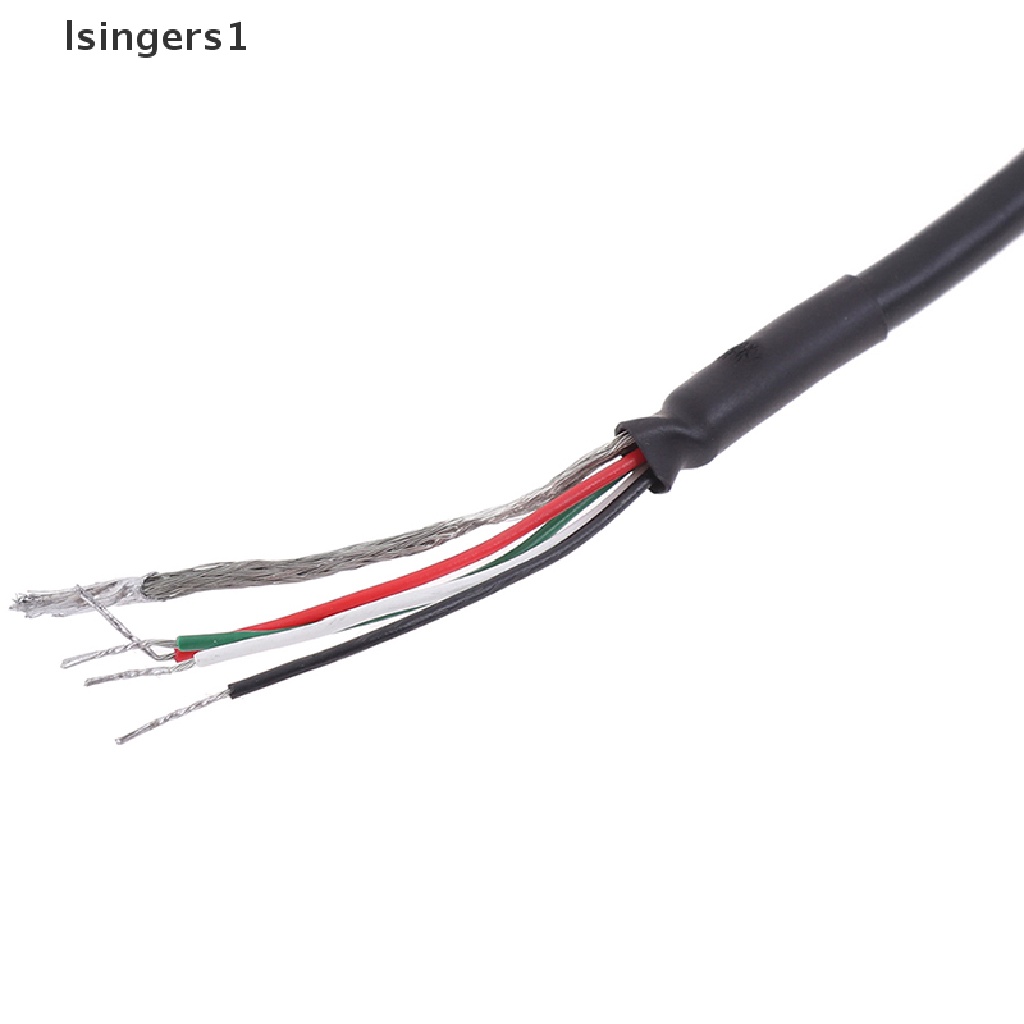

Green = A phase, white = B phase, red = Vcc power +, black = V0
Application:
Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement
Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots


Package included:
1 x Encoder Incremental Rotary Encoder
