Detail Low Voltage Disconnect Baterai Battery Charging Control Module M604 M609 XH-M604 XH-M609 Lithium Proteksi LVD Modul Over

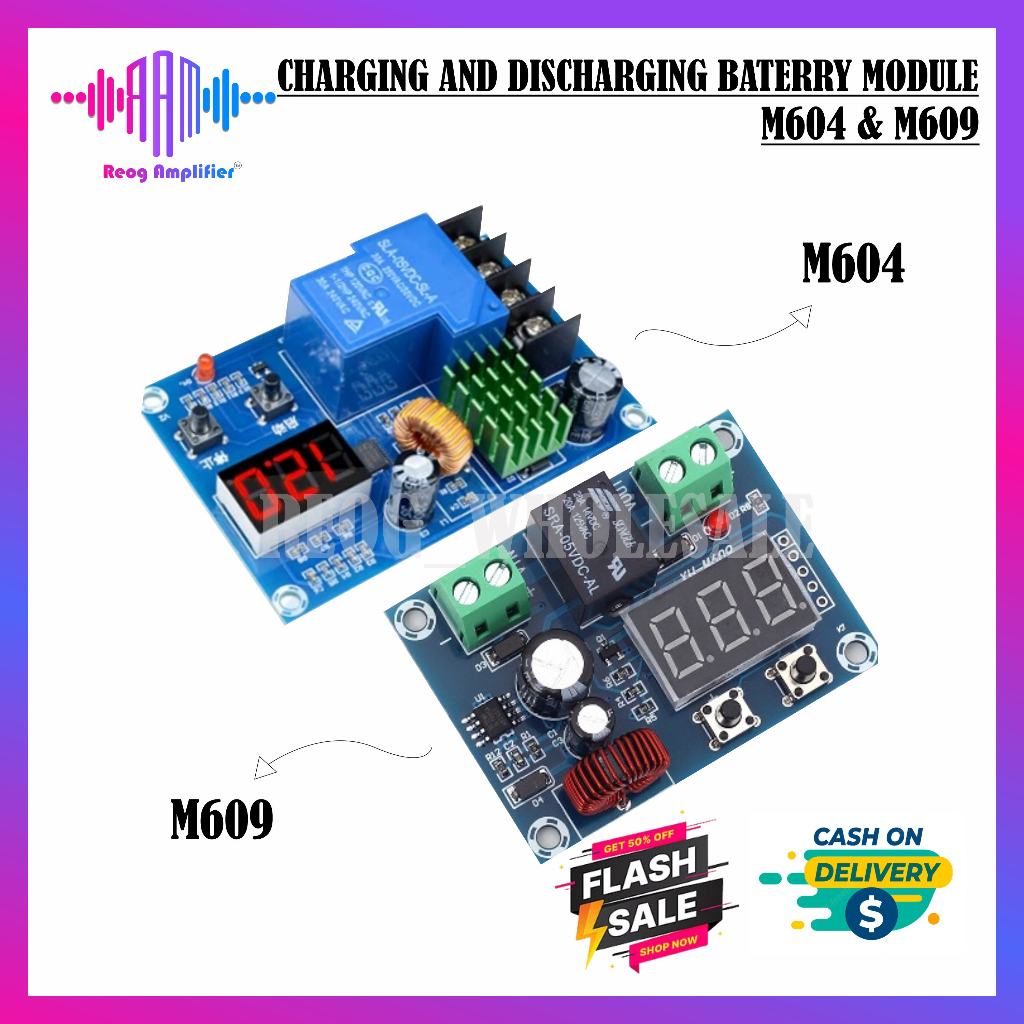

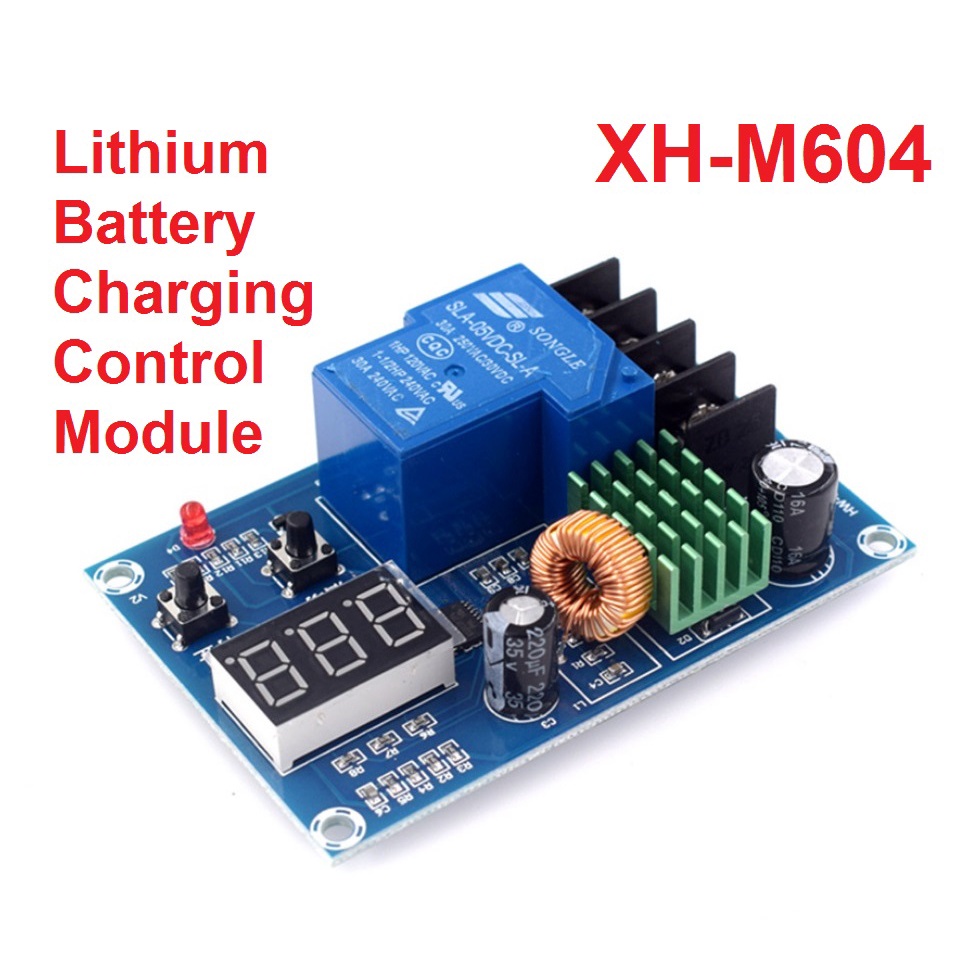

XH-M604 is a lithium battery CHARGING control module

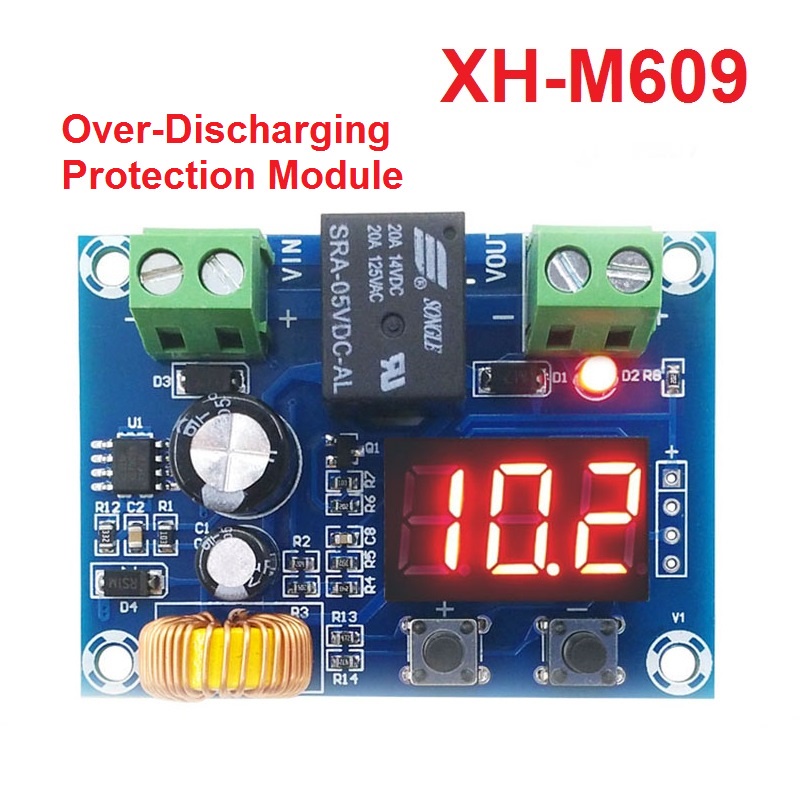

XH-M609 is a battery over-DISCHARGING protection module

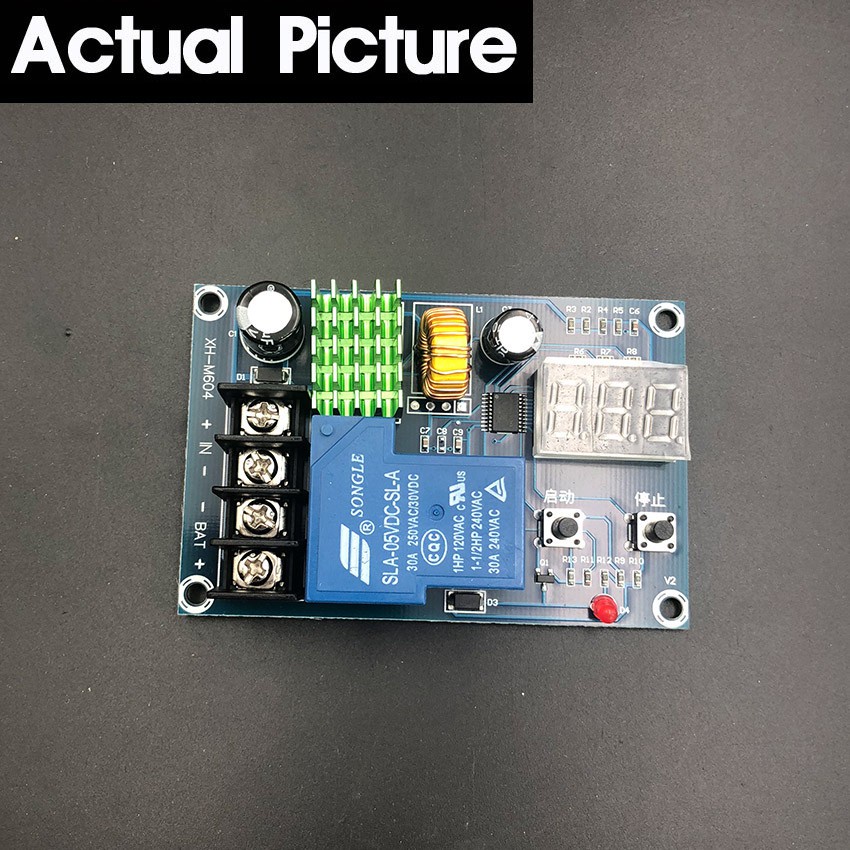

***********************XH-M604 ***********************

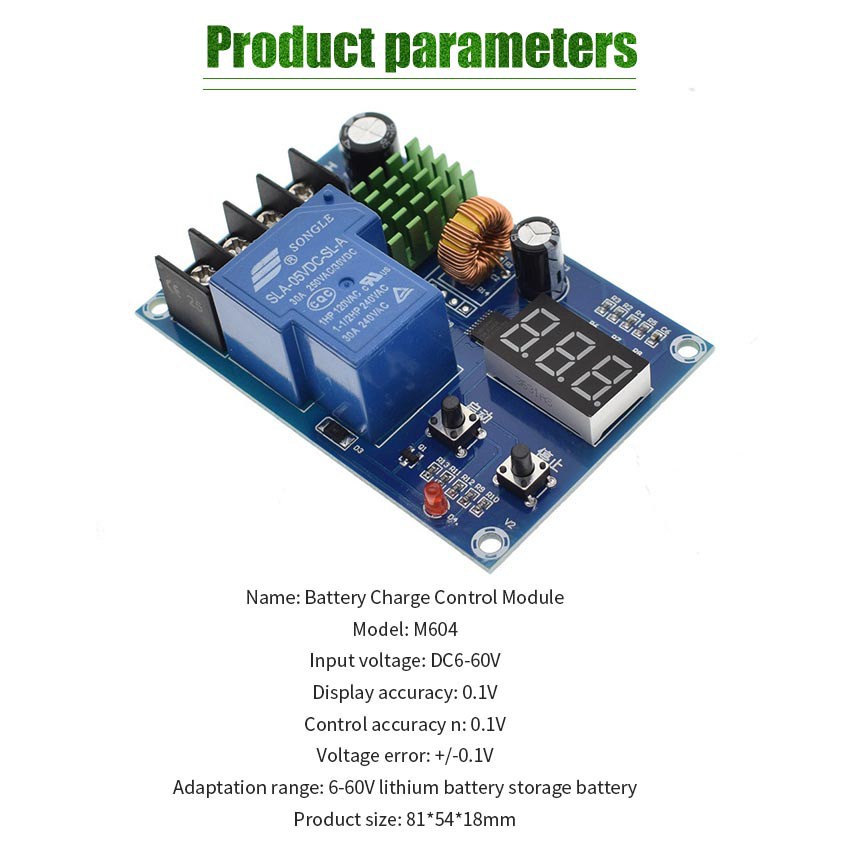

Description
Input Voltage:DC 6-60V
Display Accuracy:0.1V
Control Accuracy:0.1V
Output Type:direct output
Voltage Tolerance:±0.1V
Apply For:6-60V MAX 80V battery

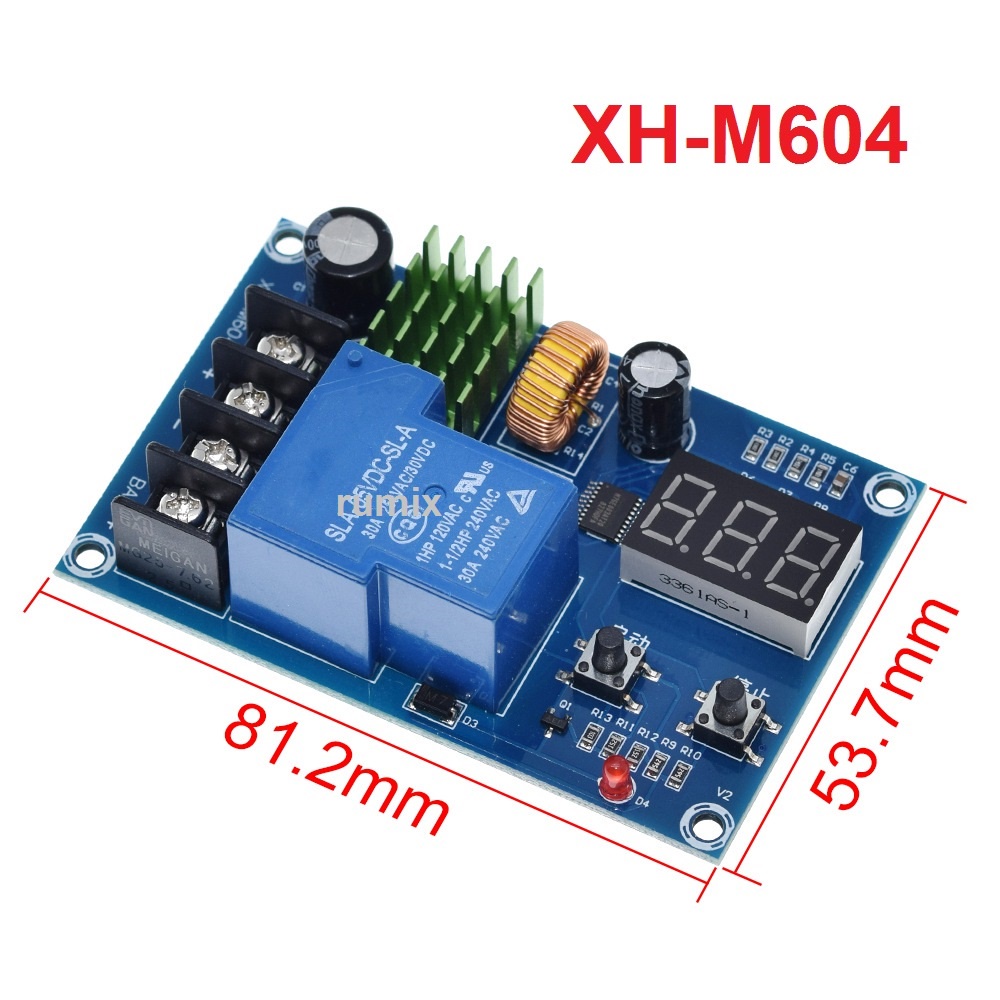

Dimension:81*54*18mm

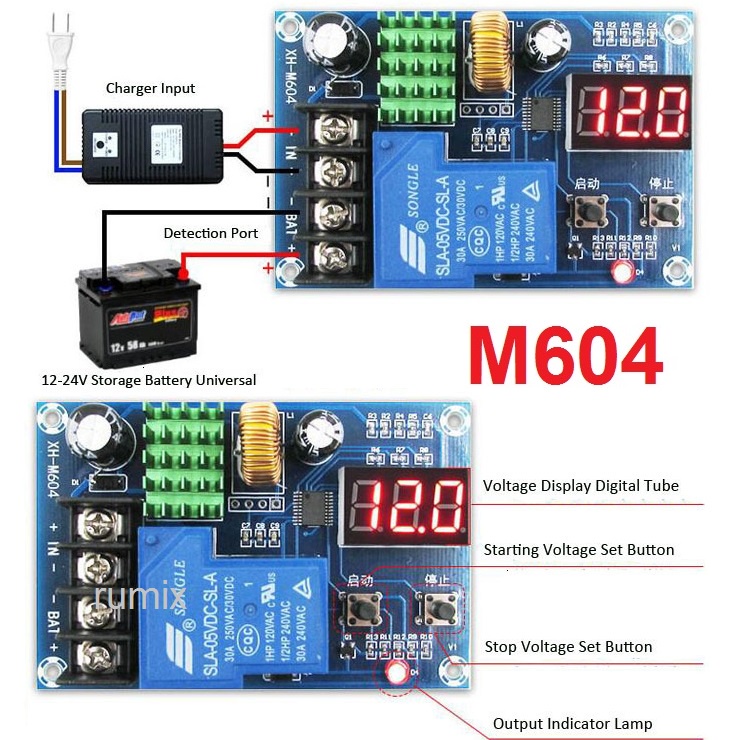

Use: In the setting voltage value, start button play button raised, about stop button role to down key

1. Set the start voltage:
Normal display voltage state, press to a starting voltage button ,to display the start charging voltage. long Press the start button, digital flashes, by start and stop button, set the start charging voltage value.

2. Set Stop voltage:
Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage. long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value.

3. Setting Error:
Energized state while holding down the start / stop button, digital display 888, which is the factory setting.

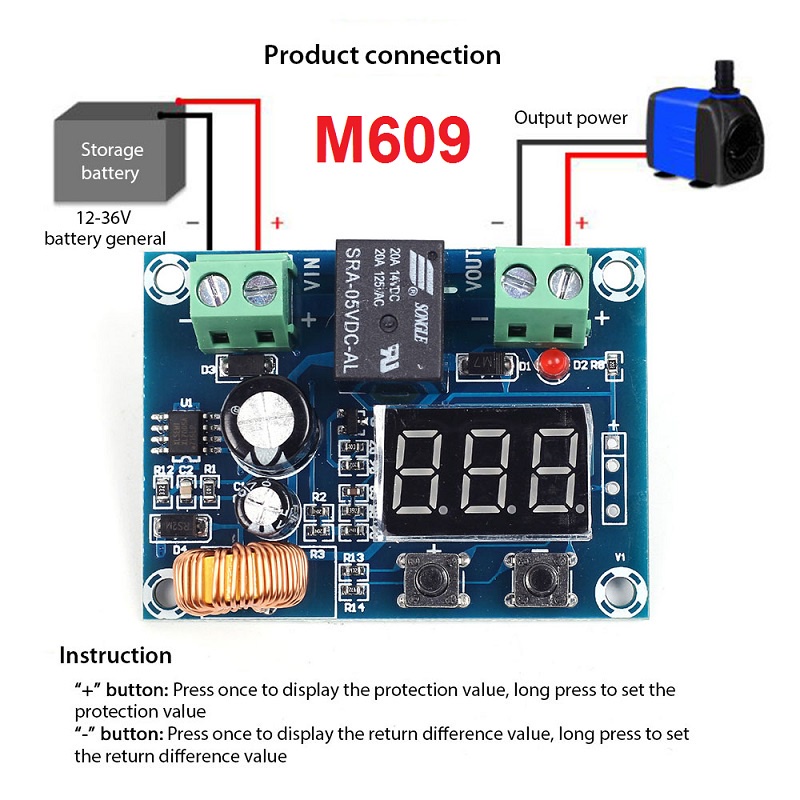

***********************XH-M609***********************
Low Voltage Disconnect/LVD Adalah.
Alat yang digunakan untuk menjaga agar baterai tidak Over Discharger/kosong.
yang akan mengakibatkan merusak baterai. Bisa di Sesuaikan dengan setting yang dikehendaki.

Memiliki Fitur Sbb :
- Automatic power off.
- Discharge protection.
- Prolong battery life.

Spesifikasi :
*Model : XH - M609
*Power supply voltage : 12 V- 36 V battery
*Output voltage : Equal to power supply voltage
*Control precision : 0.1 V
*Power consumption : Less than 1.5 W
Scope of application : Various storage batteries, lithium batteries

- Cara pengoperasian :
1. Nyalakan alat dengan input mulai dari 12 V- 36 V battery
menekan 2 tombol secara bersamaan akan mereset alat ke default ( LVD : 10V dengan jarak auto backup on load 2volt diatas tegangan LVD / atau 12V)

2. Tekan dan tahan beberapa saat tombol kiri untuk setting cutt off saat baterai low , atur nilainya tegangan dengan menekan tombol kiri untuk menambah dan tombol kanan untuk mengurangi. Biarkan sesaat (5 detik ) maka nilai LVD akan tersimpan.
Misal LVD diisi 12V maka saat baterai drop di 12V maka load akan off.

3. Tekan dan tahan tombol kanan beberapa saat maka akan muncul nilai backup auto on yaitu nilai selisih diatas LVD , dimana beban load akan menyala kembali.
Atur nilai auto on nya dengan menekan tombol kanan atau kiri untuk nilai selisih voltase yang di inginkan, biarkan sesaat 5detik maka nilai akan tersimpan.
Misal LVD setting 12V dan auto on load di isi 0.7 maka load akan menyala saat tegangan baterai 12.7 volt.

4. Nilai yang sudah tersimpan tidak akan hilang walau input baterai dilepas karena akan tersimpan di memory . nilai akan bisa di ubah saat di seting lagi / setting ulang.
