LoRa Ra-01 Module SX1278 Ai-Thinker 433M Wireless Spread Spectrum 10km

Komputer & Aksesoris > Komponen Network > Modem & Router Wireless > LoRa Ra-01 Module SX1278 Ai-Thinker 433M Wireless Spread Spectrum 10km
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:RAFTECHLihat semua produk Komputer & Aksesoris oleh RAFTECH
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail LoRa Ra-01 Module SX1278 Ai-Thinker 433M Wireless Spread Spectrum 10km

LoRa ™ Spread Spectrum modulation technology

Constant RF power output at + 18dBm-80mW voltage change
High sensitivity: down to -148dBm
Half-duplex SPI communication
Programmable bit rates up to 300kbps
Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes
127dB RSSI dynamic range
Automatic RF signal detection, CAD mode and very high speed AFC
Packet engine with CRC up to 256 bytes
Small footprint dual-row stamp-hole patch package
Shielded housing
Spring Antenna

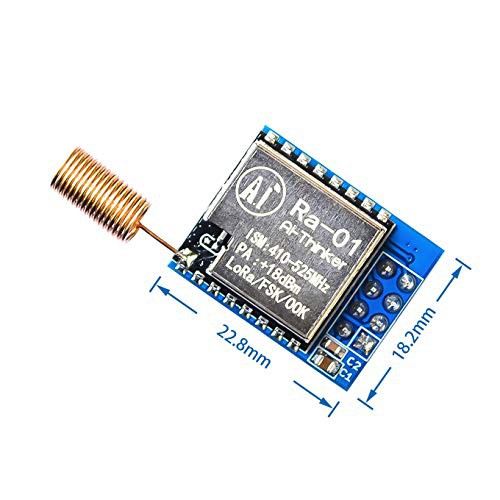

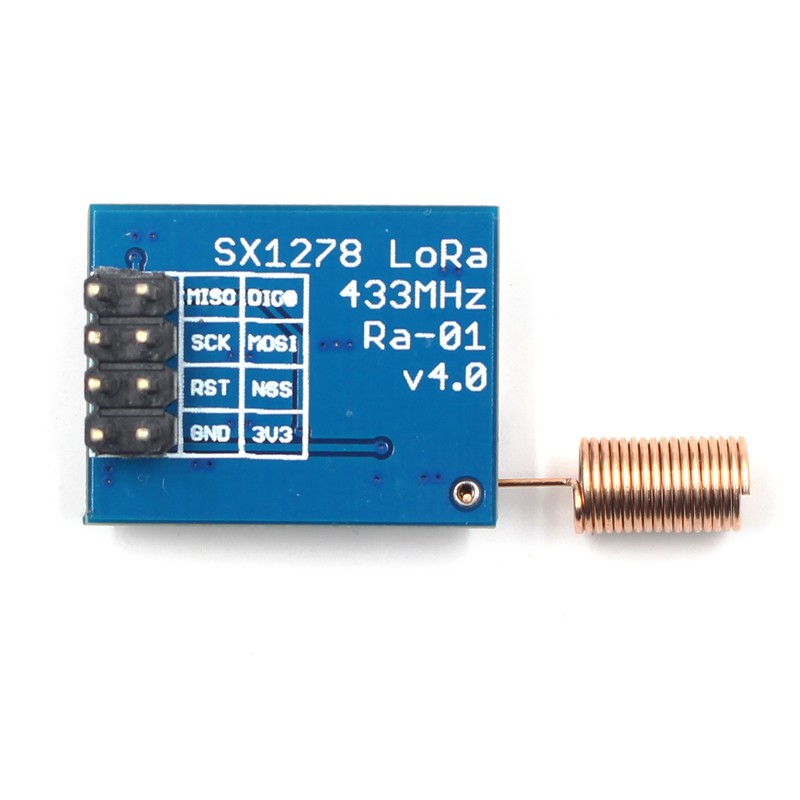

Gambar produk

LoRa Ra-01 Module SX1278 Ai-Thinker 433M Wireless Spread Spectrum 10km
LoRa Ra-01 Module SX1278 Ai-Thinker 433M Wireless Spread Spectrum 10km
LoRa Ra-01 Module SX1278 Ai-Thinker 433M Wireless Spread Spectrum 10km
LoRa Ra-01 Module SX1278 Ai-Thinker 433M Wireless Spread Spectrum 10km
