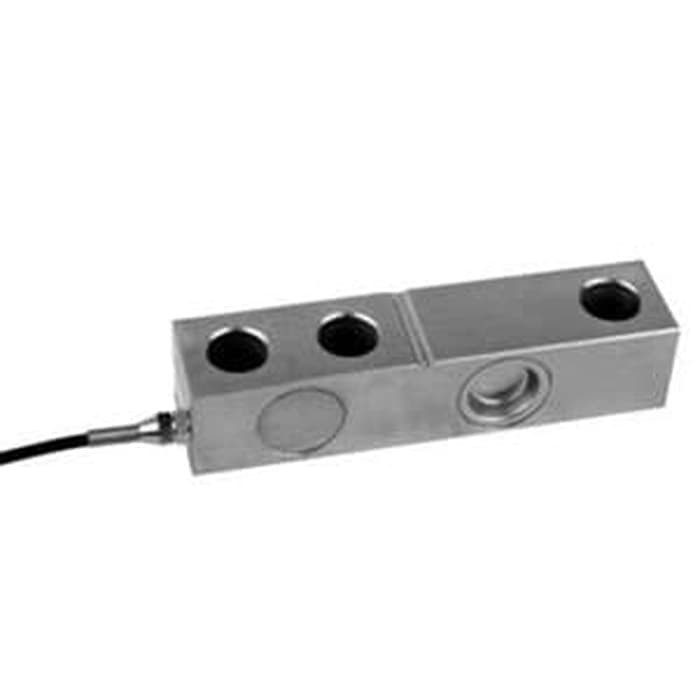

Loadcell SQB 2Ton
**SPECIFICATION:
Type : SQB
Capacity : 2ton

Features :
- Theaded load hole confirguration
- Low profile
- OIML C3 Approval
- Optional material : Stainless steel, alloy steel
- Rated capacity : 0.1 ton 10ton
- Rated output : 2.00.002mv/v (0.1t~0.3)l; 3.00.003mv/v (0.5t~10t)
- Combined error : 0.03%F.S (alloy steel); 0.05 % F.S (Stainless steel)
- Non repeatability : 0.002% F.S
- Non linearity : 0,02% F.S
- Hysteresis error : 0.02 %F.S
- Zero balance : 1%F.S
- Creep error (30minutes) : 0.02%F.S
- Temperature effect on zero : 0.02% F.S
- Compensated temperature range : -10 tp +40';';C
- Operating temperature range : -30 to +70';';C
- Maximum safe overload : 180% OF R.C
- Recomended Excitation : 10 to 12V DC
- Maximum Excitation : 15V DC
- Environment protection : IP67 (0.1t~0.3t); IP68 (0.5t~10t)
- Input impedance : 40020';
- Output impedance : 352';
- Insulation resistance at 50V DC : ';5000M';
- Material : nickel-plated alloy steel; stainless steel
- Cable length:
(1.5/3)meter (0.1t~2.5t), 4.2 meter (3t~5~), 5meter (7.5t~10t), diameter 6mm

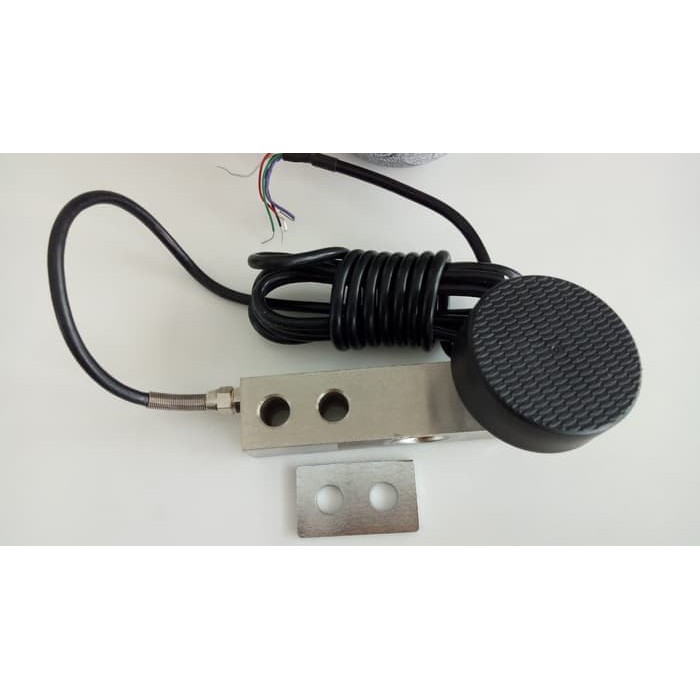

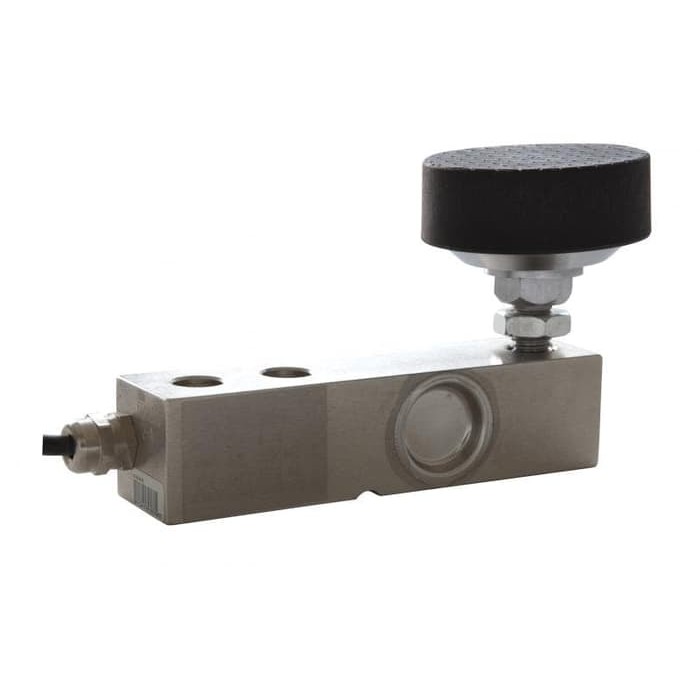

Gambar produk
