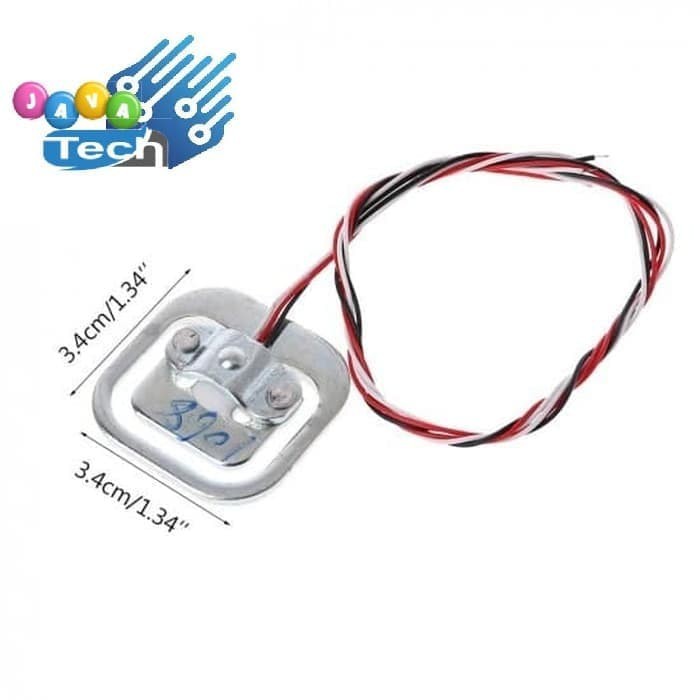

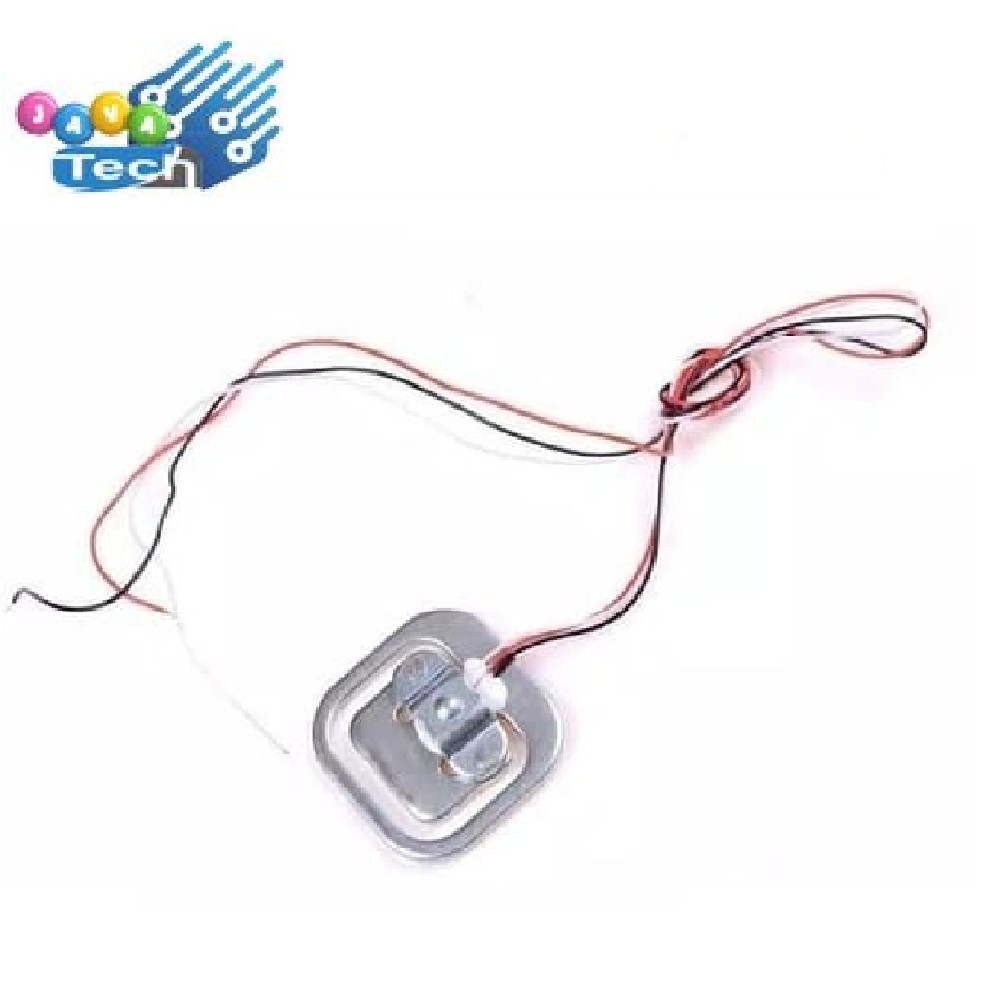

Loadcell 50kg / Load Cell Sensor Resistance Strain 50 Kg

Detail Loadcell 50kg / Load Cell Sensor Resistance Strain 50 Kg

Loadcell 50kg / Load Cell Sensor Resistance Strain 50 Kg
LOADCELL 50 KG / LOAD CELL 50 KG SENSOR RESISTANCE STRAIN
when measuring, the correct style is applied to the outer side of the strain of e-beam-shaped part of the sensor (ie, strain gauge affixed to the medium, the adhesive layer with white light arms) and the outer edges to form a shear force in the opposite direction, ie, middle strain beam bending necessary changes can occur under pressure, strain beam side by the other powers should not be a barrier.

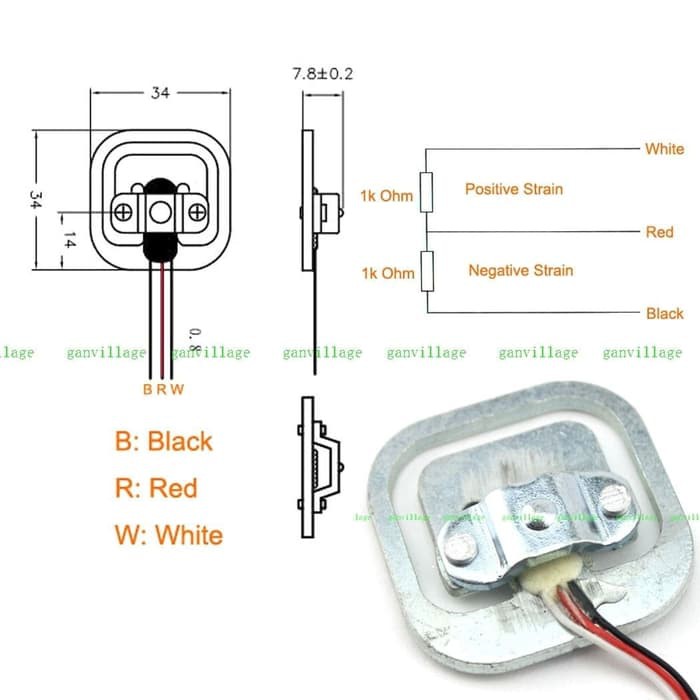

sensor is a group in the half-bridge strain gauge, you can use the following three:

1, the use of sensors with an external resistor bridge measurement range for the full range of sensors: 50 kg. higher requirements for external resistors.
2, the use of only two full-bridge sensor range measurement for a range of two sensors and: 50kgx2 = 100 kg

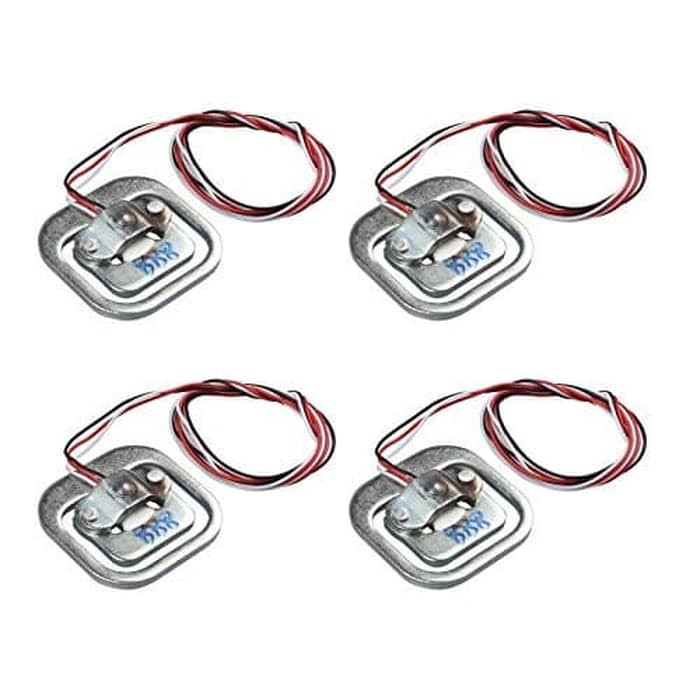

3, the use of four full-bridge sensor measuring range to the range of four sensors and: 50kgx4 = 200 kg
