Detail Load Cell Weight Weighing Strain Gauge Scale 5KG Arduino Sensor Berat Timbangan

Yuk buruan diorder !!!


Spesifikasi:
> Kapasitas beban maksimal: 5 Kg
> Ukuran: 80 x 12.5 x 12.5mm
> Ukuran lubang baut: M4 dan M5
> Kabel Merah: ke E+ (modul HX711)
> Kabel Hitam: Ke E- (modul HX711)
> Kabel Hijau: Ke A - (modul HX711)
> Kabel Putih: ke A+ (modul HX711)

Harga Termasuk:
1 x Load Cell 5 Kg

Product Specifications:
Sensor Type: Shear Load Cell
Weight Capacity Max: 5 kg
Maximum Overload: 6 kg
Creep: 5 g/hr
Zero Balance: 75 g
Cell Repeatability Error Max: 2.5 g
Cell Non-Linearity Max: 2.5 g
Cell Hysteresis Max: 2.5 g
Temperature Effect on Span: 250 mg/C
Temperature Effect on Zero: 500 mg/C
Rated Output: 1 mV/V
Rated Output Error Max: 150 V/V
Output Impedance: 1 k
Supply Voltage Max: 5 V DC
Compensated Temperature Min: -10 C
Compensated Temperature Max: 40 C
Operating Temperature Min: -20 C
Operating Temperature Max: 55 C
Cable Length: 55 mm
Cable Gauge: 30 AWG
Material: Aluminium Alloy
Screw Thread Size: M5x0.8

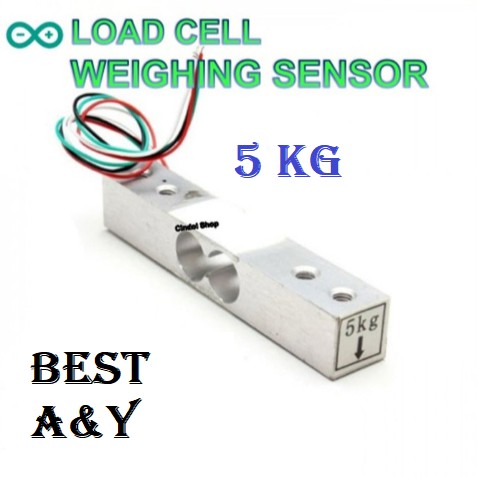

Gambar produk
