Detail load cell weight sensor timbangan berat 120kg 150kg 300kg merk morizt
Technical parameters:
Comprehensive error : 0.02 F.S
Sensitivity :1.0 0.1mv v
Nonlinearity: 0.02 F.S
Hysteresis: 0.02 F.S
Importance of :0.02 F.S
Creep: 0.02 F.S 10min
0:00 Output :2 F.S
Input Impedance :405 10
Output impedance :350 3
Insulation resistance :5000M (100VDC)
Excitation voltage :5VDC 12VDC
Temperature compensation range :10 40
Operating temperature range: 20 60
Temperature effect on zero 0.03 F.S 10
Temmp.effect 0.02 F.S 10
Safe overload 120
Ultimate Overload 150
Protection class IP65
Wiring
Black Power (Exc )
White Power (Exc )
Red Signal
green signal

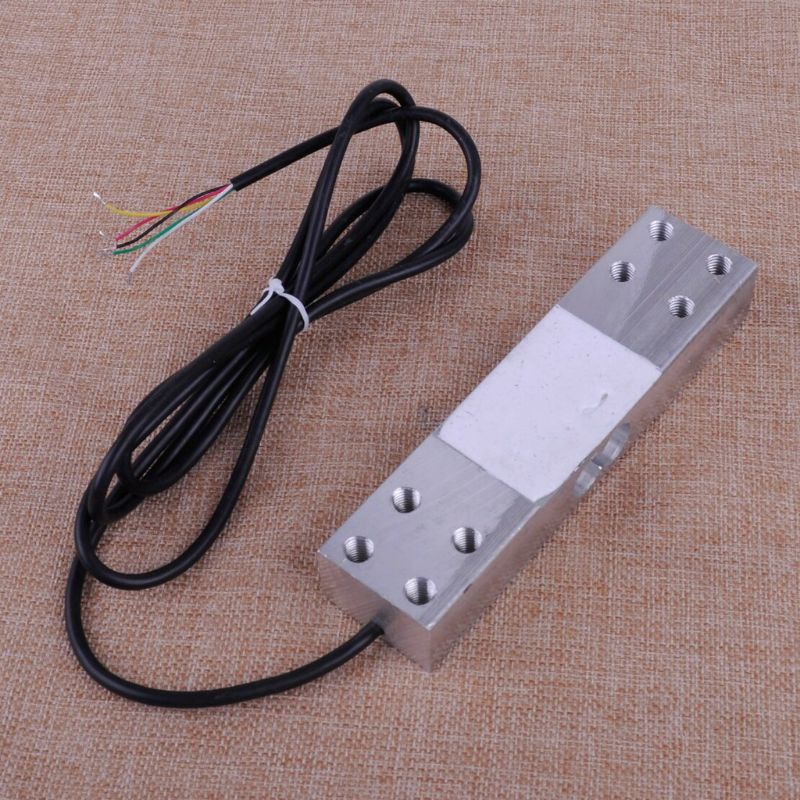

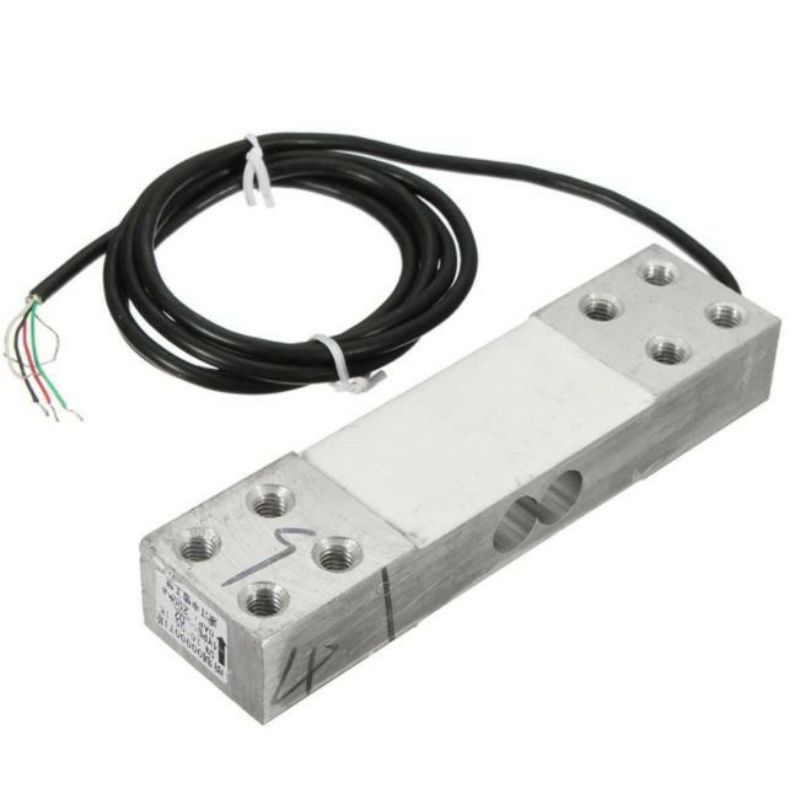

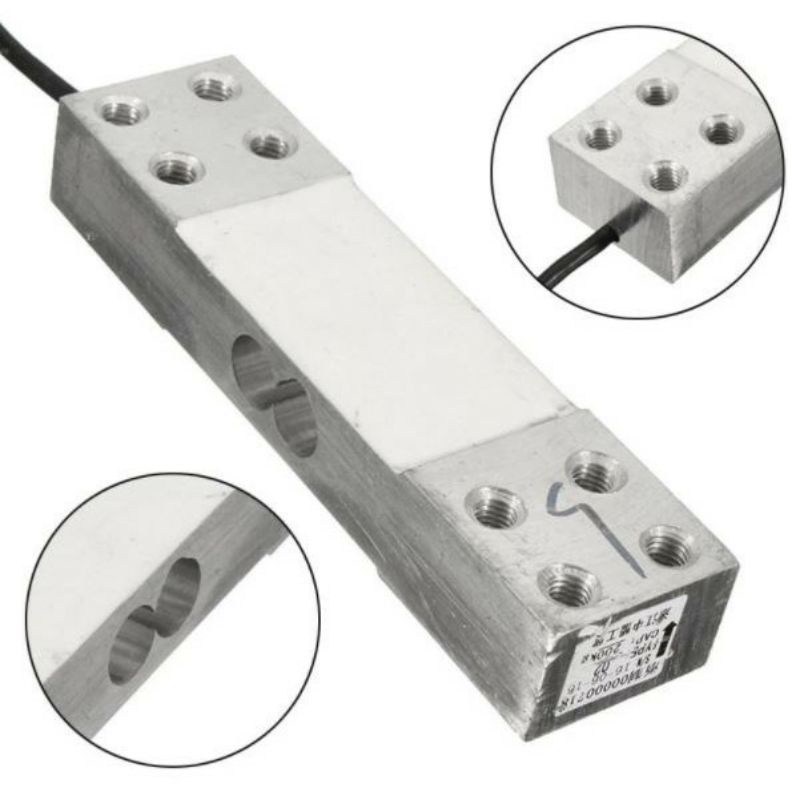

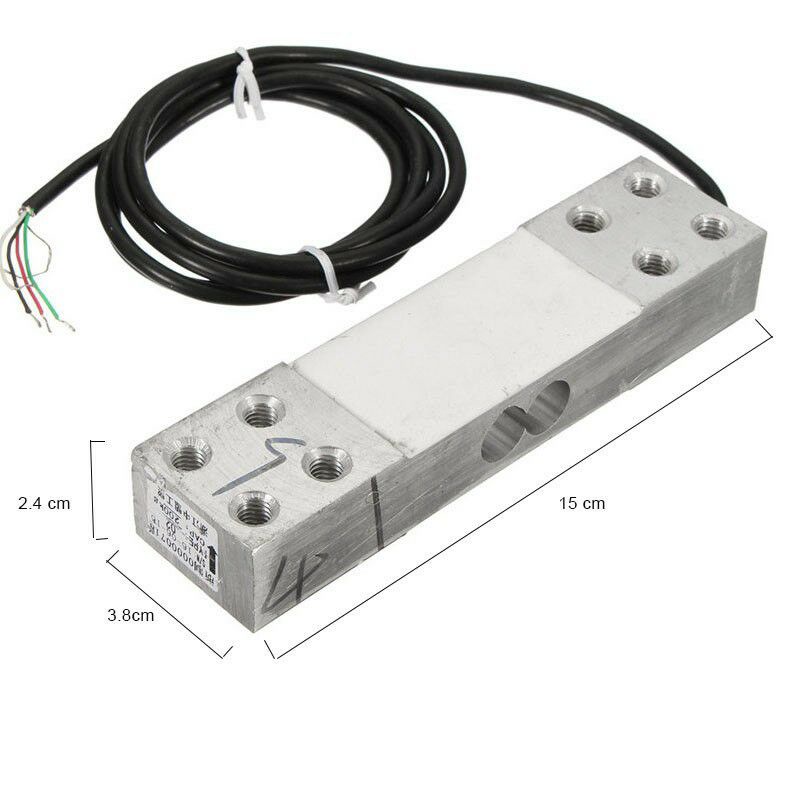

Gambar produk
