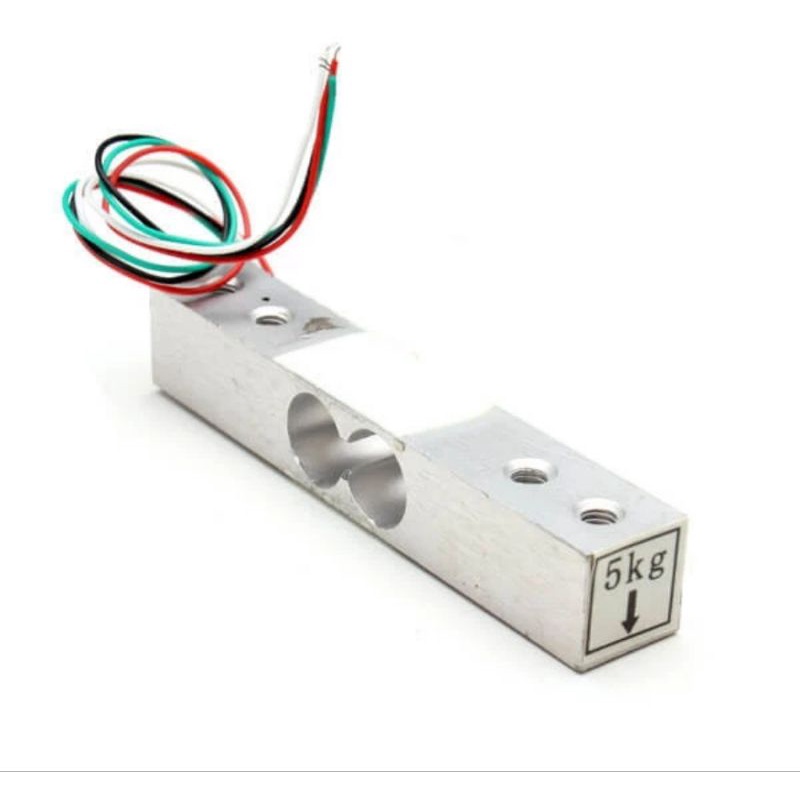

load cell sensor berat timbangan 5kg for Uno mega

Detail load cell sensor berat timbangan 5kg for Uno mega

Product Specifications:

Sensor Type: Shear Load Cell
Weight Capacity Max: 5 kg
Maximum Overload: 6 kg
Creep: 5 g/hr
Zero Balance: 75 g
Cell Repeatability Error Max: 2.5 g
Cell Non-Linearity Max: 2.5 g
Cell Hysteresis Max: 2.5 g
Temperature Effect on Span: 250 mg/C
Temperature Effect on Zero: 500 mg/C
Rated Output: 1 mV/V
Rated Output Error Max: 150 V/V
Output Impedance: 1 k
Supply Voltage Max: 5 V DC
Compensated Temperature Min: -10 C
Compensated Temperature Max: 40 C
Operating Temperature Min: -20 C
Operating Temperature Max: 55 C
Cable Length: 55 mm
Cable Gauge: 30 AWG
Material: Aluminium Alloy
Screw Thread Size: M5x0.8

harga per satuan

Gambar produk
