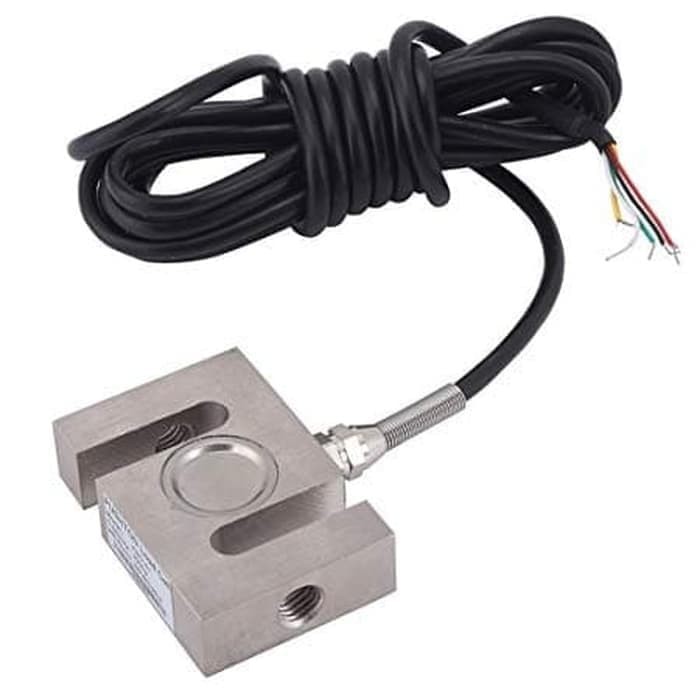

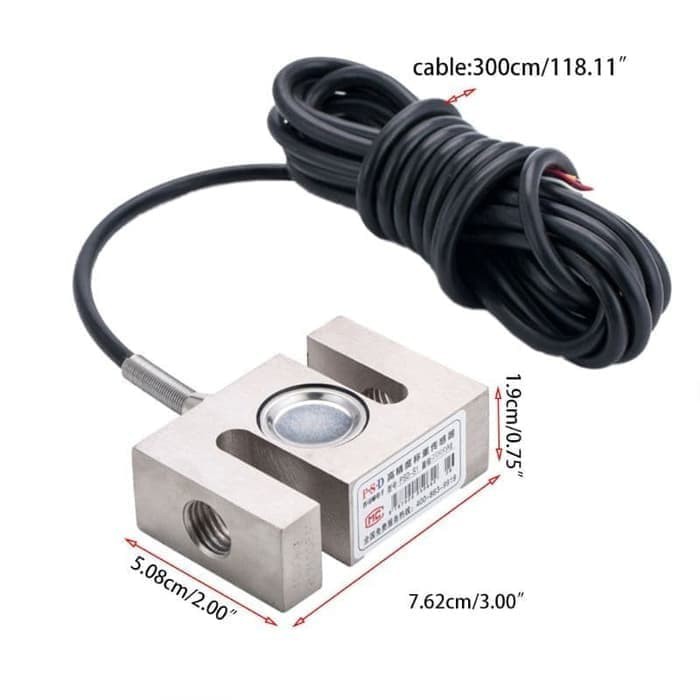

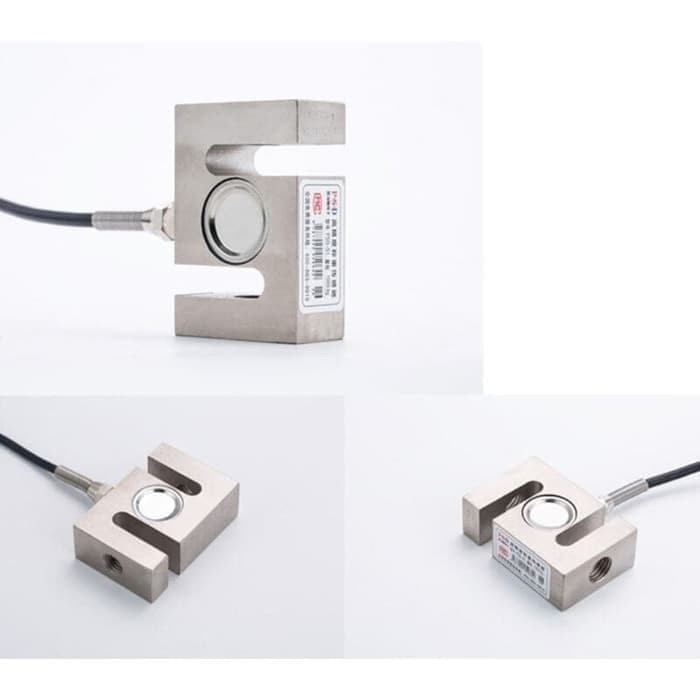

Load Cell Scale Sensor 2000kg Portable S-type High Precision 2 Ton

Detail Load Cell Scale Sensor 2000kg Portable S-type High Precision 2 Ton

Portable S-type Beam High-Precision Load Cell Scale Sensor 50-2000 KG for Hopper Weight High Pressure Tension Weighing

Specifications:

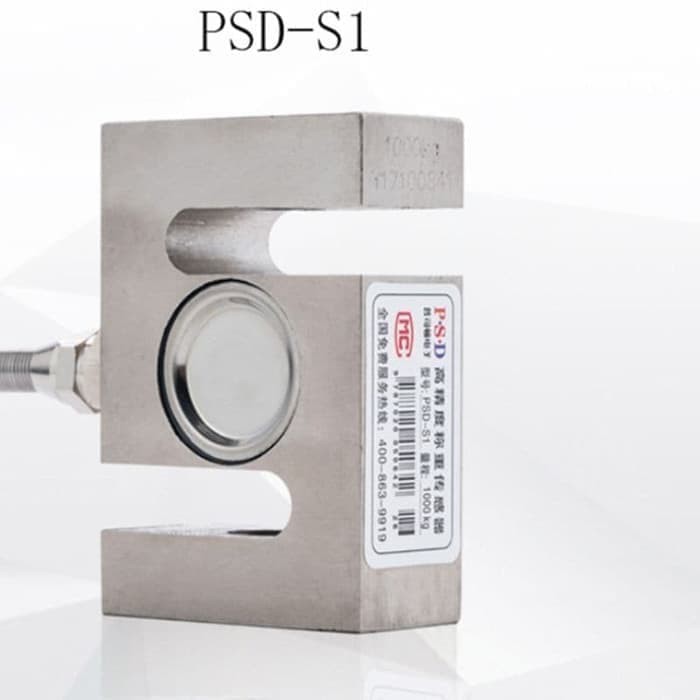

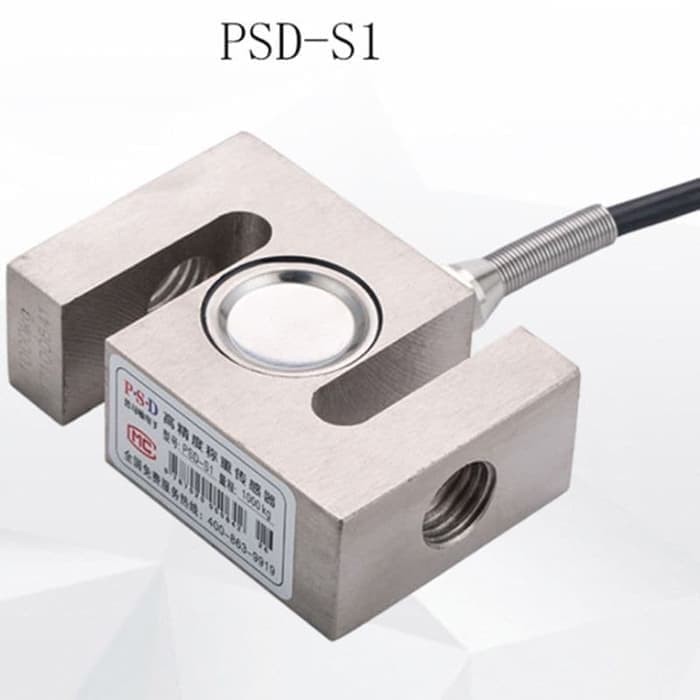

Model: PSD-S1
Material: metal
Type: weighting
Physical properties of materials: conductors
Process: film
Output signal: analog
Protection grade: IP67
Linearity: ±0.02(%F.S.)
Delaying: ±0.02(%F.S.)
Repeatability: ±0.02(%F.S.)
Sensitivity: 2.0mv/v
Drifting: ±0.02%F.S
Input impedance: 350±10Ω
Output impedance: 350±5Ω
Application: Mixing station, batching machine, asphalt station, etc.
Measuring range(Optional):2000kg

Quantity: 1PC
Weight: 680g approx

Wire connecting method:
Input: Red wire(+), Black wire(-)
Output: Green wire(+), White wire(-)
Yellow wire(GND)

Package Included:
1 x Weighting Sensor
