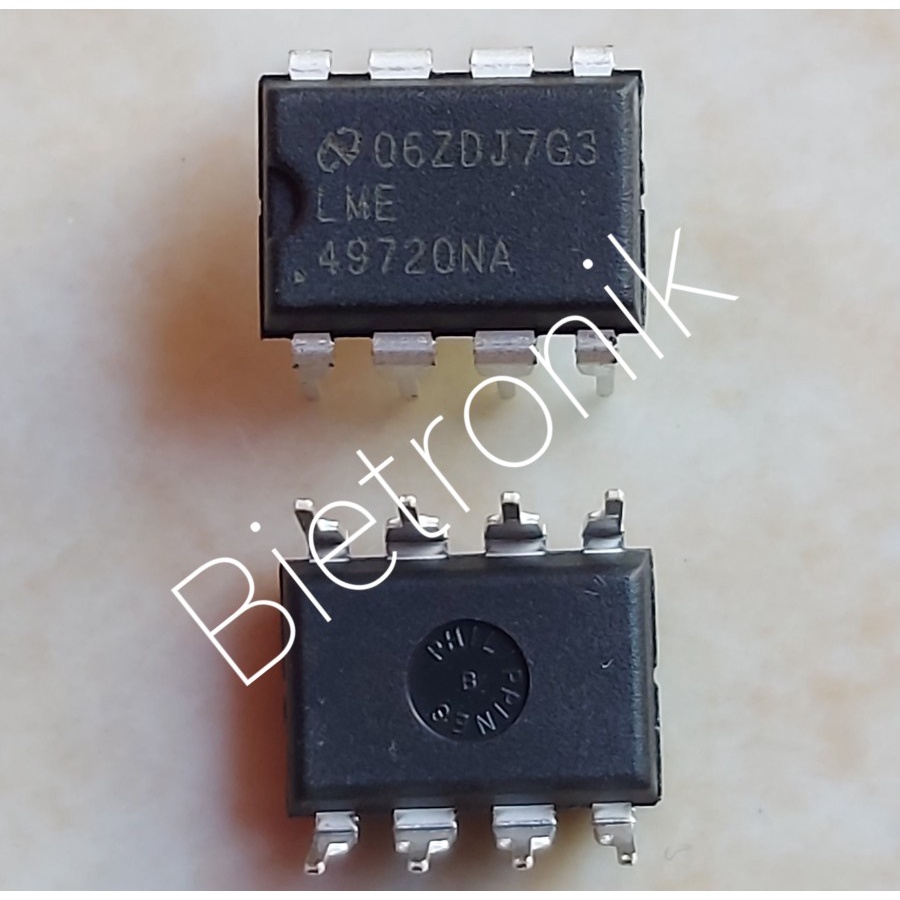

Detail LME49720 LME49720NA DIP8 Original Texas Instruments
Harga 1 pcs
Manufacturer: Texas Instruments
Product Category: Audio Amplifiers
RoHS: Details
Series: LME49720
Product: Audio Amplifiers
Mounting Style: Through Hole
Type: Dual
Package/Case: PDIP-8
THD plus Noise: 0.00003 %
Supply Voltage - Max: 34 V
Supply Voltage - Min: 5 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Packaging: Tube
Height: 3.3 mm
Length: 9.27 mm
Output Current: 26 mA
Supply Type: Dual
Width: 6.35 mm
Brand: Texas Instruments
Number of Channels: 2 Channel
CMRR - Common Mode Rejection Ratio: 110 dB to 120 dB
Development Kit: LME49720MABD
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
GBP - Gain Bandwidth Product: 55 MHz
Ib - Input Bias Current: 72 nA
Maximum Dual Supply Voltage: +/- 17 V
Minimum Dual Supply Voltage: +/- 2.5 V
Operating Supply Current: 5 mA
Operating Supply Voltage: 2.5 V to 17 V
Product Type: Audio Amplifiers
PSRR - Power Supply Rejection Ratio: 110 dB
Gambar produk
