LM75A Temperature Sensor I2C Precision Sensor Suhu LM75 LM 75 Module

Detail LM75A Temperature Sensor I2C Precision Sensor Suhu LM75 LM 75 Module

LM75A Temperature Sensor I2C Precision Sensor Suhu LM75 LM 75 Module

LM75A is a high-speed I2C interface, temperature sensor, in the temperature
range -55 ~ + 125 Centigrade The temperature was directly converted to digital
signals, and to achieve the accuracy of 0.125 Centigrade. MCU can be read
directly via I2C bus data in its internal registers, and through I2C to four
data registers operates to set different operating modes. LM75A has three
selectable logic address pins, making it possible to connect eight devices
without address conflict on the same bus.

Features:

1. I2C bus interface, the device address 7 slave address 1001xxx, can expand
outside eight devices on the same bus;

2. Power range: 2.8V ~ 5.5V, temperature range: -55 ~ +125 Centigrade;

3. 11 ADC provides a temperature resolution of 0.125 Centigrade;

4. Temperature accuracy: ±2 Centigrade(-25 ~ 100 Centigrade) ±3 Centigrade (-55
~ 125 Centigrade)

5. Programmable temperature threshold and hysteresis set points;

6. In order to reduce power consumption, the current consumption in shutdown
mode is only 1.0uA;

7. On power-up the device can be used as a stand-alone temperature controllers;

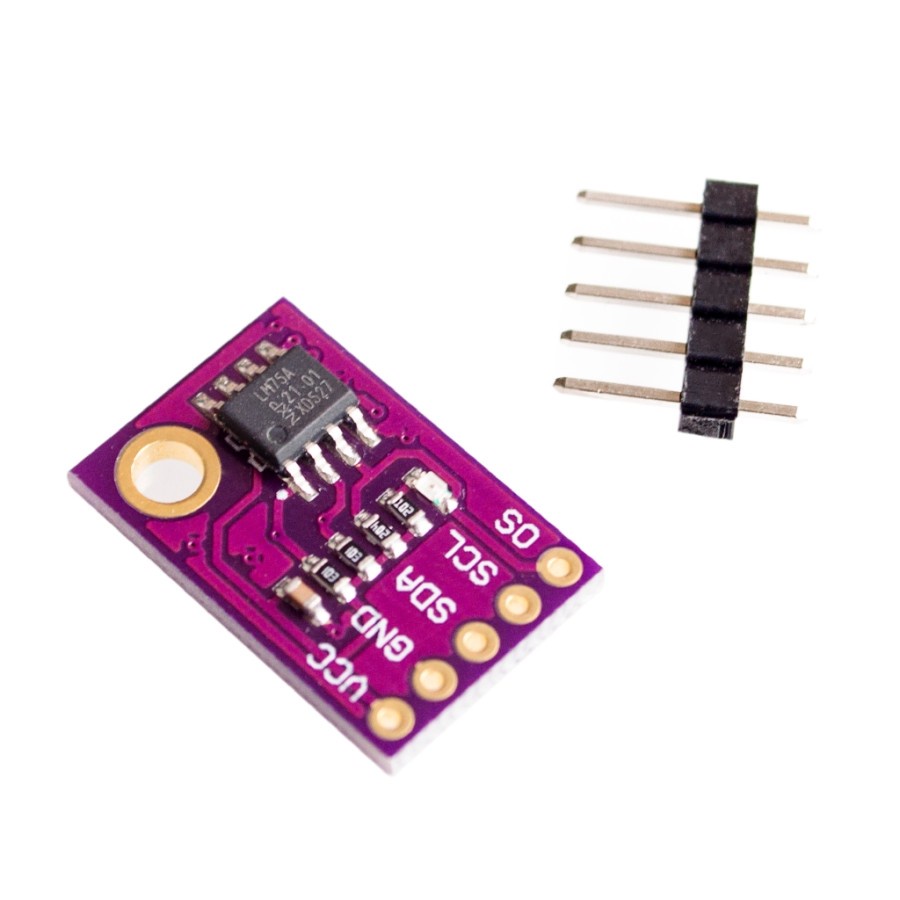

Gambar produk
