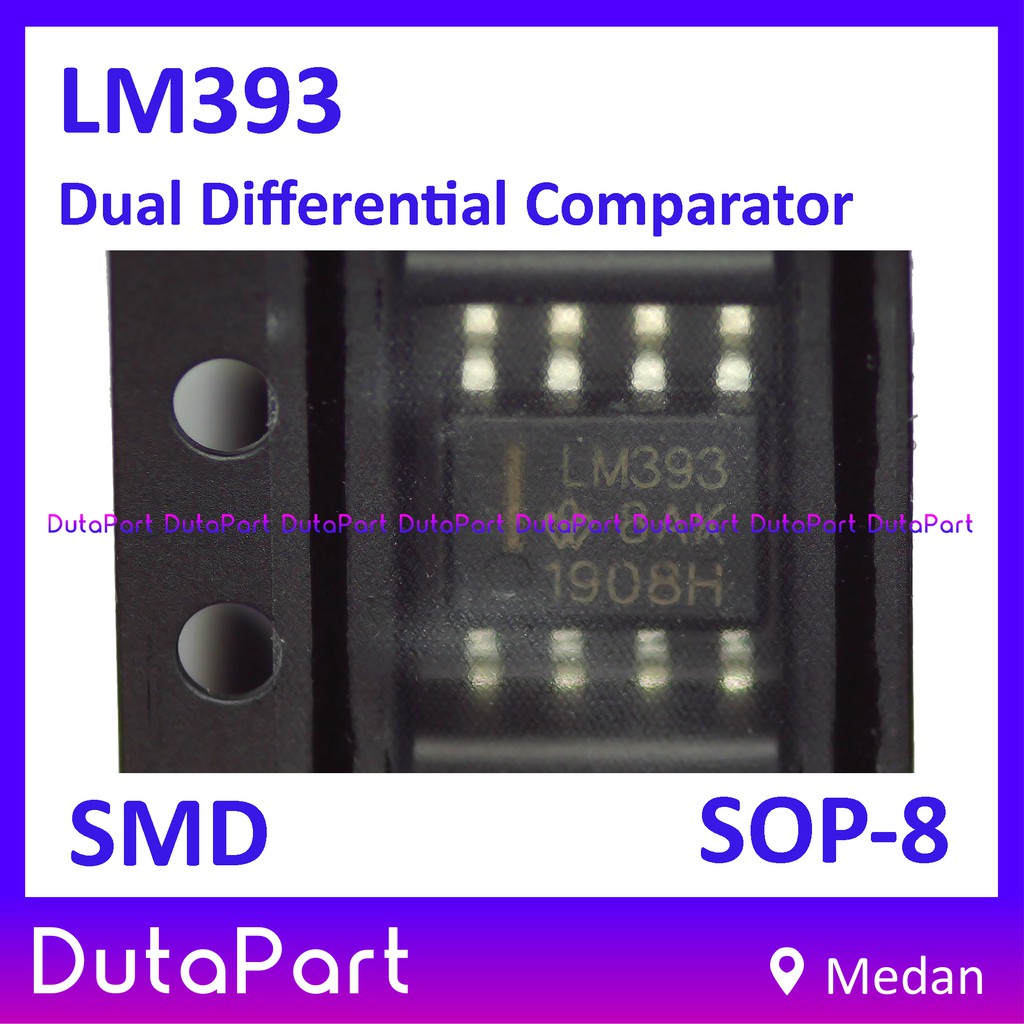

LM393 LM393D LM393DR Dual Differential Comparator SMD IC SOP-8
Deskripsi singkat
Elektronik > Elektronik Lainnya > LM393 LM393D LM393DR Dual Differential Comparator SMD IC SOP-8
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail LM393 LM393D LM393DR Dual Differential Comparator SMD IC SOP-8
LM393 LM393D LM393DR Dual Differential Comparator SMD IC SOP-8*** Minimal Pemesanan Adalah Rp.20.000, Belum Termasuk Ongkir (Bisa di gabung dengan barang lain). ***
Barang sama/sesuai dengan foto diatas (Difoto oleh team toko kami).
Spesifikasi :
- Single-Supply or Dual Supplies
- Wide Range of Supply Voltage
- Maximum Rating: 2 V to 36 V
- Tested to 30 V: Non-V Devices
- Tested to 32 V: V-Suffix Devices
- Low Supply-Current Drain Independent of Supply
- Voltage: 0.4 mA (Typical) Per Comparator
- Low Input Bias Current: 25 nA (Typical)
- Low Input Offset Current: 3 nA (Typical) (LM139)
- Low Input Offset Voltage: 2 mV (Typical)
- Common-Mode Input Voltage Range
- Includes Ground
- Differential Input Voltage Range Equal to
- Maximum-Rated Supply Voltage: ±36 V
- Low Output Saturation Voltage
- Output Compatible With TTL, MOS, and CMOS
