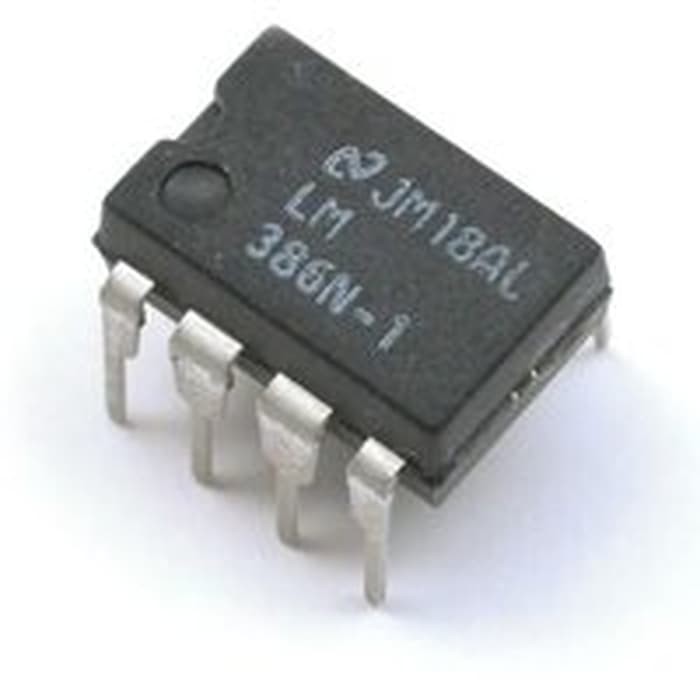

LM386N LM386M LM386 Audio Power Amplifier DIP 8 Pin

Detail LM386N LM386M LM386 Audio Power Amplifier DIP 8 Pin

LM386N LM386M LM386 Audio Power Amplifier DIP 8 Pin BG88

Description:
The LM386 is a Wide Vin Class-D low Power Audio Amplifier with internal gain designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200. The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24mW when operating from a 6V supply, making the LM386 ideal for battery operation.

Feature:
Battery operation
Minimum external parts
Low quiescent current drain
Ground referenced input
Self-centering output quiescent voltage
Green product and no Sb/Br

Application:
Signal Processing, Audio, Consumer Electronics
