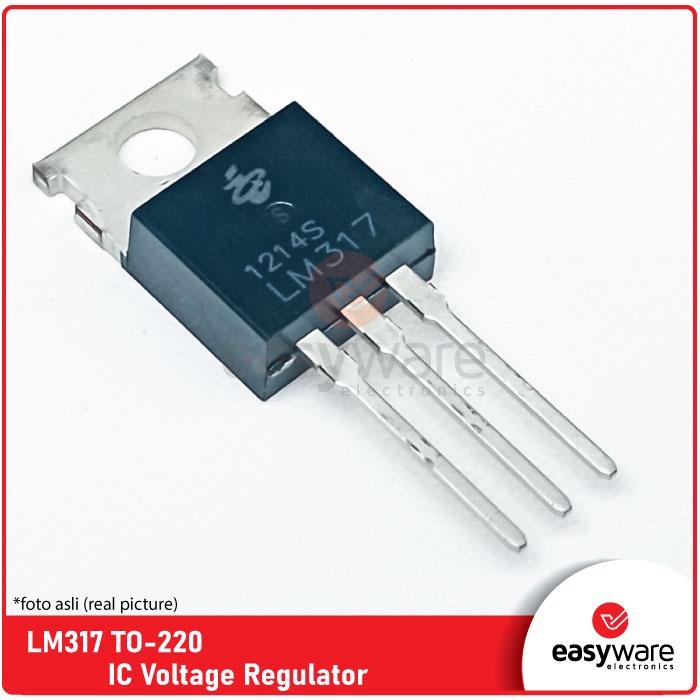

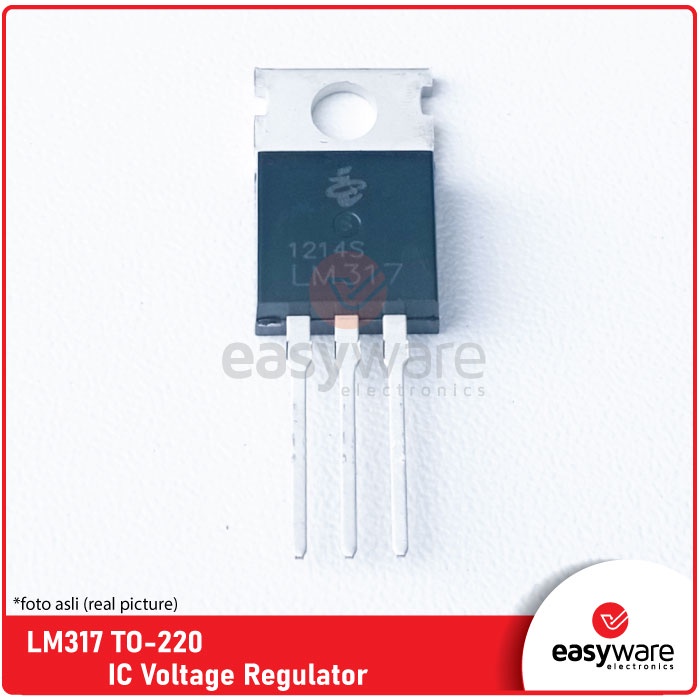

LM317 TO-220 Voltage Regulator Adjustable

Detail LM317 TO-220 Voltage Regulator Adjustable

Hi #RekanEasyWare ...
EasyWare Part#: EP001646

**** Bismillah ****

The LM317 device is an adjustable three-terminal
positive-voltage regulator capable of supplying more
than 1.5 A over an output-voltage range of 1.25 V to
37 V. It requires only two external resistors to set the
output voltage. The device features a typical line
regulation of 0.01% and typical load regulation of
0.1%. It includes current limiting, thermal overload
protection, and safe operating area protection.
Overload protection remains functional even if the
ADJUST terminal is disconnected

Features :
• Output Voltage Range Adjustable
From 1.25 V to 37 V
• Output Current Greater Than 1.5 A
• Internal Short-Circuit Current Limiting
• Thermal Overload Protection
• Output Safe-Area Compensation

Applications :
• ATCA Solutions
• DLP: 3D Biometrics, Hyperspectral Imaging,
Optical Networking, and Spectroscopy
• DVR and DVS
• Desktop PC
• Digital Signage and Still Camera
• ECG Electrocardiogram
• EV HEV Charger: Level 1, 2, and 3
• Electronic Shelf Label
• Energy Harvesting
• Ethernet Switch
• Femto Base Station
• Fingerprint and Iris Biometrics
• HVAC: Heating, Ventilating, and Air Conditioning
• High-Speed Data Acquisition and Generation
• Hydraulic Valve
• IP Phone: Wired and Wireless
• Intelligent Occupancy Sensing
• Motor Control: Brushed DC, Brushless DC, Low-
Voltage, Permanent Magnet, and Stepper Motor
• Point-to-Point Microwave Backhaul
• Power Bank Solutions
• Power Line Communication Modem
• Power Over Ethernet (PoE)
• Power Quality Meter
• Power Substation Control
• Private Branch Exchange (PBX)
• Programmable Logic Controller
• RFID Reader
• Refrigerator
• Signal or Waveform Generator
• Software Defined Radio (SDR)
• Washing Machine: High-End and Low-End
• X-ray: Baggage Scanner, Medical, and Dental

Package :
1 x LM317 TO-220

Gambar produk
