LM2596S regulated DC-DC step-down power supply module

Detail LM2596S regulated DC-DC step-down power supply module

MCIGICM 1pcs DC-DC LM2596 4.0~40 Regulator tegangan 1.3-37V Step Down Converter Module Voltage Regulator

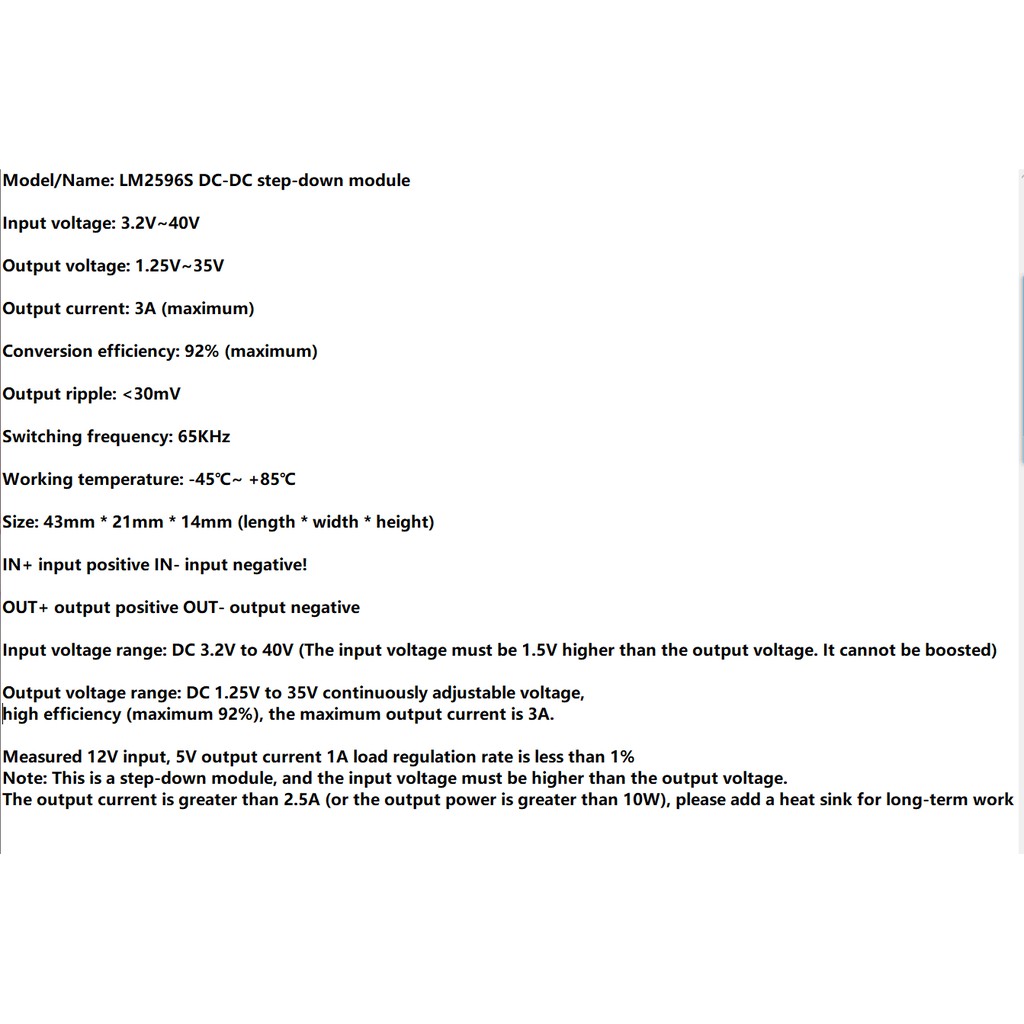

Model/Name: LM2596S DC-DC step-down module

Input voltage: 3.2V~40V

Output voltage: 1.25V~35V

Output current: 3A (maximum)

Conversion efficiency: 92% (maximum)

Output ripple: <30mV

Switching frequency: 65KHz

Working temperature: -45℃~ +85℃

Size: 43mm * 21mm * 14mm (length * width * height)

IN+ input positive IN- input negative!

OUT+ output positive OUT- output negative

Input voltage range: DC 3.2V to 40V (The input voltage must be 1.5V higher than the output voltage. It cannot be boosted)

Output voltage range: DC 1.25V to 35V continuously adjustable voltage, high efficiency (maximum 92%), the maximum output current is 3A.

Measured 12V input, 5V output current 1A load regulation rate is less than 1%
Note: This is a step-down module, and the input voltage must be higher than the output voltage.
The output current is greater than 2.5A (or the output power is greater than 10W), please add a heat sink for long-term work.
