LM2596S MODUL PENURUN TEGANGAN STEP DOWN LM2596 1,5V 3,3V 5V 9V 12V 24V 36V MAX TINGGAL PUTARTRIMPOT

Detail LM2596S MODUL PENURUN TEGANGAN STEP DOWN LM2596 1,5V 3,3V 5V 9V 12V 24V 36V MAX TINGGAL PUTARTRIMPOT

Ready stock ratusan langsung order

Descriptions:

1. LM2596 chip module uses high-quality , high efficiency (up to 92% ) , heat a small , can easily bring up 3A ( short ) over current, long working hours is recommended for use in less than 2.5A current , while adding fins (10W output above ) .

2. This module uses machine placement, reflow soldering, and each module before shipment after two hours of aging test, to ensure high reliability.

3. Input voltage range: DC 3.2V-40V (input voltage output voltage must be higher than 1.5V or more. Could not boost)

4. Output voltage range: 1.25V-35V DC voltage is continuously adjustable, high efficiency (up to 92%) the maximum output current of 3A.

Specifications:
Module property Non-isolation step-down (BUCK)
Rectification mode Non-synchronous rectification.
Input voltage 3.2V-40V
Output voltage 1.25V-35V
Input current 3A(maximum)
Switching frequency 65KHz
The output ripple 30mV(max.)
Conversion efficiency 92%( highest)
Load regulation ±0.5%
Voltage regulation ±2.5%
Work temperature -40℃ -- +85℃
Size 42*20*14(L*W*H)(mm)

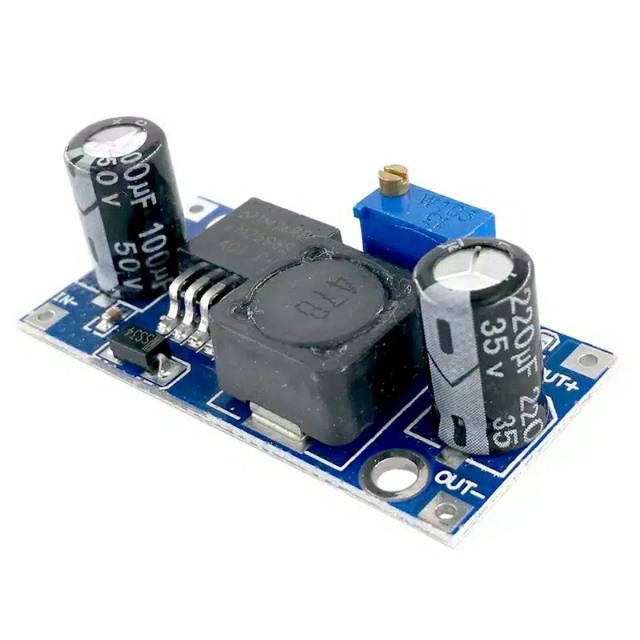

Gambar produk
