Detail LM2596S LM2596 Constant Current for LED Driver Lithium-ion Battery Power Supply Module
Spesifications :- Premium quality LM2596 chip with high efficiency and low heat output
- With the use of low ESR YUAN loaded Sanyo filter capacitor, make the ripple voltage as low as 50mV
- Can easily reach 3A or more current, stable performance
- High quality material, durable to use
- The output ripple: 20M bandwidth (for reference only)
- Input 12V output 5V 3A 60mV (MAX)
- Working temperature: industrial grade (- 40 — + 85 celsius degree) (when temperature is more than 40 degrees, please reduce power, or enhance heat dissipation)
- Full load temperature rise: 45 celsius degree
- No-load current: 10mA typical (12V to 4.2V)
- Load regulation: ± 1%
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Output short circuit protection: yes, constant current (current setting constant current value)
- Connection mode: can lead directly welding on the PCB
Package :
- 1x LM2596 DC to DC Step Down 3A constan current
*deskripsi dan sebagian gambar diperoleh dari berbagai sumber di internet

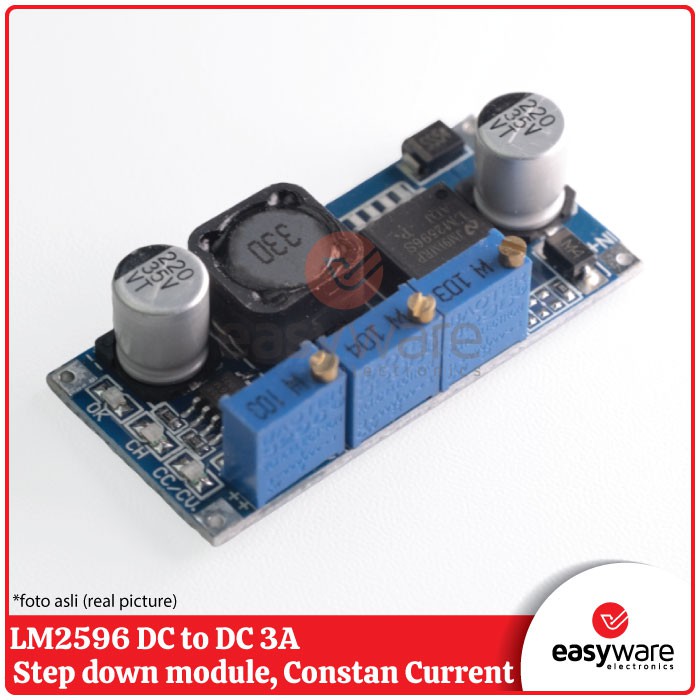

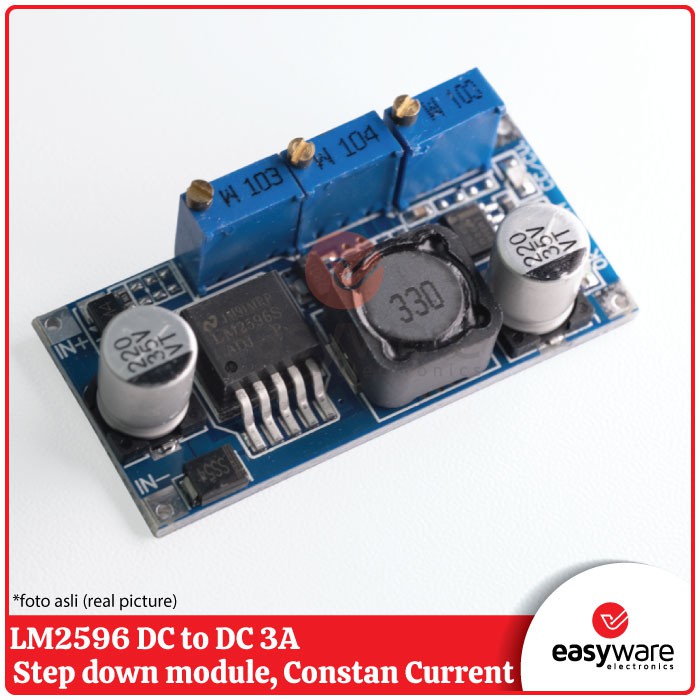

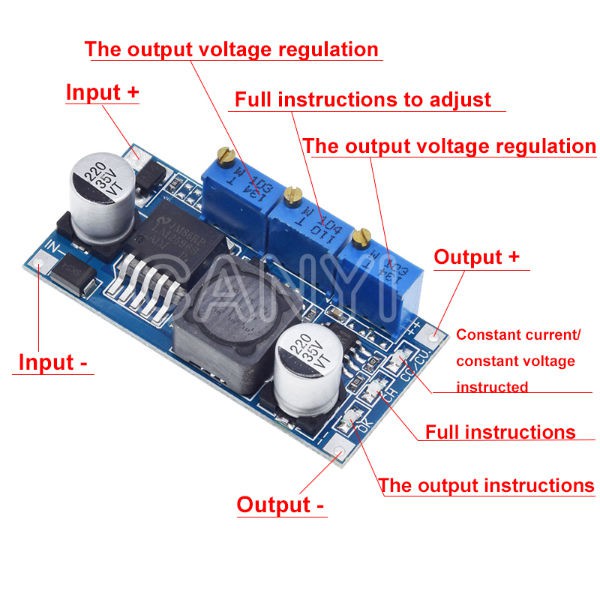

Gambar produk
