LM2596 LM2596S Dual USB DC-DC 9V 12V 24V 36V to 5V 3A StepDown Charger

Detail LM2596 LM2596S Dual USB DC-DC 9V 12V 24V 36V to 5V 3A StepDown Charger

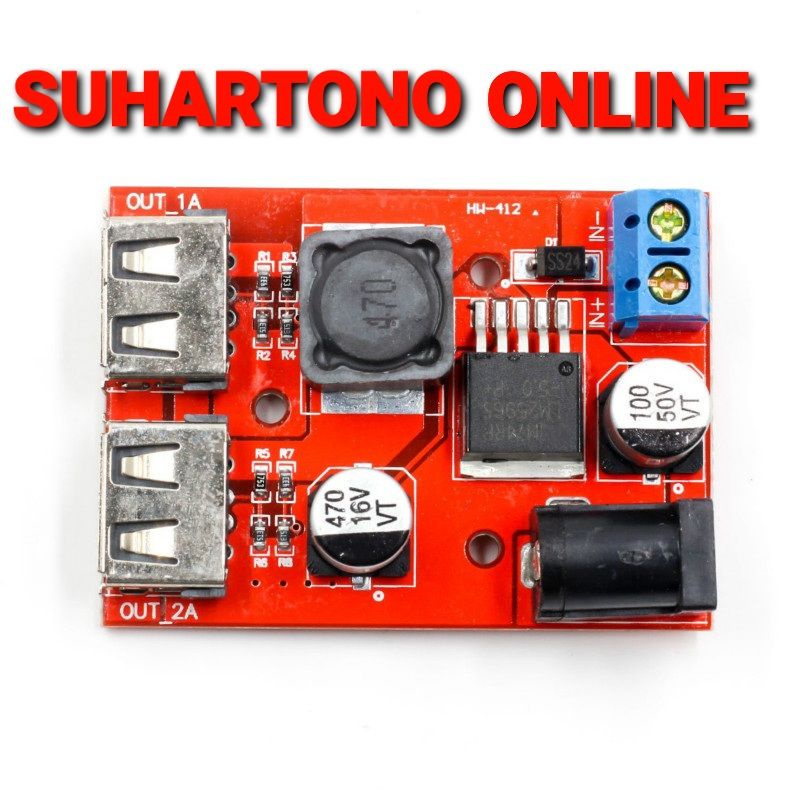

Double USB output module 3A Step-Down
Input: 6V-40V (DC5.5/2.1 port, connecting terminal)
Output: 5V / 3A (MAX)(With Identification resistance for Apple)
Efficiency: 92% (MAX)
Switching frequency: 150KHZ
Working temperature: -40 ° - + 85 °
Load capacity: Maximum output 3A (Connect with two phones simultaneously)
Scope: mobile power, mobile phones, flat-panel powered devices USB5V

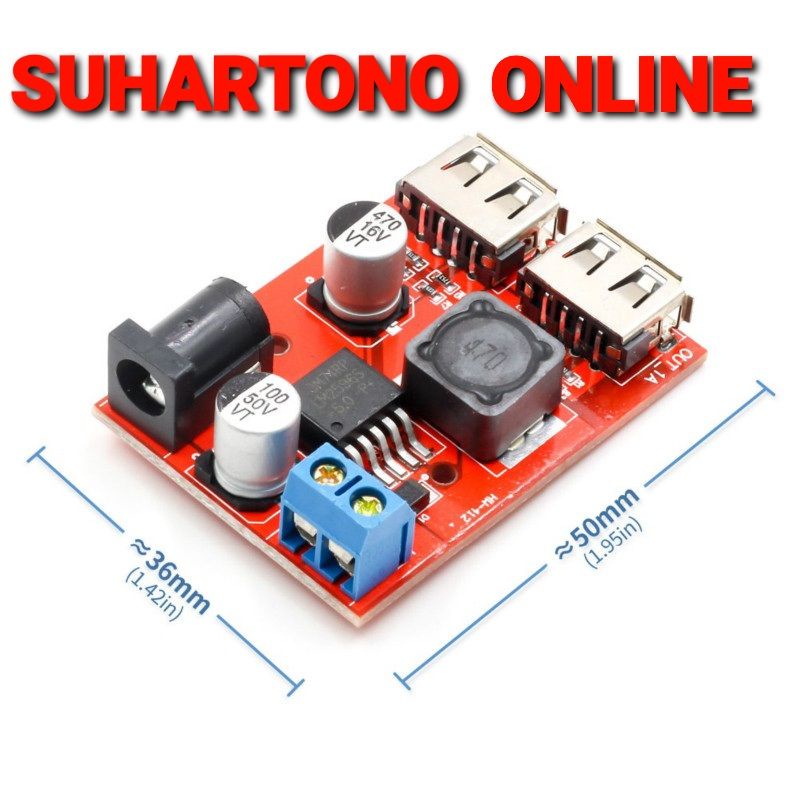

Product Size: approx. 50*35*12mm/1.96*1.37*0.47''
Net weight: approx. 17g

Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.

Included:

1 x Step-down Buck Power Module
