Detail LM2596 LM 2596 5A DC-DC Step Down power module Voltage Regulator

Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short circuit protection: current limiting, since the recovery
Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Full load temperature rise: 40
Load regulation: 0.5%
Voltage regulation: 2.5%
Dynamic response speed: 5% 200uS

Specification:

Input voltage:4.5-40V

Output voltage:1.5-35V(Adjustable)

Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)

Dimension:43*20*14mm(L*W*H)


Package includes:

1PCS LM2596 DC-DC adjustable power step-down module

Gambar produk

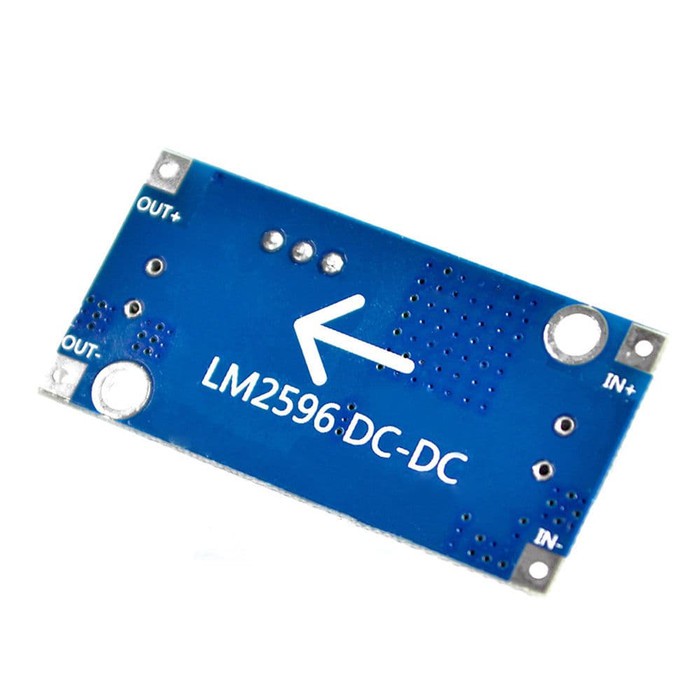

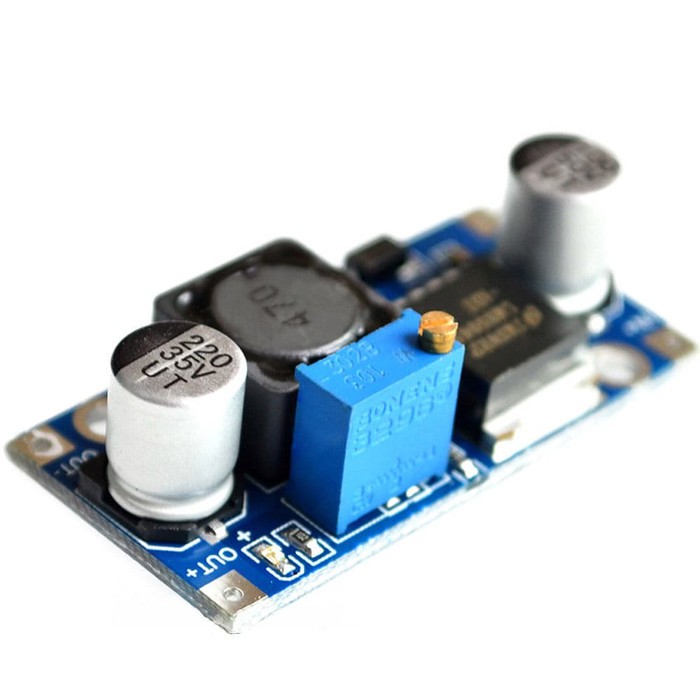

LM2596 LM 2596 5A DC-DC Step Down power module Voltage Regulator
